Work Truck Legend®

Legen

• All-LED light bar — work lights, takedowns, alleys and S/T/T (stop/tail/turn) lights available
• FS Convergence Network, serial lightbar
• Available in 45”, 53”, 61” and 70” lengths
• Advanced microprocessor controller provides three modes of operation and a library of flash patterns
• Built-in SignalMaster™, front/rear cut-off, intersection warning, and “dimming” functions
• Optional 3- or 6-button controller available (wireless 6-button controller also available)
• LEDs offered in Amber, Blue, Green, Red or White
• Top domes offered in Amber, Blue, Clear or Red
• Solaris® LED reflector technology
• ROC (Reliable Onboard Circuitry™) technology
• Five-year LED warranty

Approvals	Red 5" or 4" (6 LEDs) and Corner (9 LEDs) are SAE J845 Class 1, SAE J595 Class 1 and CA T13 Class B compliant
	Blue 5" or 4" (6 LEDs) and Corner (9 LEDs) are SAE J845 Class 1, SAE J595 Class 2 and CA T13 Class B compliant
	Amber 5" or 4" (6 LEDs) and Corner (9 LEDs) are SAE J845 Class 1, SAE J595 Class 2 and CA T13 Limited Class B* compliant
	*Two adjacent Amber 5" or 4" heads are compliant. Corner reflector arrays are NOT compliant.
Voltage	12.8 VDC
Operating Temperature Range	-30°C to +65C
Dim. (H x L x D)	24" - 2.5 in x 24.3 in x 11.2 in (6.4 cm x 61.6 cm x 28.4 cm)
	45" - 2.5 in x 44.5 in x 11.2 in (6.4 cm x 113.0 cm x 28.4 cm)
	53" - 2.5 in x 52.7 in x 11.2 in (6.4 cm x 133.9 cm x 28.4 cm)
	61" - 2.5 in x 60.9 in x 11.2 in (6.4 cm x 154.7 cm x 28.4 cm)
	70" - 2.5 in x 69.1 in x 11.2 in (6.4 cm x 175.5 cm x 28.4 cm)
Shipping Weight	24" - 12.8 lbs (5.8 kg) - with standard foot
	45" - 20.4 lbs (9.3 kg) - with standard foot
	53" - 24.2 lbs (10.9 kg) - with standard foot
	61" - 28.0 lbs (12.7 kg) - with standard foot
	70" - 31.8 lbs (14.4 kg) - with standard foot

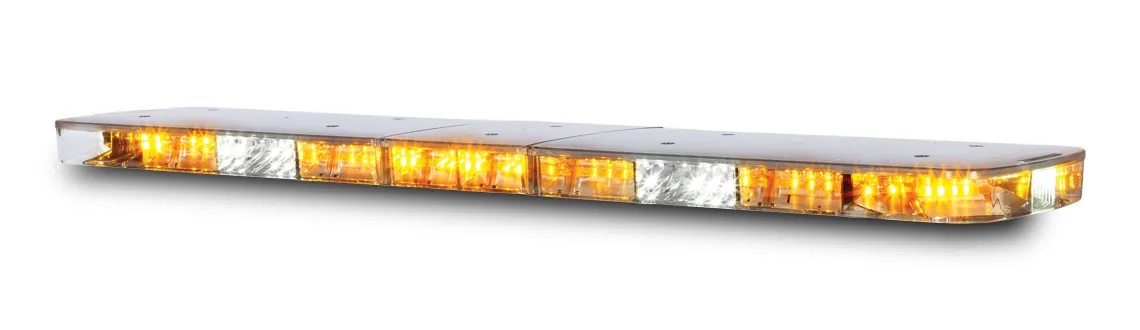

Legend® light bar provides 360-degree coverage and superior off-axis warning in a low-profile design. Legend light bars contain three modes of operation and multiple flash patterns. Take downs and alley lights, front/rear cut-off, dimming and intersection warning are also standard. Models are available in 24", 45", 53", 61" and 70" lengths.

Optional HotFoot® lights located in the mount of the light bar provide additional warning or take down and alley lights. The optional built-in SignalMaster™ feature provides a warning signal left, right, and center-out for rear traffic direction.

Solaris — The Best and Brightest in Lighting Technology
Our patented Solaris® design features the latest in LED reflector technology for a bright and intense off-axis light output.

ROC Solid Construction
Patented ROC (Reliable Onboard Circuitry™) technology eliminates 85% of potential failure points in the light bar — reducing repair costs and increasing the hours your vehicle stays on the road.

FS Convergence Network
Easy to install and service, the FS Convergence Network provides “plug-n-play” installation. Utilizing standard
RJ45 connections, the Legend can be easily programmed using a SmartSiren® Platinum system. With control head programmability, the user can customize the keypad to meet their needs. Interface modules are also available for use with traditional wired sirens.
