DSA High-Powered Directional Speaker

Overcomes ambient noise of industrial environments
Provides maximum speech recognition and tone reproduction
Produces 111 dBc to 121 dBc @ 100'
Two mounting kits available
UL and cUL Listed
Standard models include 45' of cable tail, DSAx-1 models include 94' cable tail

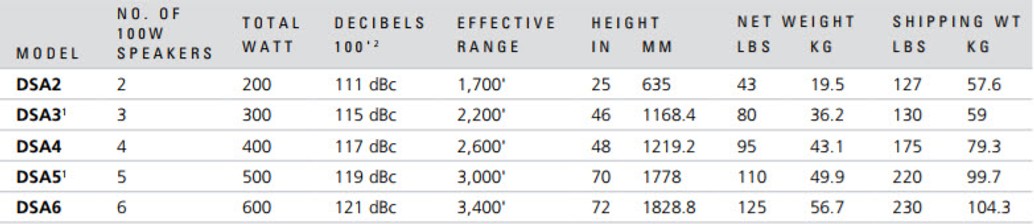

1 Special order, consult factory
2 Based on far field measurements.

Color	Black projectors with Off-White Housing
Paint	TGIC – Polyester Powder Coat,highly corrosion resistant
Frequency Response	200-2000Hz

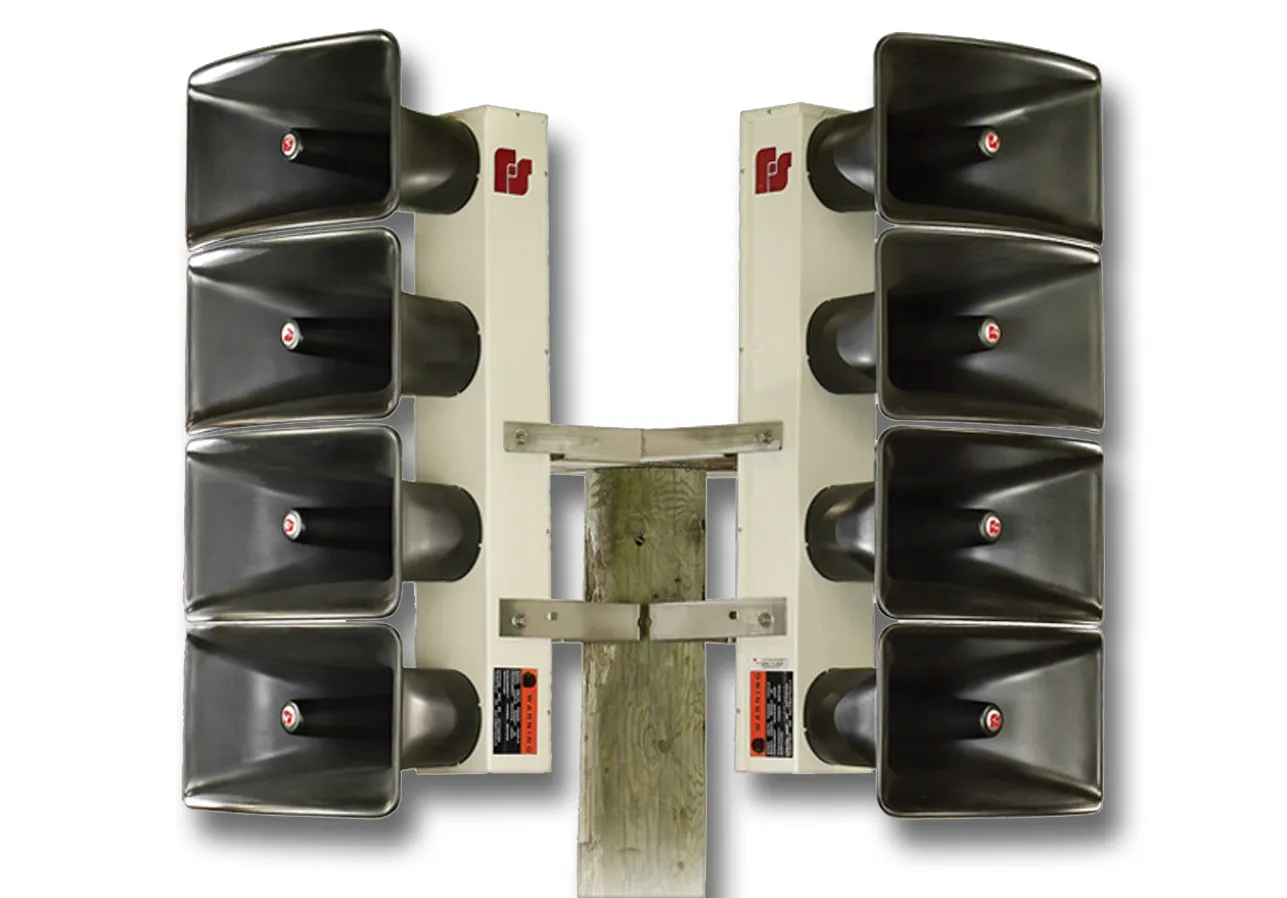

Federal Signal’s Model DSA Directional Speaker Array provides excellent voice and tone reproduction and is ideal for overcoming high levels of industrial noise.

Design flexibility allows the user to combine up to four speaker arrays; each array will hold from two to six re-entrant speakers. Speakers have a 70° horizontal angle of dispersion, accommodating specific sound output patterns. (When vertical stacks are placed 90° apart, a 180° horizontal coverage is possible.)

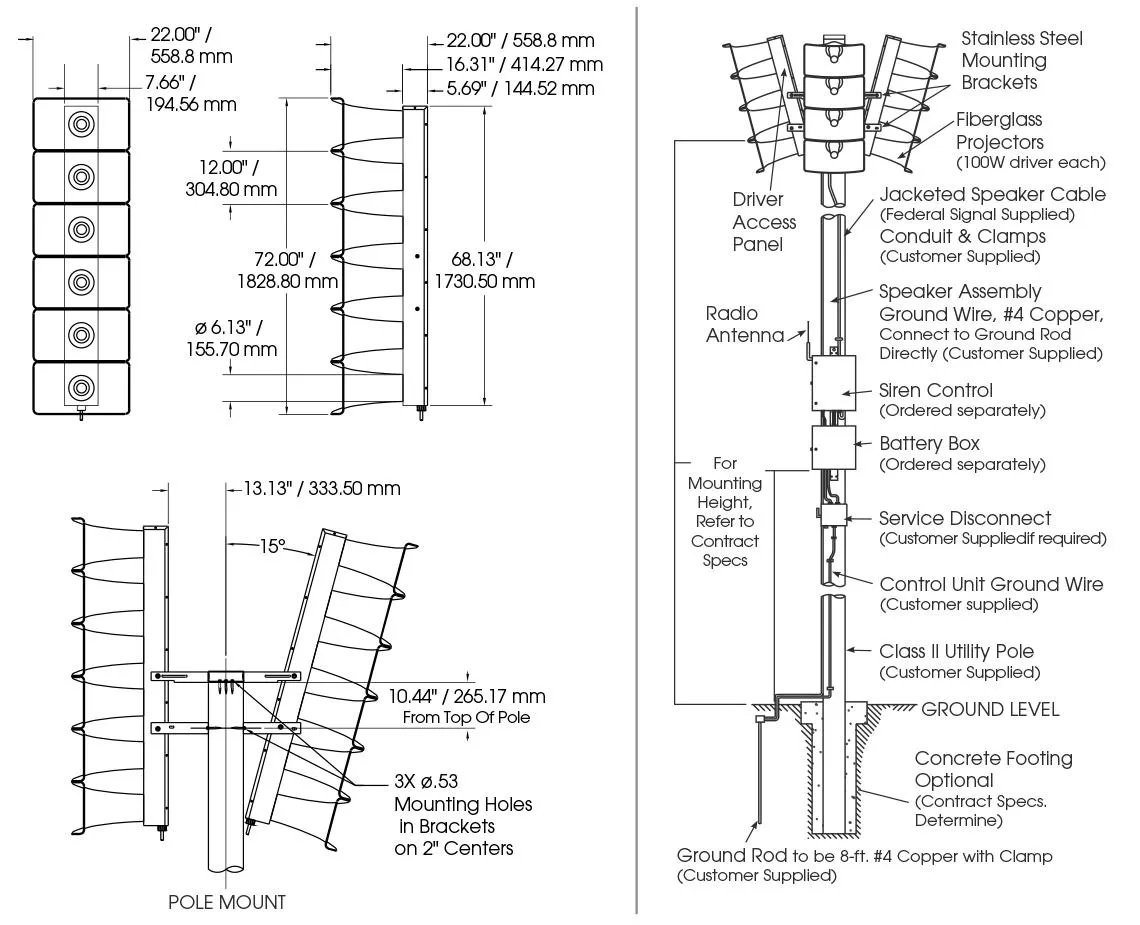

The Model DSA mounting kits allow for multiple speaker arrays to be mounted on the same pole at 90° increments. The downward tilt can be adjusted by 15°. The mounting flexibility of this system allows the speakers to be pointed directly at a targeted area for more concentrated sound output.

A DSA consists of a corrosion resistant aluminum frame with fiberglass projectors and stainless steel mounting hardware. Each speaker contains a high-efficiency 100 watt driver. DSA speakers are equipped with 50’ UL rated PVC shielded wire. The DSAX-1 speakers are equipped with 100’ of UL rated PVC shielded wire.

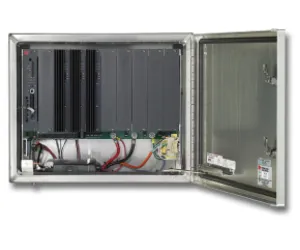

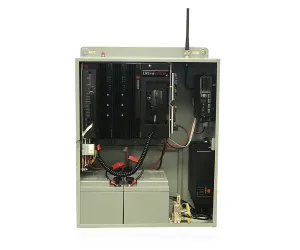

Amplification, tone generation and signal timing are provided by the Model UV controller, purchased separately.
Ideal for outdoor industrial plant warning, the Model DSA speaker array allows sound coverage to be customized to each site, preventing wasted sound in and around the plant. The Model DSA provides better speech intelligibility within a coverage zone than omni-directional speaker arrays.

PRODUCT LITERATURE

PRODUCT MANUALS

AGENCY CERTIFICATES

UL and cUL Certificate - DSA Speaker

ORDERING INFORMATION
Model Types
MODEL DESCRIPTION
DSA2 Electronic Speaker Array, Two Speakers
DSA3 Electronic Speaker Array, Three Speakers
DSA4 Electronic Speaker Array, Four Speakers
DSA5 Electronic Speaker Array, Five Speakers
DSA6 Electronic Speaker Array, Six Speakers
DSA2-1 Directional Speaker Array, 200W, 94’Cable
DSA4-1 Directional Speaker Array, 400W, 94’Cable
DSA6-1 Directional Speaker Array, 600W, 94’Cable
Accessories
PRODUCT # DESCRIPTION
DSAMK1 MOUNTING KIT, DIR. SPKR. 4 ARRAY
DSAMK4 MOUNTING KIT, DIR. SPKR. 4 ARRAY
DSAMKSP Mounting kit for the top of steel poles that includes a 4.5" pole and brackets for one DSA.
DSAMKSPB45 DSA MTG BRKTS 4-1/2" PIPE STEEL POLE
DSAMKSPB23 DSA MTG BRKTS 2-3/8" PIPE STEEL POLE
Replacement Parts
DESCRIPTION PART NUMBER
CHARGER,BATT.,UV,24VDC Q860000236
CHARGER,BATT.,UVIC,24VDC Q860000236-01
100W NEO DRIVER,OUTDOOR K8570063A

MODEL	DESCRIPTION
DSA2	Electronic Speaker Array, Two Speakers
DSA3	Electronic Speaker Array, Three Speakers
DSA4	Electronic Speaker Array, Four Speakers
DSA5	Electronic Speaker Array, Five Speakers
DSA6	Electronic Speaker Array, Six Speakers
DSA2-1	Directional Speaker Array, 200W, 94’Cable
DSA4-1	Directional Speaker Array, 400W, 94’Cable
DSA6-1	Directional Speaker Array, 600W, 94’Cable

PRODUCT #	DESCRIPTION
DSAMK1	MOUNTING KIT, DIR. SPKR. 4 ARRAY
DSAMK4	MOUNTING KIT, DIR. SPKR. 4 ARRAY
DSAMKSP	Mounting kit for the top of steel poles that includes a 4.5" pole and brackets for one DSA.
DSAMKSPB45	DSA MTG BRKTS 4-1/2" PIPE STEEL POLE
DSAMKSPB23	DSA MTG BRKTS 2-3/8" PIPE STEEL POLE
