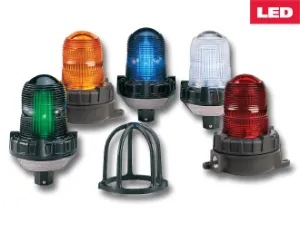

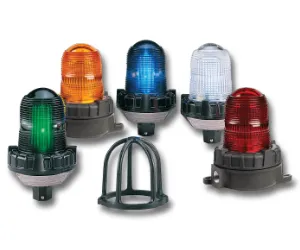

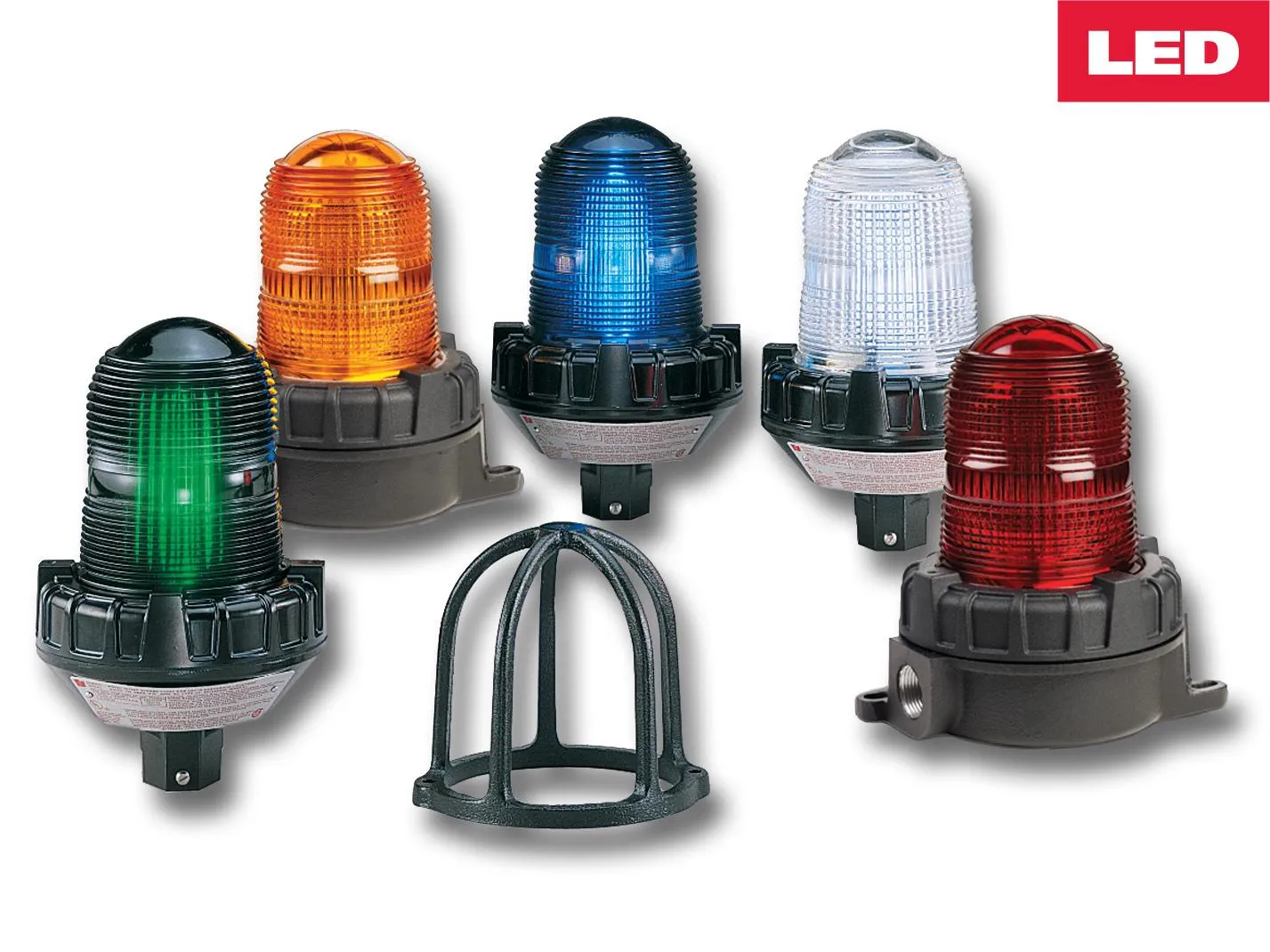

191XL-CN Hazardous Location Zone Listed LED Warning Light

[[POS2]]

Available in 24VAC/DC and 120-240VAC
Five lamp/lens colors: Amber, Blue, Clear, Green and Red
Flashing mode standard, configurable to steady-burn
50,000 hours, vibration-resistant LED lamp
Dome guard included
Available in 3/4-inch NPT pipe mount or surface mount
Type 4X, IP66 enclosure
IP69K compliant
Marine Listed
UL and cUL Listed for Class I, Zone 2, AEx nA IIC Gc; Zone 22 AEx tc IIIC Dc

Lamp Life: 50,000 Hours

Light Source: LED
Certified Operating Temperature: -31°F to 150°F (-35°C to 66°C)

Electrical Operating Temperature: -67°F to 150°F (-55°C to 66°C)

Net Weight: 4.0 lbs 1.81 kg

Shipping Weight: 4.25 lbs 1.93 kg

Pipe Mount

Height (with Dome Guard): 9.25" 235.0 mm

Diameter: 5.5" 139.7 mm

Surface Mount

Height 8.18" 207.8 mm

Diameter 6.52" 165.6 mm

Model 191XL-CN is a hazardous location LED signal light that comes standard in flashing mode and is field configurable to steady-burn mode for maximum functionality.

Federal Signal’s super bright LED array used in the 191XL-CN produces intense light output and 50,000 hours of service. Increased shock and vibration resistance add to this unit’s rugged industrial portfolio of features.

RESOURCES
CS_191XL-CN_Rev0420
Replacement Lamps Reference Guide for Visual Signals
PRODUCT BROCHURE
Hazardous Brochure
IP69K Brochure
Hazardous_Brochure_Chinese_1119
Hazardous_Brochure_French_1119
Hazardous_Brochure_Portuguese_1119
Hazardous_Brochure_Spanish_1119
PRODUCT MANUALS
IS_191XL_718.pdf
AGENCY CERTIFICATES
UL and cUL Certificate of Compliance - 191XL & 191XL -CN
IP69K Report No. 1901160-01
IP69K Certified Models Declaration_0420

How to Field Configure a 191XL (1:28)

ORDERING INFORMATION

Model Types

MODEL	DESCRIPTION	UPC
191XL-CN-024A	LED light, hazardous location, Zone Listed, 24VAC/DC, pipe mount, amber	782979246558
191XL-CN-024B	LED light, hazardous location, Zone Listed, 24VAC/DC, pipe mount, blue	782979246565
191XL-CN-024C	LED light, hazardous location, Zone Listed, 24VAC/DC, pipe mount, clear	782979246572
191XL-CN-024G	LED light, hazardous location, Zone Listed, 24VAC/DC, pipe mount, green	782979246589
191XL-CN-024R	LED light, hazardous location, Zone Listed, 24VAC/DC, pipe mount, red	782979246596
191XL-CN-S024A	LED light, hazardous location, Zone Listed, 24VAC/DC, surface mount, amber	782979246657
191XL-CN-S024B	LED light, hazardous location, Zone Listed, 24VAC/DC, surface mount, blue	782979246664
191XL-CN-S024C	LED light, hazardous location, Zone Listed, 24VAC/DC, surface mount, clear	782979246671
191XL-CN-S024G	LED light, hazardous location, Zone Listed, 24VAC/DC, surface mount, green	782979246688
191XL-CN-S024R	LED light, hazardous location, Zone Listed, 24VAC/DC, surface mount, red	782979246695
191XL-CN-120-240A	LED light, hazardous location, Zone Listed, 120-240VAC, pipe mount, amber	782979246602
191XL-CN-120-240B	LED light, hazardous location, Zone Listed, 120-240VAC, pipe mount, blue	782979246619
191XL-CN-120-240C	LED light, hazardous location, Zone Listed, 120-240VAC, pipe mount, clear	782979246626
191XL-CN-120-240G	LED light, hazardous location, Zone Listed, 120-240VAC, pipe mount, green	782979246633
191XL-CN-120-240R	LED light, hazardous location, Zone Listed, 120-240VAC, pipe mount, red	782979246640
191XL-CN-S120240A	LED light, hazardous location, Zone Listed, 120-240VAC, surface mount, amber	782979246701
191XL-CN-S120240B	LED light, hazardous location, Zone Listed, 120-240VAC, surface mount, blue	782979246718
191XL-CN-S120240C	LED light, hazardous location, Zone Listed, 120-240VAC, surface mount, clear	782979246725
191XL-CN-S120240G	LED light, hazardous location, Zone Listed, 120-240VAC, surface mount, green	782979246732
191XL-CN-S120240R	LED light, hazardous location, Zone Listed, 120-240VAC, surface mount, red	782979246749

Accessories

PRODUCT #	DESCRIPTION	UPC

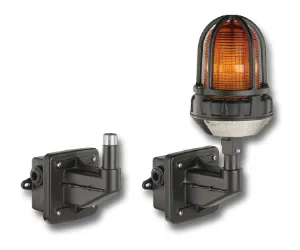

LHWB	Hazardous location mounting bracket, wall mount	782979227434

Replacement Parts

DESCRIPTION	PART NUMBER	UPC
LED Array, Amber	K14700030A-A	782979127901
LED Array, Blue	K14700030A-B	782979127918
LED Array, White/Clear	K14700030A-W	782979127949
LED Array, Green	K14700030A-G	782979127925
LED Array, Red	K14700030A-R	782979127932
Pc Board Assembly, 24VDC	K2005455A	782979126157
Pc Board Assembly, 120/240VAC	K2005416A	782979126140
Dome And Ring Assembly With Gasket, Amber	K8449078C-01	782979121503
Globe Ring Assembly With Gasket, Blue	K8449078C-06	782979127109
Dome And Ring Assembly With Gasket, Clear	K8449078C-04	782979121534
Globe Ring Assembly With Gasket, Green	K8449078C-07	782979127116
Dome And Ring Assembly With Gasket, Red	K8449078C	782979121497
Dome Guard, Black for models 151XST, 154XST, 191XL, 191XL-CN	K8449090C	782979132233

YOU MIGHT ALSO BE INTERESTED IN...

LHWB Hazardous Location Light Mounting Kit >

191XL Hazardous Location Division Listed LED Light >

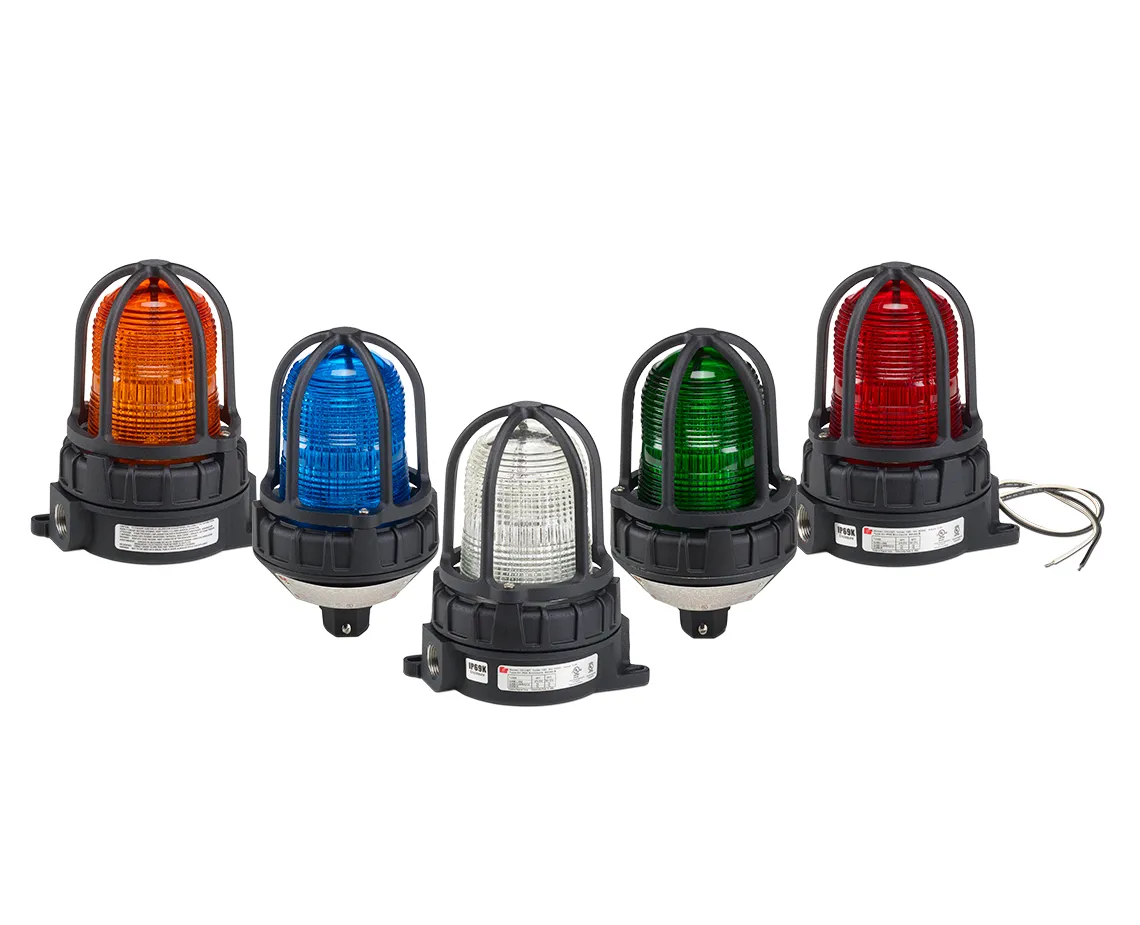

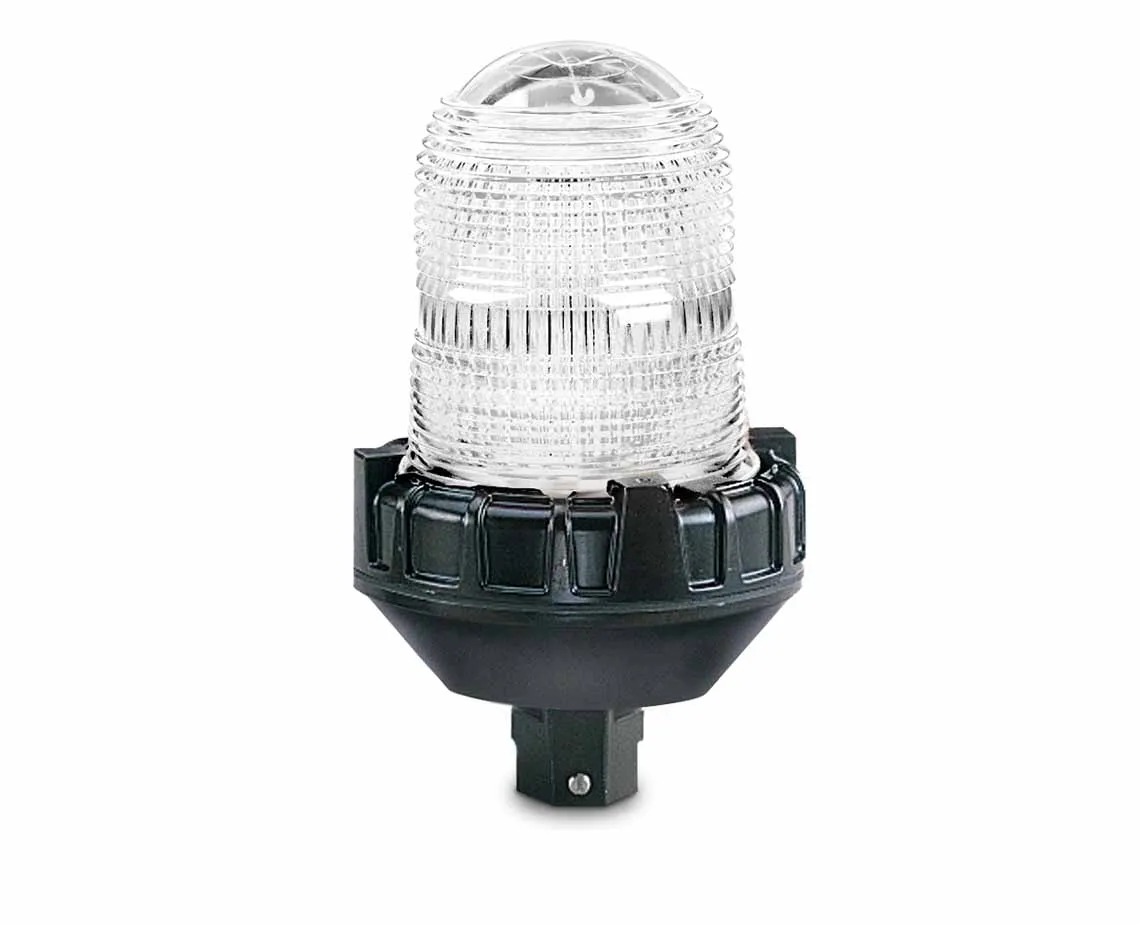

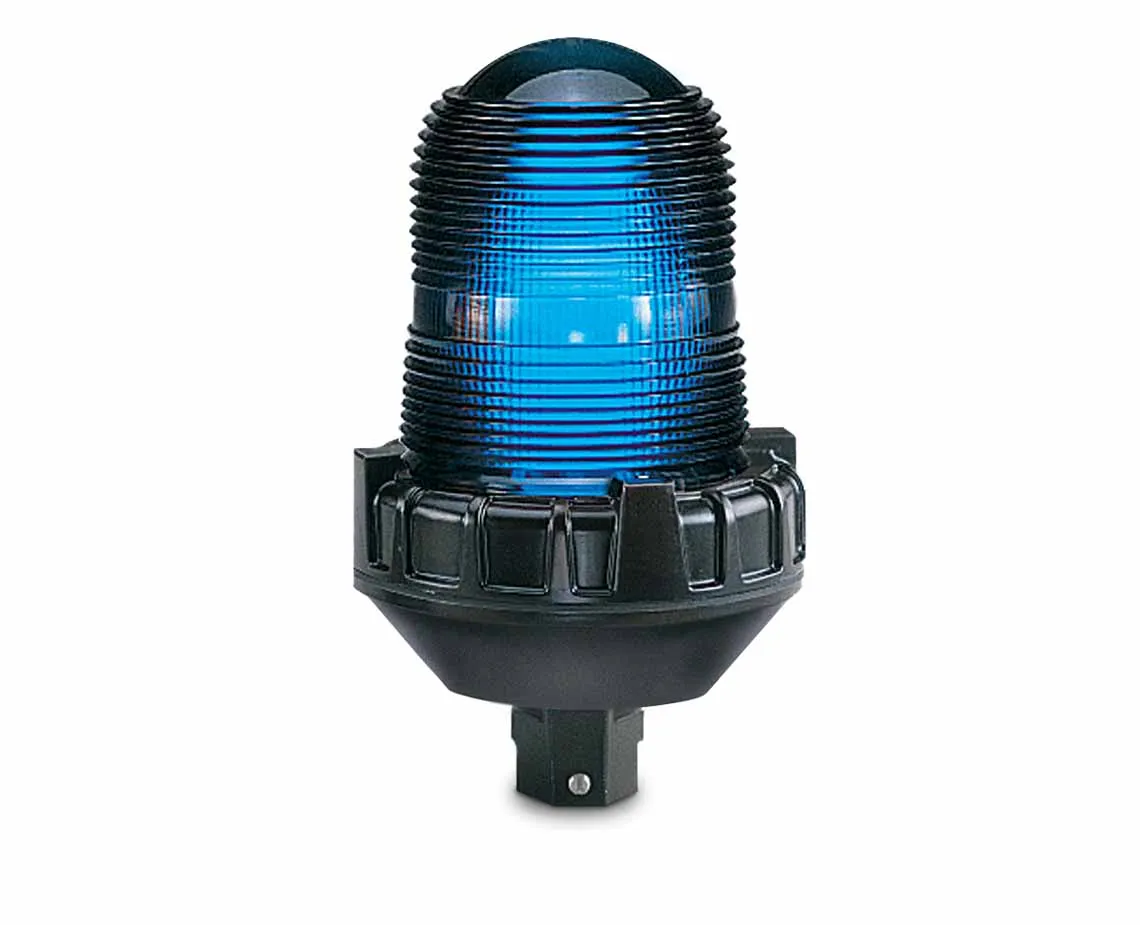

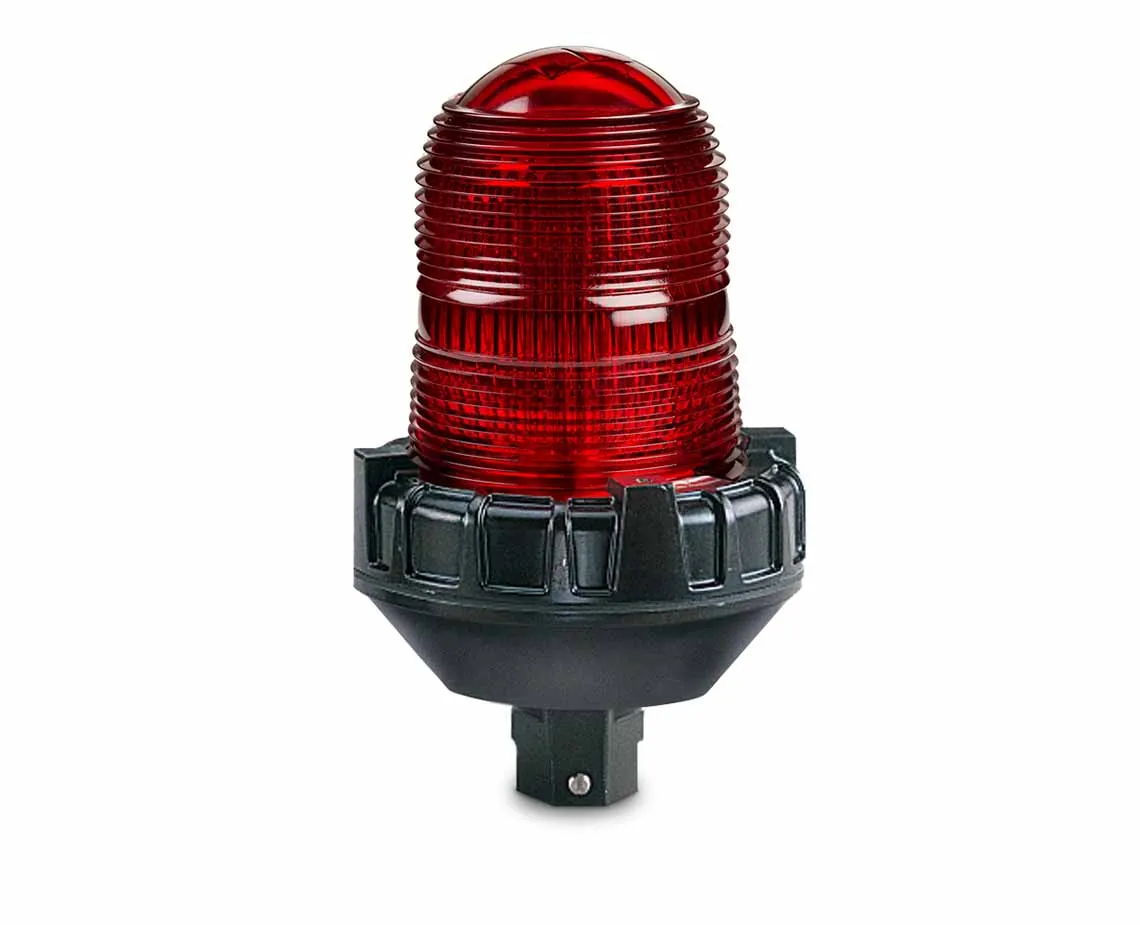

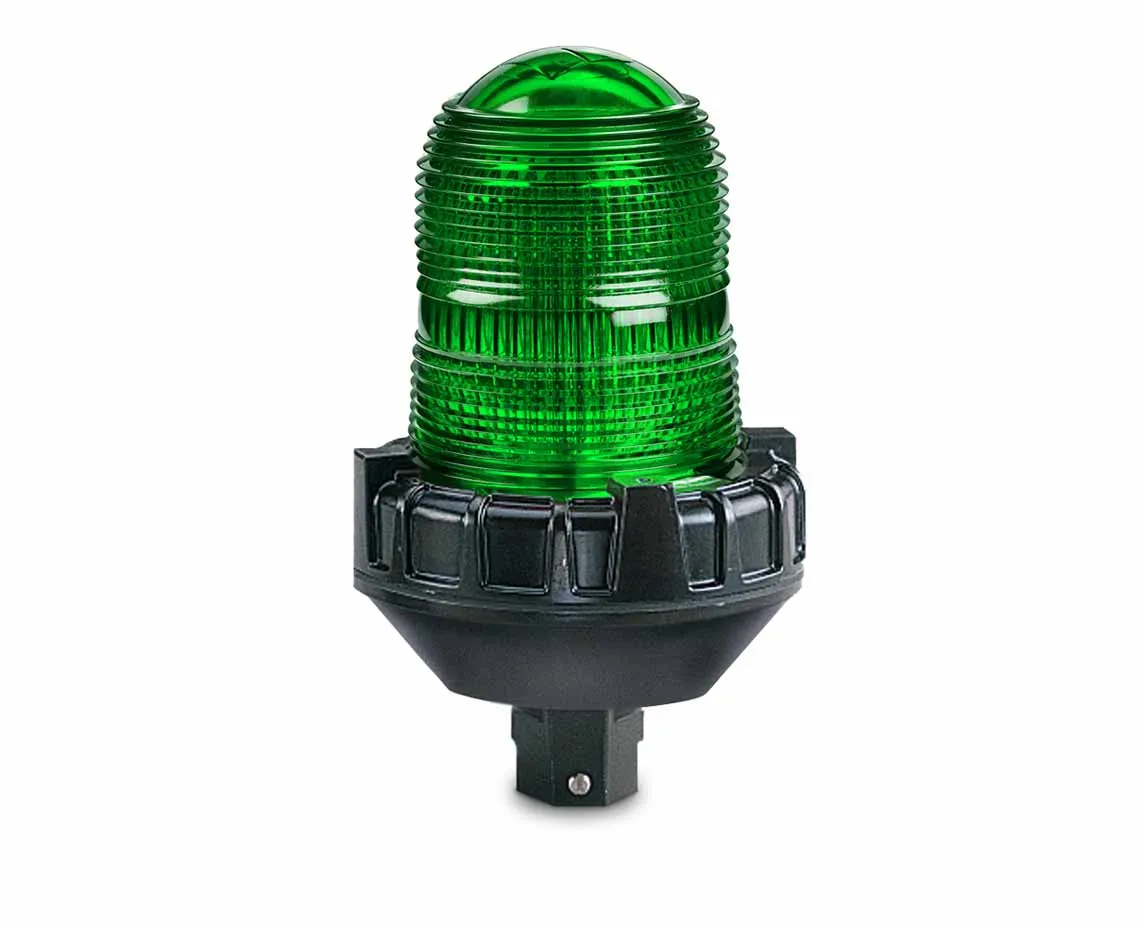

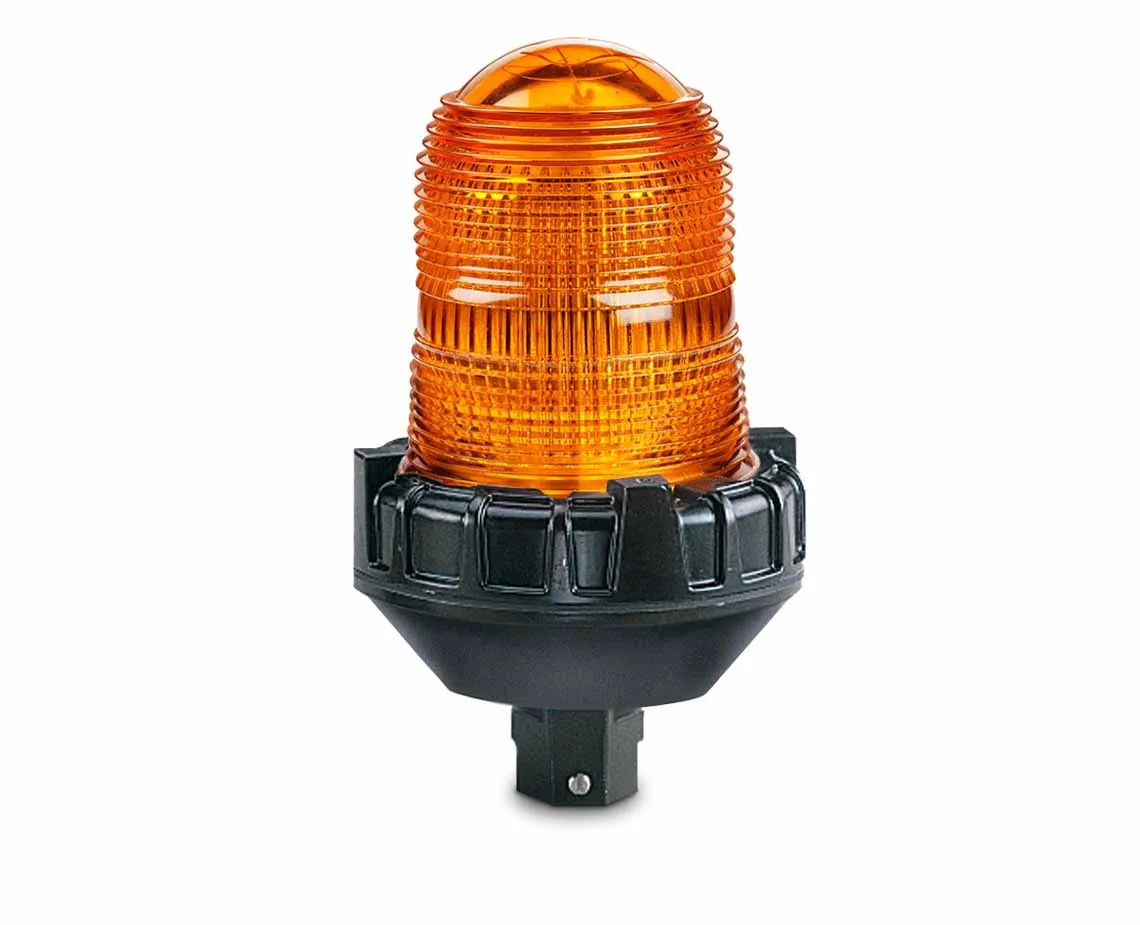

151XST Hazardous Location Warning Light >
