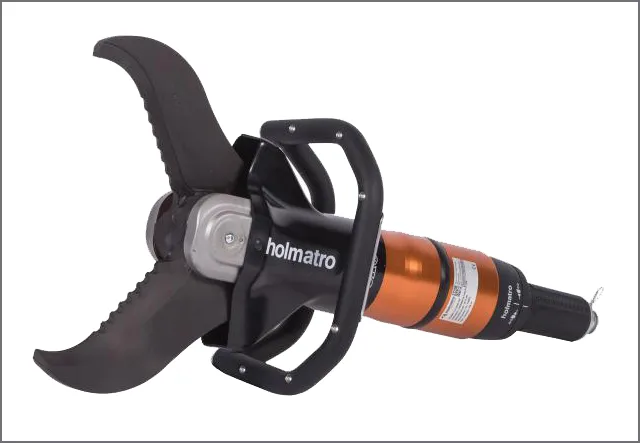

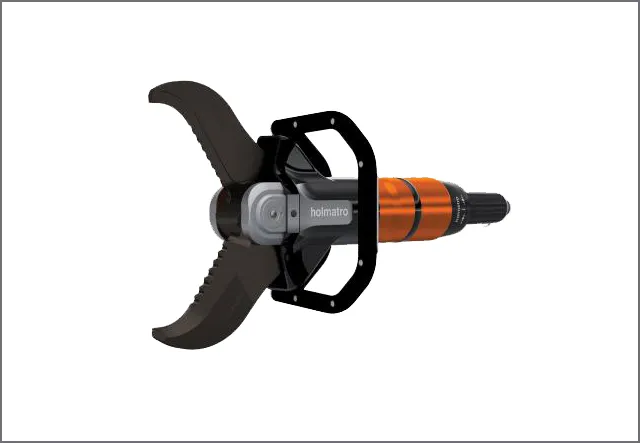

CUTTER CU 5040 GP

General Purpose Cutter - 5000 series. Lighter than ever, improved performance.

Standard supplied with:

Details
Articlenumber	150.012.328
Basic specifications
model	CU 5040 GP
equipped with (connector type)	CORE
max. working pressure	720 / 72 (bar/Mpa)	10443 psi
Performance
max. cutting opening	280 mm	11 in
directives	2006/42/EC
theoretical cutting force	794 / 81 (kN/t)	178498 lbf
General specifications
cutter jaw	straight
Dimensions, weight and temperature
weight, ready for use	13.7 kg	30.2 lb
dimensions (AxBxC)	738 x 277 x 201 mm	29.1 x 10.9 x 7.9 in
Norms
EN 13204 classification	CC201I-13.7
NFPA 1936, cutting capacity	A7 B7 C7 D9 E8
NFPA 1936 compliant	yes
EN 13204, cutting capacity	1I 2I 3I 4K 5K
EN 13204 compliant	yes
Cutting performance
round bar (S235 acc. to EN 13204)	36 mm	1.4 in

Download

Lightweight

Lighter than ever thanks to new materials, component integration and intelligent design.
Easy to carry and handle, reducing physical burden.

Versatile blade design

Large blade opening
Straight toothed part for grip and cutting performance, curved outer part to pull material in.
For a smooth controlled cutting operation.

i-Bolt

Flat central bolt construction squeezing the blades together directly (no blade holder in between!) and more tightly. This minimizes blade separation and maximizes cutting performance.
It also allows for better access in narrow spaces.

Ergonomic carrying handle

New ergonomic carrying handle design increases operator comfort in various working positions.

Integrated LED lighting

New LED lighting in the carrying handle: no less than six lights with a higher light output. Rescuers can start right away, both during the day and at night, without working in their own shadow.
