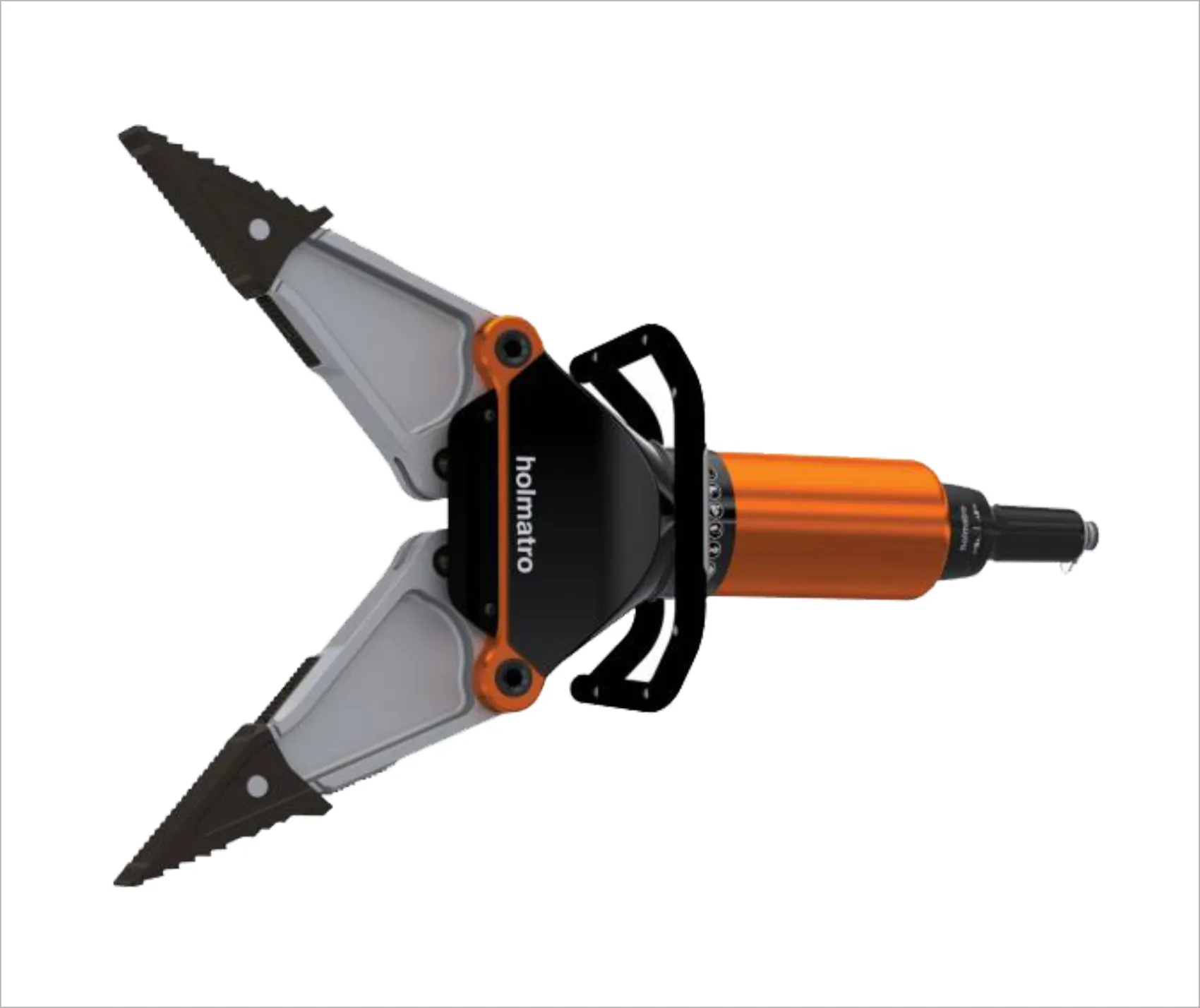

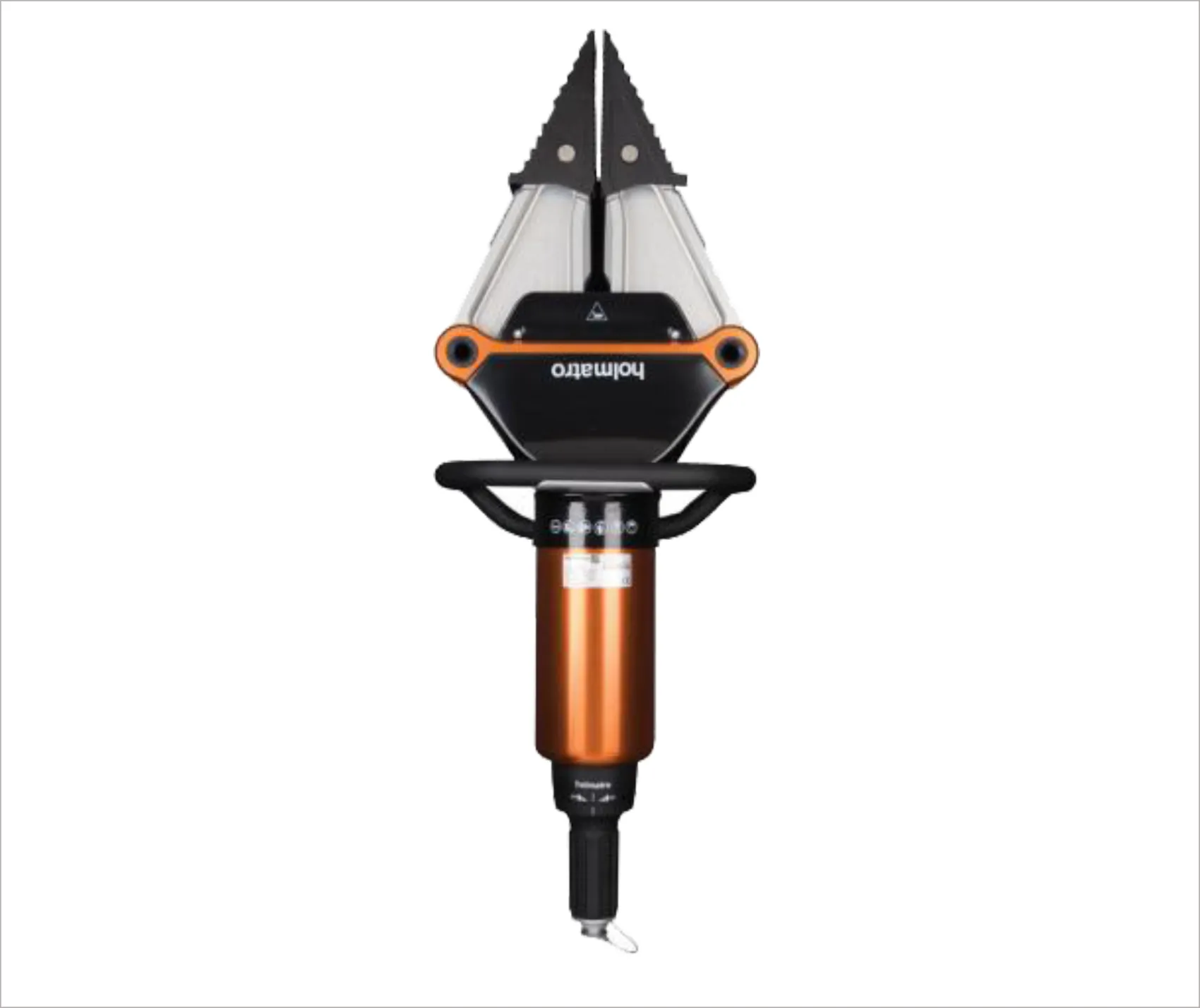

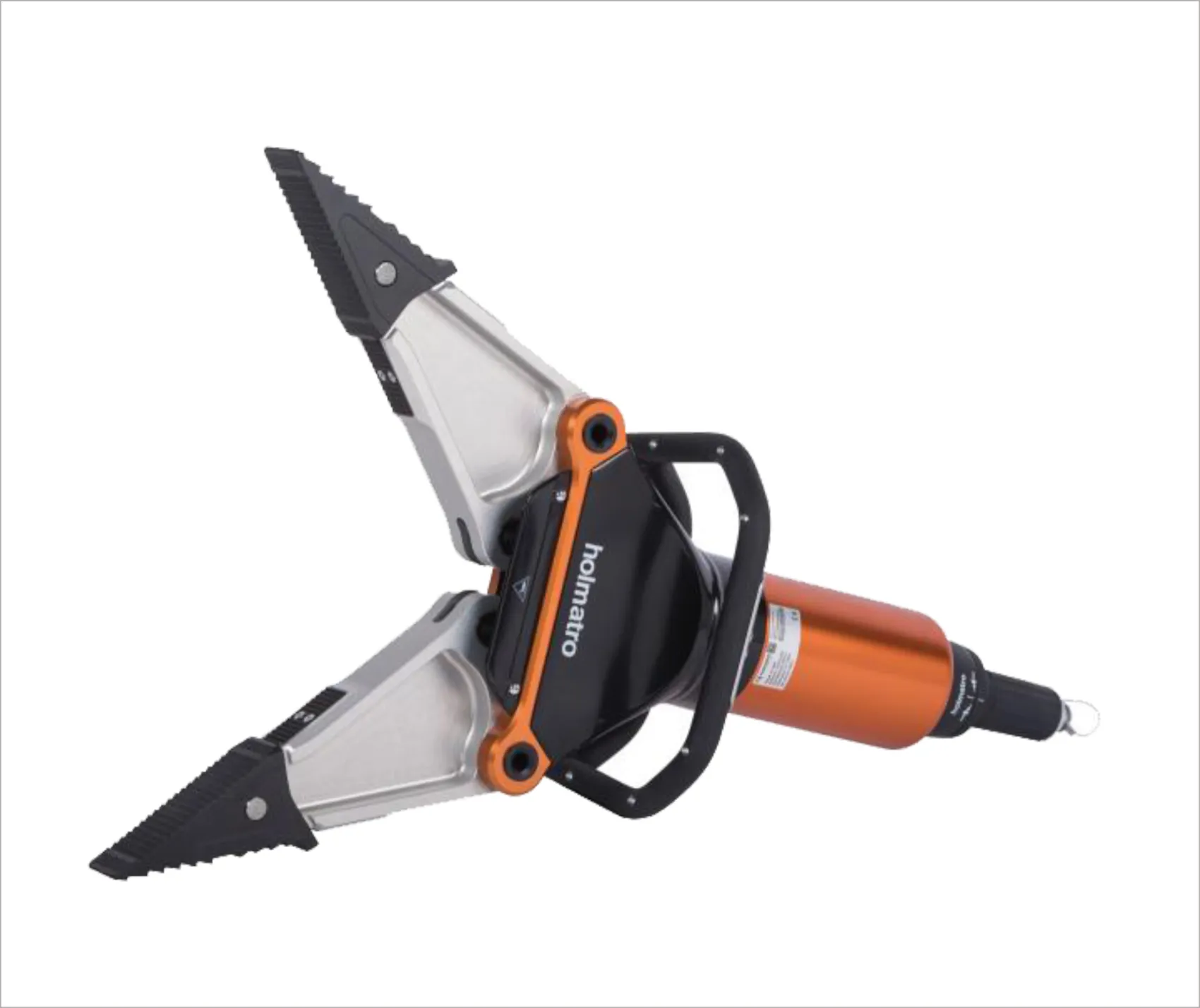

SPREADER SP 5260

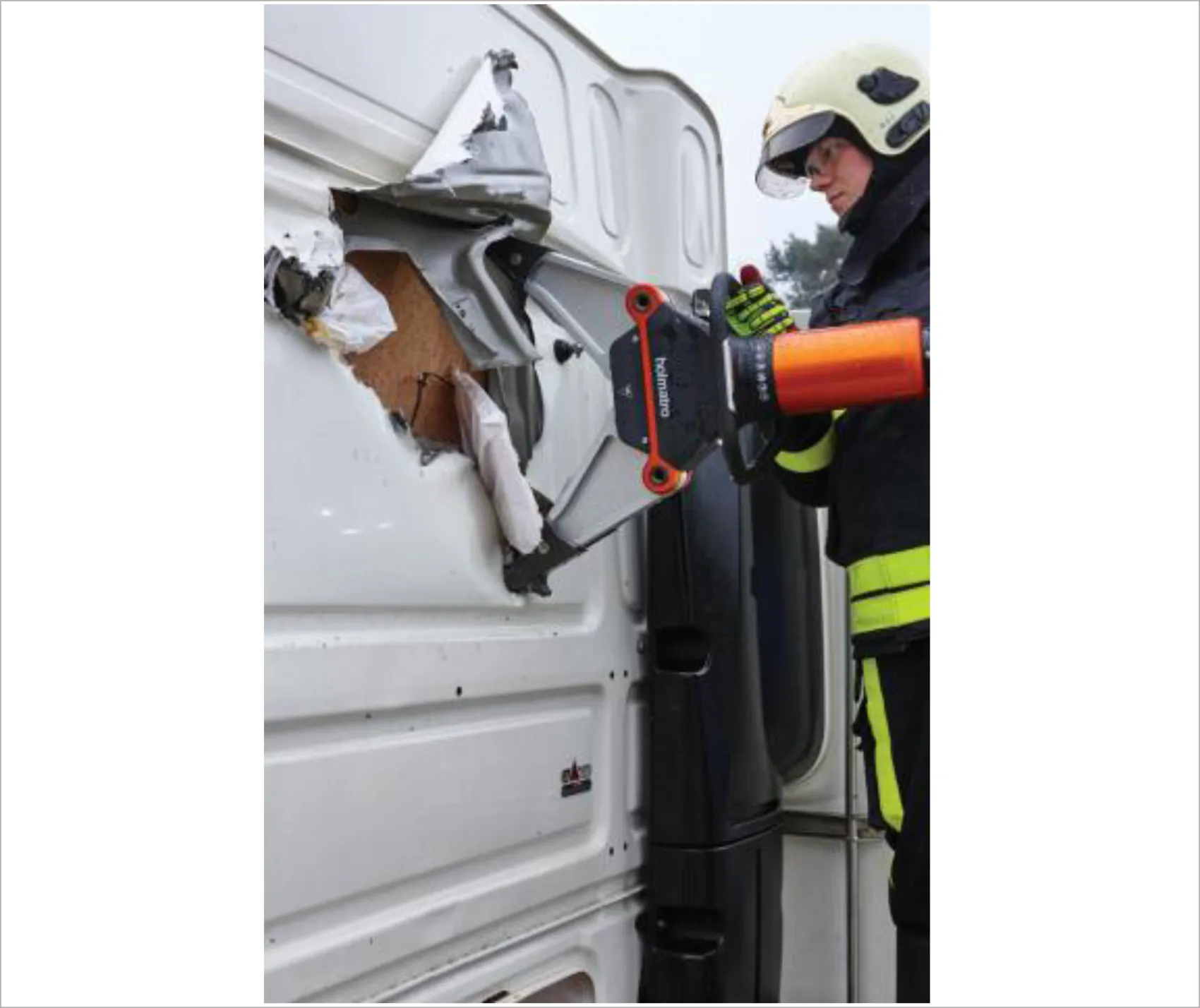

Lightweight spreader for spreading, squeezing and pulling with one tool. Equipped with CORE Technology.

Standard supplied with:

Details
Articlenumber	150.012.325
Basic specifications
model	GSP 5260 EVO 3
equipped with (connector type)	CORE
max. working pressure	720 / 72 (bar/Mpa)	10443 psi
Performance
max. spreading force	522 / 53.2 (kN/t)	117350 lbf
min. spreading force (EN 13204)	62 / 6.3 (kN/t)	13938 lbf
spreading distance	822 mm	32.4 in
max. squeezing force	127 / 13 (kN/t)	28551 lbf
max. pulling force	82 / 8.4 (kN/t)
directives	2006/42/EC
Dimensions, weight and temperature
weight, ready for use	19.6 kg	43.2 lb
dimensions (AxBxC)	900 x 322 x 223 mm	35.4 x 12.7 x 8.8 in
Norms
EN 13204 classification	BS62/822-19.6
NFPA 1936 compliant	yes
NFPA 1936, HPF	82 / 8.4 (kN/t)	18434 lbf
NFPA 1936, HSF	117 / 11.9 (kN/t)	26303 lbf
NFPA 1936, LPF	37 / 3.8 (kN/t)	8318 lbf
NFPA 1936, LSF	58 / 5.9 (kN/t)	13039 lbf

Download

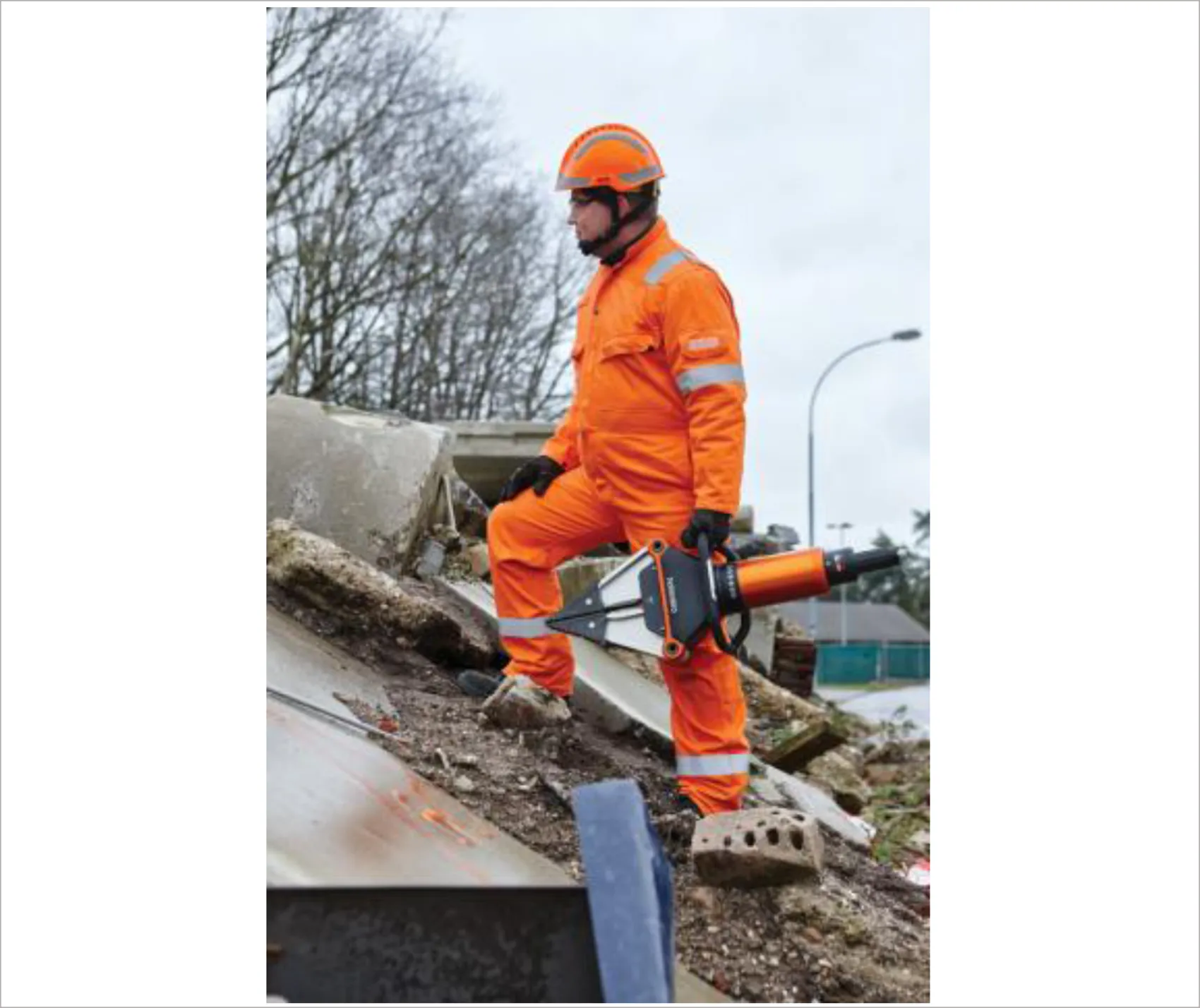

Lightweight, no concessions on performance

Effective profile on the spreading tips

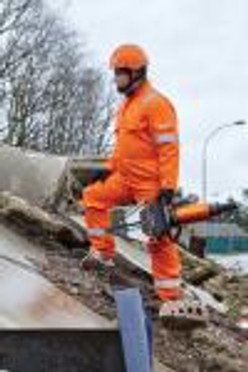

(1)spreader-sp-5260-en-14881

Ergonomic carrying handle

New LED lighting in the carrying handle

No less than six LED lights with a higher light output

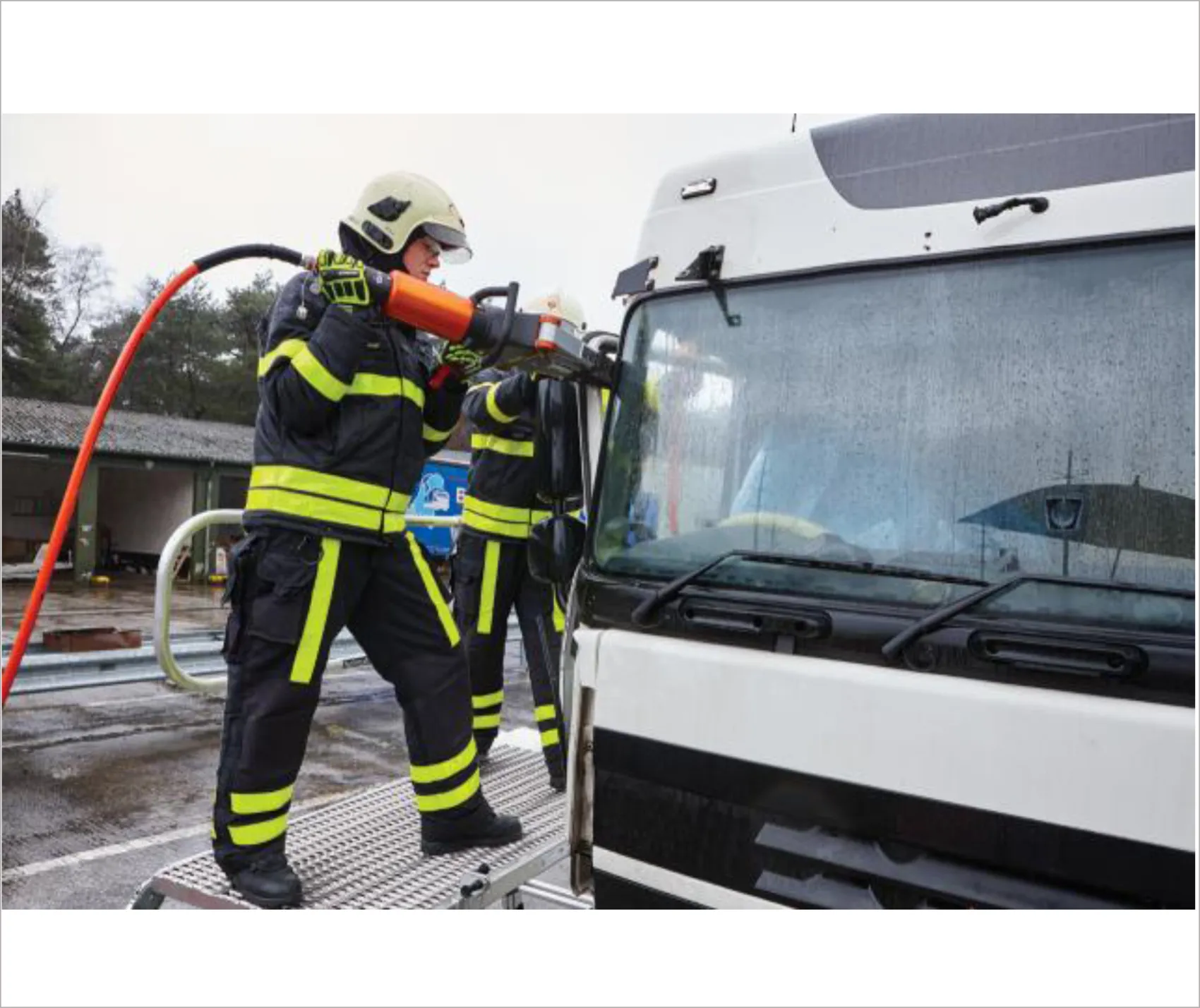

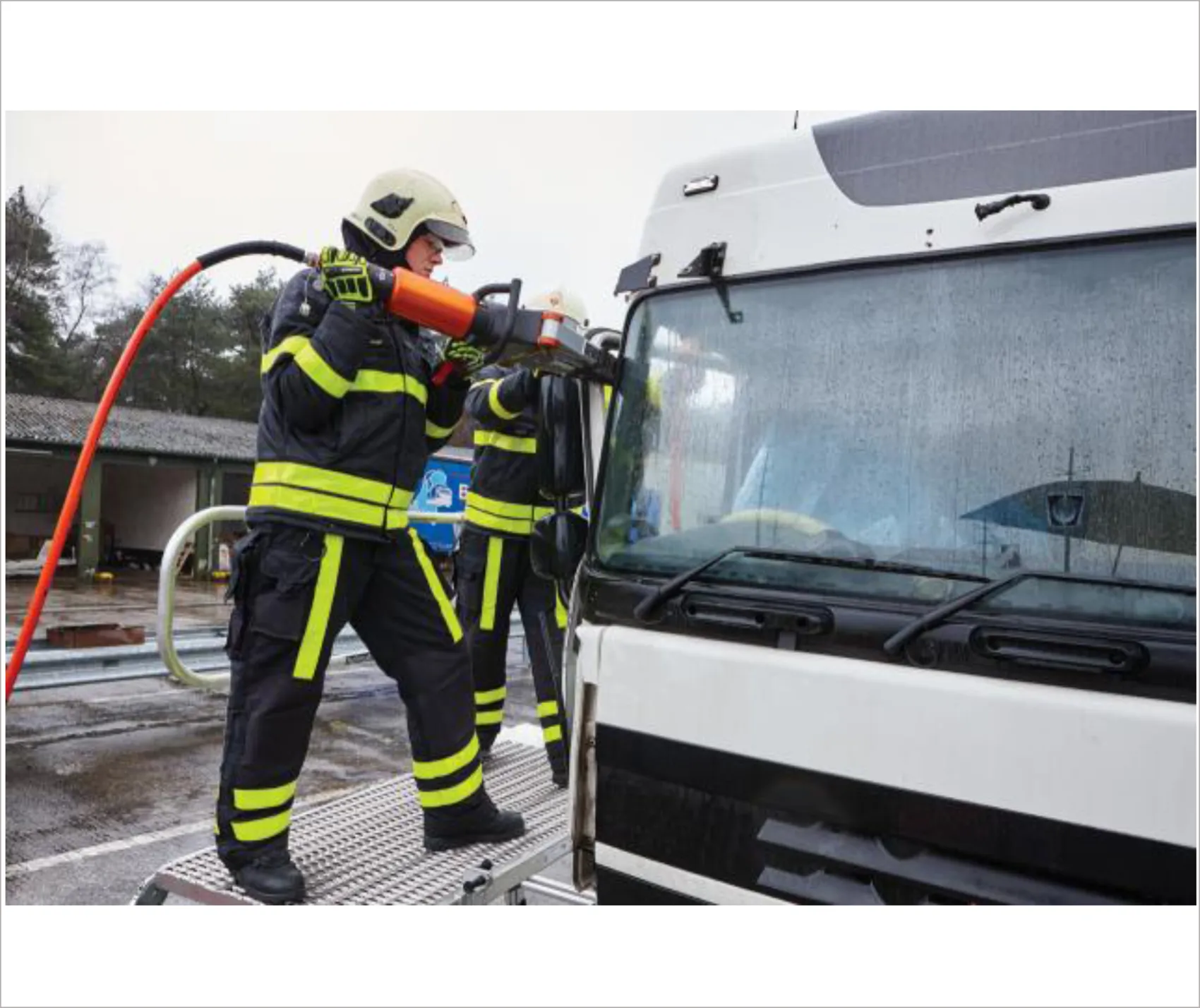

Rescuers can start their job right away, both during the day and at night, without working in their own shadow

Built-in Speed Valve
