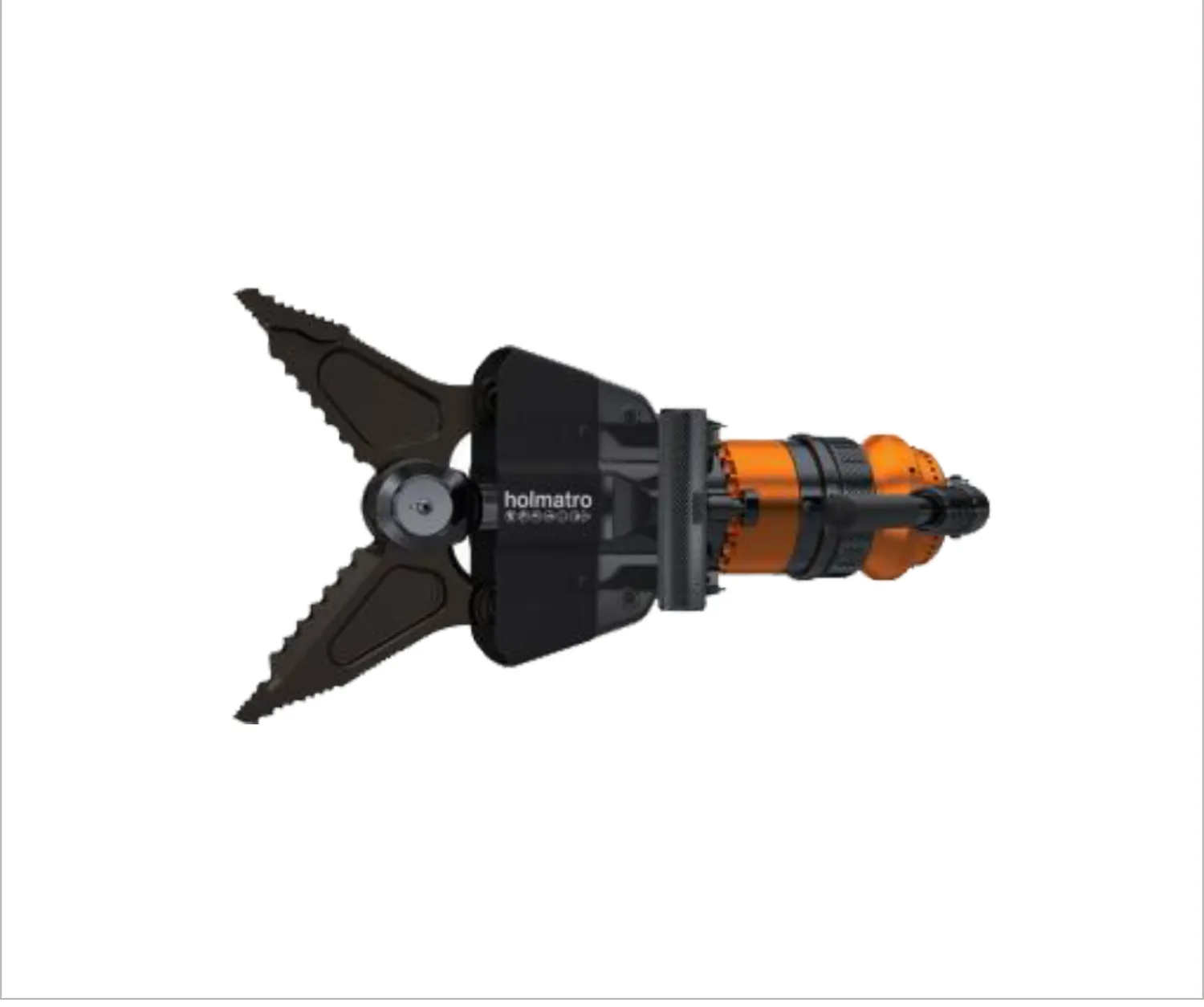

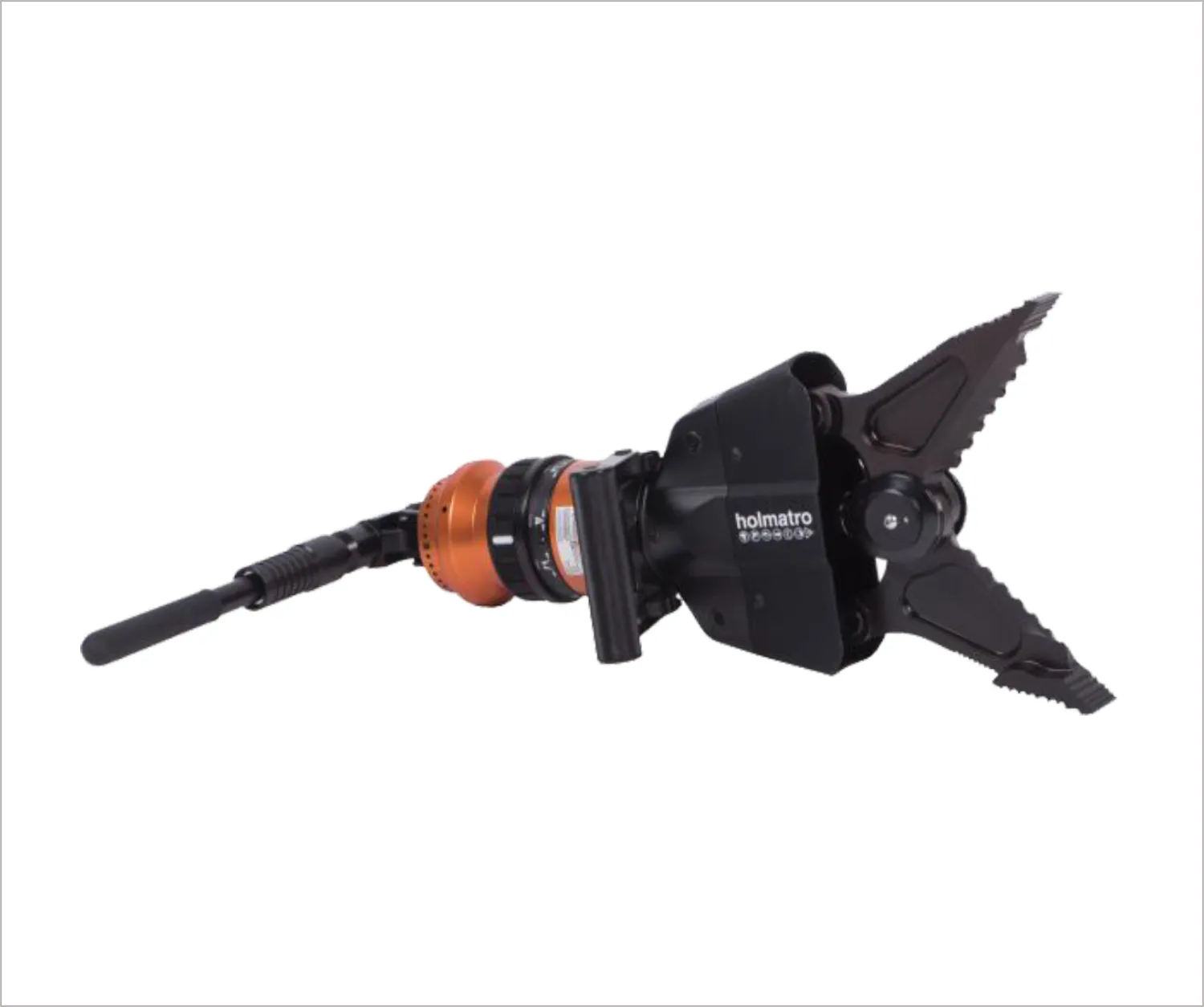

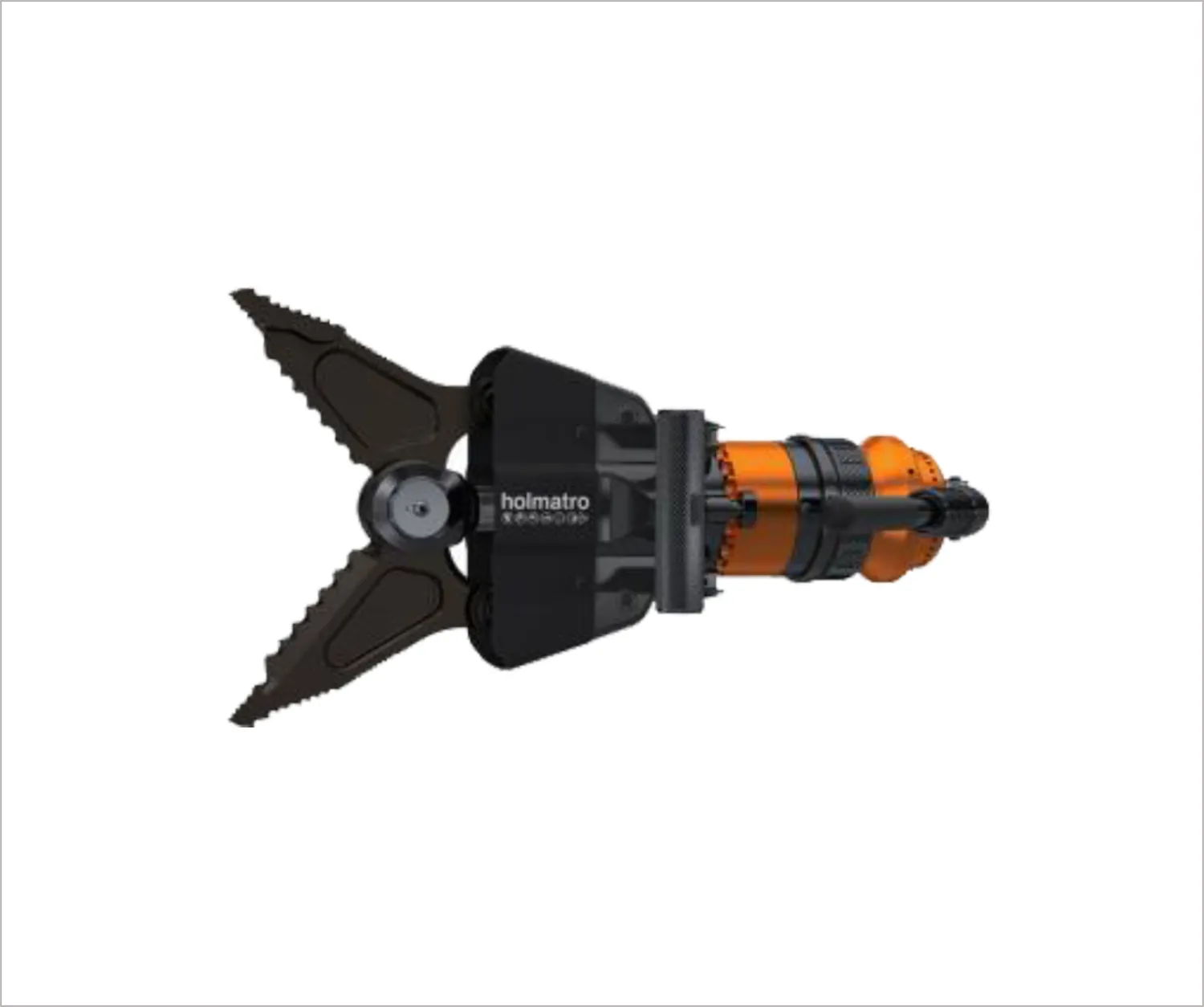

Combi Tool HCT 5111 RH

เวลาทำการ วันจันทร์ – เสาร์ เวลา 09.00 – 18.00 น.

Rescue \ Cutting & Spreading \ Combi Tools \ Combi Tool HCT 5111 RH

สินค้า

Details
Articlenumber	150.012.315
Basic specifications
model	HCT 5111 RH
max. working pressure	720 / 72 (bar/Mpa)	10443 psi
Performance
max. spreading force	457 / 46.6 (kN/t)	102738 lbf
min. spreading force (EN 13204)	48 / 4.9 (kN/t)	10791 lbf
spreading distance	281 mm	11.1 in
max. cutting opening	196 mm	7.7 in
max. squeezing force	44 / 4.5 (kN/t)	9892 lbf
directives	2006/42/EC
theoretical cutting force	268 / 27.3 (kN/t)	60249 lbf
General specifications
operator type	hand
Dimensions, weight and temperature
weight, ready for use	8.7 kg	19.2 lb
dimensions (AxBxC)	529 x 215 x 145 mm	20.8 x 8.5 x 5.7 in
Norms
EN 13204 classification	BK48/281-E-8.7
NFPA 1936, cutting capacity	A5/B5/C5/D6/E4
EN 13204, cutting capacity	1E 2E 3E 4E 5E
NFPA 1936, HSF	52 / 5.3 (kN/t)	11690 lbf
NFPA 1936, LSF	40 / 4.1 (kN/t)	8992 lbf
Cutting performance
round bar (S235 acc. to EN 13204)	24 mm	0.9 in

Extremely compact & ultra-lightweight

Optimal performance to weight ratio

Multifunctional

One tool for cutting, spreading and squeezing

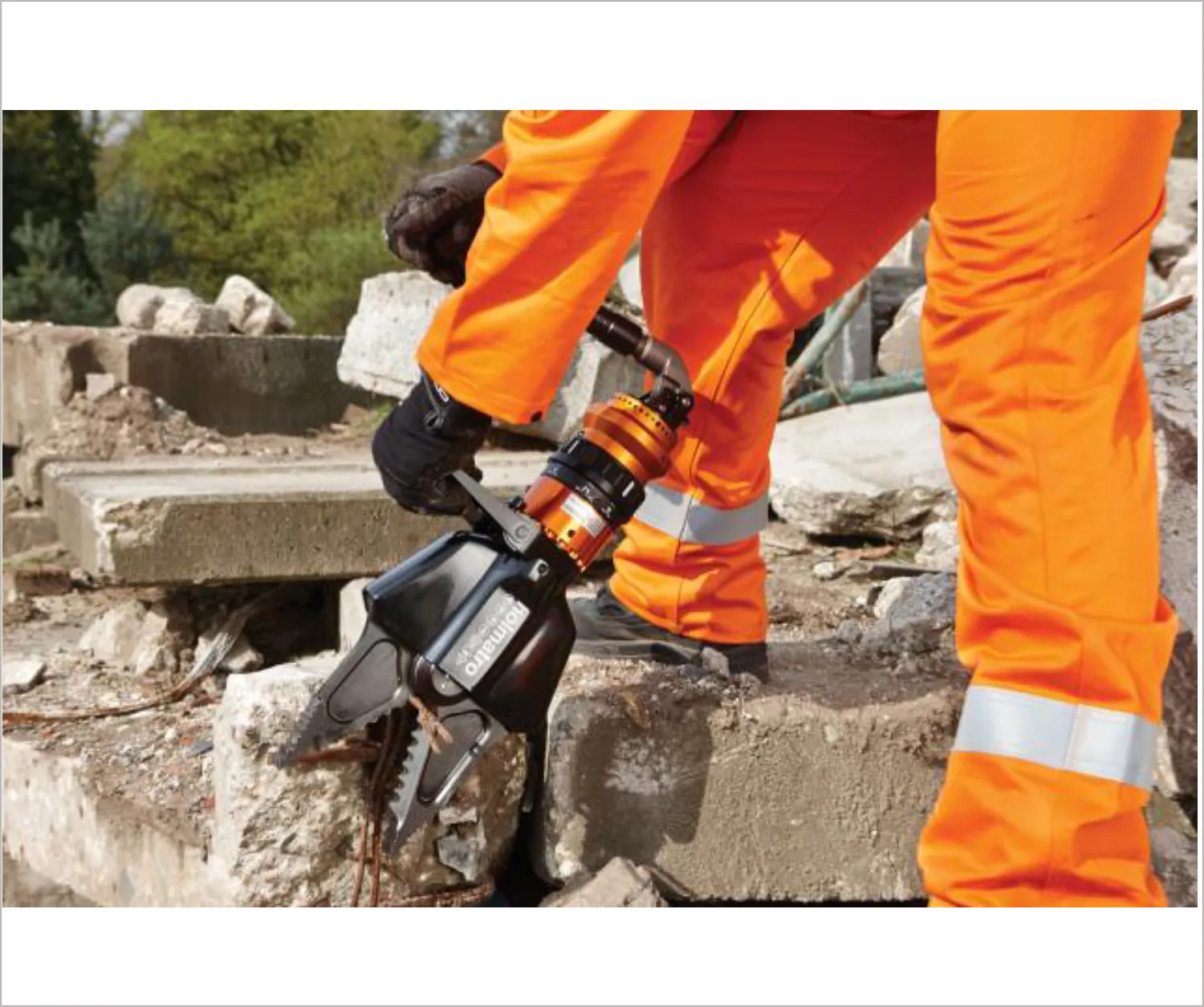

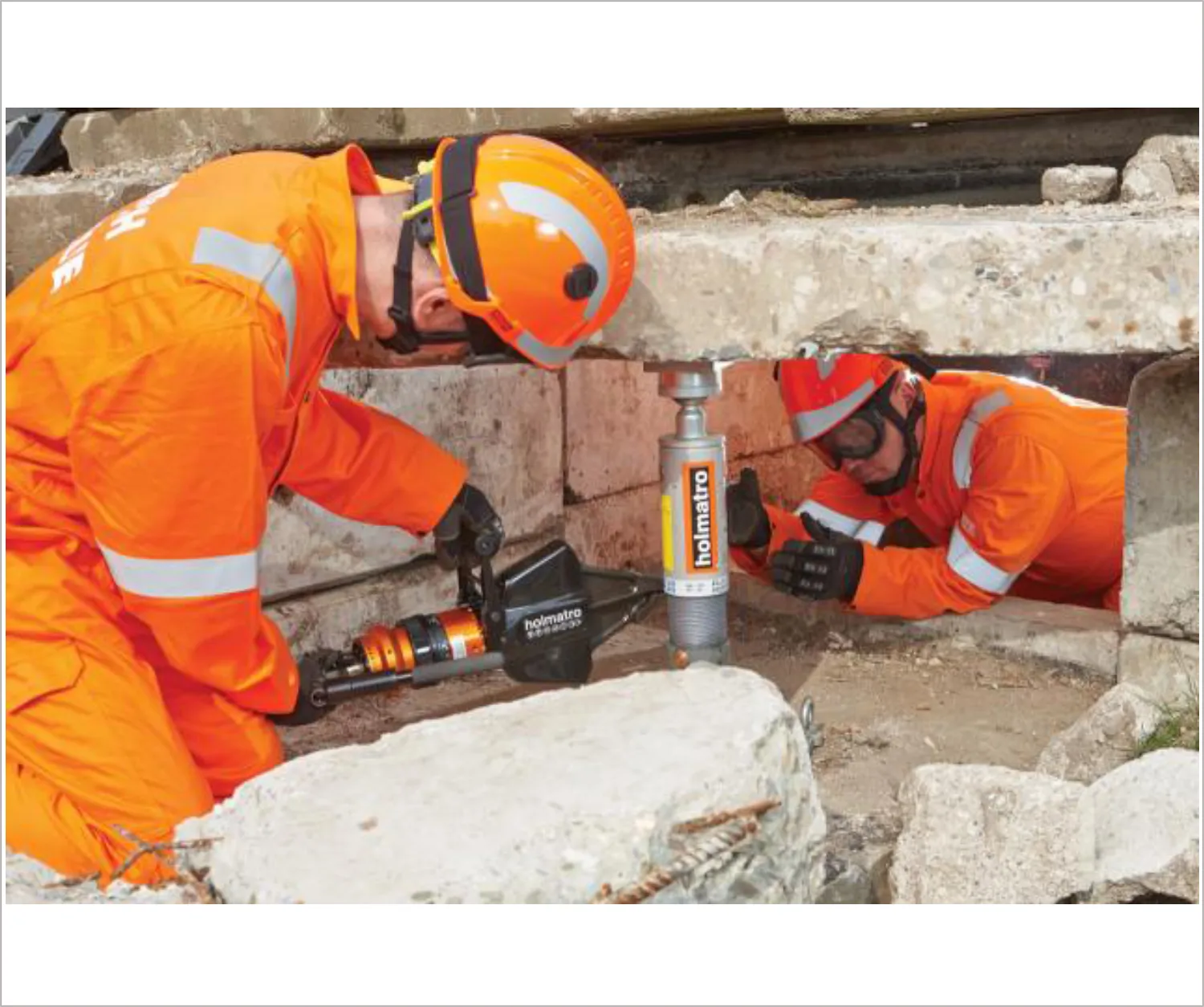

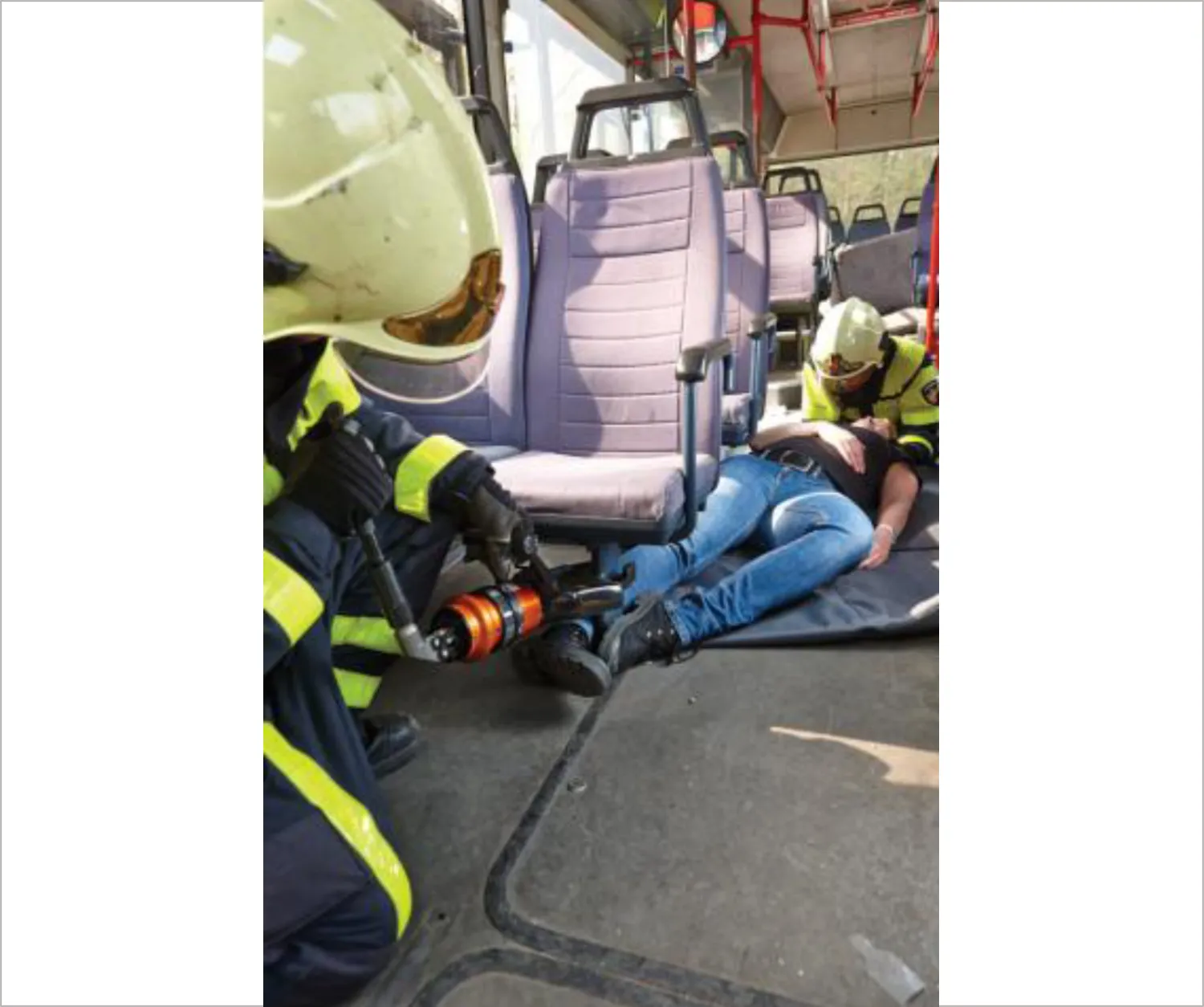

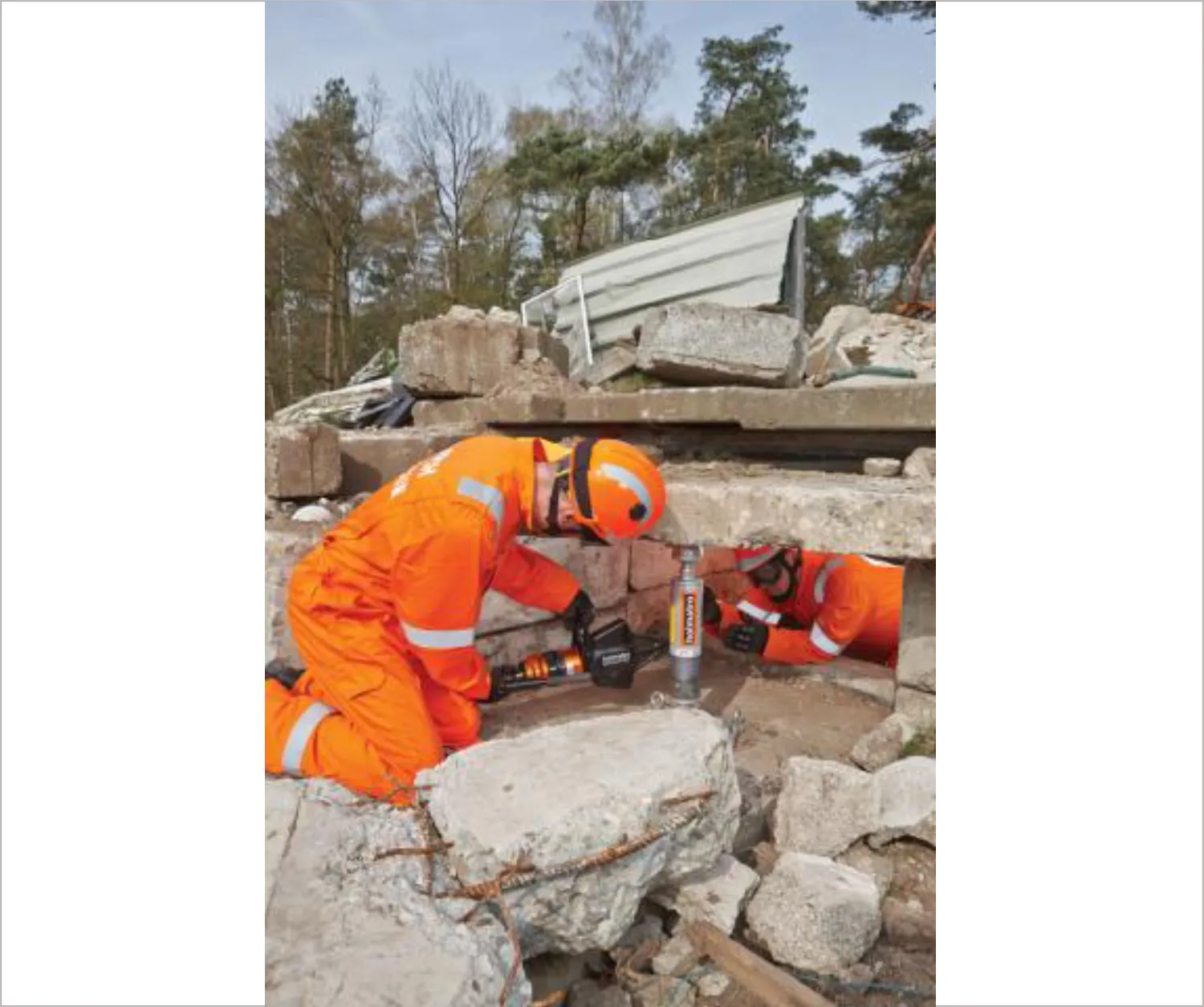

Suitable for a variety of operations, from rapid intervention in vehicle rescue to USAR

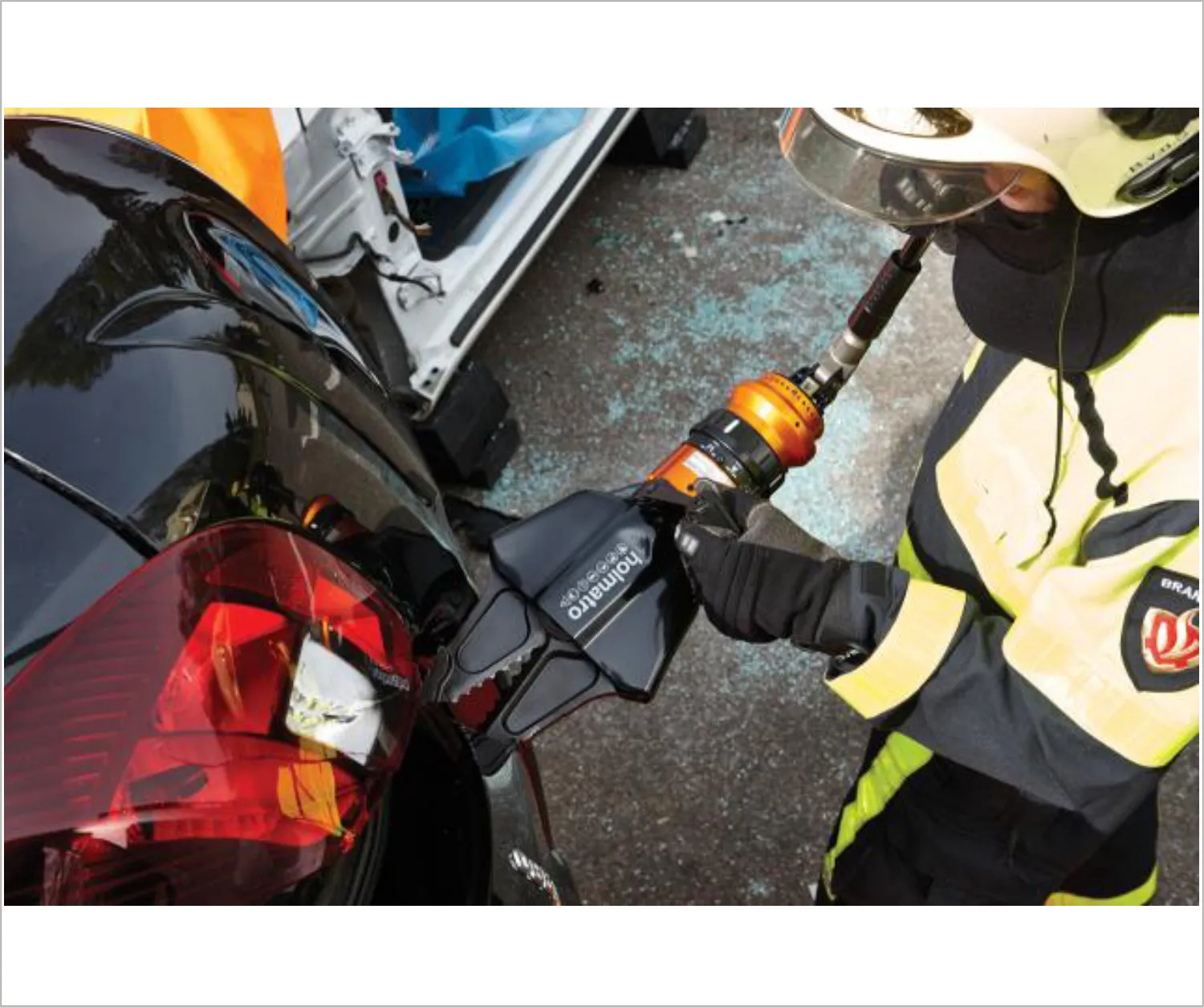

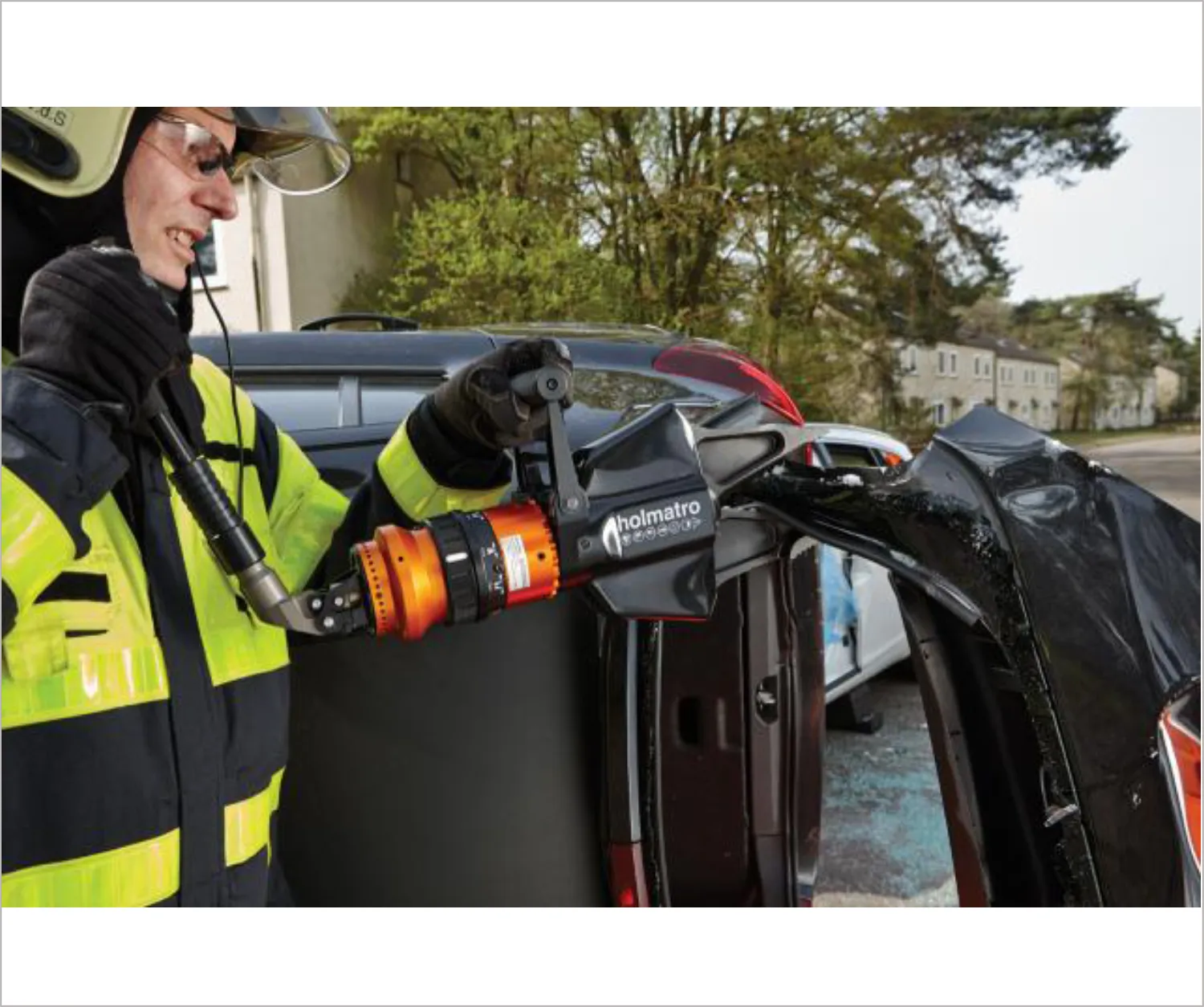

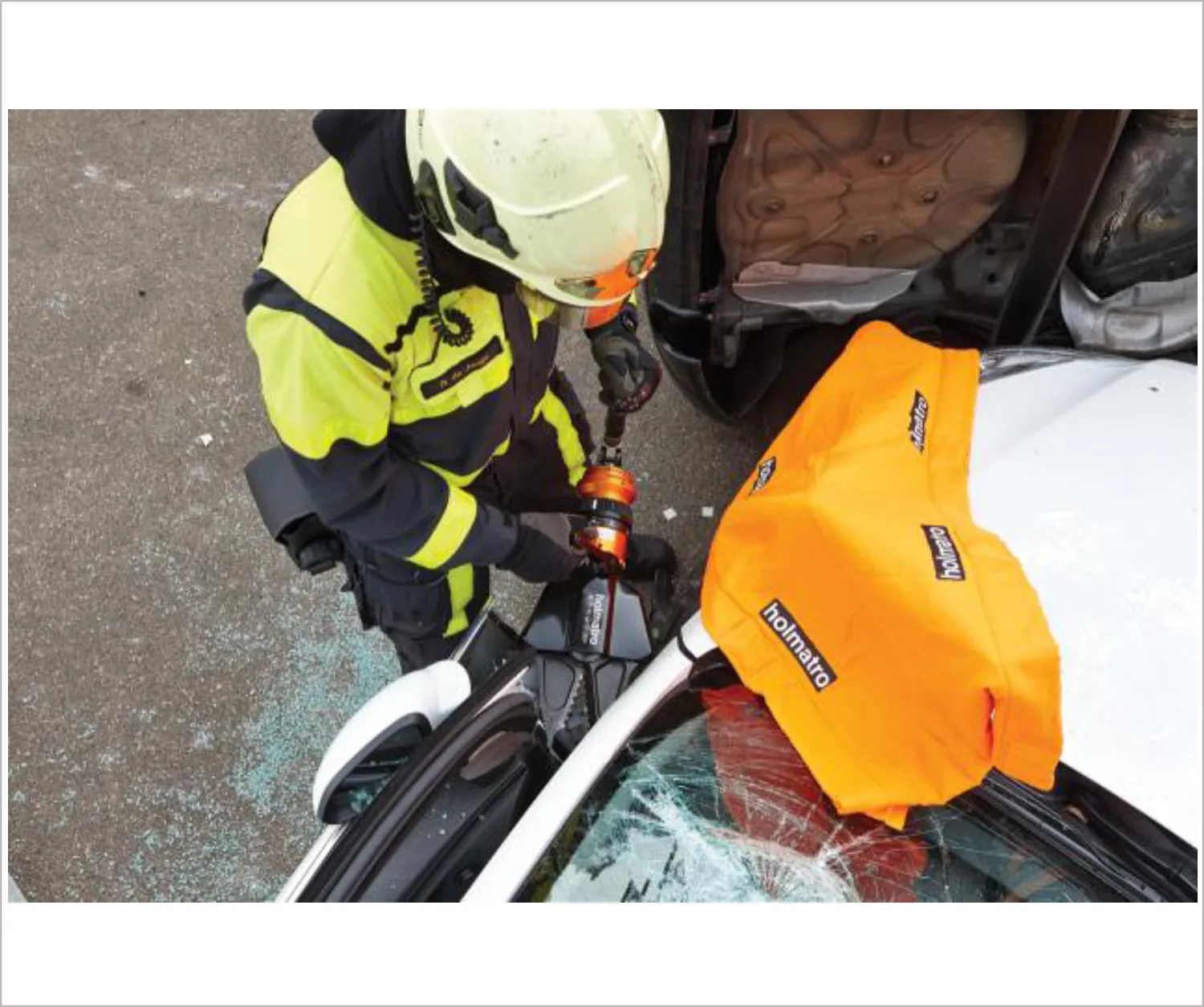

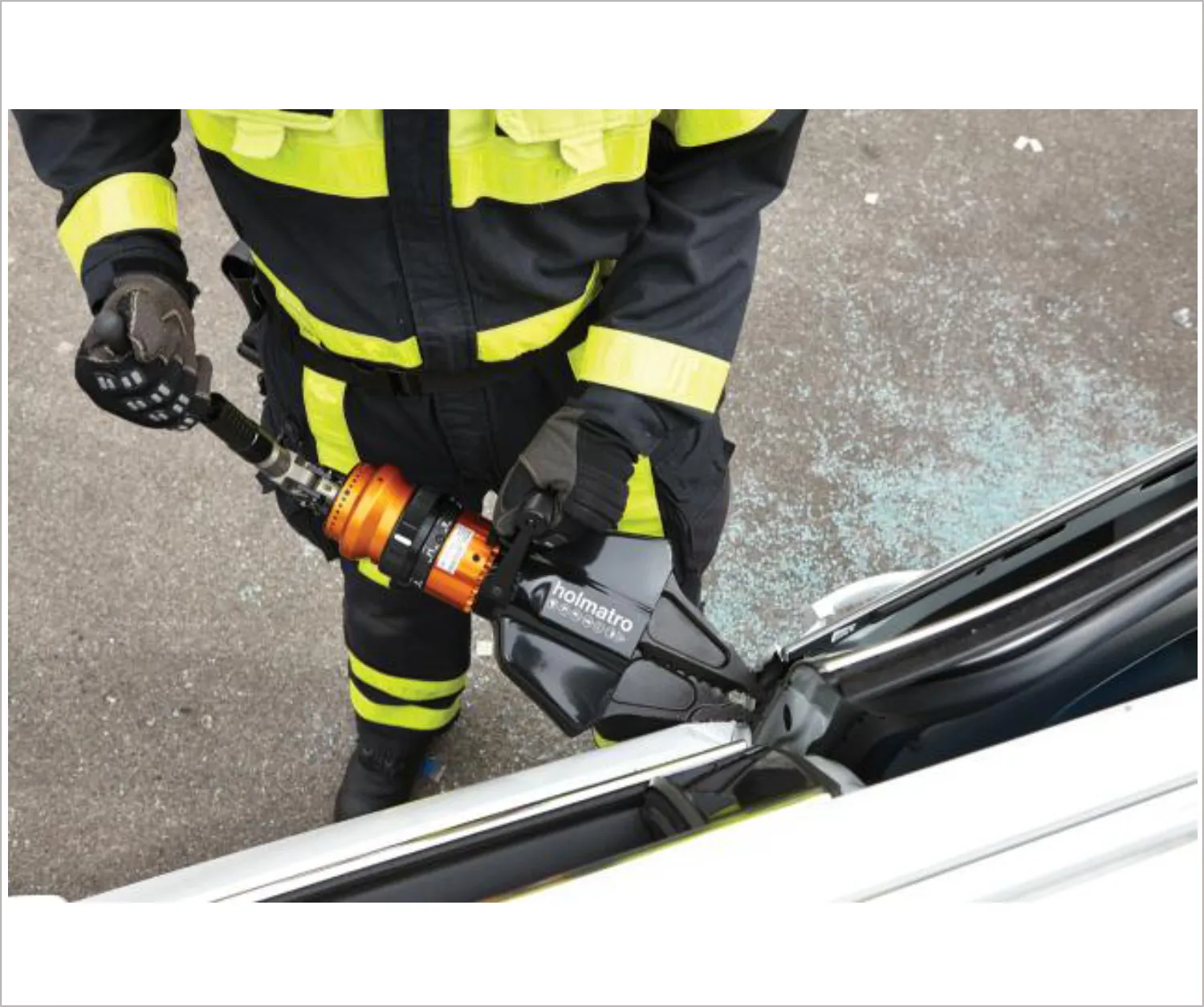

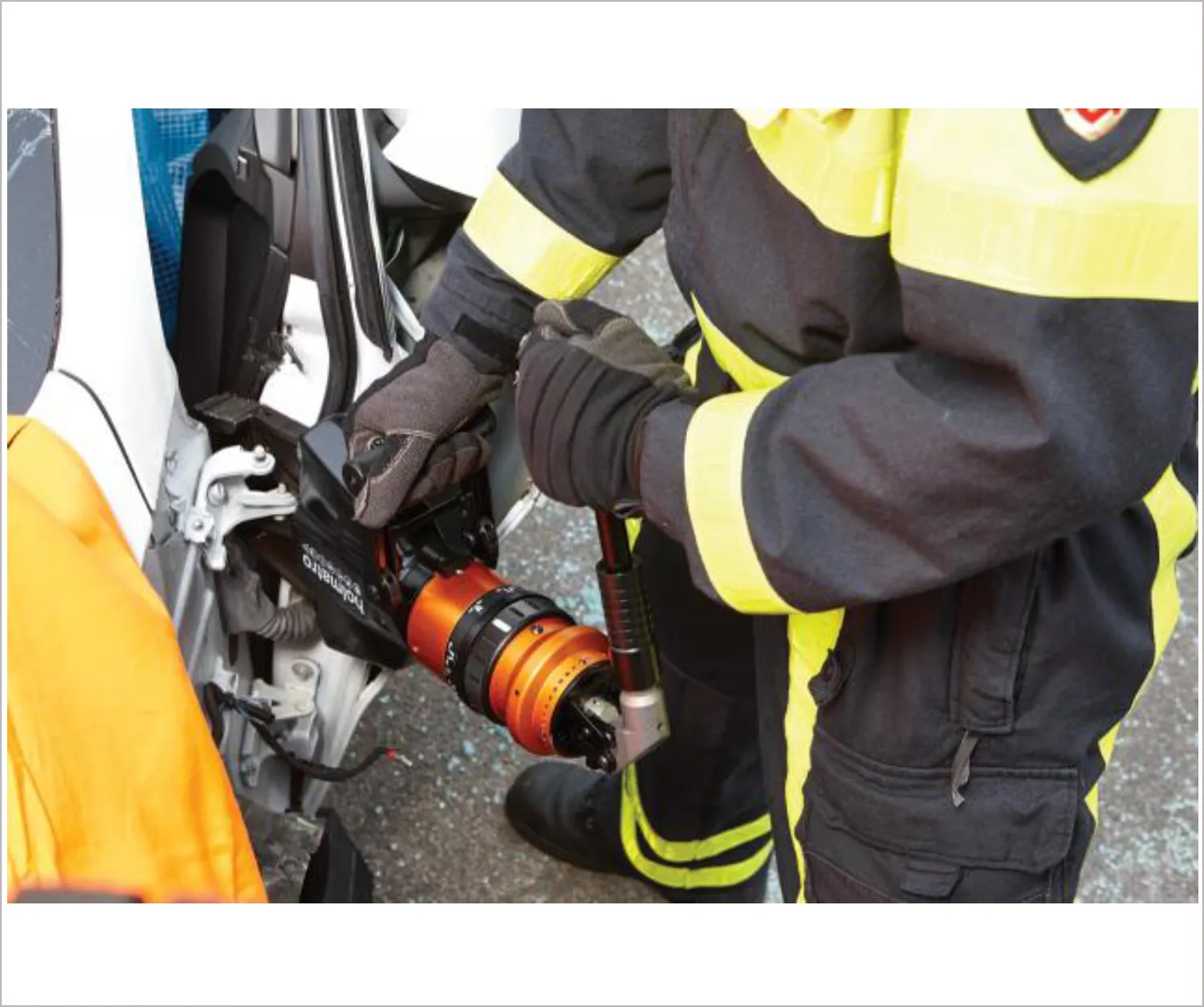

You can gain access to a modern vehicle with just one tool (tested on an Opel Insignia, avoiding the pillars)
Suitable for under water use

Non-slip selection ring

Self-contained with integrated 2-stage pump

Rapid deployment: Simply fold out the pump handle and start pumping
Pump handle 360° rotatable and lockable in 22 positions for use of the tool in almost any position
Pump handle also collapsible for compact transportation and storage

Equipped with i-Bolt

Flat central bolt construction for better access to narrow spaces
Squeezes the blades together directly, which results in less blade separation and a better cutting performance

With 360° rotatable, flat foldable carrying handle
