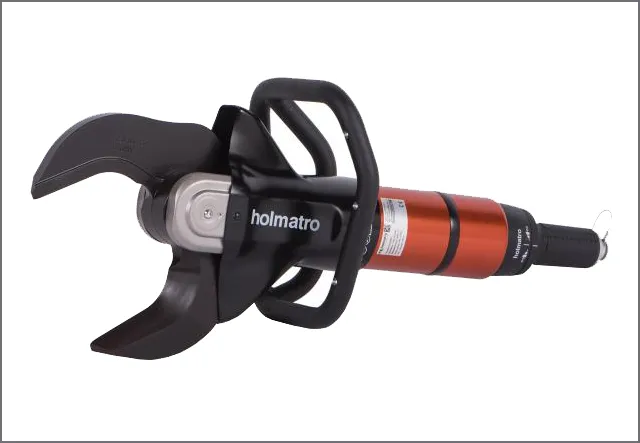

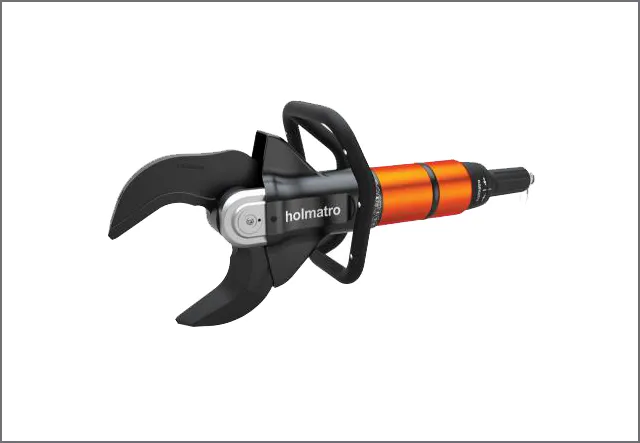

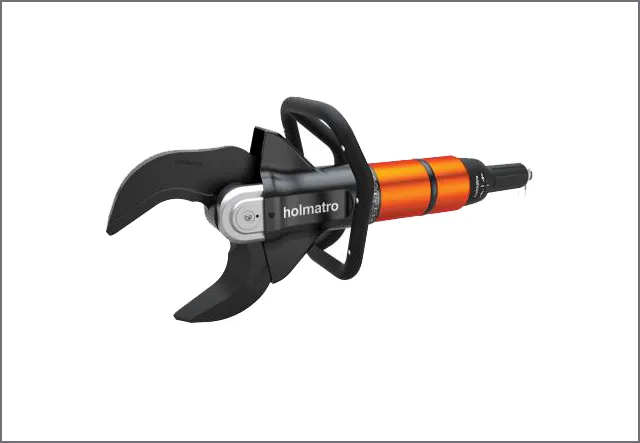

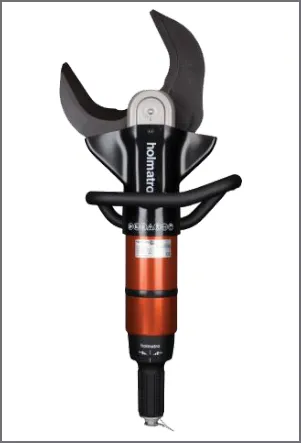

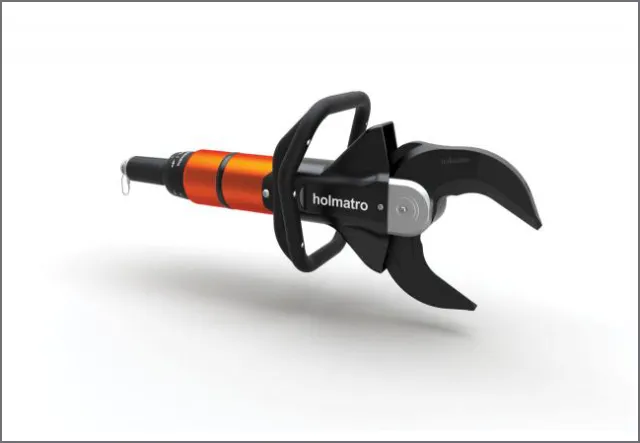

CUTTER CU 5050 I

New Car Technology Inclined Cutter - 5000 series. Lighter than ever, improved performance. With inclined cutting jaw for more ergonomic cutting above waist height or low on the car and to reduce the effect of tool movement towards the patient (e.g. when making a relief cut in the A-pillar).

Standard supplied with:

Carrying handle with integrated LED lighting
i-Bolt Technology
Redesigned, ergonomic control handle with improved grip
CORE Technology: quicker, safer, easier

Details
Articlenumber	150.012.306
Basic specifications
model	CU 5050 i
equipped with (connector type)	CORE
max. working pressure	720 / 72 (bar/Mpa)	10443 psi
Performance
max. cutting opening	182 mm	7.2 in
directives	2006/42/EC
theoretical cutting force	1389 / 141.6 (kN/t)	312260 lbf
General specifications
NCT	yes
cutter jaw	inclined
Dimensions, weight and temperature
weight, ready for use	15.9 kg	35.1 lb
dimensions (AxBxC)	762 x 306 x 268 mm	30 x 12 x 10.6 in
Norms
EN 13204 classification	BC165K-15.9
NFPA 1936, cutting capacity	A8 B8 C7 D9 E9
NFPA 1936 compliant	yes
EN 13204, cutting capacity	1K 2K 3K 4K 5K
EN 13204 compliant	yes
Cutting performance
round bar (S235 acc. to EN 13204)	41 mm	1.6 in

Download

Limited weight

Lighter than ever thanks to new materials, component integration and intelligent design.
Easy to carry and handle, reducing physical burden.

Unique inclined cutter jaw

For more ergonomic cutting above waist or head height or, conversely, low on the car. The control handle remains at waist height.

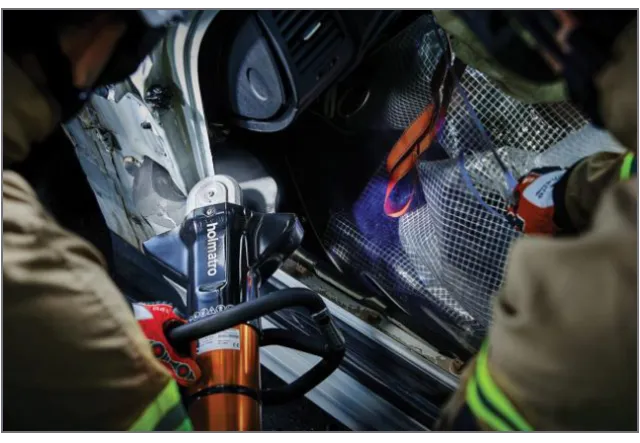

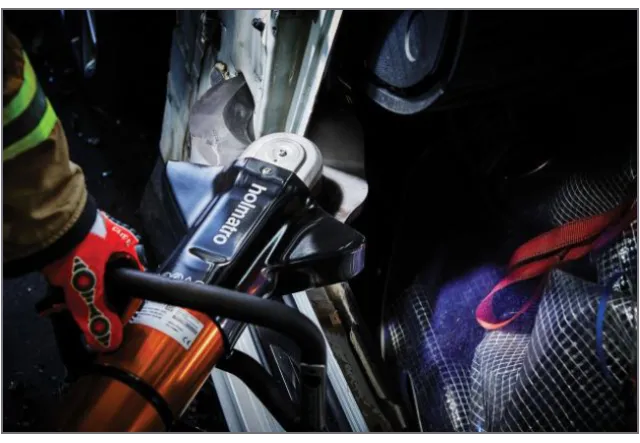

It also reduces the effect of tool movement towards the patient, e.g. when making a relief cut in the A-pillar.

nct-cutter-blades-en-20339

NCT cutter blades

Our New Car Technology blades are specially designed to cut new car construction.
Their Ushape surrounds the material and pulls it in into the cutting recess, where it is cut at the strongest point of the cutter.
With optimized cutting edge for a long blade life and superior cutting performance.

i-Bolt

Flat central bolt construction squeezing the blades together directly (no blade holder in between!) and more tightly. This minimizes blade separation and maximizes cutting performance.
It also allows for better access in narrow spaces.

Ergonomic carrying handle

New ergonomic carrying handle design increases operator comfort in various working positions.
The Inclined Cutter has one that goes all-around the tool, enabling you to take full advantage of its benefits at all sides of the car.

Integrated LED lighting

New LED lighting in the carrying handle: no less than six lights with a higher light output. Rescuers can start right away, both during the day and at night, without working in their own shadow.
