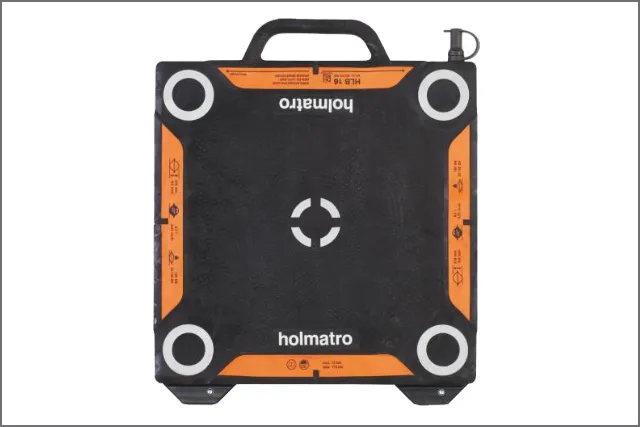

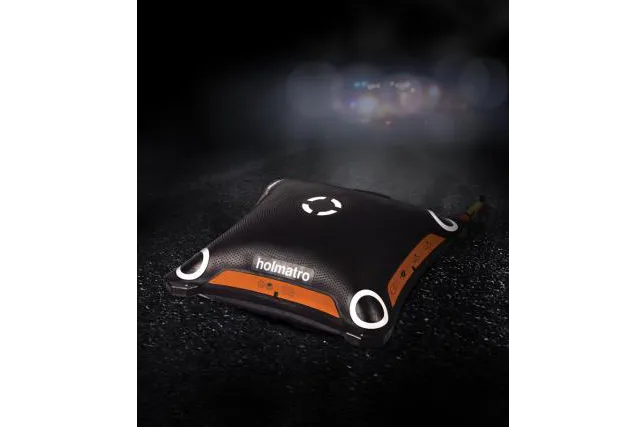

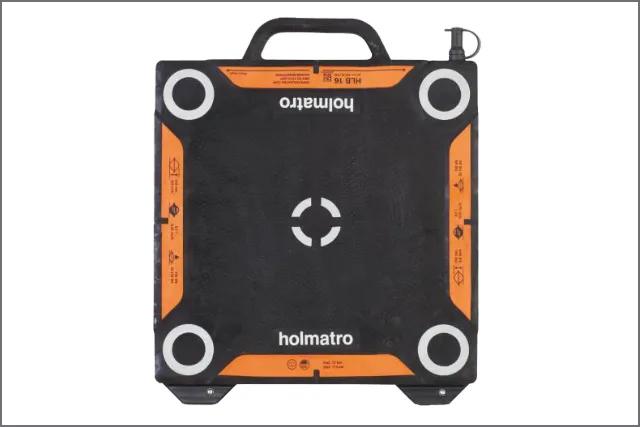

LIFTING BAG HLB 16

High-pressure lifting bag, 12 bar / 174 psi system. Designed for maximum safety and control when lifting heavy objects. Offers 50% more lifting capacity: get more power out of your lifting bag or use a smaller and lighter model to get the job done.

Standard supplied with:

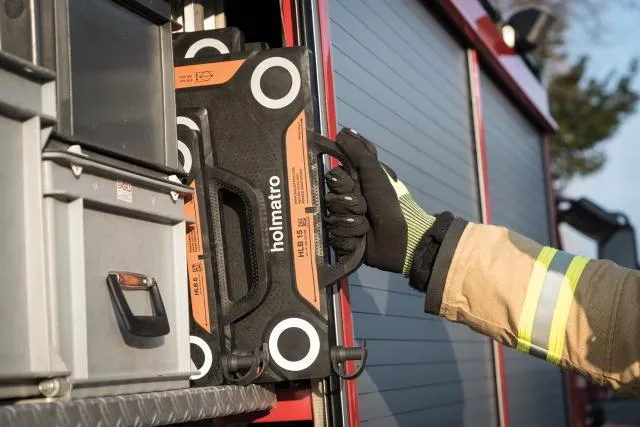

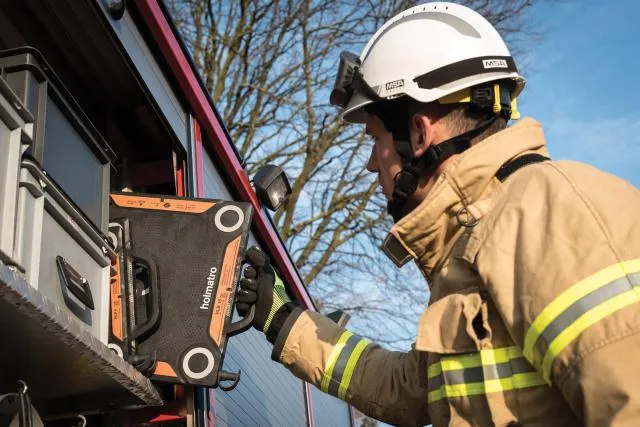

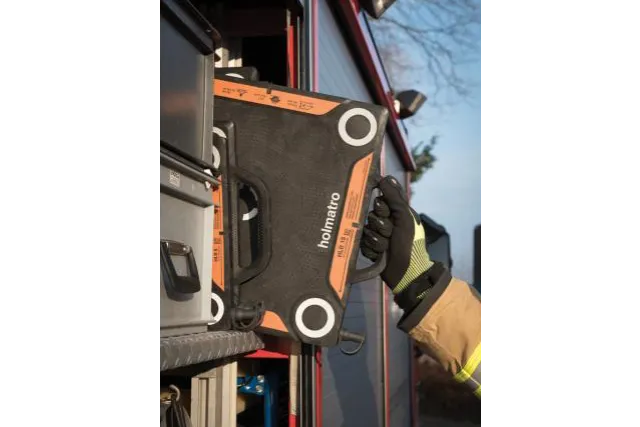

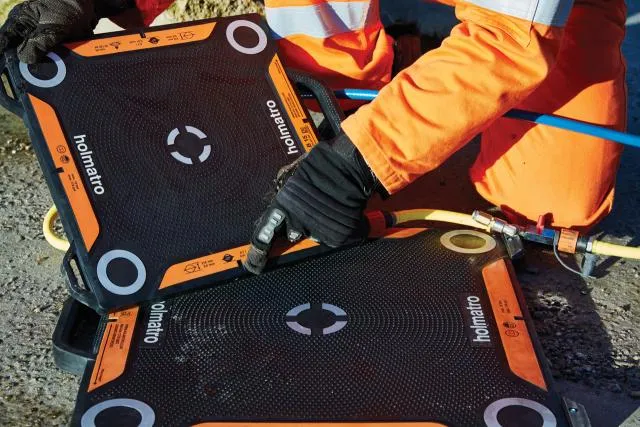

Integrated carrying handle with capacity indication

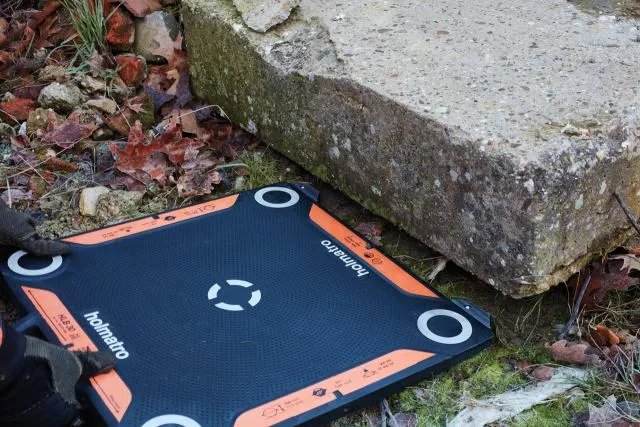

Slider pads to facilitate lifting bag placement
Flexible integrated dust cap on air inlet

Details
Articlenumber	350.321.026
Basic specifications
model	HLB 16
max. working pressure	12 / 1.2 (bar/Mpa)	174 psi
Performance
max. lifting capacity	155 / 15.8 (kN/t)	34845 lbf
max. inflation height	236 mm	9.3 in
thickness incl. profile	25 mm	1 in
max. lifting capacity (12 bar/174 psi)	155 / 15.8 (kN/t)	34845 lbf
max. lifting capacity (8 bar/116 psi)	103 / 10.5 (kN/t)	23155 lbf
General specifications
material	reinforced with 3 aramide inlays
air content (8 bar/116 psi)		2.5 cu ft
Dimensions, weight and temperature
weight, ready for use	4.5 kg	9.9 lb
dimensions (AxBxC)	467 x 390 x 25 mm	18.4 x 15.4 x 1 in
Norms
EN 13731 compliant	Yes
