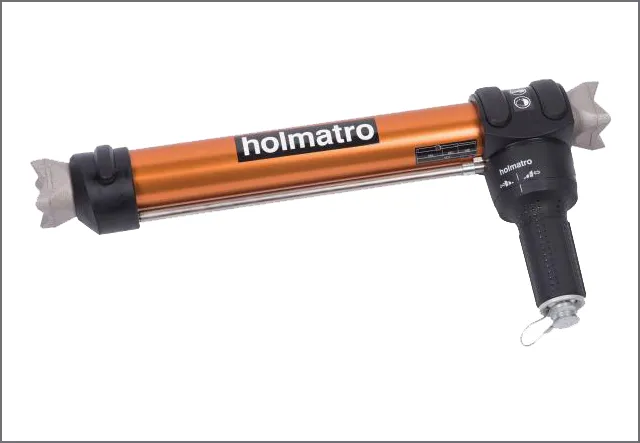

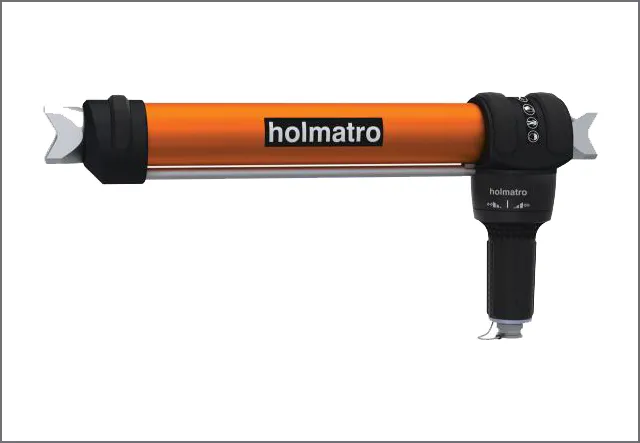

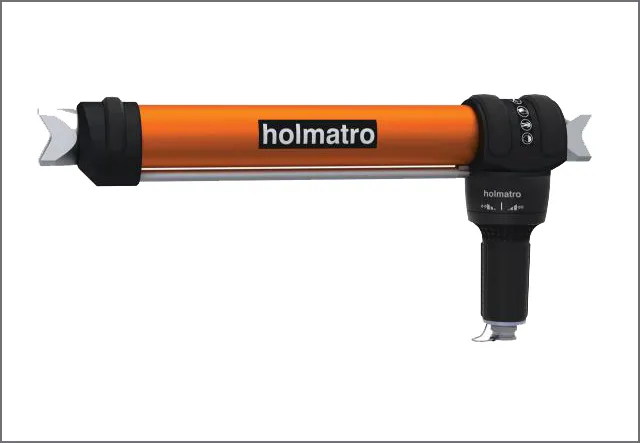

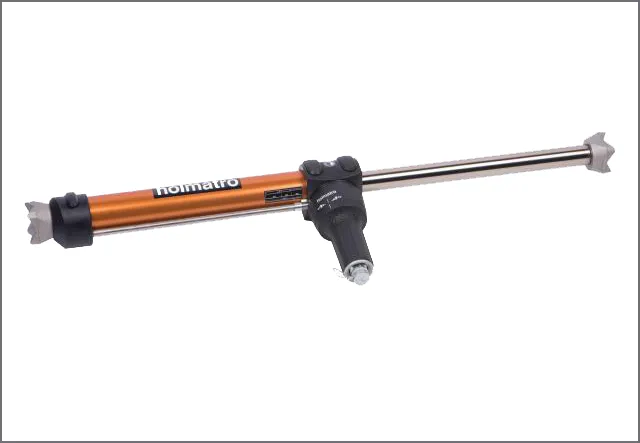

RAM RA 5315 CL

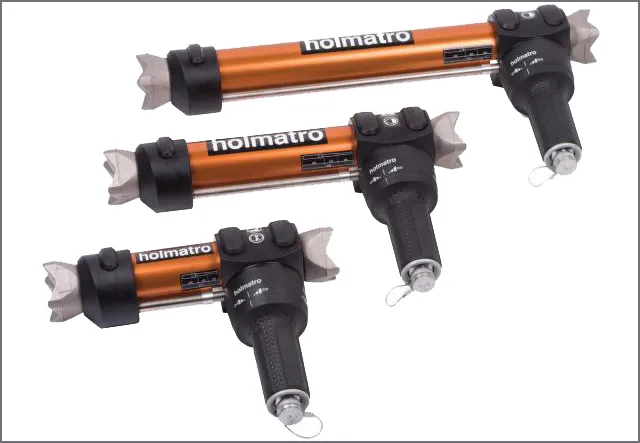

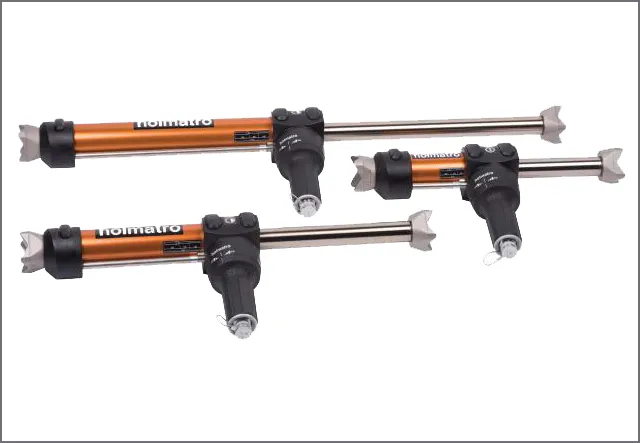

Compact, lightweight ram - 5000 series. Lighter than ever without compromising on performance.

Standard supplied with:

  • Built-in Speed Valve
  • Redesigned, ergonomic control handle with improved grip
  • CORE Technology: quicker, safer, easier

Details
Articlenumber150.032.121
Basic specifications
modelRA 5315 CL
equipped with (connector type)CORE
max. working pressure720 / 72 (bar/Mpa)10443 psi
Performance
spreading force over full stroke100 / 10.2 (kN/t)22481 lbf
spreading stroke400 mm15.7 in
retracted length567 mm22.3 in
extended length967 mm38.1 in
directives2006/42/EG
General specifications
number of plungers1
Dimensions, weight and temperature
weight, ready for use9.8 kg21.6 lb
dimensions (AxBxC)256 x 100 x 567 mm10.1 x 3.9 x 22.3 in
Norms
EN 13204 classificationR100/400-9.8
NFPA 1936 compliantyes
EN 13204 compliantyes
NFPA 1936, HSF100 / 10.2 (kN/t)22481 lbf
NFPA 1936, LSF100 / 10.2 (kN/t)22481 lbf
