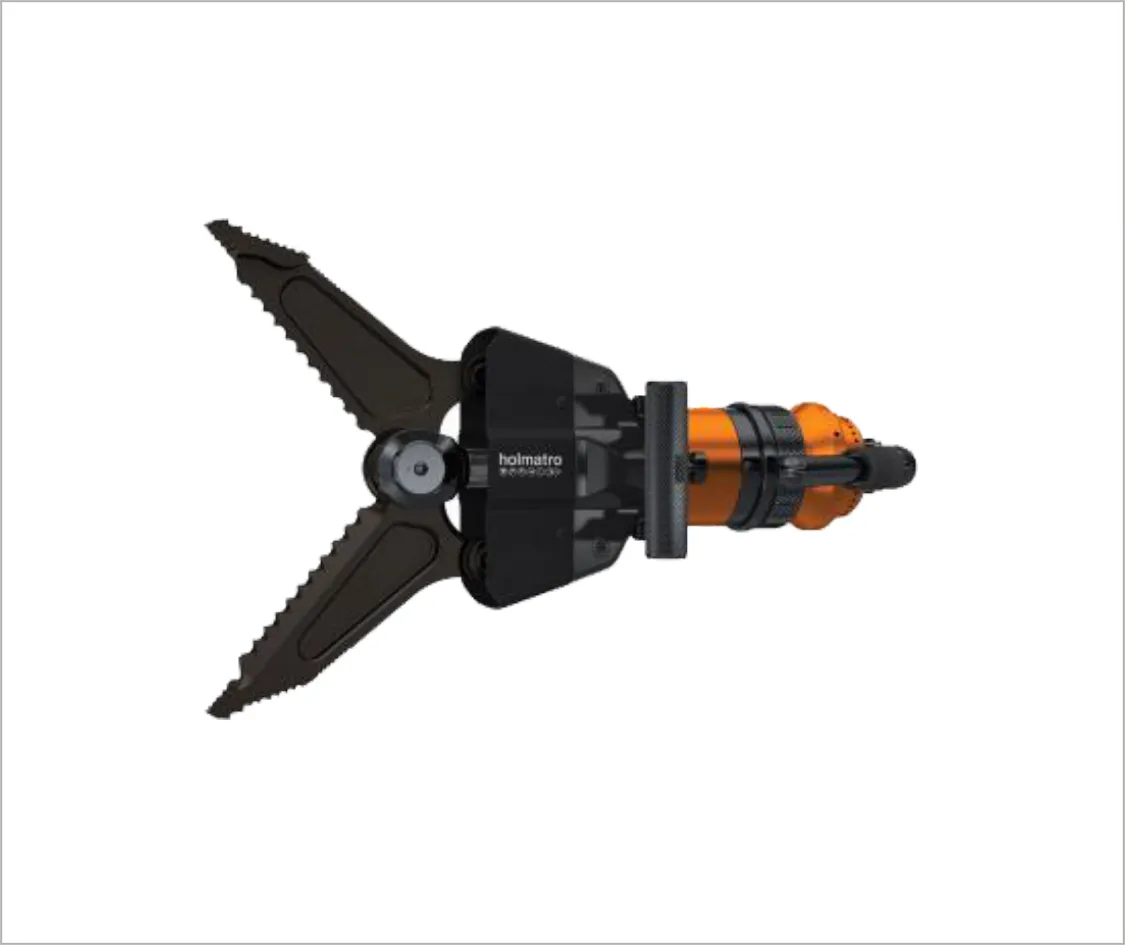

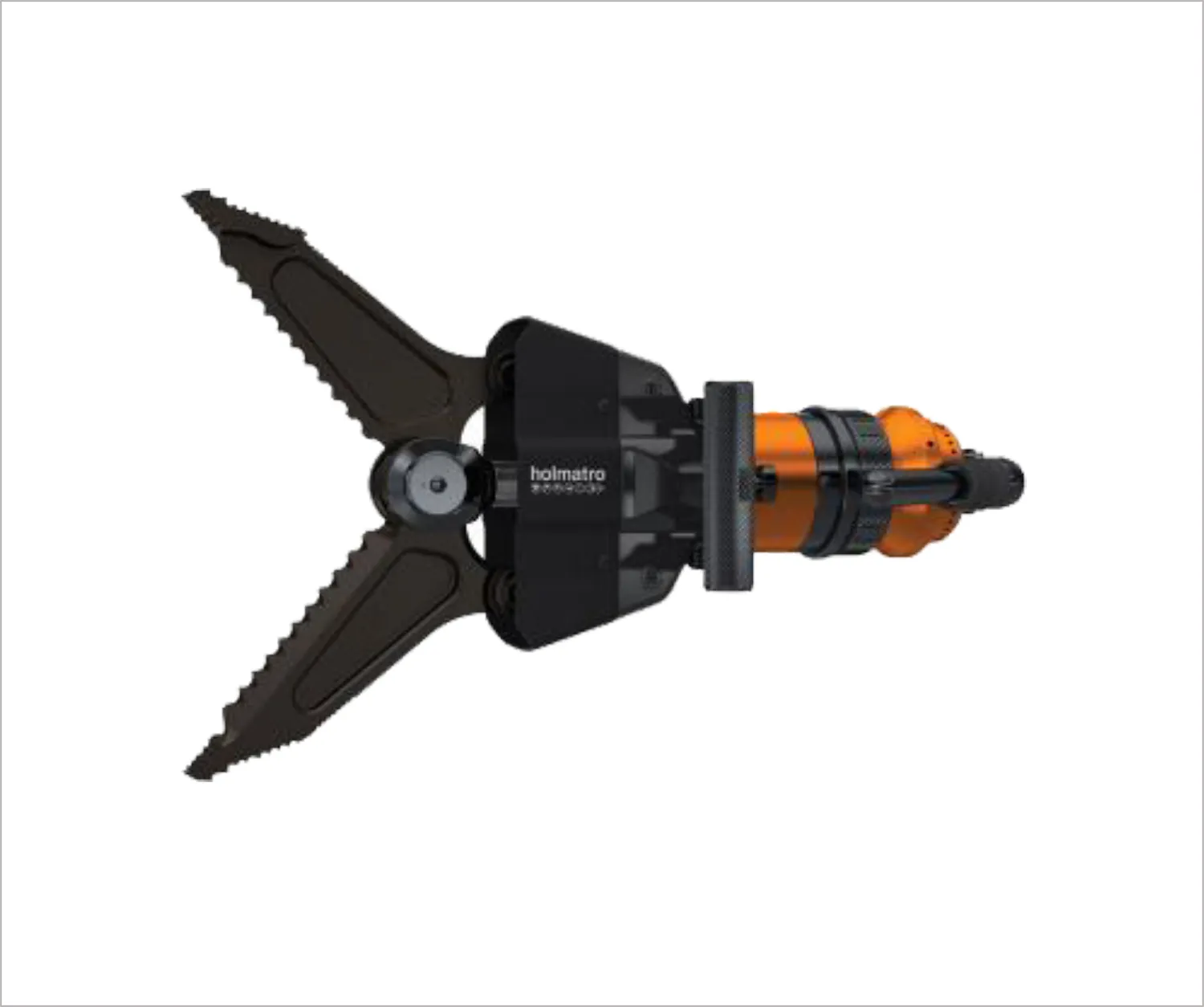

COMBI TOOL HCT 5114 RH

Hand-operated combi tool that enables spreading, cutting and squeezing.

Standard supplied with:

Details
Articlenumber	151.000.579
Basic specifications
model	HCT 5114 RH
max. working pressure	720 / 72 (bar/Mpa)	10443 psi
Performance
max. spreading force	131 / 13.4 (kN/t)	29450 lbf
min. spreading force (EN 13204)	33 / 3.4 (kN/t)	7419 lbf
spreading distance	362 mm	14.3 in
max. cutting opening	277 mm	10.9 in
max. squeezing force	34 / 3.5 (kN/t)	7644 lbf
directives	2006/42/EC
theoretical cutting force	268 / 27.3 (kN/t)	60249 lbf
General specifications
operator type	hand
Dimensions, weight and temperature
weight, ready for use	9.1 kg	20.1 lb
dimensions (AxBxC)	583 x 218 x 145 mm	23 x 8.6 x 5.7 in
Norms
EN 13204 classification	BK33/362-E-9.1
NFPA 1936, cutting capacity	A5/B5/C5/D6/E4
EN 13204, cutting capacity	1E 2E 3E 4E 5E
EN 13204 compliant	yes
NFPA 1936, HSF	40 / 4.1 (kN/t)	8992 lbf
NFPA 1936, LSF	30 / 3.1 (kN/t)	6744 lbf
Cutting performance
round bar (S235 acc. to EN 13204)	24 mm	0.9 in

Download

Extremely compact & ultra-lightweight

Optimal performance to weight ratio

Very high spreading force and large spreading distance compared to size and weight
High cutting force and large cutting opening compared to size and weight

Multifunctional

One tool for cutting, spreading and squeezing

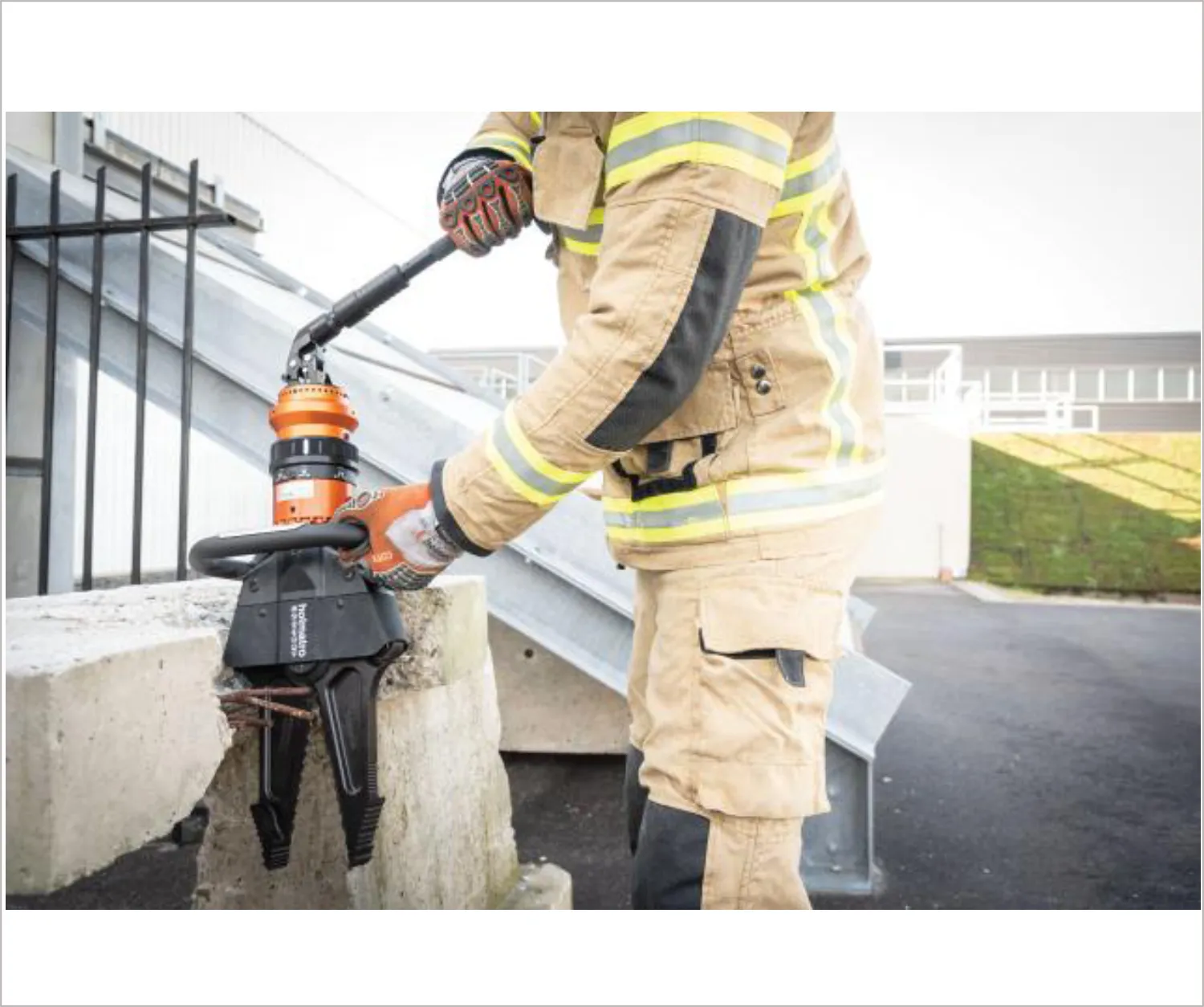

Suitable for a variety of operations, from rapid intervention in vehicle rescue to USAR
You can gain access to a modern vehicle with just one tool (tested on an Opel Insignia, avoiding the pillars)
Suitable for under water use

Non-slip selection ring

(4)hct-non-slip-selection-ring-en-20609(1)

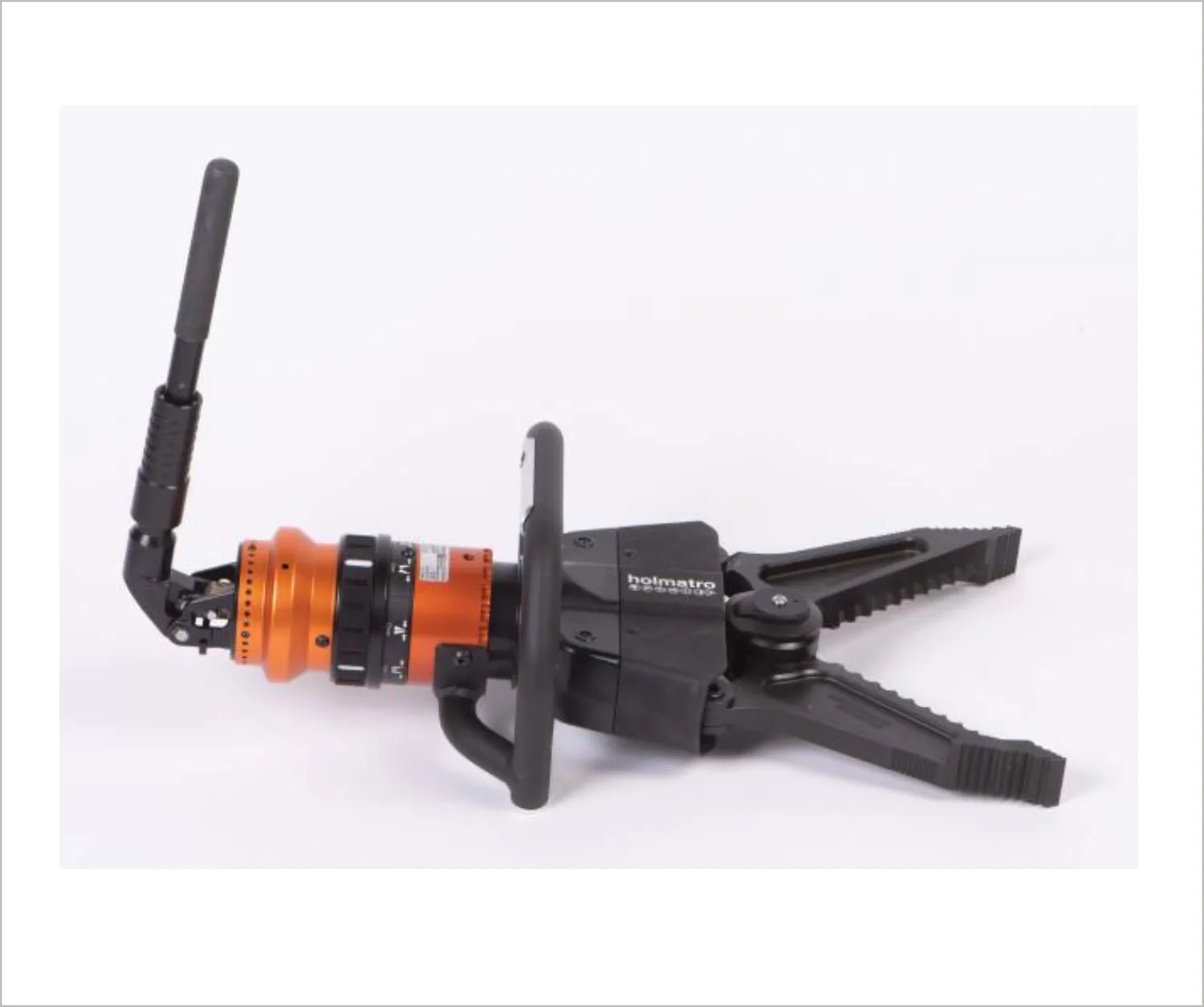

Self-contained with integrated 2-stage pump

Rapid deployment: Simply fold out the pump handle and start pumping
Pump handle 360° rotatable and lockable in 22 positions for use of the tool in almost any position
Pump handle also collapsible for compact transportation and storage

Equipped with i-Bolt

Flat central bolt construction for better access to narrow spaces
Squeezes the blades together directly, which results in less blade separation and a better cutting performance

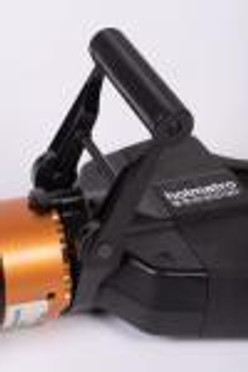

With 360° rotatable, flat foldable carrying handle
