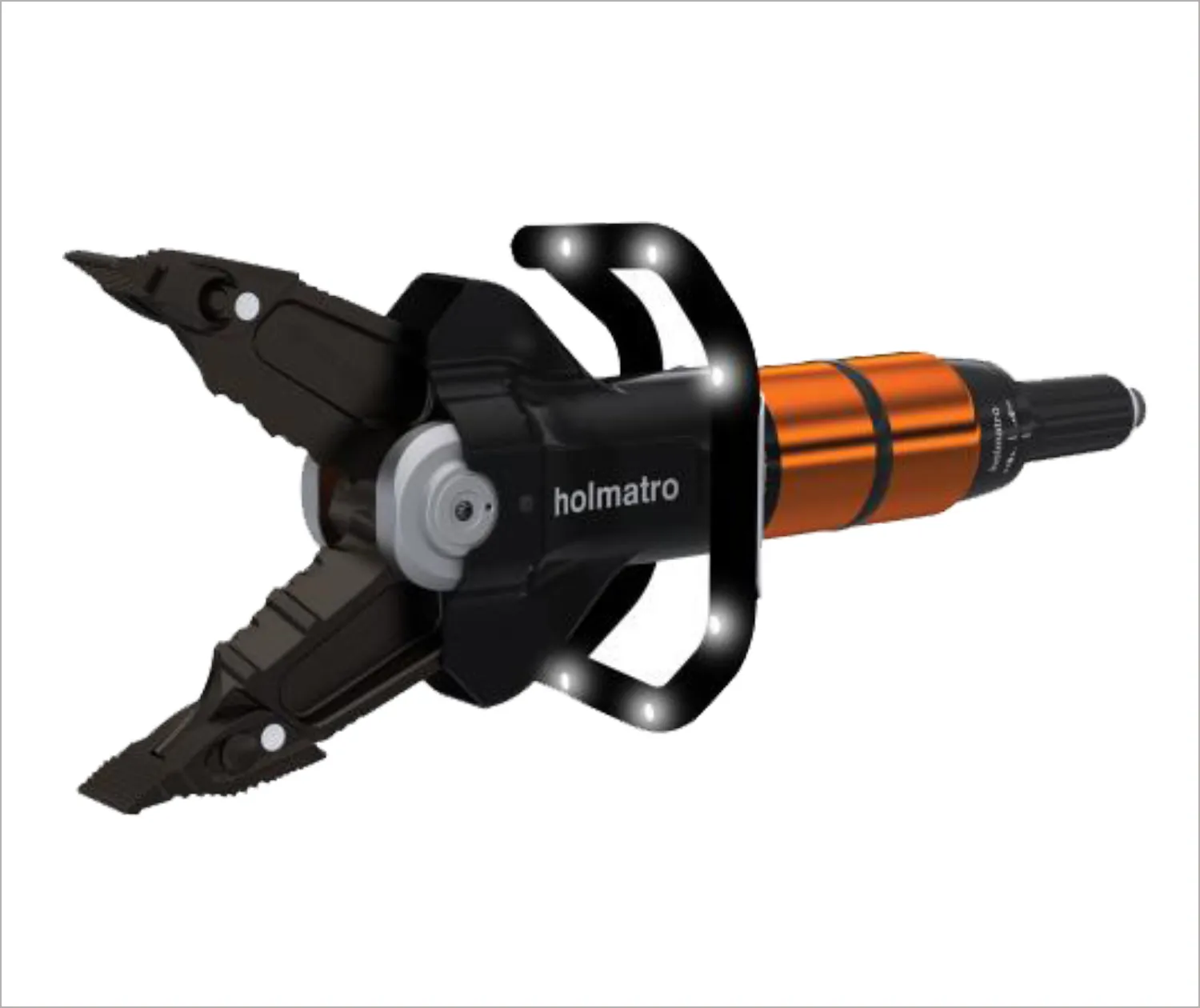

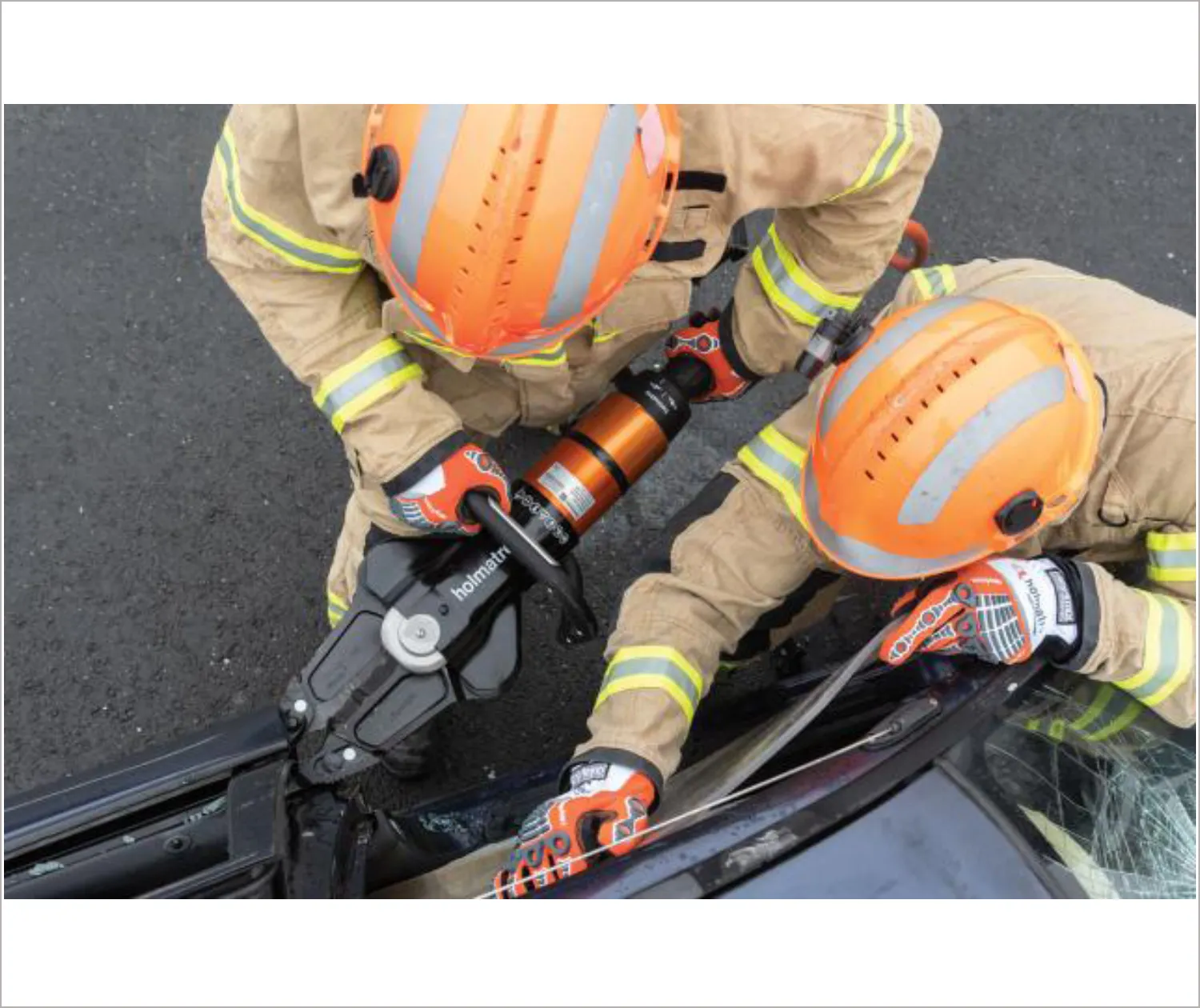

COMBI TOOL CT 5150

Compact and high-performance combi tool for spreading, cutting, squeezing and pulling
- CORE version. Part of the 5000 series: no compromise on performance, lowest weight in its class.

Standard supplied with:

Removable spreading tips
Carrying handle with integrated LED lighting
i-Bolt Technology
Redesigned ergonomic control handle with improved grip
CORE Technology: quicker, safer, easier

Details
Articlenumber	151.001.058
Basic specifications
model	CT 5150
equipped with (connector type)	CORE
max. working pressure	720 / 72 (bar/Mpa)	10443 psi
Performance
max. spreading force	1860 / 189.7 (kN/t)	418145 lbf
min. spreading force (EN 13204)	43 / 4.4 (kN/t)	9667 lbf
spreading distance	380 mm	15 in
max. cutting opening	320 mm	12.6 in
max. squeezing force	87 / 8.9 (kN/t)	19558 lbf
max. pulling force	104 / 10.6 (kN/t)
directives	2006/42/EC
theoretical cutting force	670 / 68.3 (kN/t)	150622 lbf
Dimensions, weight and temperature
weight, ready for use	14.8 kg	32.6 lb
dimensions (AxBxC)	767 x 277 x 202 mm	30.2 x 10.9 x 8 in
Norms
EN 13204 classification	CK43/380-J-14.8
NFPA 1936, cutting capacity	A7 B8 C8 D8 E8
NFPA 1936 compliant	yes
EN 13204, cutting capacity	1J 2J 3K 4K 5K
EN 13204 compliant	yes
NFPA 1936, HPF	104 / 10.6 (kN/t)	23380 lbf
NFPA 1936, HSF	42.5 / 4.3 (kN/t)	9554 lbf
NFPA 1936, LPF	79.7 / 8.1 (kN/t)	17917 lbf
NFPA 1936, LSF	32.9 / 3.4 (kN/t)	7396 lbf
Cutting performance
round bar (S235 acc. to EN 13204)	36 mm	1.4 in

Download

Optimal performance to weight ratio

Ability to deliver high forces at a relatively low tool weight

Removable spreading tips

To finish a cut without crushing materials between the tips
Designed in one piece to prevent losing parts
Quick single-handed removal, even with gloves
With reflective markings for optimal visibility in the dark

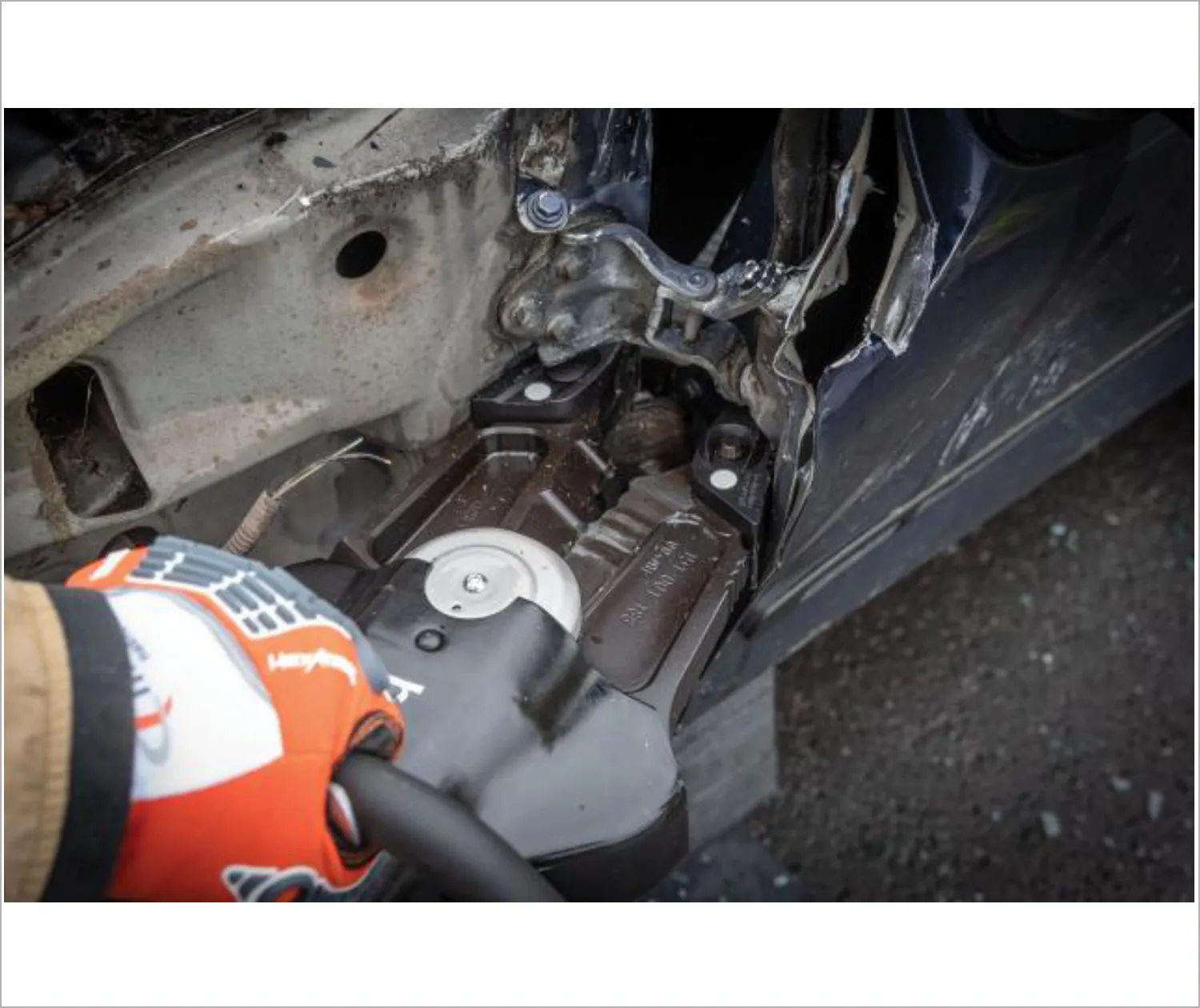

Unique grip teeth on both blades

For extra bite when cutting
To prevent wider materials from being pushed out of the blades

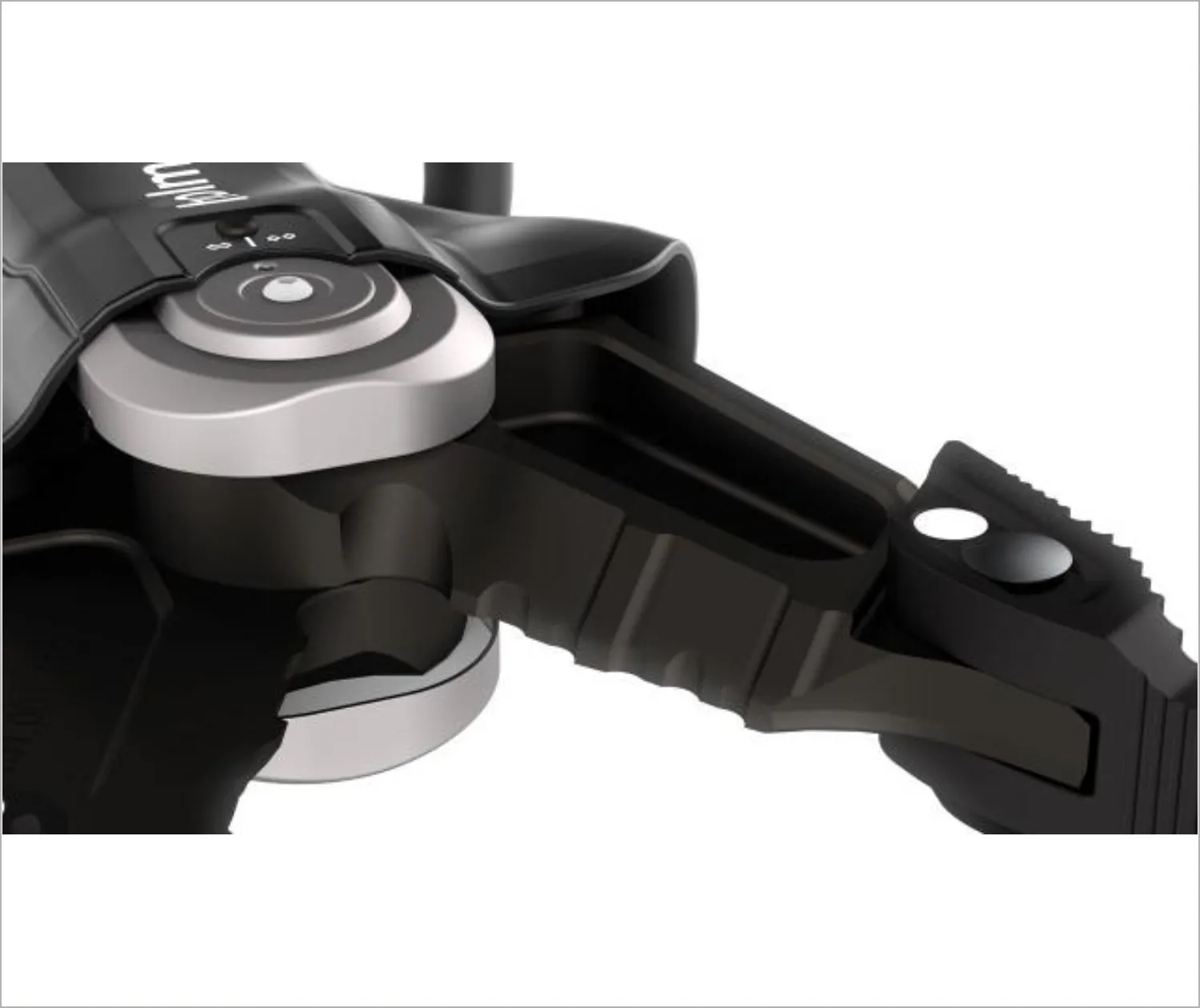

i-Bolt

Flat central bolt construction squeezing the blades together directly and more tightly
To minimize blade separation and maximize cutting performance

Ergonomic carrying handle

Optimized ergonomic carrying handle design for increased operator comfort in various working positions

Integrated LED lighting

Six high-output LED lights in the carrying handle always ensure a well-lit working area
Start right away, night and day, without being hindered by your own shadow

New control handle
