PRODUCTS / MISTRAL M6 - EM

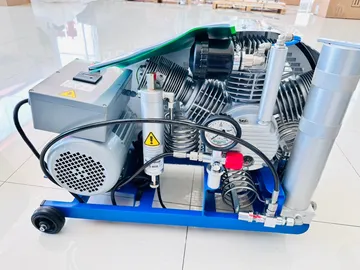

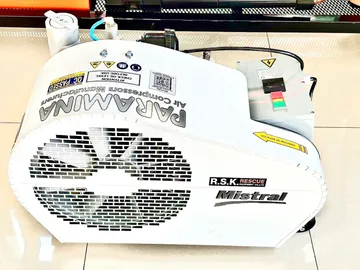

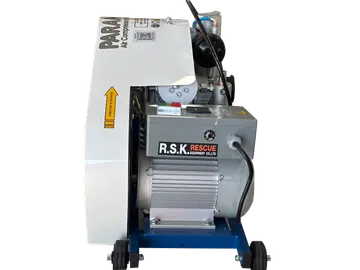

MISTRAL M6-EM
model	:M6-EM
Air Delivery FAD	: 103 lit/min – 6,2 m3/h
Max. Working Pressure	: 330 bar
Stages	: 3
Cylinders	: 3
Cylinder Arrangement	: W
1st stage cylinders diameter	: 60mm
2nd stage cylinder diameter	: 36 mm
3rd stage cylinder diameter	: 14 mm
Piston Stroke	: 40 mm
Speed Rotation	: 1200 rpm
1st Stage Pressure	: 3,5 bar
2nd Stage Pressure	: 27 - 30 bar
Transmission	: V Belt
Motor power	: 2,2kW/3Hp – 220V/50Hz or 230V/60Hz (upon request)(Class F, IP55)
Oil Capacity	: 500 ml. synthetic compressor oil
Air outlet temperature	: 5 - 8^oC above ambient temperature
Max. permissible ambiant temp.	: +5⁰to +45⁰C
Cooling air flow min required approximately	: 792m³/hr
Max. inclination of compressor	: 15⁰
Dimensions (L-W-H)	: 78 X 41 X 49 cm
Weight	: 54 - 68 Kg
Filling Time of 1 Cyl.10ltr @ 225bar	: 21,8 min ± 5%
Filling Time of 1 Cyl.10ltr @ 300bar	: 29,1 min ± 5%
2nd Stage Pressure	: 27 - 30 bar
Air Delivery FAD	: 103 lit/min – 6,2 m3/h

Unparalleled Speed

Fastest Combi Tool on the market, thanks to Stepless Speed Maximization (PATENTED). A mechatronic system inside the tool continuously optimize the motor and pump settings to deliver a maximized oil flow over the full pressure range. This results in unparalleled speed at any tool load.

Where all other rescue tools show a significant decrease in speed when switching to another stage to deal with higher loads, Holmatro Pentheon tools stick to the ideal stepless speed curve.

A unique two-mode control handle for ultimate speed control offers you the choice, at any time during the rescue operation, to switch between the tool's high-speed and low-speed modes.

Within these two modes the speed is still proportional to how far you turn the control handle to its left or right.

The energy efficiency of our patented mechatronic drive technology.
An Auto Start/Stop function. When the tool is not operated or has reached its maximum pressure, the motor stops automatically. This saves valuable battery capacity. Simply turn the control handle to restart the tool.
Temperature Management Technology. Both tool and battery temperatures are continuously monitored to make sure these don’t get to high, which would cause the tool to shut off. At extremely high temperatures Pentheon tools will automatically switch to working at a lower power consumption, without loss of force. All to make sure that you can keep going, even in hot weather and at high tool loads.

Battery management made easy

Stop swapping batteries with Holmatro's On-Tool Charging System. From now on you can charge a battery while it remains on the tool. Simply connect your tool to the charger and the whole charging process will regulate itself. The battery on the tool has priority over the one on the charger, which will resume charging when the battery on the tool is 100% full.
You can connect up to 3 chargers to be powered from one outlet. This allows you to charge up to 6 batteries automatically, whether placed on the charger or the tool that is connected to the charger.
It is just a matter of plugging it in!

Under water use

Should you encounter a situation where you need to use your rescue tools completely submerged in water, our Pentheon tools are up for the job!

Ease of use

Inline control handle with 360° access. For easy tool operation at all sides of the car.

360° Carrying handle. Goes all around the tool, so you can hold it in any position. Includes a suitcase grip for easy carrying. Made of a high-grade synthetic polymer: an extremely tough and elastic material that always returns into its original shape. Damage-proof!

The LED lights in the carrying handle are powered from the main battery. This means they automatically switch on and off, together with the tool. There's a separate button on the tool to switch the lights off, but don't bother: their power consumption is next to nothing.

With additional features that improve the cutting performance

Two grip teeth on the inside of the combi tool blades prevent the material from being pushed out during cutting.

Removable spreading tips to finish a cut without crushing materials between the tips.
