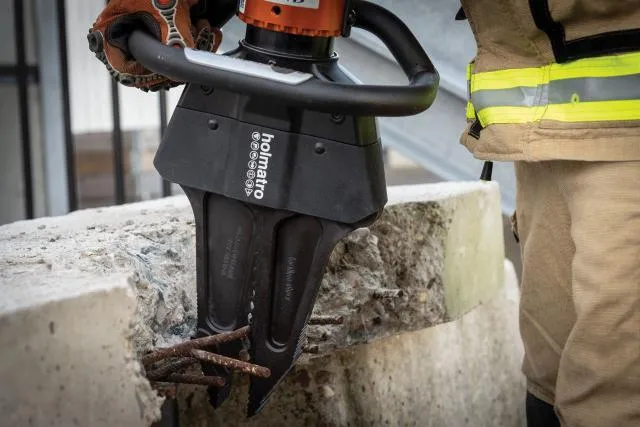

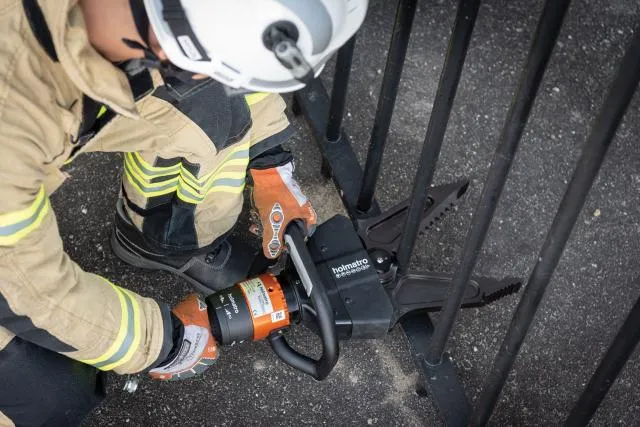

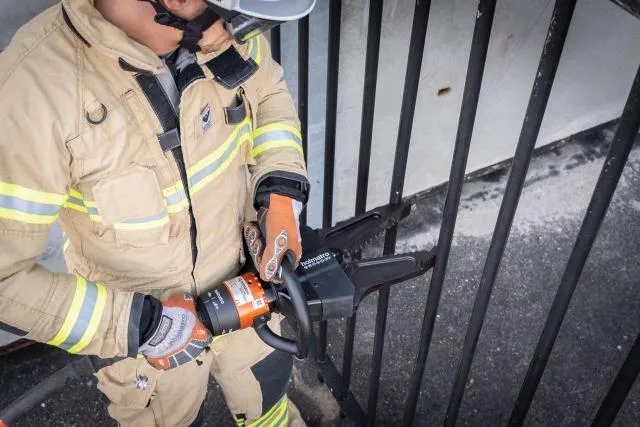

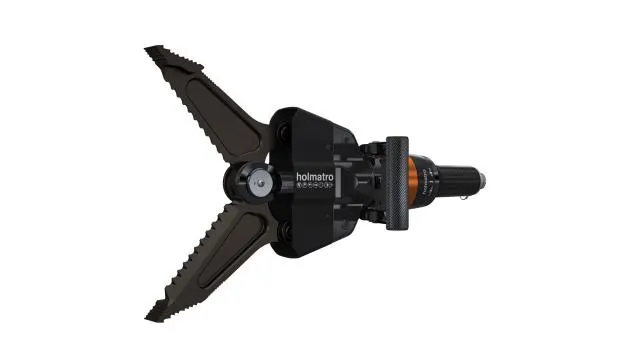

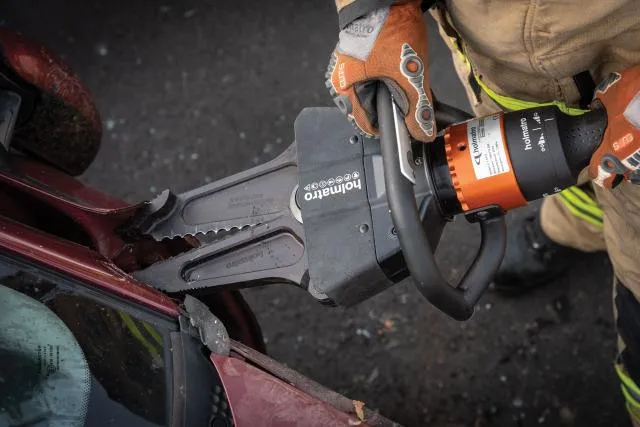

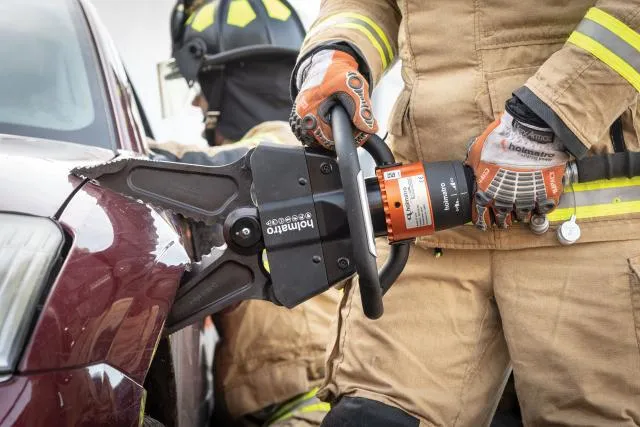

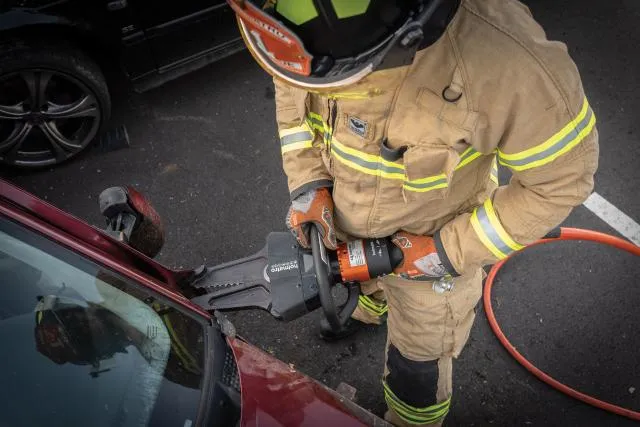

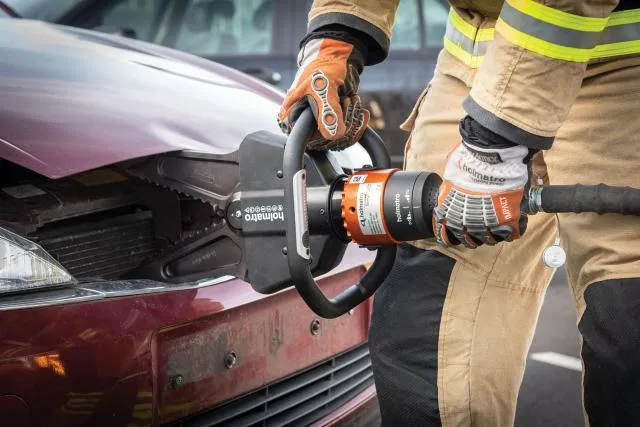

COMBI TOOL CT 5114 RH

For spreading, cutting and squeezing with one tool - CORE version.

Standard supplied with:

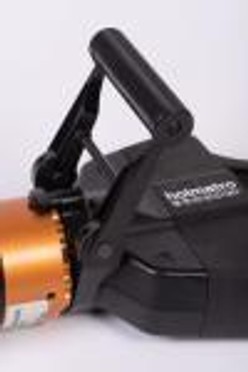

  • 360° rotatable & fold flat carrying handle
  • i-Bolt Technology
  • Redesigned, ergonomic control handle with improved grip
  • CORE Technology: quicker, safer, easier

Details
Articlenumber 151.000.513
Basic specifications
modelCT 5114 RH
equipped with (connector type)CORE
max. working pressure720 / 72 (bar/Mpa)10443 psi
Performance
max. spreading force131 / 13.4 (kN/t)29450 lbf
min. spreading force (EN 13204)33 / 3.4 (kN/t)7419 lbf
spreading distance362 mm14.3 in
max. cutting opening277 mm10.9 in
max. squeezing force34 / 3.5 (kN/t)7644 lbf
directives2006/42/EC
theoretical cutting force268 / 27.3 (kN/t)60249 lbf
Dimensions, weight and temperature
weight, ready for use8.4 kg18.5 lb
dimensions (AxBxC)598 x 217 x 115 mm23.5 x 8.5 x 4.5 in
Norms
EN 13204 classificationBK33/362-E-8.4
NFPA 1936, cutting capacityA5/B5/C5/D6/E4
NFPA 1936 compliantyes
EN 13204, cutting capacity1E 2E 3E 4E 5E
EN 13204 compliantyes
NFPA 1936, HSF40 / 4.1 (kN/t)8992 lbf
NFPA 1936, LSF30 / 3.1 (kN/t)6744 lbf
Cutting performance
round bar (S235 acc. to EN 13204)24 mm0.9 in

technical-drawing-combi-tool-ct-5111-rh-en-18603
