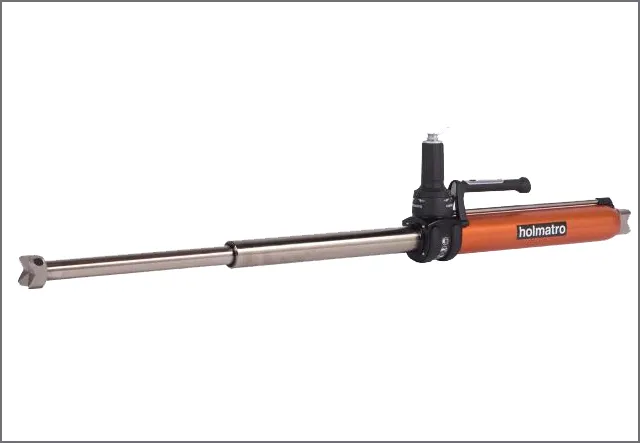

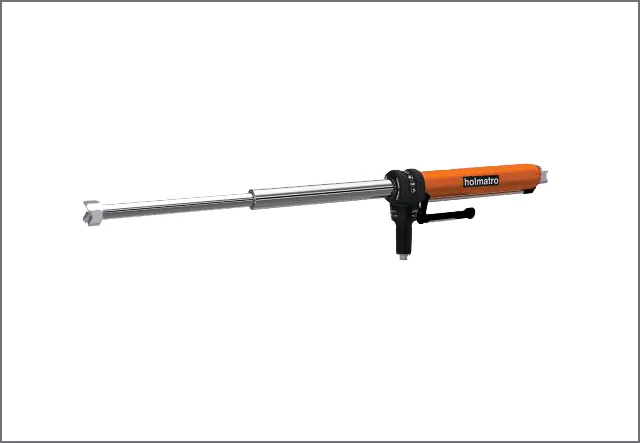

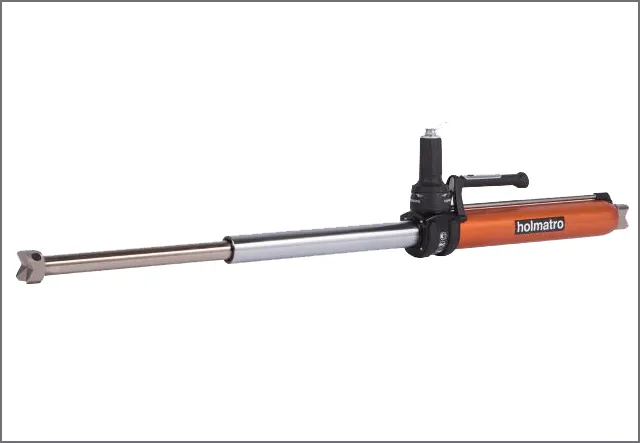

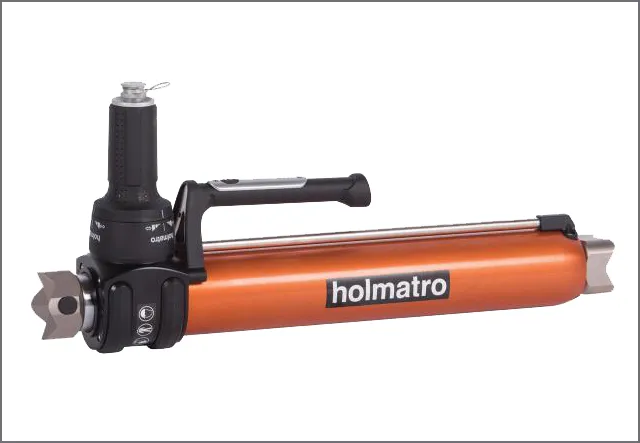

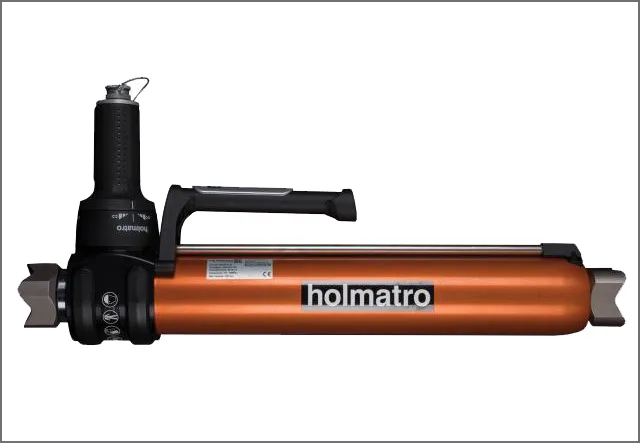

TELESCOPIC RAM TR 5370 LP

Largest model ram with telescopic plunger - 5000 series. Lighter than ever, improved performance. With integrated laser pointer for first-time-right positioning.

Standard supplied with:

Integrated laser pointer in ram head
Integrated LED lighting at both the plunger side and base side of the ram
Ergonomic carrying handle
Redesigned, ergonomic control handle with improved grip
CORE Technology: quicker, safer, easier

Details
Articlenumber	150.032.100
Basic specifications
model	TR 5370 LP
equipped with (connector type)	CORE
max. working pressure	720 / 72 (bar/Mpa)	10443 psi
Performance
spreading stroke 1st plunger	450 mm	17.7 in
spreading stroke 2nd plunger	425 mm	16.7 in
total spreading stroke	875 mm	34.5 in
retracted length	635 mm	25 in
extended length	1510 mm	59.5 in
max. spreading force 1st plunger	231 / 23.6 (kN/t)
max. spreading force 2nd plunger	111 / 11.3 (kN/t)
General specifications
number of plungers	2
Dimensions, weight and temperature
weight, ready for use	16.9 kg	37.3 lb
dimensions (AxBxC)	281 x 109 x 635 mm	11.1 x 4.3 x 25 in
Norms
EN 13204 classification	TR231/450-111/425-16.9
NFPA 1936 compliant	yes
EN 13204 compliant	yes
NFPA 1936, HSF	231 / 23.6 (kN/t)	51931 lbf
NFPA 1936, LSF	111 / 11.3 (kN/t)	24954 lbf

Download

Limited weight

Lighter than ever, thanks to new materials, component integration and smart design. Easier to carry and handle, reducing physical strain.

Increased performance

More spreading force in 2nd stage, where you need it the most, and more length to expand your extrication options

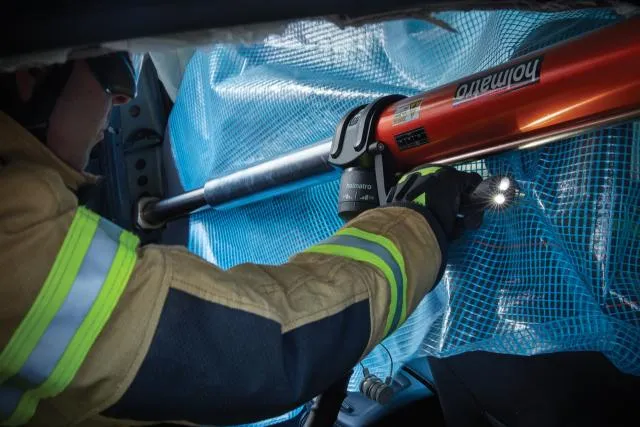

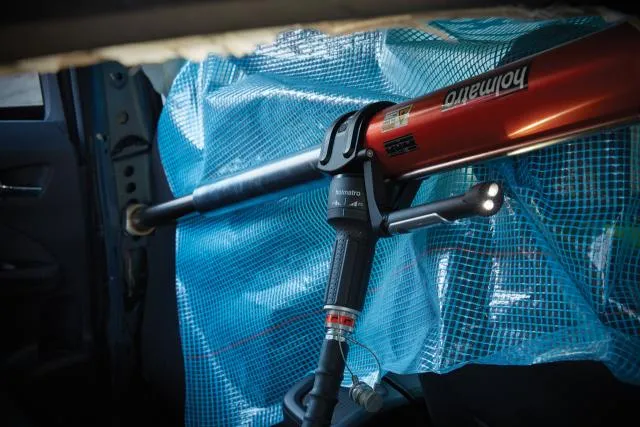

Integrated LED lighting

Illumination of both the plunger and the base side of the ram (6 LED lights in total)
You can start right away, both during the day and at night, without working in your own shadow

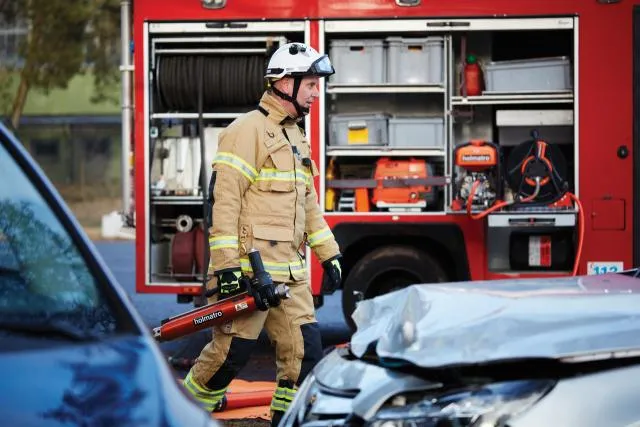

Ergonomic carrying handle

New handle design for easy carrying: tool remains in balance
Mounted parallel to tool to limit dimensions

Built-in Speed Valve

When unloaded, the plunger extends quickly to the desired distance to speed up positioning of your ram

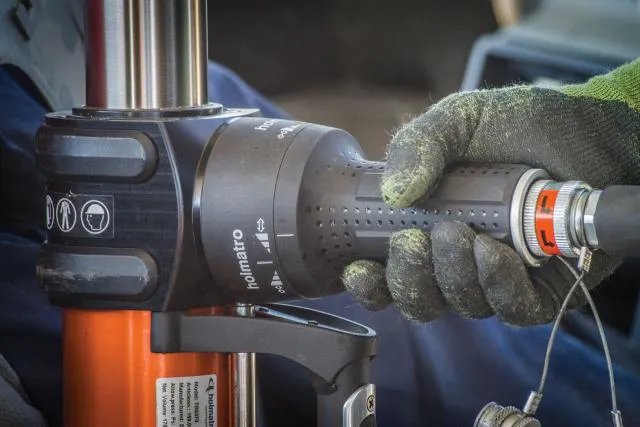

New control handle

Improved ergonomic design, offering better grip for optimal tool control

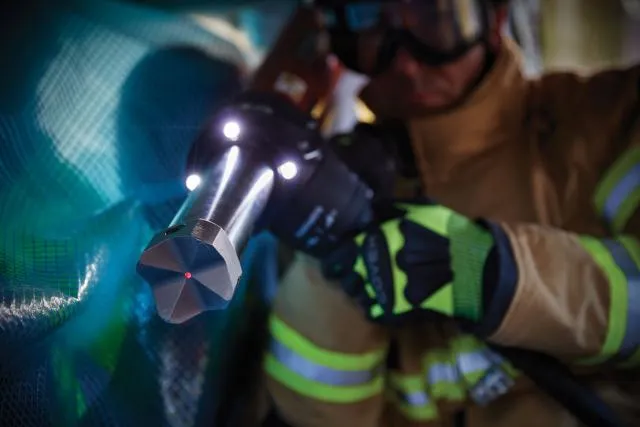

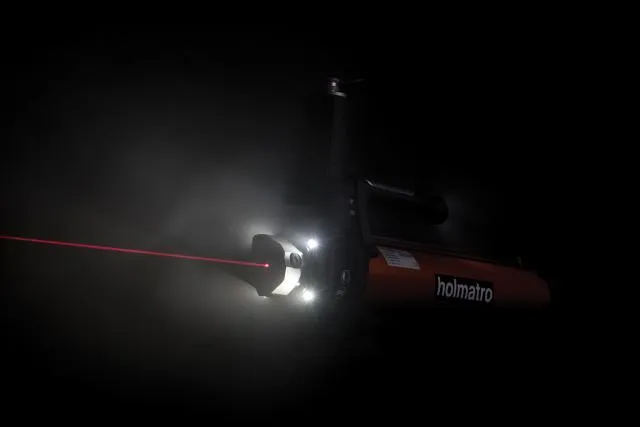

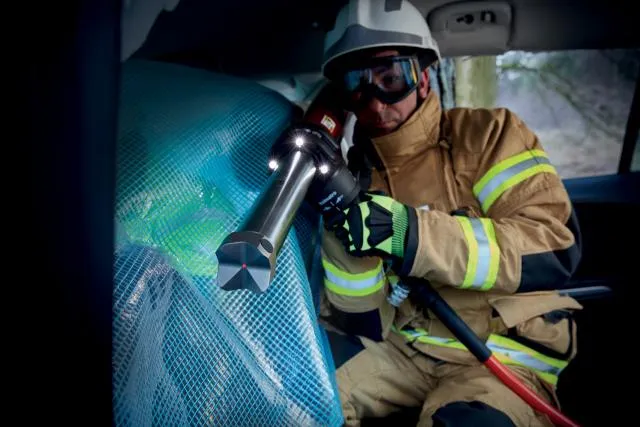

Integrated laser pointer in ram head

Marks the exact spot where the ram will touch the object after extension
Enables first-time-right positioning, which saves time and is safer for the patient
