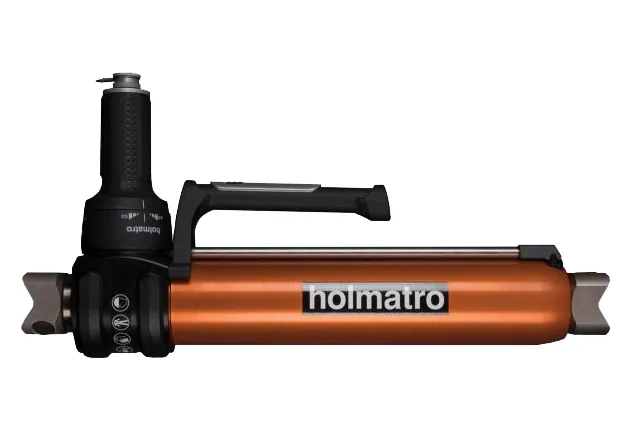

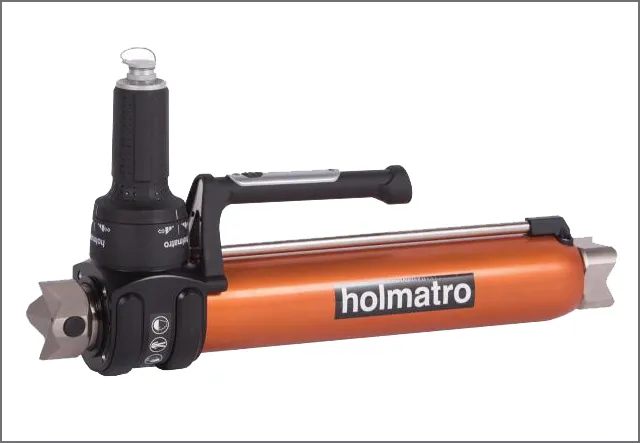

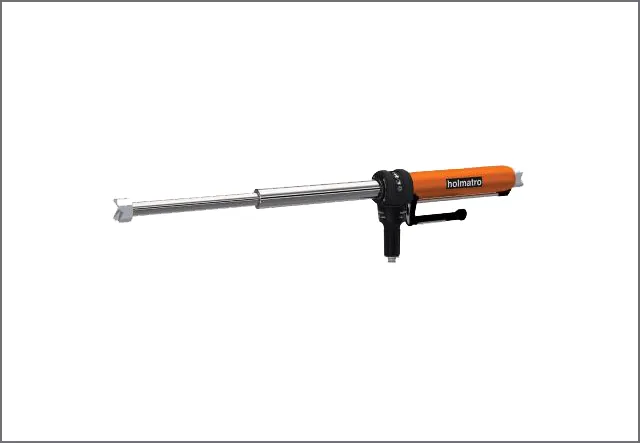

TELESCOPIC RAM TR 5350 LP

Medium-sized ram with telescopic plunger - 5000 series. Lighter than ever, improved performance. With integrated laser pointer for first-time-right positioning.

Standard supplied with:

Integrated laser pointer in ram head
Integrated LED lighting at both the plunger side and base side of the ram
Ergonomic carrying handle
Redesigned, ergonomic control handle with improved grip
CORE Technology: quicker, safer, easier

Details
Articlenumber	150.032.101
Basic specifications
model	TR 5350 LP
equipped with (connector type)	CORE
max. working pressure	720 / 72 (bar/Mpa)	10443 psi
Performance
spreading stroke 1st plunger	375 mm	14.8 in
spreading stroke 2nd plunger	350 mm	13.8 in

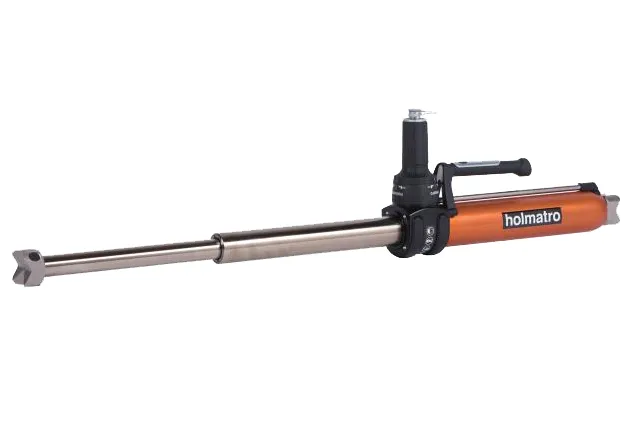

total spreading stroke	725 mm	28.5 in
retracted length	560 mm	22 in
extended length	1285 mm	50.6 in
max. spreading force 1st plunger	217 / 22.1 (kN/t)
max. spreading force 2nd plunger	101 / 10.3 (kN/t)
General specifications
number of plungers	2
Dimensions, weight and temperature
weight, ready for use	14.6 kg	32.2 lb
dimensions (AxBxC)	280 x 109 x 560 mm	11 x 4.3 x 22 in
Norms
EN 13204 classification	TR217/375-101/350-14.6
NFPA 1936 compliant	yes
EN 13204 compliant	yes
NFPA 1936, HSF	217 / 22.1 (kN/t)	48784 lbf
NFPA 1936, LSF	101 / 10.3 (kN/t)	22706 lbf

Download

Decreased weight

Lighter than ever, thanks to new materials, component integration and smart design. Easier to carry and handle, reducing physical strain.

Increased performance

More spreading force in 2nd stage, where you need it the most, and more length to expand your extrication options

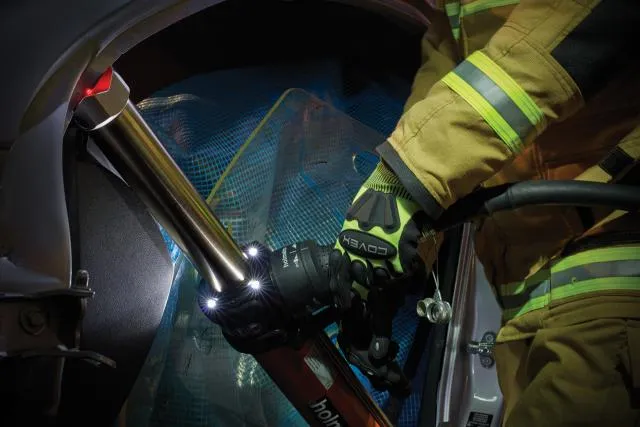

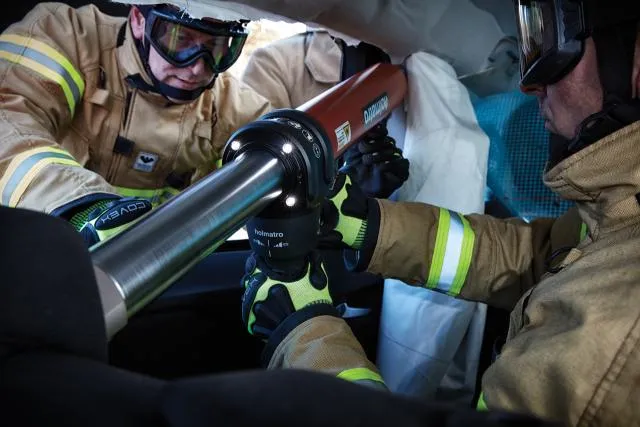

Integrated LED lighting

Illumination of both the plunger and the base side of the ram (6 LED lights in total)
You can start right away, both during the day and at night, without working in your own shadow

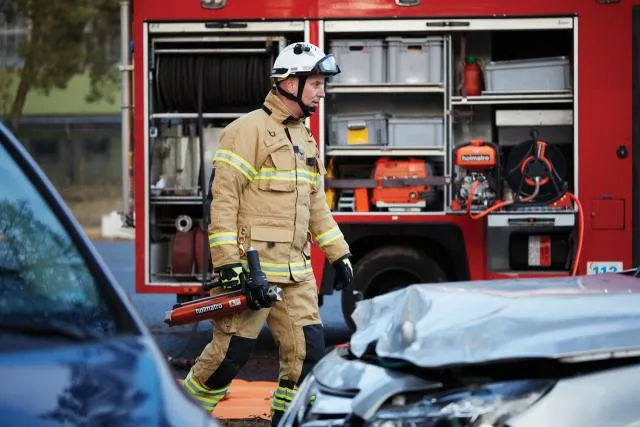

Ergonomic carrying handle

New handle design for easy carrying: tool remains in balance
Mounted parallel to tool to limit dimensions

Built-in Speed Valve

When unloaded, the plunger extends quickly to the desired distance to speed up positioning of your ram

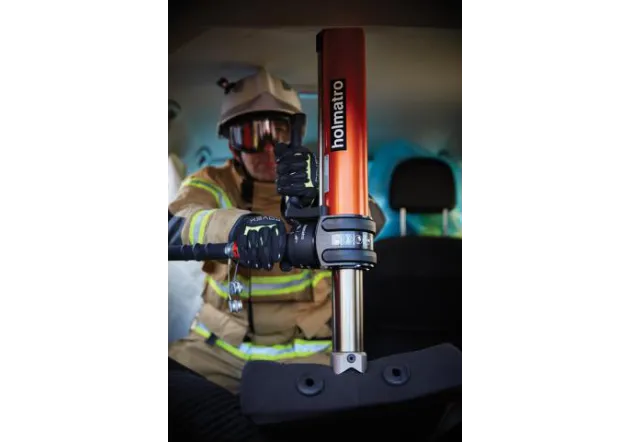

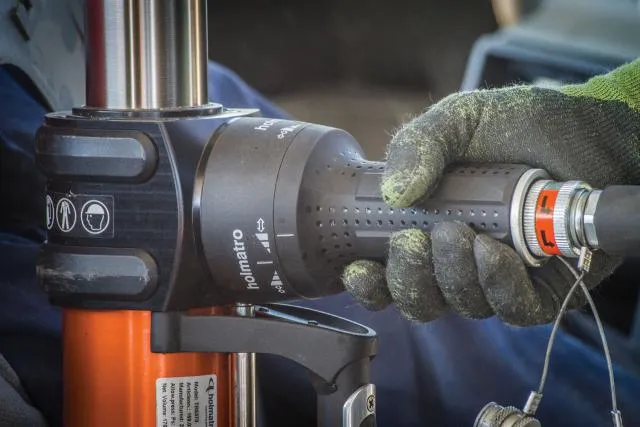

New control handle

Improved ergonomic design, offering better grip for optimal tool control

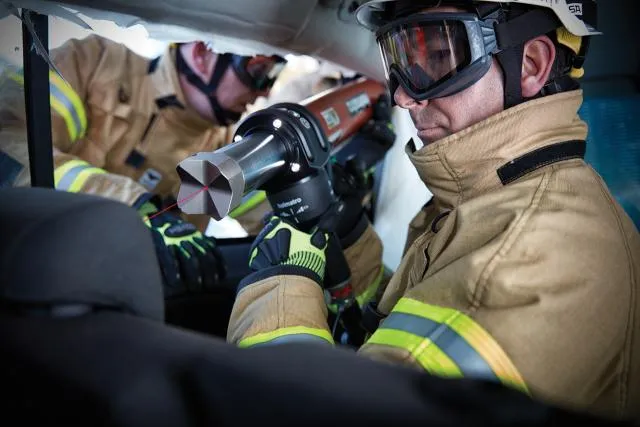

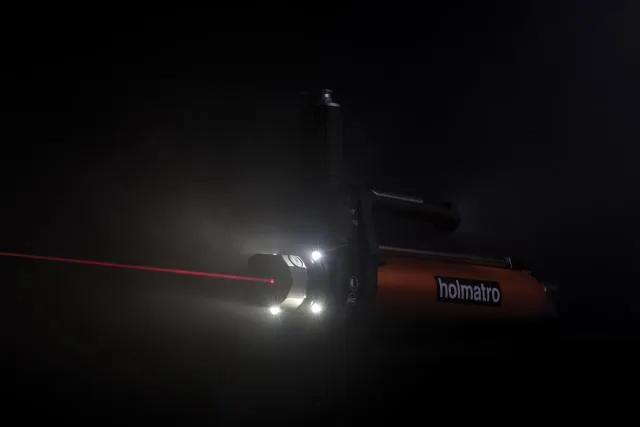

Integrated laser pointer in ram head

Marks the exact spot where the ram will touch the object after extension
Enables first-time-right positioning, which saves time and is safer for the patient
