eHorn Electronic Horn

Multiple operating voltages 24VDC or 120/240VAC
Produces one of two tones at three SPL (sound pressure levels)
Replicates Federal Signal 52 and 55/56 horn tones
Surface mount standard, U-bracket mount sold separately
Produces 96-117 dBa @ 10' (106-127 dBa @ 1m) depending on tone and voltage
Type 4X, IP66 enclosure
Marine Rated
UL and cUL Listed

dBA @ 10' (@ 1M)	96 - 117 (106 - 127)
Operating Current 24VDC (52 Horn)	0.4 - 3.0A
Operating Current 24VDC (55/56 Horn)	0.24 - 3.3A
Operating Current 120VAC (52 Horn)	0.15 - 0.78A
Operating Current 120VAC (55/56 Horn)	0.10 - 0.76A
Operating Current 240VAC (52 Horn)	0.03 - 0.40A
Operating Current 240VAC (55/56 Horn)	0.06 - 0.41A
Operating Temperature Minimum	-40 °F
Operating Temperature Maximum	150 °F
Environmental Ratings	Type 4X, IP66 Enclosure
Height	8.500 in
Width	8.930 in
Depth	9.600 in
Shipping Weight (eHorn-024 )	13.8 lbs (6.5 kg)
Shipping Weight (eHorn-120-240)	15.8 lbs (7.2 kg)
Net Weight (eHorn-024)	11.7 lbs (5.30 kg)
Net Weight (eHorn-120-240)	13.7 lbs (6.21 kg)

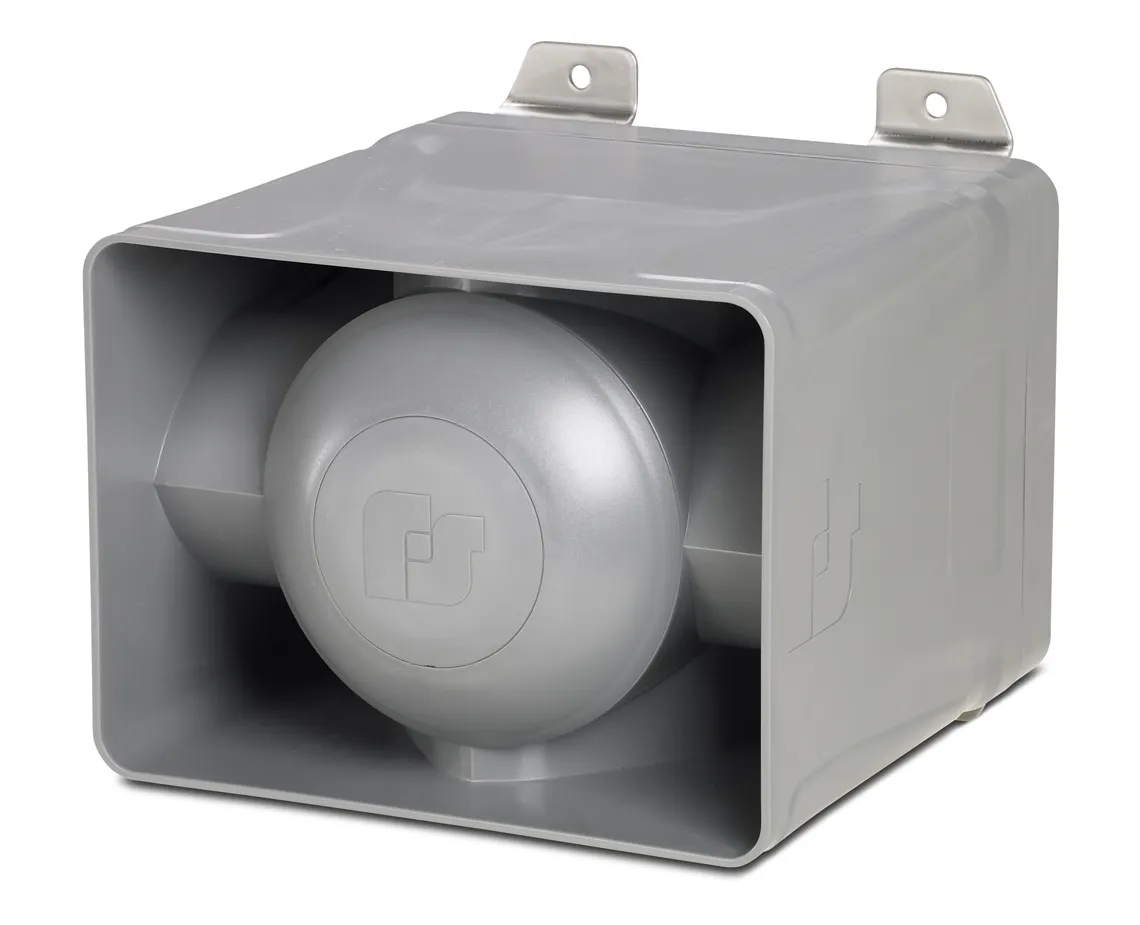

Model eHorn is an electronic horn capable of producing two high decibel horn tone outputs from the same unit through internal amplification and tone circuitry.

The Type 4X, IP66 housing is molded from glass reinforced polycarbonate plastic, making it resistant to ultra-violet light and ideal for indoor or outdoor use.

Model eHorn can be used as a stand-alone, high output, audible warning device in any application where voice paging is not required.

Typical applications include emergency warning, start and dismissal, general alarm and evacuation.

PRODUCT LITERATURE
CS_eHorn_Rev0220

PRODUCT MANUALS
eHorn Manual Rev0217
AGENCY CERTIFICATES
UL and cUL Certificate - eHorn-eSiren

Federal Signal eHorn and eSiren Electronic Horns and Sirens Configuring a Federal Signal eHorn and eSiren (1:01)

ORDERING INFORMATION

Model Types

MODEL	DESCRIPTION	UPC
EHORN-024	Horn, electronic, dual tone, 24VDC	782979233497
EHORN-120-240	Horn, electronic, dual tone, 120-240 VAC	782979233510

Accessories

PRODUCT #	DESCRIPTION	UPC
EHORN-TKIT	eHorn U-bracket mounting kit	782979236900
