VisiBeam® Wireless/VisiBeam® II

Ergonomically designed wireless transmitter operates at over 100-ft
Up to four transmitters programmable to operate one light
Graduated start for pinpoint light beam placement
Continuous 360-degree horizontal and 140-degree vertical adjustment
Three-year warranty

Voltage	12/24 VDC
Amp Draw	7.8 @ 12.8 VDC (100W)
	2.7 @ 25.6 VDC (65W)
Candelas	90,000 (65W)
	125,000 (100W)
Operating Frequency	433.92 MHz
Dim. (D x H)	Permanent Mount - 6.5 in (16.5 cm) x 6.5 in (16.5 cm)
	Magnet Mount - 6.5 in (16.5 mm) x 6.9 in (17.5 mm)
Shipping Weight	2 lb

Federal Signal's VisiBeam® and Wireless VisiBeam® are powerful halogen search lights. The high-polished reflector design combined with the durable polycarbonate dome creates an extremely powerful light ideal for a variety of applications. A graduated start allows the operator to pinpoint the lightbeam directly to the work area.

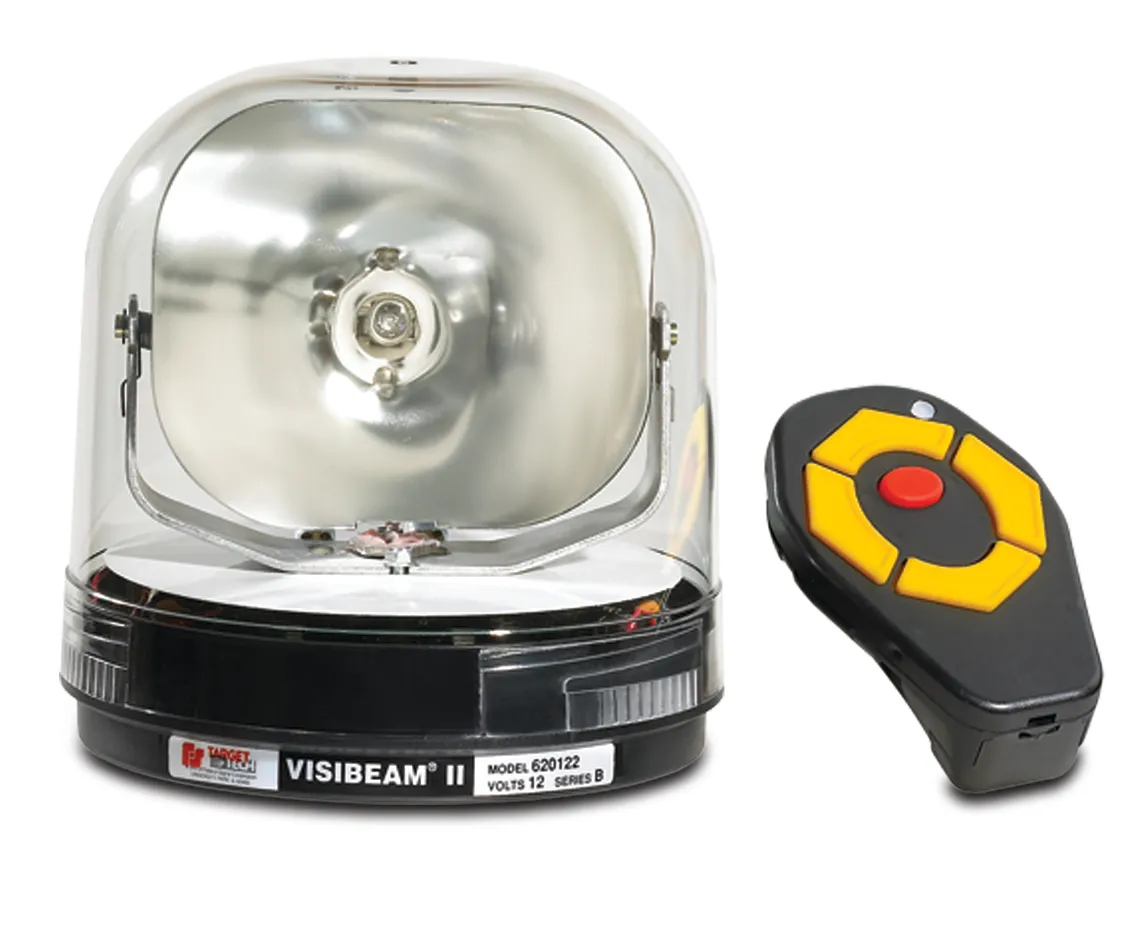

The Wireless VisiBeam is a combination of a powerful halogen searchlight and wireless remote control. The ergonomically designed wireless controlled is equipped with large buttons for easy operation and can be programmed to operated by multiple operators.

PRODUCT LITERATURE
VisiBeam Data Sheet | M8015
VisiBeam Wireless Data Sheet | M8016 (4121)

PRODUCT MANUALS
Visibeam II Remote Controlled Spotlight | 2561083B
VisiBeam II Wireless, Remote Controlled Spotlight | 2562244A

PARTS BREAKDOWN
VisiBeam, Series B, 620132, 620142, 620122, VB24S and 620152 | PPL 0321
VisiBeam VB12M, VB12P, VB12P1, VB12S, and VB12S1 | PPL 0283

ORDERING INFORMATION

Model Types

MODEL	DESCRIPTION
620200	Wireless VisiBeam, 12 VDC, 100 W, wireless controller, Permanent Mount
620201	Wireless VisiBeam, 12 VDC, 100 W, wireless controller, Magnetic mount with cigarette lighter plusg
620202	Wireless VisiBeam, 24 VDC, 65 W, wireless controller, Permanent Mount
620102	VisiBeam, 12 VDC, 55 W, adjustable spotlight surface mount
620104	VisiBeam, 12 VDC, 65 W, adjustable spotlight permanent mount
620122	VisiBean, 12 VDC, 100 W, adjustable spotlight, surface mount
620122-40	12 VDC, 100 W, adjustable spotlight, surface mount, 40-ft cable
620142	Wireless VisiBeam, 12 VDC, 100 W, adjustable spotlight, magnetic mount with cord and cigarette plug

Replacement Parts

DESCRIPTION	PART NUMBER
Bulb, 12 VDC, 100 W, for models 620122, 620142, 620152, 620200 and 620201	620502
Bulb, 24 VDC, 65 W, for models 620104 and 620202	620504
Bulb, 12 VDC, 55 W, for model 620102	620510
Dome, Clear	448500-05
CABLE,TELEPHONE,25' 8 CKT	Z146903B
CONTROL ASSY, SEARCHLIGHT	Z8433039B
MOTOR, 12 VOLT	Z8422B399A-01
24VDC MOTOR & WORM ASSY	Z8422528A
VISIBEAM WIRELESS CONTROL	Z8433113A
