Vibratone® Bells

Three gong sizes – four, six, or ten-inch
Decibel output range dependent on gong: 98-102 dBa @ 10' (108-112 dBa @ 1m)
Optional weatherproof back box (WB) provides Type 3R enclosure
Models 500 and 600 are CSA Certified
UL and cUL Listed

A4
Decibel Output	98dBA @ 10' (108dBA @ 1m)
Height	4.000 in
Depth	1.250 in
A6
Decibel Output	100dBA @ 10' (110dBA @ 1m)
Height	6.000 in
Width	6.000 in
Depth	1.750 in
A10
Decibels on Axis	102dBA @ 10' (112dBA @ 1m)
Height	10.000 in
Width	10.000 in
Standby Current	2.250 in
500
Voltage	24VAC, 120VAC and 240VAC
Operating Current	0.4A @ 24VAC
	0.08A @ 120VAC
	0.04A @ 240VAC
Height	4.000 in
Width	4.000 in
Depth	2.130 in
600
Voltage	12VDC, 24VDC and 125VDC
Operating Current	0.8A @ 12VDC
	0.4A @ 24VDC
	0.08A @ 125VDC
Height	4.000 in
Width	4.000 in
Depth	2.130 in
Net Weight
A4	0.50 lb
A6	1 lb
A10	3.50 lb
500	1 lb
600	1 lb
Shipping Weight
A4	0.70 lb
A6	1.20 lb
A10	4 lb
500	1.10 lb
600	1.10 lb

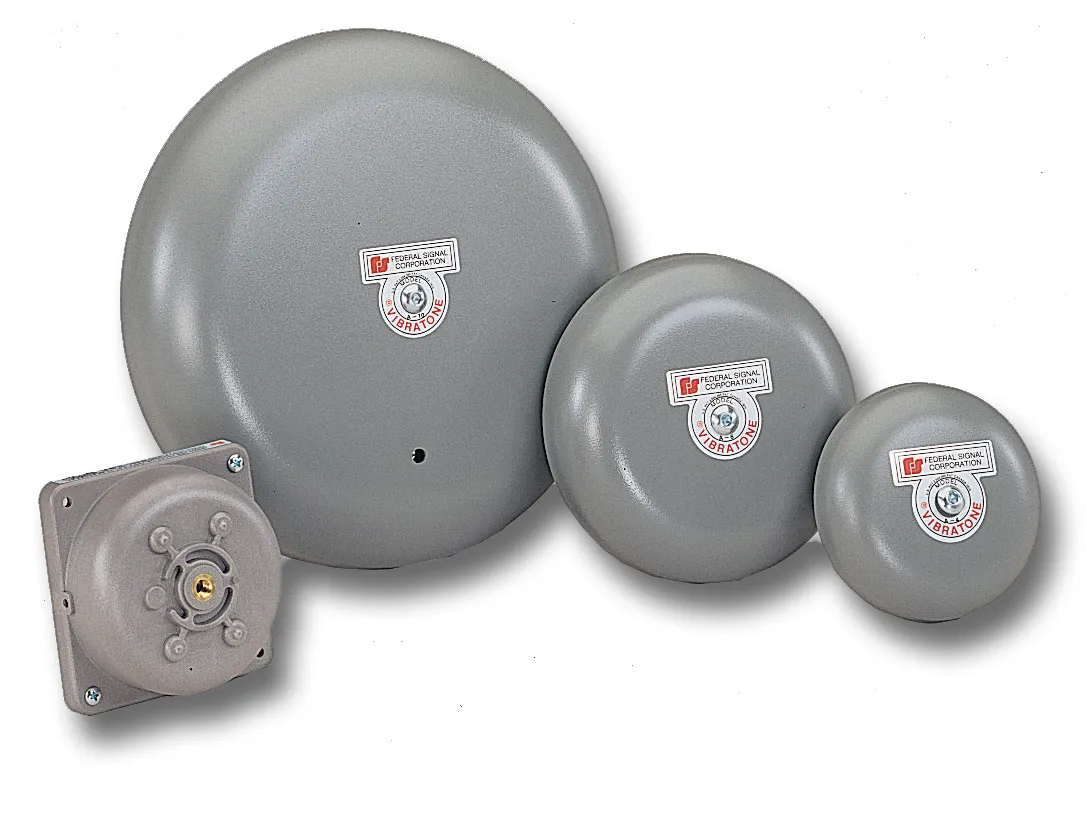

Vibratone® heavy duty bells allow for greater flexibility and selection by utilizing the modular approach to combine gongs and mechanisms.

Three gong sizes are available: Model A4 (4" dia.), Model A6 (6" dia.), and Model A10 (10" dia.). Each size larger gong produces a different tone and a higher dBa output. Vibrating bells produce a continuous ringing sound when voltage is applied.

Two vibrating mechanisms are available: Model 500 (available in 24VAC, 120VAC and 240VAC) and Model 600 (available in 12VDC, 24VDC and 125VDC).

Vibratone® bells can be used in any industrial application, whether to signal danger or for start and dismissal. A variety of mounting accessories will accommodate almost any environment.

PRODUCT LITERATURE
CS_A4 A6 A10 500 600_REV0220.pdf

PRODUCT MANUALS
Bell Installation.pdf

AGENCY CERTIFICATES
UL and cUL Certificate - Vibratone® Bells
CSA Certification - Vibratone® Bells

ORDERING INFORMATION

Model Types

MODEL	DESCRIPTION	UPC
A4	Gong, 4"	782979237105
A6	Gong, 6"	782979237204
A10	Gong, 10"	782979237303
500-024-1	Vibrating bell mechanism, 24VAC	782979299905
500-120-1	Vibrating bell mechanism, 120VAC	782979300007
500-240-1	Vibrating bell mechanism, 240VAC	782979300052
600-012-1	Vibrating bell mechanism, 12VDC	782979309253
600-024-1	Vibrating bell mechanism, 24VDC	782979309307
600-125-1	Vibrating bell mechanism, 125VDC	782979309352

Accessories

PRODUCT #	DESCRIPTION	UPC
FB	Box, wall mount	782979223207
FBL	Deep wall box for flush mount, 50GC	782979223504
FG	Grille, flush mount	782979223603
SF	Plate, semi-flush mount, gray	782979224600
WB	Weatherproof back box, gray	782979224709
