Spire™ 100 LED Beacon

Single color, tall and short LED beacon
5 dome color options
5 base mounting options
(25) selectable flash patterns
Power select feature to change flash patterns
All models have an integrated industry standard water-tight Deutsch cable connection into the light
Multi-voltage 12/24 VDC
Five-year warranty

Voltage	12/24 VDC
Current Draw	1.8 A
Tall Height	7.1 in (18 cm) with base - 6.2 in (15.6 cm) without base
Short Height	5.6 in (14.2 cm) with base - 4.7 in (14.4 cm) without base
Diameter	6.5 in (16.6 cm) with base - 5.2 in (13.2 cm) without base
Shipping Weight
Tall	2.8 lbs (1.3 kg)
Short	2.3 lbs (1.0 kg)

APPROVALS:

SAE Class 1 (Amber, Blue, Red, White)
SAE Class 3 (Green)

POWERFUL, VERSATILE AND AFFORDABLE DESIGN

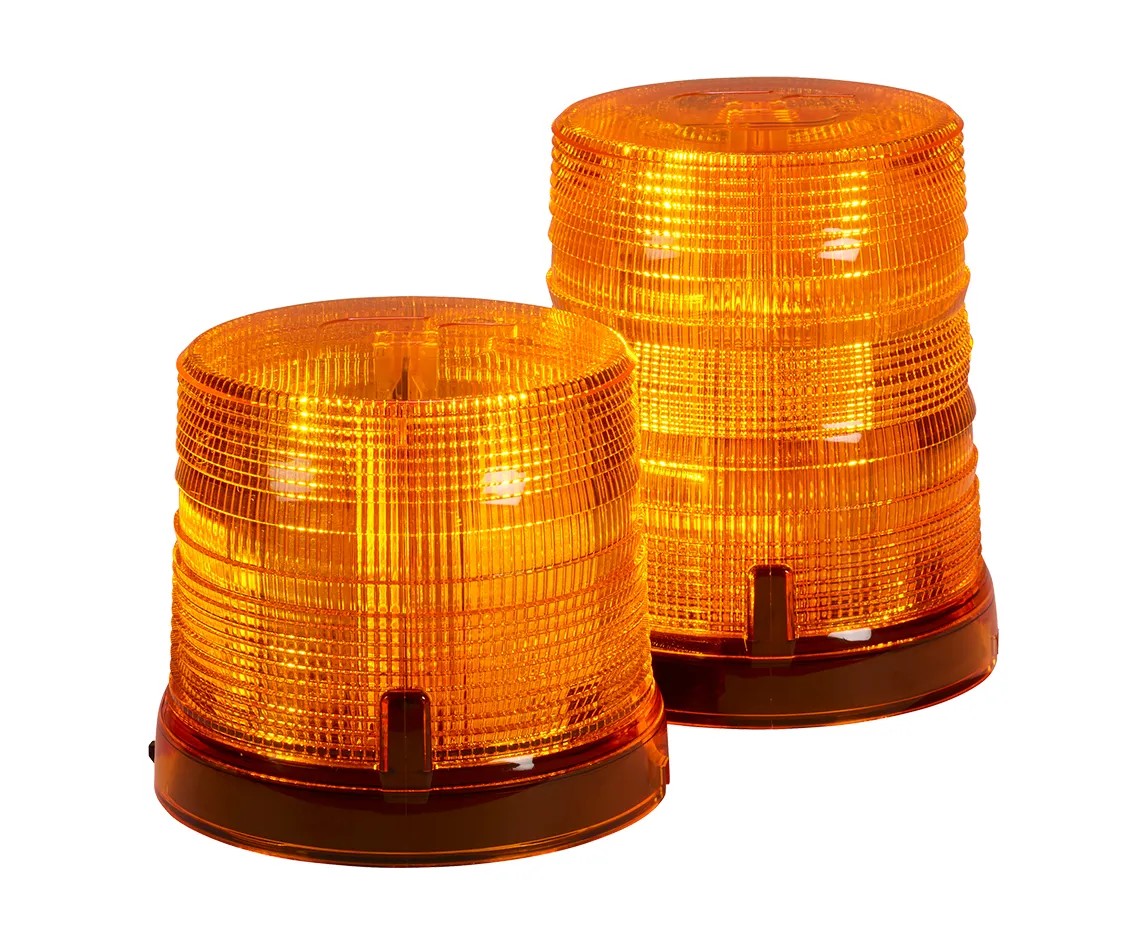

The Spire™ 100 is a single color beacon series that offers 360-degrees of warning light through its patented optical design at an affordable price. Available in tall and short dome versions, Spire 100 can be ordered in one of five color options including Amber, Blue, Green, Red and White.
Designed to meet all safety and work zone demands, the Spire 100 beacon is available in five different base mounting options. The beacon comes standard with a 1-inch pipe mount core and can be customized to fit any work application by choosing from the additional mounting options available, including a polycarbonate 1-inch pipe mount, a die-cast metal 1-inch pipe mount, a magnet mount, and a suction cup magnet mount.

BUILT FOR DURABILITY

The Spire 100 beacon is rated IP69K offering maximum protection from dust and water. The beacon is power wash-resistant and comes with a five-year warranty.

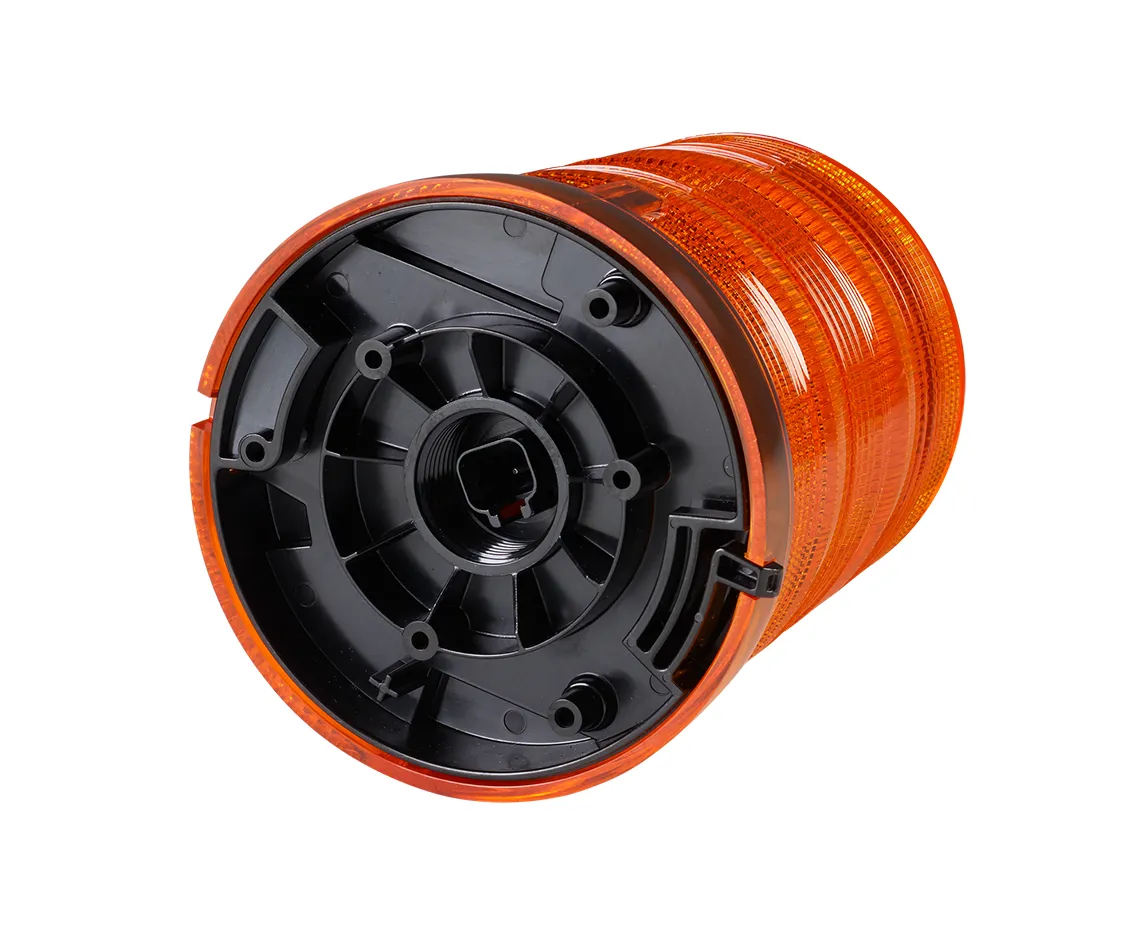

All Spire 100 models have an integrated industry-standard water tight Deutsch cable connection built into the light. Additionally, an easy to install dust cover and stainless-steel branch guard are available as accessories.

PRODUCT LITERATURE
Spire 100 LED Beacon I M7010
Spire LED Beacon Brochure I M165

MARKETING UPDATES
Spire™ 100 LED Beacon I MU804

PRODUCT MANUALS
Spire 100 LED Beacon Manual English and Spanish I 25500544
Spire Branch Guard and Dust Cover Manual I 25500574
Spire 100 LED Beacon French Manual I 25500544

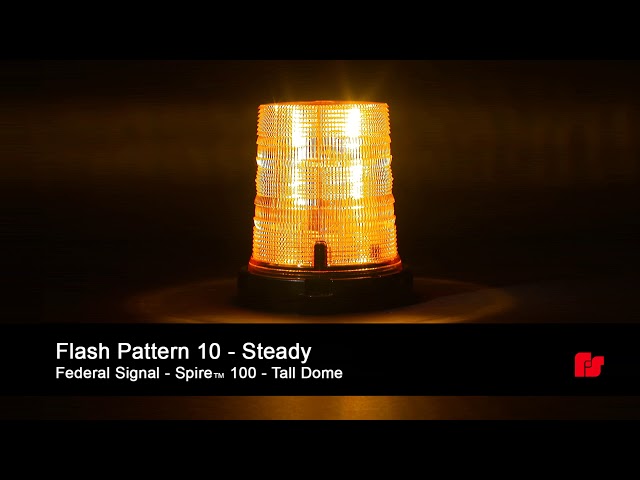

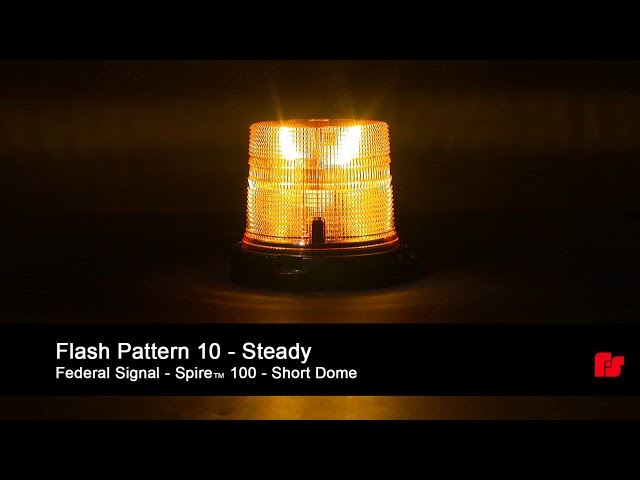

Spire 100 LED Beacon Short Dome Flash Pattern Video (3:26) Spire 100 LED Beacon Tall Dome Flash Pattern Video (3:26)

ORDERING INFORMATION

Model Types

MODEL	DESCRIPTION
100SC-A	1-inch pipe mount, short dome, Amber dome, Class 1
100SC-B	1-inch pipe mount, short dome, Blue dome, Class 1
100SC-G	1-inch pipe mount, short dome, Green dome
100SC-R	1-inch pipe mount, short dome, Red dome, Class 1
100SC-W	1-inch pipe mount, short dome, Clear dome, Class 1

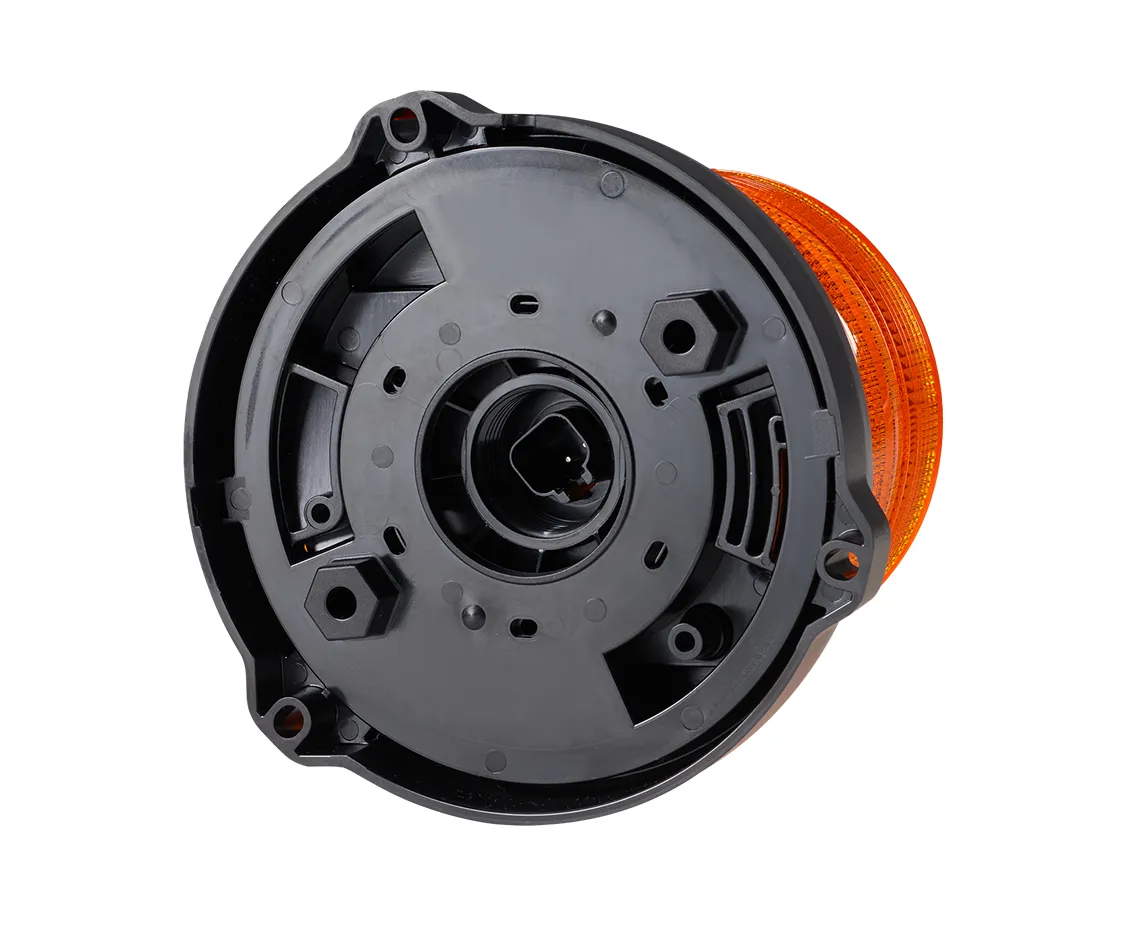

100SP-A	Polycarbonate permanent/ 1-inch pipe mount, short dome, Amber dome, Class 1
100SP-B	Polycarbonate permanent/ 1-inch pipe mount, short dome, Blue dome, Class 1
100SP-G	Polycarbonate permanent/ 1-inch pipe mount, short dome, Green dome
100SP-R	Polycarbonate permanent/ 1-inch pipe mount, short dome, Red dome, Class 1
100SP-W	Polycarbonate permanent/ 1-inch pipe mount, short dome, White dome, Class 1

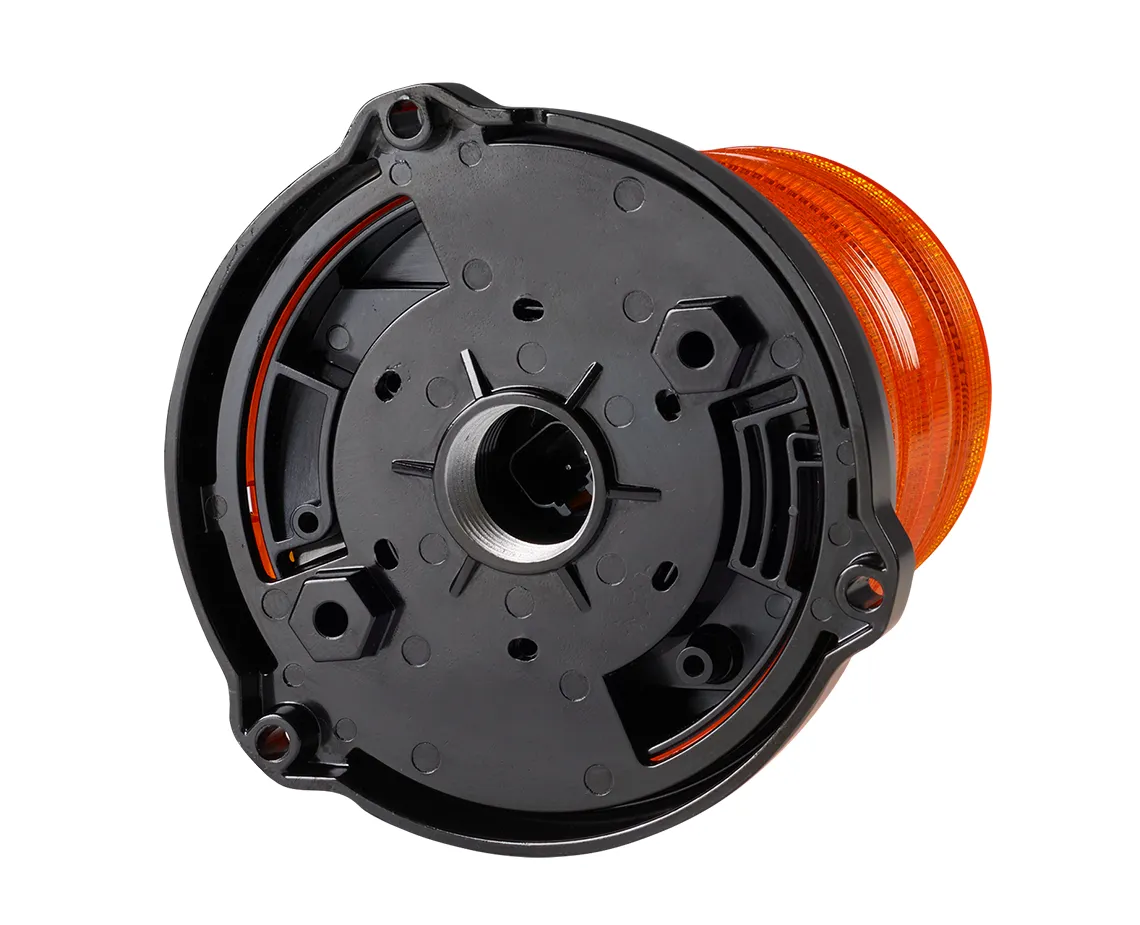

100SD-A	Die-cast permanent/1-inch pipe mount, short dome, Amber dome, Class 1
100SD-B	Die-cast permanent/1-inch pipe mount, short dome, Blue dome, Class 1
100SD-G	Die-cast permanent/1-inch pipe mount, short dome, Green dome
100SD-R	Die-cast permanent/1-inch pipe mount, short dome, Red dome, Class 1
100SD-W	Die-cast permanent/1-inch pipe mount, short dome, White dome, Class 1

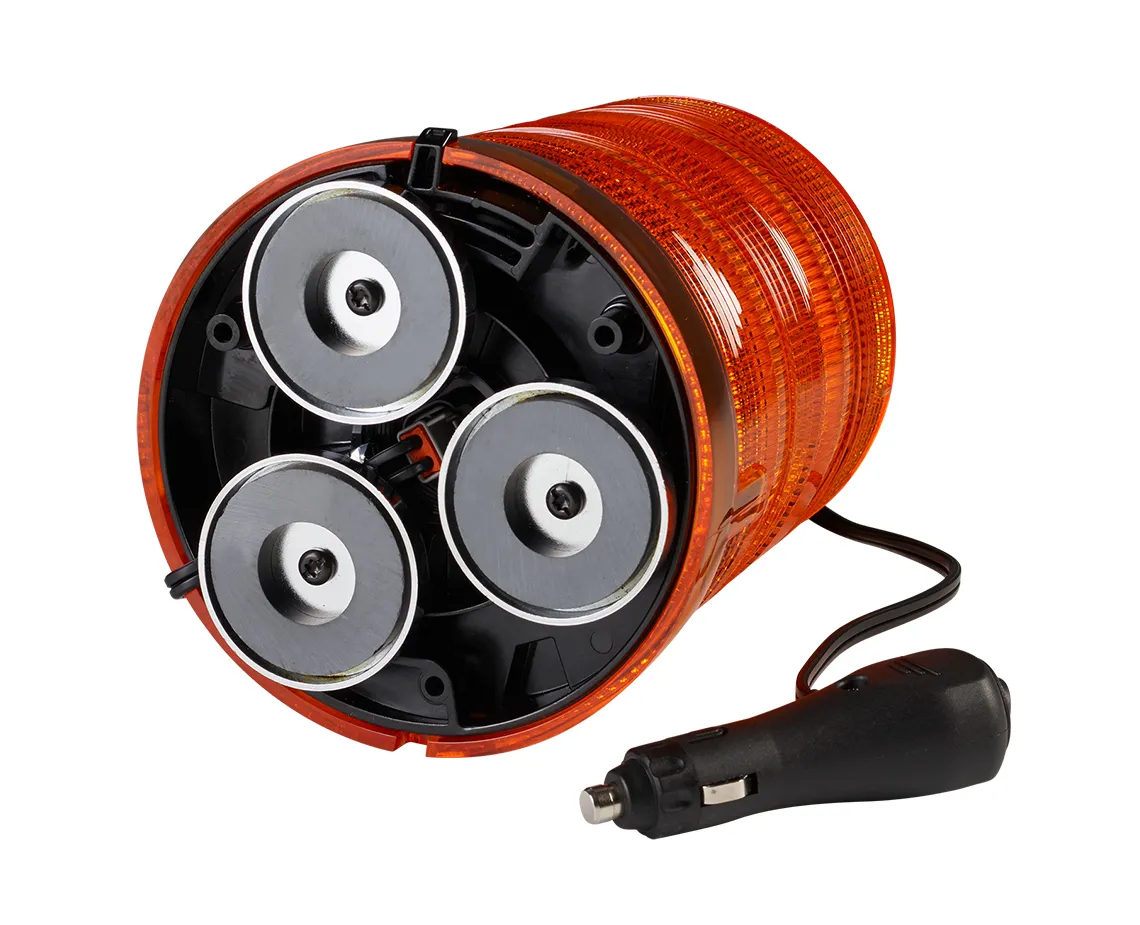

100SM-A	Magnet mount, cigarette plug, short dome, Amber dome, Class 1
100SM-B	Magnet mount, cigarette plug, short dome, Blue dome, Class 1
100SM-G	Magnet mount, cigarette plug, short dome, Green dome
100SM-R	Magnet mount, cigarette plug, short dome, Red dome, Class 1
100SM-W	Magnet mount, cigarette plug, short dome, White dome, Class 1

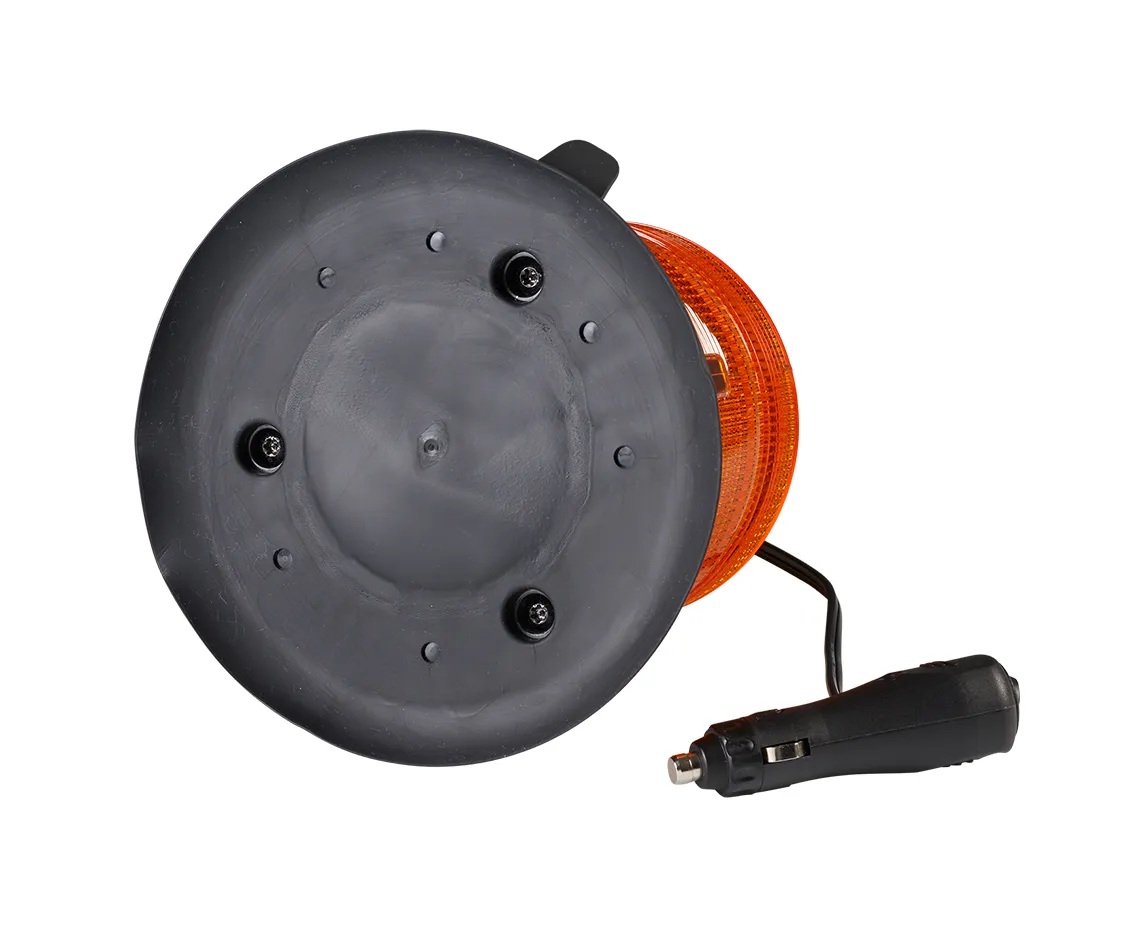

100SS-A	Suction-cup magnet mount, cigarette plug, short dome, Amber dome, Class 1
100SS-B	Suction-cup magnet mount, cigarette plug, short dome, Blue dome, Class 1
100SS-G	Suction-cup magnet mount, cigarette plug, short dome, Green dome
100SS-R	Suction-cup magnet mount, cigarette plug, short dome, Red dome, Class 1
100SS-W	Suction-cup magnet mount, cigarette plug, short dome, Clear dome, Class 1
100TC-A	1-inch pipe mount, tall dome, Amber dome, Class 1
100TC-B	1-inch pipe mount, tall dome, Blue dome, Class 1
100TC-G	1-inch pipe mount, tall dome, Green dome
100TC-R	1-inch pipe mount, tall dome, Red dome, Class 1
100TC-W	1-inch pipe mount, tall dome, White dome, Class 1
100TP-A	Polycarbonate permanent/1-inch pipe mount, tall dome, Amber dome, Class 1
100TP-B	Polycarbonate permanent/1-inch pipe mount, tall dome, Blue dome, Class 1
100TP-G	Polycarbonate permanent/1-inch pipe mount, tall dome, Green dome
100TP-R	Polycarbonate permanent/1-inch pipe mount, tall dome, Red dome, Class 1
100TP-W	Polycarbonate permanent/1-inch pipe mount, tall dome, White dome, Class 1
100TD-A	Die-cast permanent/1-inch pipe mount, tall dome, Amber dome, Class 1
100TD-B	Die-cast permanent/1-inch pipe mount, tall dome, Blue dome, Class 1
100TD-G	Die-cast permanent/1-inch pipe mount, tall dome, Green dome
100TD-R	Die-cast permanent/1-inch pipe mount, tall dome, Red dome, Class 1
100TD-W	Die-cast permanent/1-inch pipe mount, tall dome, White dome, Class 1
100TM-A	Magnet mount, cigarette plug, tall dome, Amber dome, Class 1
100TM-B	Magnet mount, cigarette plug, tall dome, Blue dome, Class 1
100TM-G	Magnet mount, cigarette plug, tall dome, Green dome
100TM-R	Magnet mount, cigarette plug, tall dome, Red dome, Class 1
100TM-W	Magnet mount, cigarette plug, tall dome, White dome, Class 1
100TS-A	Suction-cup magnet mount cigarette plug, tall dome, Amber dome, Class 1
100TS-B	Suction-cup magnet mount cigarette plug, tall dome, Blue dome, Class 1
100TS-G	Suction-cup magnet mount cigarette plug, tall dome, Green dome
100TS-R	Suction-cup magnet mount cigarette plug, tall dome, Red dome, Class 1
100TS-W	Suction-cup magnet mount cigarette plug, tall dome, White dome, Class 1

Accessories

PRODUCT #	DESCRIPTION

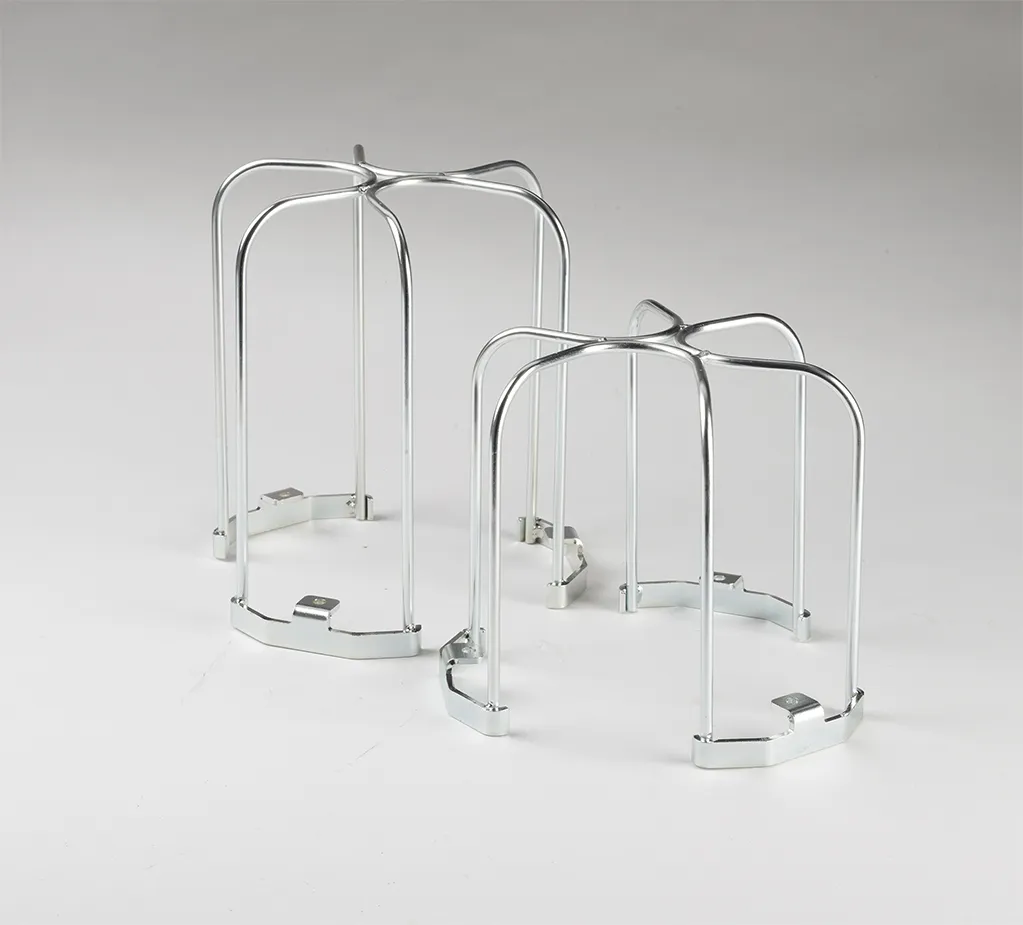

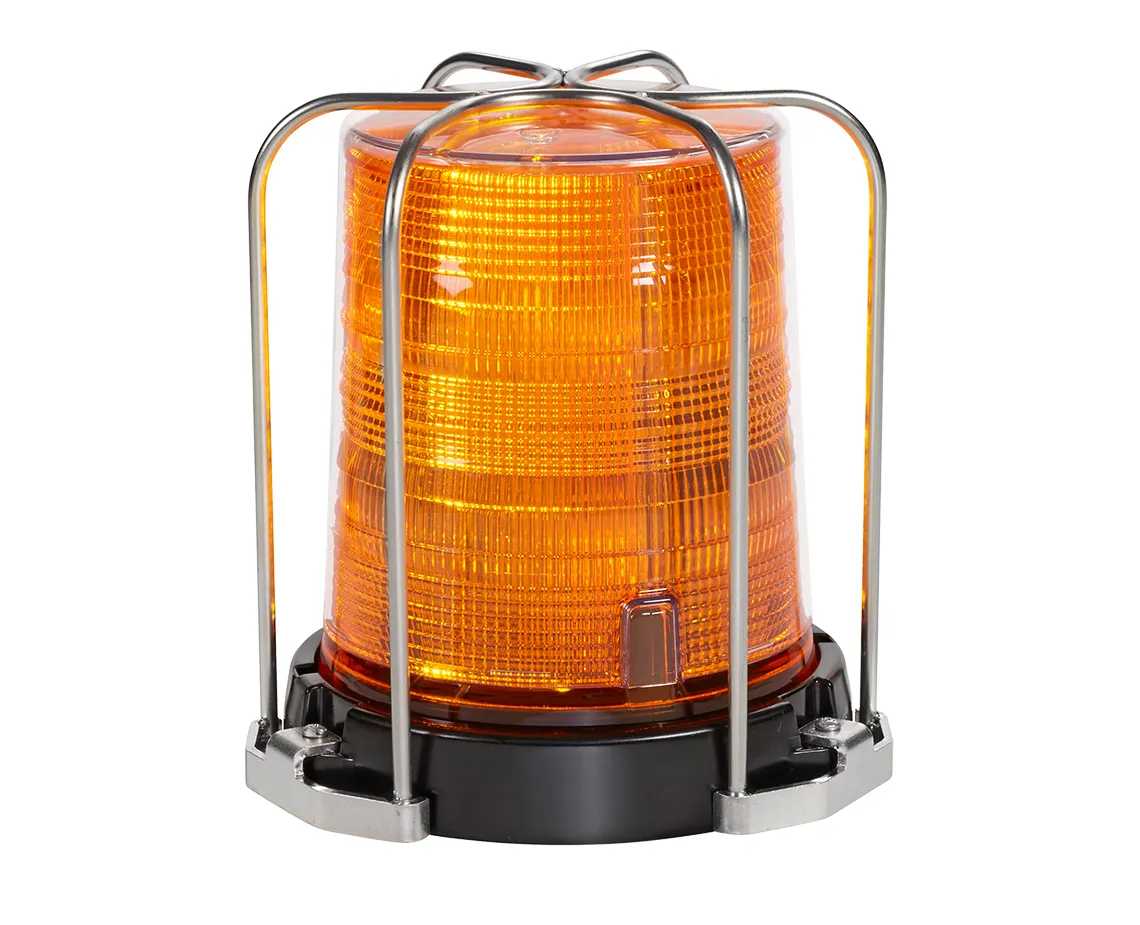

200B-TALL	Branch guard, tall
200B-SHORT	Branch guard, short

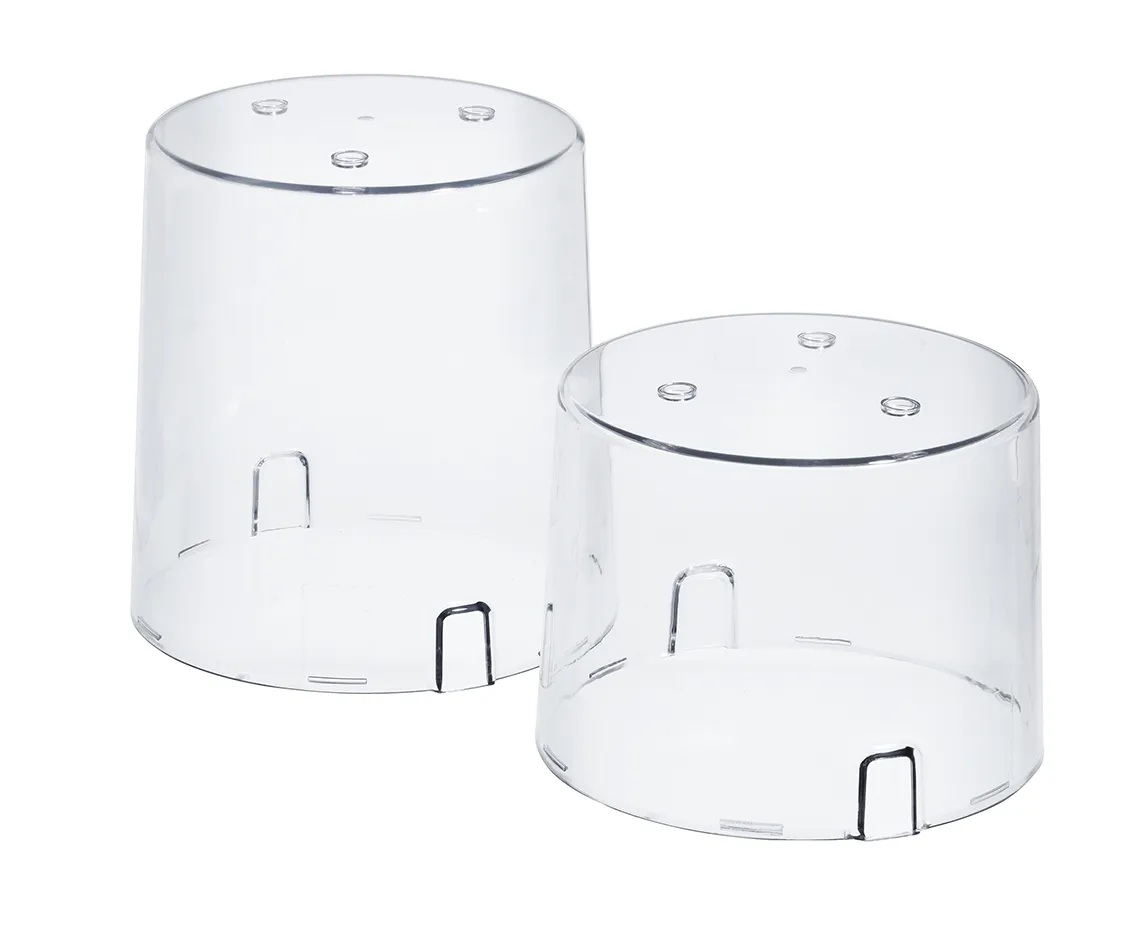

200DC-TALL	Dust cover, tall
200DC-SHORT	Dust cover, short
