SST3GCX-MV Hazardous Location Remotely Selectable Electronic Siren

[[POS2]]

Multi-voltage design accepts 24VDC or 120/240VAC
Produces three tones – wail, yelp, and horn (click here for tones)
Produces up to 110.5 dBa at 10' (120.5 dBa at 1M)
Type 4X, IP66 enclosure
IP69K compliant
External mounting tabs
Indoor/outdoor use
UL and cUL listed for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; Class III

Operating Temperature	-67°F to 150°F (-55°C to 66°C)
Maximum Contact Resistance	1000 Ohms
Net Weight	6.50 lb
Shipping Weight	7.50 lb
Height	13.900 in
Width	10.200 in
Depth	10.000 in

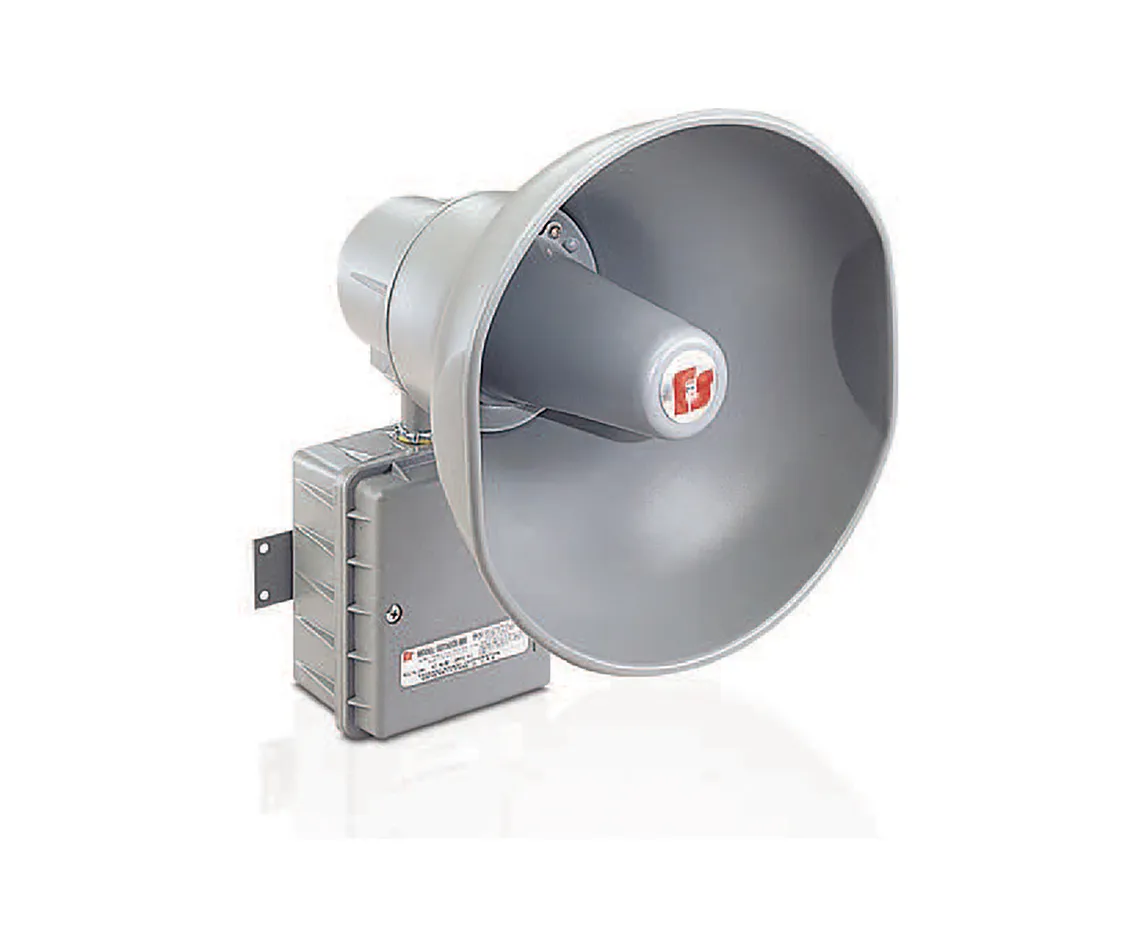

Model SST3GCX-MV is an electronic siren capable of producing three different high decibel tones from the same unit.

This model can be used as a stand-alone, full output, audible warning device in any hazardous location environment where multiple tones are needed but voice paging is not required. The user activates each tone (wail, yelp or horn) with dry contacts from a remote point.

The rugged speaker cone and projector are constructed of spun aluminum and the integrated circuitry are contained in a housing constructed of die-cast aluminum. All surfaces are sealed with powder-coat paint. Dust- and moisture-proof gaskets provide Type 4X protection from the elements.

Typical applications include emergency warning, start and dismissal, general alarm and evacuation.

PRODUCT LITERATURE
CS_SST3GCX-MV_Rev0220

PRODUCT BROCHURE
Hazardous Brochure
IP69K Brochure
Hazardous_Brochure_Chinese_1119
Hazardous_Brochure_French_1119
Hazardous_Brochure_Portuguese_1119
Hazardous_Brochure_Spanish_1119

PRODUCT MANUALS
SST3GCX-MV Manual 041619

AGENCY CERTIFICATES
UL Certificate for SST3GCX-MV
IP69K Certified Models Declaration_0420
