SLMB2 and SLMB3 StreamLine® Modular Multifunctional Dock Base

[[POS2]]

Model SLMB2 is a 2-Stack Modular Base
Model SLMB3 is a 3-Stack Modular Base
Available in 24VAC/DC or 120-240VAC
Compatible with Models

Voltage	24VAC/DC
Voltage	120-240VAC
SLMB2 Height	9.09" (231 mm)
SLMB3 Height	13.46" (342 mm)
Width	4.72" (120 mm)

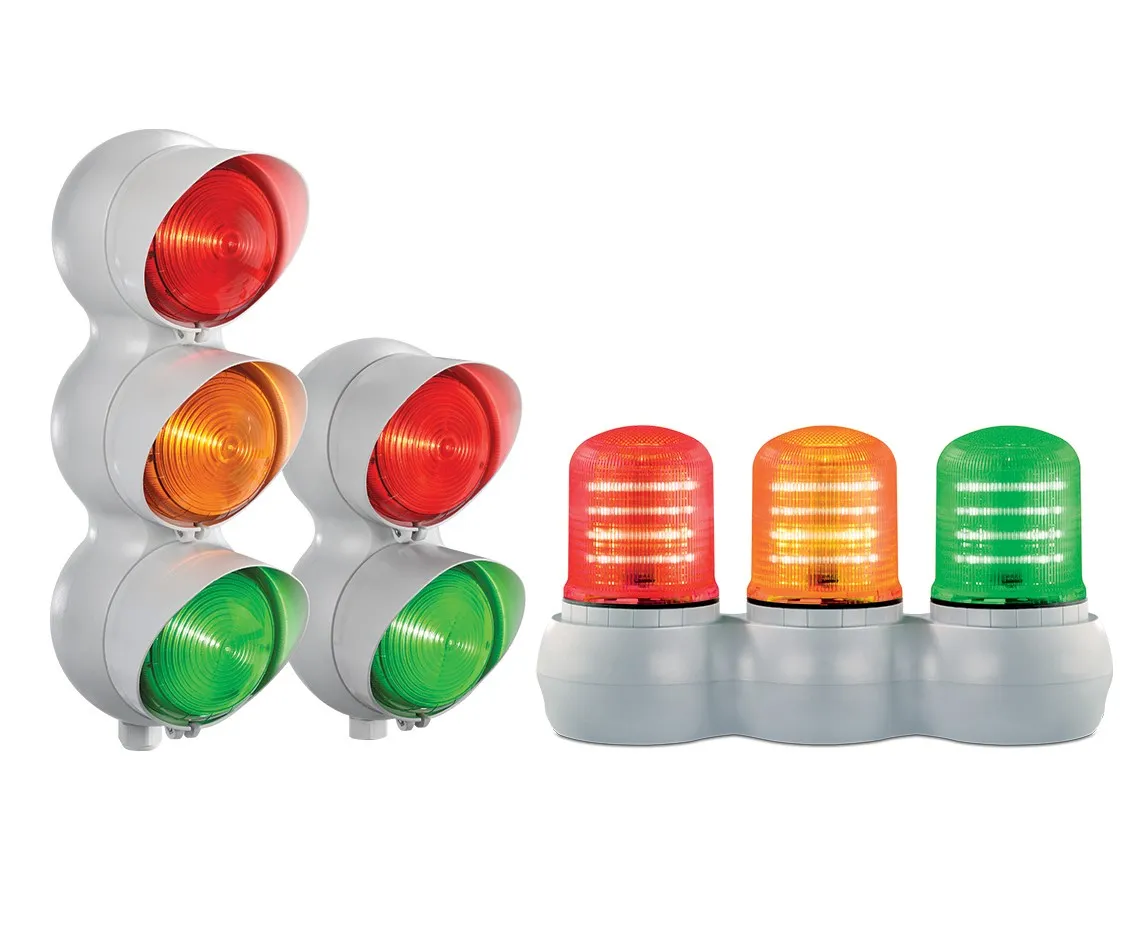

Introducing the StreamLine® 2-Stack and 3-Stack Dock Bases, the latest addition to the popular StreamLine® Modular Series product line. Available in 24VAC/DC or 120-240VAC, these dock bases can be configured with StreamLine® modular audible or visual signals. Choose from SLM100, SLM200, SLM300/350, SLM500, SLM700 or SLM1400/1450 to build the unit specific to your application.

The StreamLine® Dock Light Base option is ideal for indoor or outdoor applications in high foot traffic areas including parking garages, factories, and loading docks.

Models SLMB2, 2-stack dock light, and SLMB3, 3-stack dock light, allow for one function per position. Each base comes standard to surface mount with visors included. Optional wall (SLMB23W) and 1/2" NPT pipe (SLMB23N) mounting options are sold separately. If additional side visibility is needed, the visors can be replaced with retaining rings (SLM-RR).

^{Note: Visual and Audible units for base are sold seperately. Compatible units include SLM100, SLM200, SLM300/350, SLM500, SLM700 & SLM1400/1450. Dock Base cannot be used with SLM600 or SLM800.}

RESOURCES
StreamLine Dock Base DataSheet Rev0619

PRODUCT MANUALS
StreamLine Dock Base (SLMB2 and SLMB3) Manual_0919
PRODUCT BROCHURE
Streamline Brochure.pdf

StreamLine® Dock Light Base Video (1:02)

ORDERING INFORMATION

Model Types

MODEL	DESCRIPTION	UPC
SLMB2-024GY	StreamLine dock base, 2 stack, 24VAC/DC, gray	782979247098
SLMB2-120-240GY	StreamLine dock base, 2 stack, 120-240VAC, gray	782979247104
SLMB3-024GY	StreamLine dock base, 3 stack, 24VAC/DC, gray	782979247074
SLMB3-120-240GY	StreamLine dock base, 3 stack, 120-240VAC, gray	782979247081
