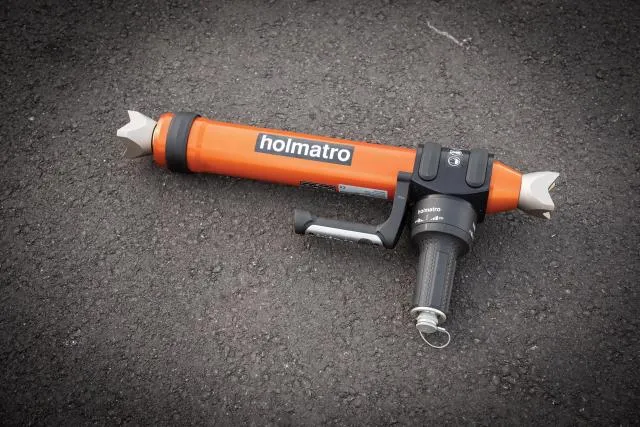

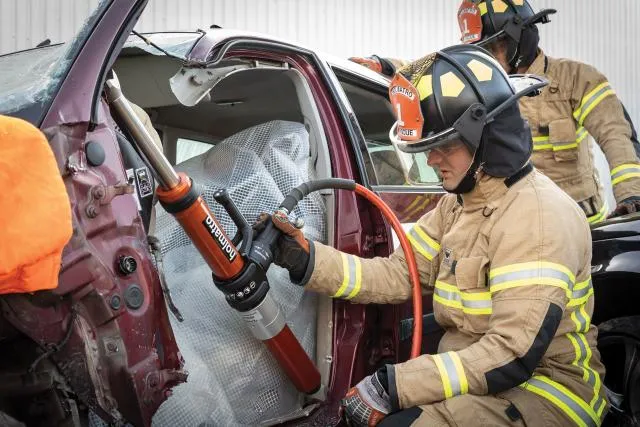

RAM RA 5331

Ram with one plunger - 5000 series.

Standard supplied with:

Details
Articlenumber	151.000.391
Basic specifications
model	RA 5331
equipped with (connector type)	CORE
max. working pressure	720 / 72 (bar/Mpa)	10443 psi
Performance
spreading force over full stroke	150 / 15.3 (kN/t)	33721 lbf
spreading / pulling stroke	340 mm	13.4 in
retracted length	615 mm	24.2 in
extended length	955 mm	37.6 in
pulling force over full stroke	28 / 2.9 (kN/t)
max. spreading force, 1st section (NFPA 1936, HSF)	150 / 15.3 (kN/t)	33721 lbf
General specifications
number of plungers	1
Dimensions, weight and temperature
weight, ready for use	12.5 kg	27.6 lb
dimensions (AxBxC)	280 x 105 x 615 mm	11 x 4.1 x 24.2 in
Norms
EN 13204 classification	R150/340-12.5
NFPA 1936 compliant	yes
EN 13204 compliant	yes
NFPA 1936, HPF	28 / 2.9 (kN/t)	6295 lbf
NFPA 1936, HSF	150 / 15.3 (kN/t)	33721 lbf
NFPA 1936, LPF	28 / 2.9 (kN/t)	6295 lbf
NFPA 1936, LSF	150 / 15.3 (kN/t)	33721 lbf

Download

Optimal performance to weight ratio

Built-in Speed Valve

When unloaded, the plunger extends quickly to the desired distance, to speed up positioning of your ram

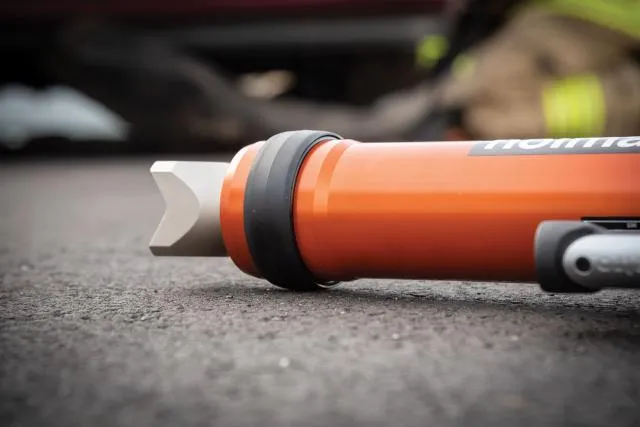

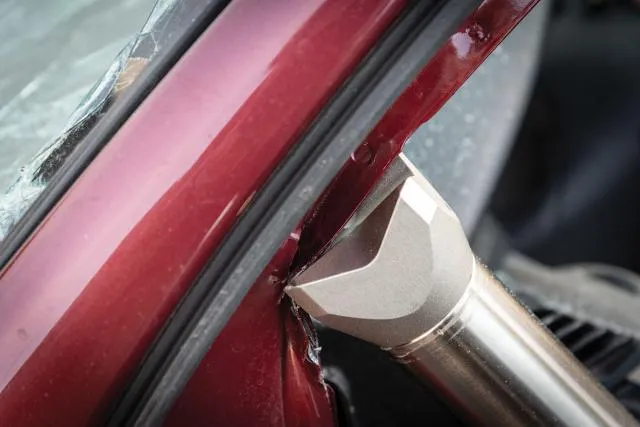

Rotating cross heads with improved, precision cast profile

Ergonomic carrying handle

Integrated LED lighting

Illumination of both the plunger and the base side of the ram (4 LED lights in total)
You can start right away, both during the day and at night, without working in your own shadow
