Pulsator® LED

(14) selectable flash patterns
Federal Signal’s patented pattern Power Select™ feature
Built-in permanent/pipe mount base
Magnet mount and suction-cup magnet mount models with cigarette plug with on/off switch available
Polycarbonate base and dome
Multi-voltage, 12-24 VDC
Five-year LED warranty

Approvals	SAE Class 1 (212660-02)
	SAE Class 2 (212650-02 and 212670-02)
Voltage	12-24 VDC
Amp Draw	0.80 A @ 12.8 VDC, 0.40 A @ 25.6 VDC (Class 1)
	0.65 A max/0.28 A average @ 12.8 VDC (Class 2)
Dim. (H x W):	Tall dome - 6.0 in (16.5 cm) x 6.5 in (15.2 cm)
	Short dome - 4.0 in (10.2 cm) x 6.5 in (15.2 cm)
Ship Weight	Tall dome 1.9 lbs (Permanent)
	Short dome - 1.3 lbs (Permanent)
Flash Pattern name - Rate (FPM)	1 4 single/2 quad 120/60 FPM
	2 7X flash-Default 65 FPM
	3 Chopped Double 60 FPM
	4 Single Flash 60 FPM
	5 Single Flash 80 FPM
	6 Single Flash 120 FPM
	7 Test-Steady On N/A FPM
	8 Double Flash 80 FPM
	9 Double Flash 120 FPM
	10 Triple Flash 60 FPM
	11 Triple Flash 120 FPM
	12 Pulsing Double Flash 80 FPM
	13 Quad Flash 60 FPM
	14 Pulsing Quad Flash 60 FPM
	15 5X Flash 75 FPM

The Federal Signal Pulsator® LED beacon features an innovative Federal Signal patented LED emitter that produces a superior warning signal to promote work zone safety.

Built for versatility and performance

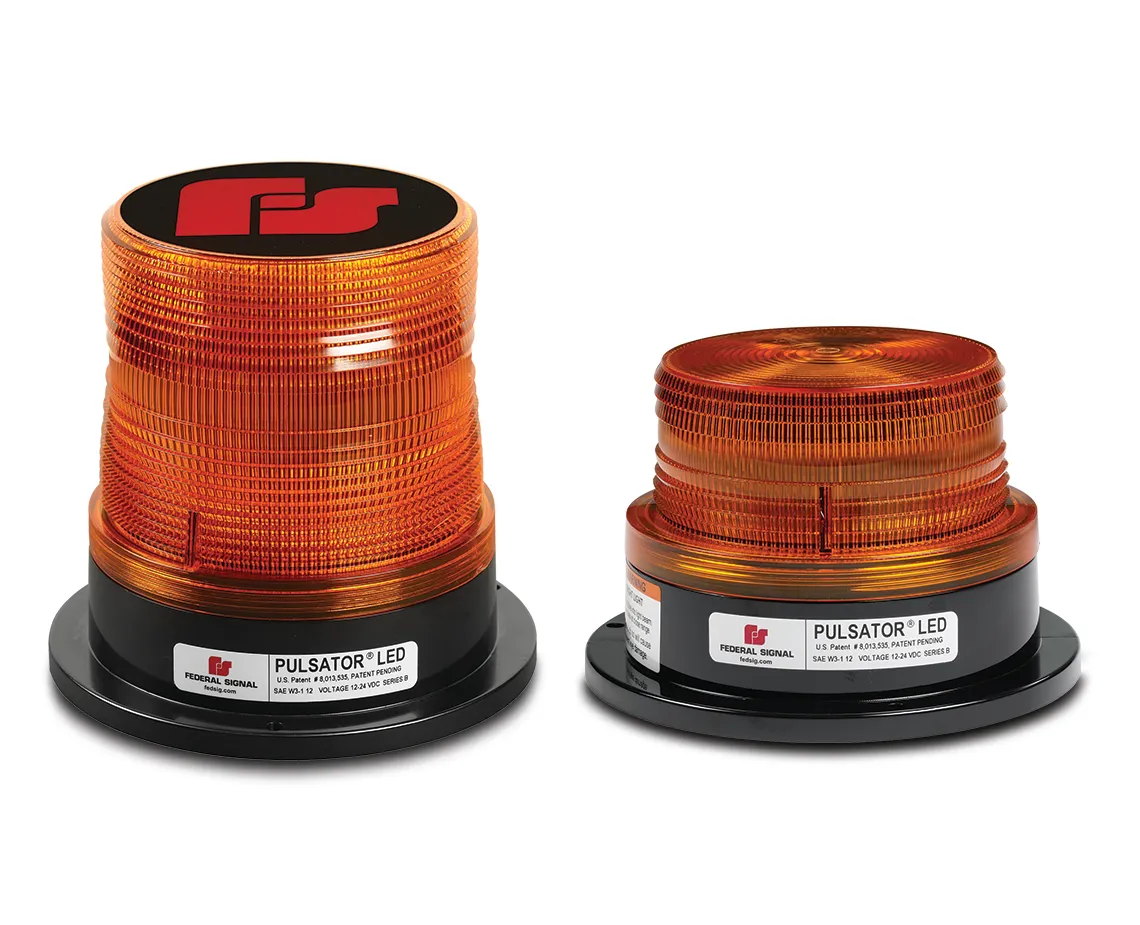

Available in Class 1 and Class 2 versions in tall and short domes, the Pulsator LED is ideal for a variety of applications including DOT, municipal, utility and construction vehicles. The Pulsator LED has a built-in permanent/1-inch pipe mount polycarbonate base. Magnet and suction-cup magnet mount options are also available.

Power Select™ feature
The Pulsator LED also offers (14) selectable flash patterns that can be selected by the user through Federal Signal’s patented Power Select feature. The Power Select allows users to scroll through flash patterns by simply following a sequence of applying power to the unit 3 times in a row which will put the beacon into programming mode.

Low-Amp draw minimizes demands on vehicle electrical systems
The Pulsator LED beacons delivers an impressive warning signal while drawing minimal pull on vehicles electrical systems. Both the Class 1 and Class 2 versions of the Pulsator LED draw well under (1) Amp each. The Pulsator LED also comes backed by Federal Signal’s 5-year LED warranty.

PRODUCT LITERATURE
LED Pulsator Data Sheet | M7000

PRODUCT MANUALS
Instruction Sheet for Poly Base Pipe/Flush Mount (Part Number 210830) | 2561703A

Addendum for LED Pulsator Beacons (2562319) | 2562483A

LED Pulsator Beacons | 2562319D

Pulsator LED Flash Patterns Pulsator 451 LED Flash Patterns

ORDERING INFORMATION

Model Types

MODEL	DESCRIPTION
212660-02SB	Amber dome, Class 1, Permanent/ 1" Pipe mount, tall dome
212660-04SB	Red dome, Class 1, Permanent/ 1" Pipe mount, tall dome
212660-05SB	Clear dome, Class 1, Permanent/ 1" Pipe mount, tall dome
212650-02SB	Amber dome, Class 2, Permanent/ 1" Pipe mount, tall dome
212650-04SB	Red dome, Class 2, Permanent/ 1" Pipe mount, tall dome
212650-05SB	Clear dome, Class 2, Permanent/ 1" Pipe mount, tall dome
212662-02SB	Amber dome, Class 1, Magnet mount, cigarette plug, tall dome
212662-04SB	Red dome, Class 1, Magnet mount, cigarette plug, tall dome

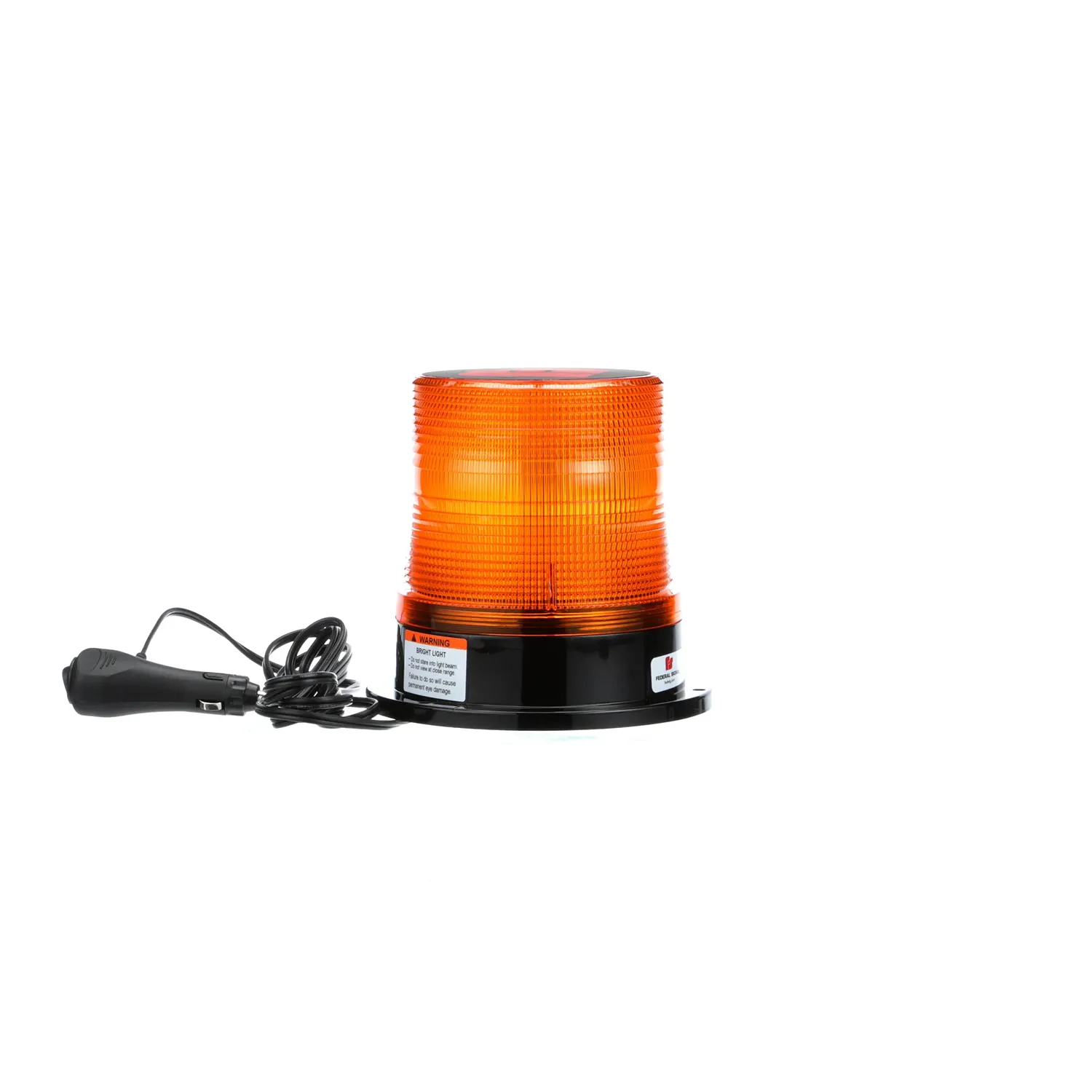

212652-02SB	Amber dome, Class 2, Magnet mount, cigarette plug, tall dome
212652-04SB	Red dome, Class 2, Magnet mount, cigarette plug, tall dome
212664-02SB	Amber dome, Class 1, Suction-cup magnet mount, cigarette plug, tall dome
212664-04SB	Red dome, Class 1, Suction-cup magnet mount, cigarette plug, tall dome
212654-02SB	Amber dome, Class 2, Suction-cup magnet mount, cigarette plug, tall dome
212654-04SB	Red dome, Class 2, Suction-cup magnet mount, cigarette plug, tall dome

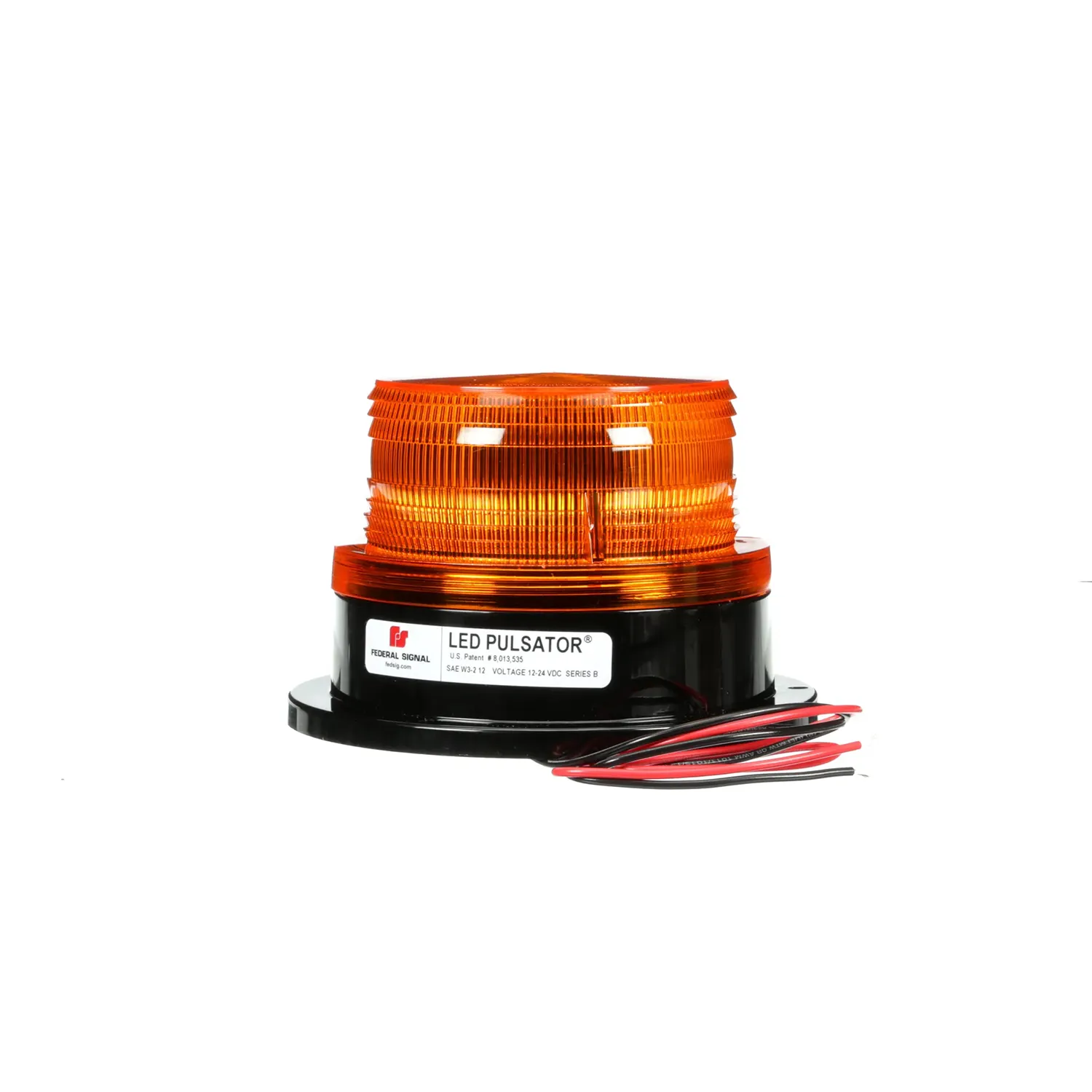

212670-02SB	Amber dome, Class 2, Pulsator 451 LED Permanent mount, short dome
212670-04SB	Red dome, Class 2, Pulsator 451 LED Permanent mount, short dome
212670-05SB	Clear dome, Class 2, Pulsator 451 LED Permanent mount, short dome
212672-02SB	Amber dome, Class 2, Pulsator 451 LED, Magnet mount, cigarette plug, short dome
212672-04SB	Red dome, Class 2, Pulsator 451 LED, Magnet mount, cigarette plug, short dome
212674-02SB	Amber dome, Class 2, Pulsator 451 LED, Suction-cup magnet mount, cigarette plug, short dome
212674-04SB	Red dome, Class 2, Pulsator 451 LED, Suction-cup magnet mount, cigarette plug, short dome

Accessories

PRODUCT #	DESCRIPTION
SW2	Switch control
210890	Kit, magnet mount
210893	1/2" pipe mount
210894	3/4" pipe mount

Replacement Parts

DESCRIPTION	PART NUMBER
REPL DOME,451-A	208567-95
Dome, short, Red	208568-95
Dome, short, Clear	208569-95
REPL DOME,551-A	208667-95
Dome, tall, Red	208668-95
Dome, tall, Clear	208669-95
BASE, PULSATOR,PIPE-MAG	Z862000142A
