Pro LED Beacon

Single and dual color versions
Short and tall versions
Tall – 7.24" diameter x 5.24" height
Short – 7.24" diameter x 3.62" height
FSLink™ syncing technology
(25) selectable flash patterns
Low-power functionality
Built-in auto-dimming models available
Branch guard, option
Multi-voltage, 12/24 VDC
Built-in permanent/1-inch pipe mount metal base
Five-year warranty

Voltage	12/24 VDC
Current Draw	2 A (average) - 4 A (max)
LED Count	300TMP=36 \| 320TMP=72 \| 300SMP=24 \| 320SMP=48
LED Color Options	Amber, Blue, Green, Red, White
Dome Color Options	Amber, Blue, Clear, Green, Red
300TMP/320TMP Physical Dim. (D x H)	7.24 in (18.38 cm) x 5.24 in (13.3 cm)
300SMP/320SMP Physical Dim. (D x H)	7.24 in (18.38 cm) x 3.62 in (9.19 cm)
300TMP/320TMP Ship Weight	3.25 lbs (1.5 kg)
300SMP/320SMP Ship Weight	3 lbs (1.4 kg)

SAE Class 1 (Amber, Blue, Red, White)
CAC Title 13 (Amber, Blue, Red)
NFPA Upper (Tall models; Amber and Red)

Versatile warning beacon built for a variety of applications

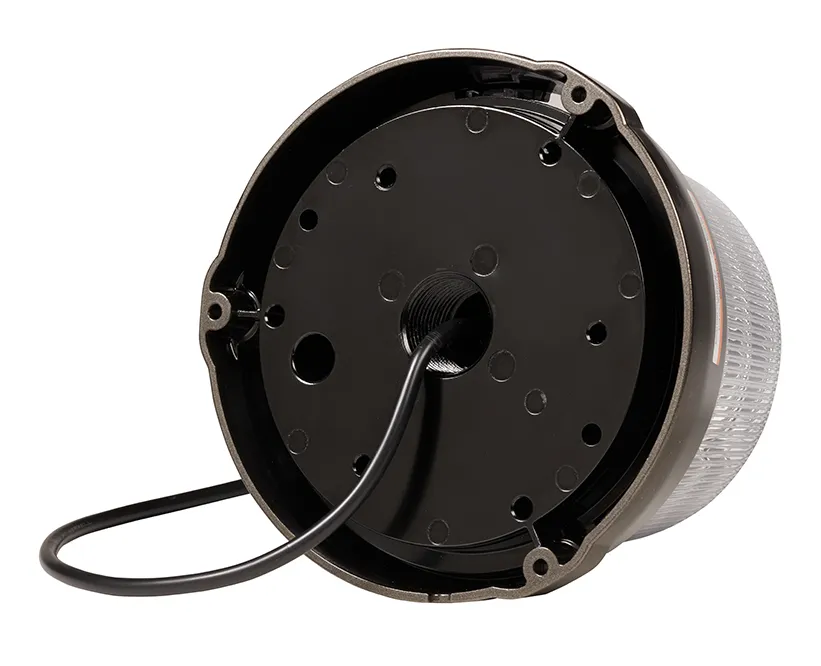

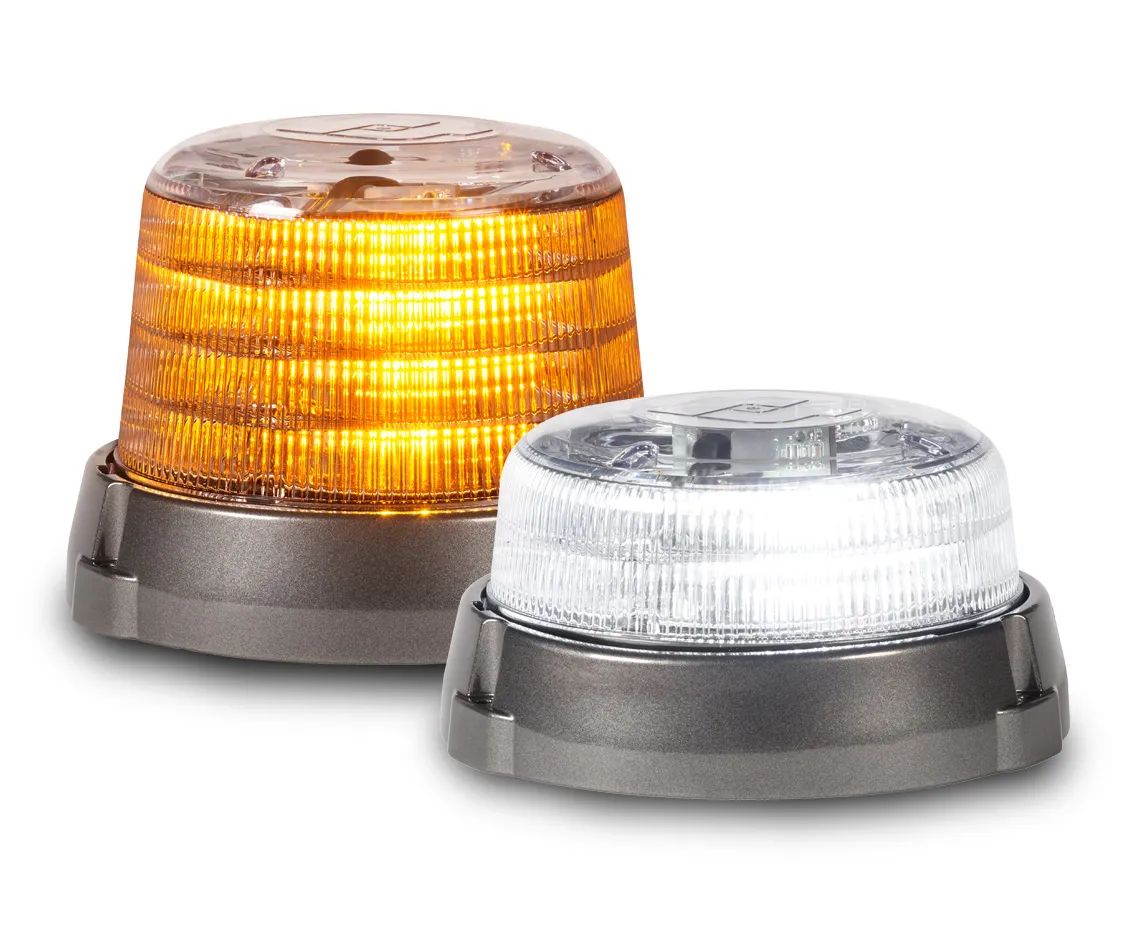

The Pro LED Beacon is available in tall and short dome versions in single or dual color utilizing the following colors – Amber, Blue, Green, Red and White. The e-coated and powder painted metal base of the Pro LED Beacon has a built-in permanent/1-inch pipe mount that allows for flexibility when mounting. The Pro LED Beacon is an ideal warning solution for work trucks and fire apparatuses.

Packed with technology
The Pro LED Beacon provides an effective warning signal that meets SAE Class 1 (Amber, Blue, Red, White), Title CAC 13 (Amber, Blue, Red) and NFPA Upper (Amber and Red). Additionally, the Pro LED Beacon has FSLink™ syncing technology that will allow for Pro LED Beacons and other Federal Signal products with FSLink to sync or alternately flash patterns to create a unified look.

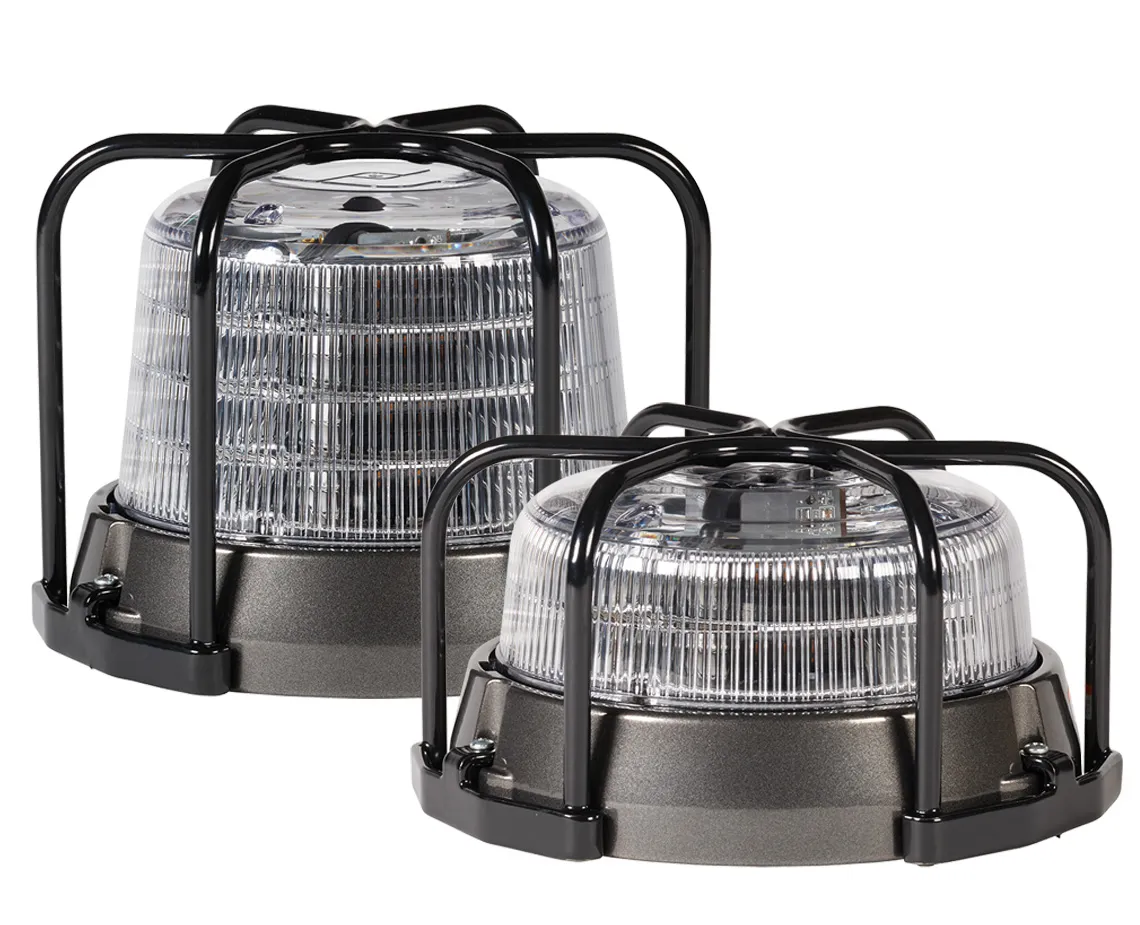

Each Pro LED Beacon has (25) built-in flash patterns, low power function, and two flashing modes. Select models are available with an auto-dimming function. Branch guards for both the tall and short dome versions are available as an accessory.

PRODUCT LITERATURE
Pro LED Beacon Data Sheet | M7006

MARKETING UPDATES
Pro LED Beacons at a new low US list price I MU806
Introducing the Federal Signal Pro LED Beacon | MU722

PRODUCT MANUALS
Pro LED Beacon Manual | 25500434A1

Federal Signal Pro Beacon Flash Patterns - Green tall dome (2:39) Federal Signal Pro Beacon Flash Patterns - Amber tall dome (3:01)

Federal Signal Pro Beacon Flash Patterns - Amber short dome (2:53)

ORDERING INFORMATION

Model Types

MODEL	DESCRIPTION
300TMP-A	Tall dome, Amber LEDs, Amber dome, permanent/1-inch pipe mount
300TMP-B	Tall dome, Blue LEDs, Blue dome, permanent/1-inch pipe mount
300TMP-G	Tall dome, Green LEDs, Green dome, permanent/1-inch pipe mount
300TMP-R	Tall dome, Red LEDs, Red dome, permanent/1-inch pipe mount
300TMP-W	Tall dome, White LEDs, Clear dome, permanent/1-inch pipe mount
300TMPC-A	Tall dome, Amber LED, Clear dome, permanent/1-inch pipe mount
300TMPC-B	Tall dome, Blue LEDs, Clear dome, permanent/1-inch pipe mount
300TMPC-G	Tall dome, Green LEDs, Clear dome, permanent/1-inch pipe mount
300TMPC-R	Tall dome, Red LEDs, Clear dome, permanent/1-inch pipe mount
320TMP-AB	Tall dome, Amber/Blue LEDs, Clear dome, permanent/1-inch pipe mount
320TMP-AG	Tall dome, Amber/Green LEDs, Clear dome, permanent/1-inch pipe mount
320TMP-AR	Tall dome, Amber/Red LEDs, Clear dome, permanent/1-inch pipe mount
320TMP-AW	Tall dome, Amber/White LEDs, Clear dome, permanent/1-inch pipe mount
300SMP-A	Short dome, Amber LEDs, Amber dome, permanent/1-inch pipe mount
300SMP-B	Short dome, Blue LEDs, Blue dome, permanent/1-inch pipe mount
300SMP-G	Short dome, Green LEDs, Green dome, permanent/1-inch pipe mount
300SMP-R	Short dome, Red LEDs, Red dome, permanent/1-inch pipe mount
300SMPC-A	Short dome, Amber LEDs, Clear dome, permanent/1-inch pipe mount
300SMPC-B	Short dome, Blue LEDs, Clear dome, permanent/1-inch pipe mount
300SMPC-G	Short dome, Green LEDs, Clear dome, permanent/1-inch pipe mount
300SMPC-R	Short dome, Red LEDs, Clear dome, permanent/1-inch pipe mount
320SMP-AB	Short dome, Amber/Blue LEDs, Clear dome, permanent/1-inch pipe mount
320SMP-AG	Short dome, Amber/Green LEDs, Clear dome, permanent/1-inch pipe mount
320SMP-AR	Short dome, Amber/Red LEDs, Clear dome, permanent/1-inch pipe mount
320SMP-AW	Short dome, Amber/White LEDs, Clear dome, permanent/1-inch pipe mount
300TMP-AD-A	Tall dome, Amber LEDs, Amber dome, permanent/1-inch pipe mount, auto-dimming models
300TMP-AD-B	Tall dome, Blue LEDs, Blue dome, permanent/1-inch pipe mount, auto-dimming models
300TMP-AD-G	Tall dome, Green LEDs, Green dome, permanent/1-inch pipe mount, auto-dimming models
300TMP-AD-R	Tall dome, Red LEDs, Red dome, permanent/1-inch pipe mount, auto-dimming models
300TMP-AD-W	Tall dome, White LEDs, Clear dome, permanent/1-inch pipe mount, auto-dimming models
300TMPC-AD-A	Tall dome, Amber LED, Clear dome, permanent/1-inch pipe mount, auto-dimming models
300TMPC-AD-B	Tall dome, Blue LEDs, Clear dome, permanent/1-inch pipe mount, auto-dimming models
300TMPC-AD-G	Tall dome, Green LEDs, Clear dome, permanent/1-inch pipe mount, auto-dimming models
300TMPC-AD-R	Tall dome, Red LEDs, Clear dome, permanent/1-inch pipe mount, auto-dimming models
320TMP-AD-AB	Tall dome, Amber/Blue LEDs, Clear dome, permanent/1-inch pipe mount, auto-dimming models
320TMP-AD-AG	Tall dome, Amber/Green LEDs, Clear dome, permanent/1-inch pipe mount, auto-dimming models
320TMP-AD-AR	Tall dome, Amber/Red LEDs, Clear dome, permanent/1-inch pipe mount, auto-dimming models
320TMP-AD-AW	Tall dome, Amber/White LEDs, Clear dome, permanent/1-inch pipe mount, auto-dimming models

Accessories

PRODUCT #	DESCRIPTION
300B-TALL	Branch Guard, Tall
300B-SHORT	Branch Guard, Short
