Police Legend®

SLR

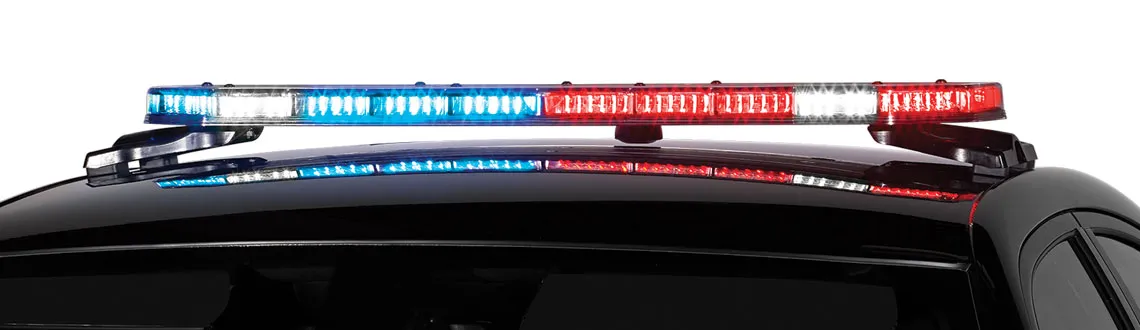

  • Low-profile, linear light bar design offers front and rear cut-off and dimming features
  • Optional built-in SignalMaster™ directional warning
  • LED S/T/T (stop/turn/tail) available
  • LEDs available in Red, Blue, Black, White, Amber, and Green
  • Top domes available in Red, Blue, Amber, and Clear
  • Five-year warranty

                                                                    โหลด2


ApprovalsRed 5" or 4" (6 LEDs) and Corner (9 LEDs) are SAE J845 Class 1, SAE J595 Class 1 and CA T13 Class B compliant
Blue 5" or 4" (6 LEDs) and Corner (9 LEDs) are SAE J845 Class 1, SAE J595 Class 2 and CA T13 Class B compliant
Amber 5" or 4" (6 LEDs) and Corner (9 LEDs) are SAE J845 Class 1, SAE J595 Class 2 and CA T13 Limited Class B* compliant
*Two adjacent Amber 5" or 4" heads are compliant. Corner reflector arrays are NOT compliant.
Voltage12.8 VDC
Operating Temperature Range-30°C to +65C
Dim. (H x L x D)24" - 2.5 in x 24.3 in x 11.2 in (6.4 cm x 61.6 cm x 28.4 cm)
45" - 2.5 in x 44.5 in x 11.2 in (6.4 cm x 113.0 cm x 28.4 cm)
53" - 2.5 in x 52.7 in x 11.2 in (6.4 cm x 133.9 cm x 28.4 cm)
61" - 2.5 in x 60.9 in x 11.2 in (6.4 cm x 154.7 cm x 28.4 cm)
70" - 2.5 in x 69.1 in x 11.2 in (6.4 cm x 175.5 cm x 28.4 cm)
Shipping Weight24" - 12.8 lbs (5.8 kg) - with standard foot
45" - 20.4 lbs (9.3 kg) - with standard foot
53" - 24.2 lbs (10.9 kg) - with standard foot
61" - 28.0 lbs (12.7 kg) - with standard foot
70" - 31.8 lbs (14.4 kg) - with standard foot
