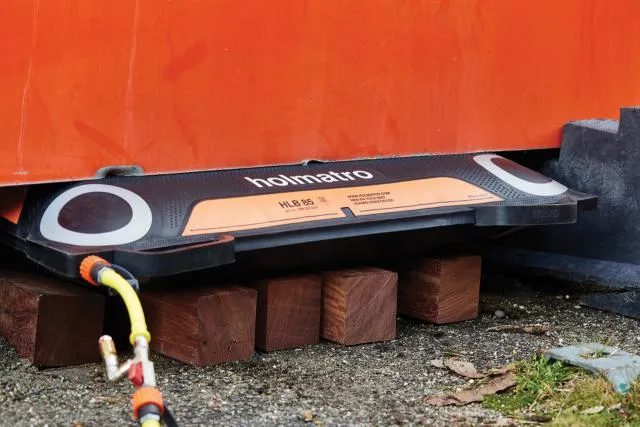

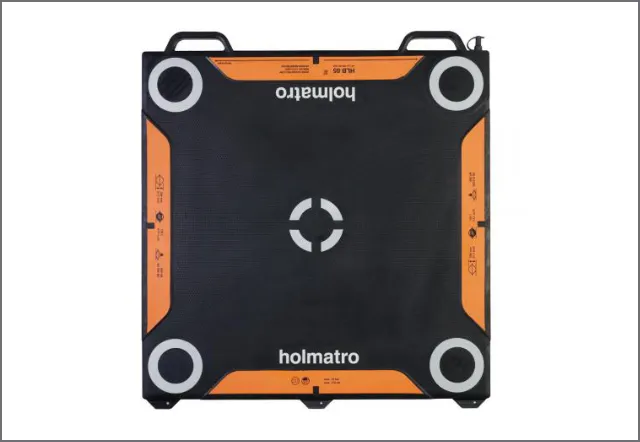

LIFTING BAG HLB 85

High-pressure lifting bag, 12 bar / 174 psi system. Designed for maximum safety and control when lifting heavy objects. Offers 50% more lifting capacity: get more power out of your lifting bag or use a smaller and lighter model to get the job done.

Standard supplied with:

Integrated carrying handle with capacity indication

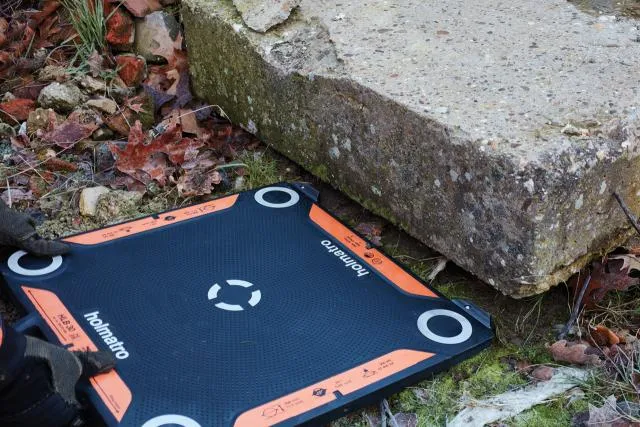

Slider pads to facilitate lifting bag placement
Inserts for optional lifting eyes
Flexible integrated dust cap on air inlet

Details
Articlenumber	350.321.034
Basic specifications
model	HLB 85
max. working pressure	12 / 1.2 (bar/Mpa)	174 psi
Performance
max. lifting capacity	855 / 87.2 (kN/t)	192212 lbf
max. inflation height	550 mm	21.7 in
thickness incl. profile	27 mm	1.1 in
max. lifting capacity (12 bar/174 psi)	855 / 87.2 (kN/t)	192212 lbf
max. lifting capacity (8 bar/116 psi)	570 / 58.1 (kN/t)	128141 lbf
General specifications
material	reinforced with 3 aramide inlays
air content (8 bar/116 psi)		33.3 cu ft
Dimensions, weight and temperature
weight, ready for use	23 kg	50.7 lb
thread hole	M6 threadsize
dimensions (AxBxC)	948 x 870 x 27 mm	37.3 x 34.3 x 1.1 in
Norms
EN 13731 compliant	Yes
