Standard supplied with:

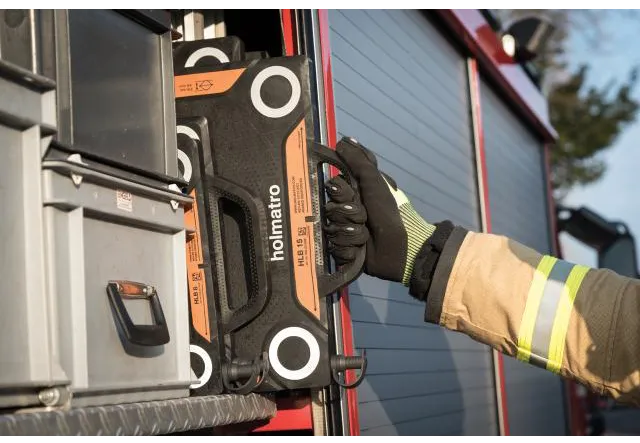

Integrated carrying handle with capacity indication

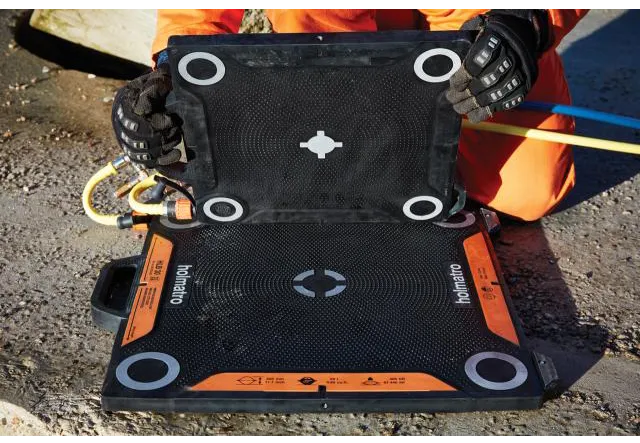

Slider pads to facilitate lifting bag placement
Flexible integrated dust cap on air inlet

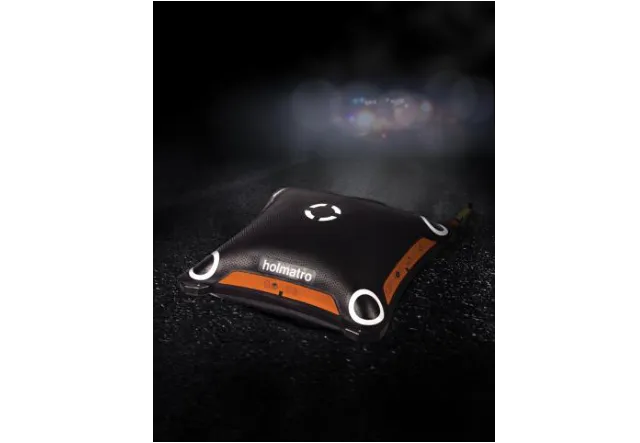

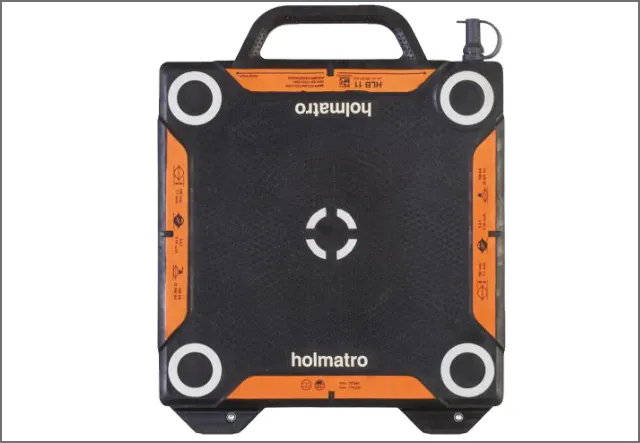

LIFTING BAG HLB 11

High-pressure lifting bag, 12 bar / 174 psi system. Designed for maximum safety and control when lifting heavy objects. Offers 50% more lifting capacity: get more power out of your lifting bag or use a smaller and lighter model to get the job done.

Details
Articlenumber	350.321.025
Basic specifications
model	HLB 11
max. working pressure	12 / 1.2 (bar/Mpa)	174 psi
Performance
max. lifting capacity	110 / 11.2 (kN/t)	24729 lbf
max. inflation height	207 mm	8.2 in
thickness incl. profile	25 mm	1 in
max. lifting capacity (12 bar/174 psi)	110 / 11.2 (kN/t)	24729 lbf
max. lifting capacity (8 bar/116 psi)	73 / 7.4 (kN/t)	16411 lbf
General specifications
material	reinforced with 3 aramide inlays
air content (8 bar/116 psi)		1.5 cu ft
Dimensions, weight and temperature
weight, ready for use	3.2 kg	7.1 lb
dimensions (AxBxC)	403 x 325 x 25 mm	15.9 x 12.8 x 1 in
Norms
EN 13731 compliant	Yes
