LED Traffic Clearing Light

Delivers 250+ feet of direct warning light

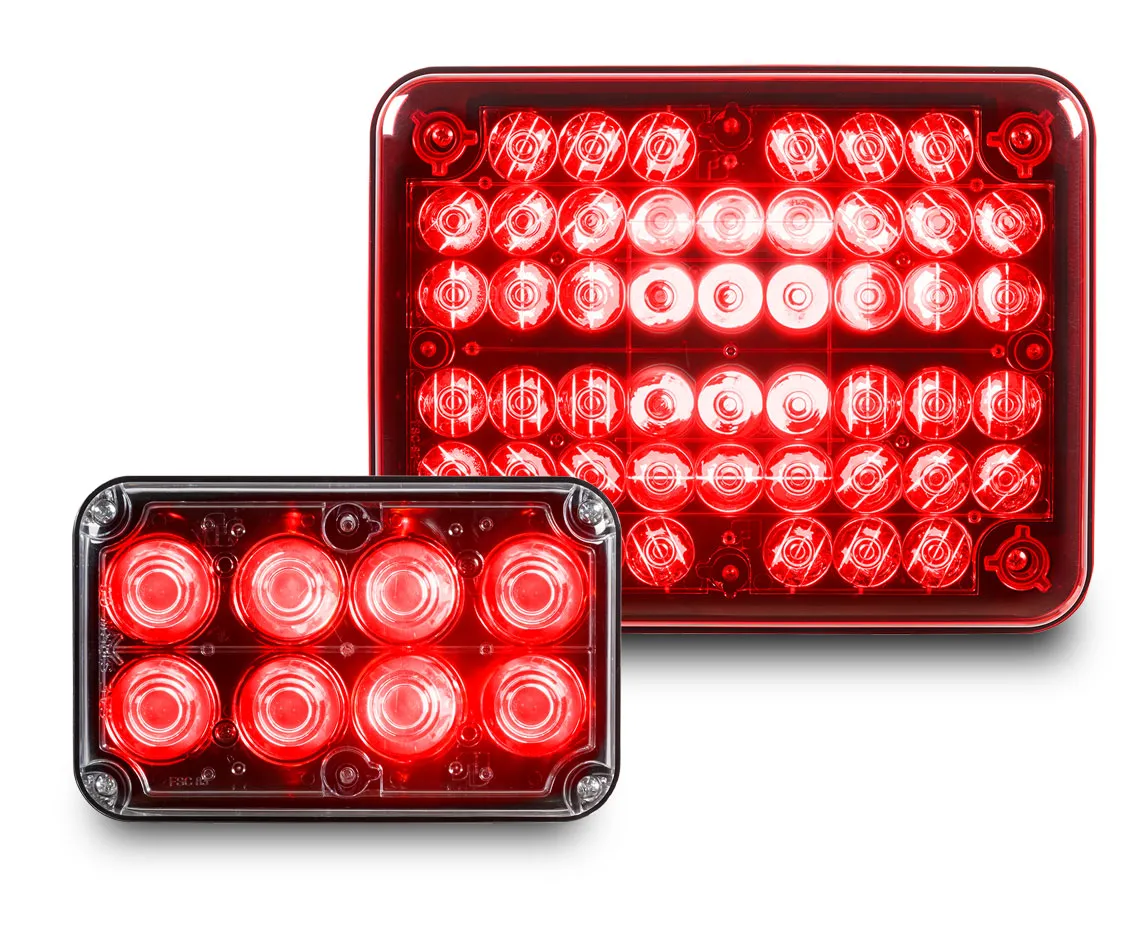

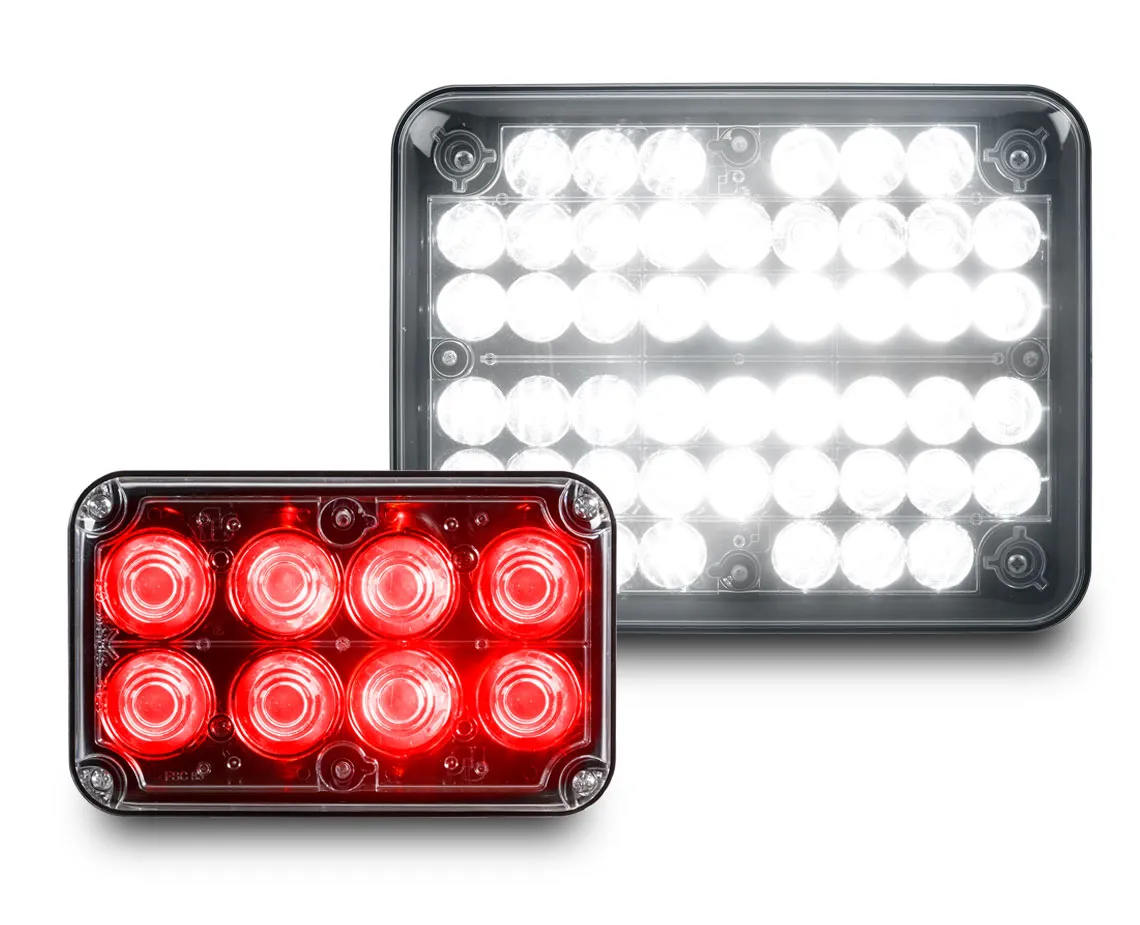

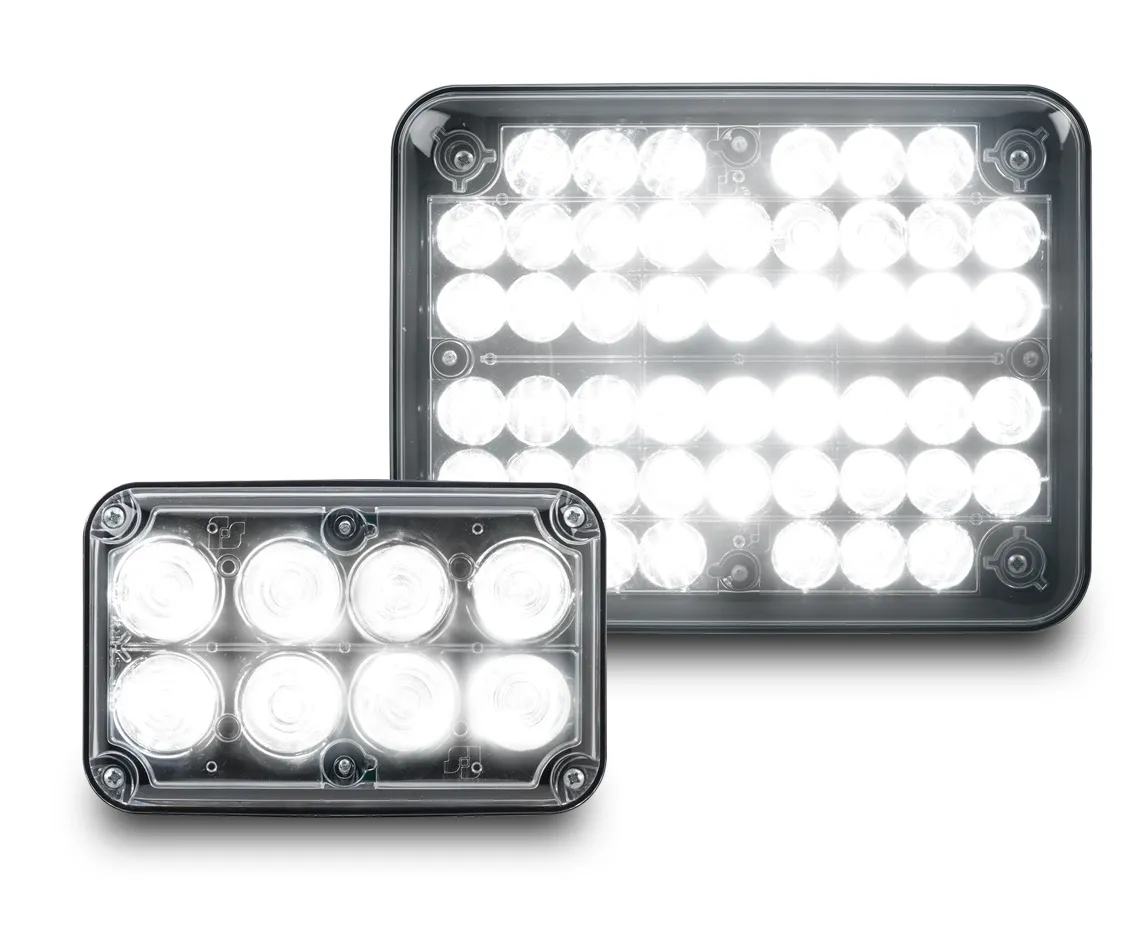

Available in 9x7 and 6x4 sizes

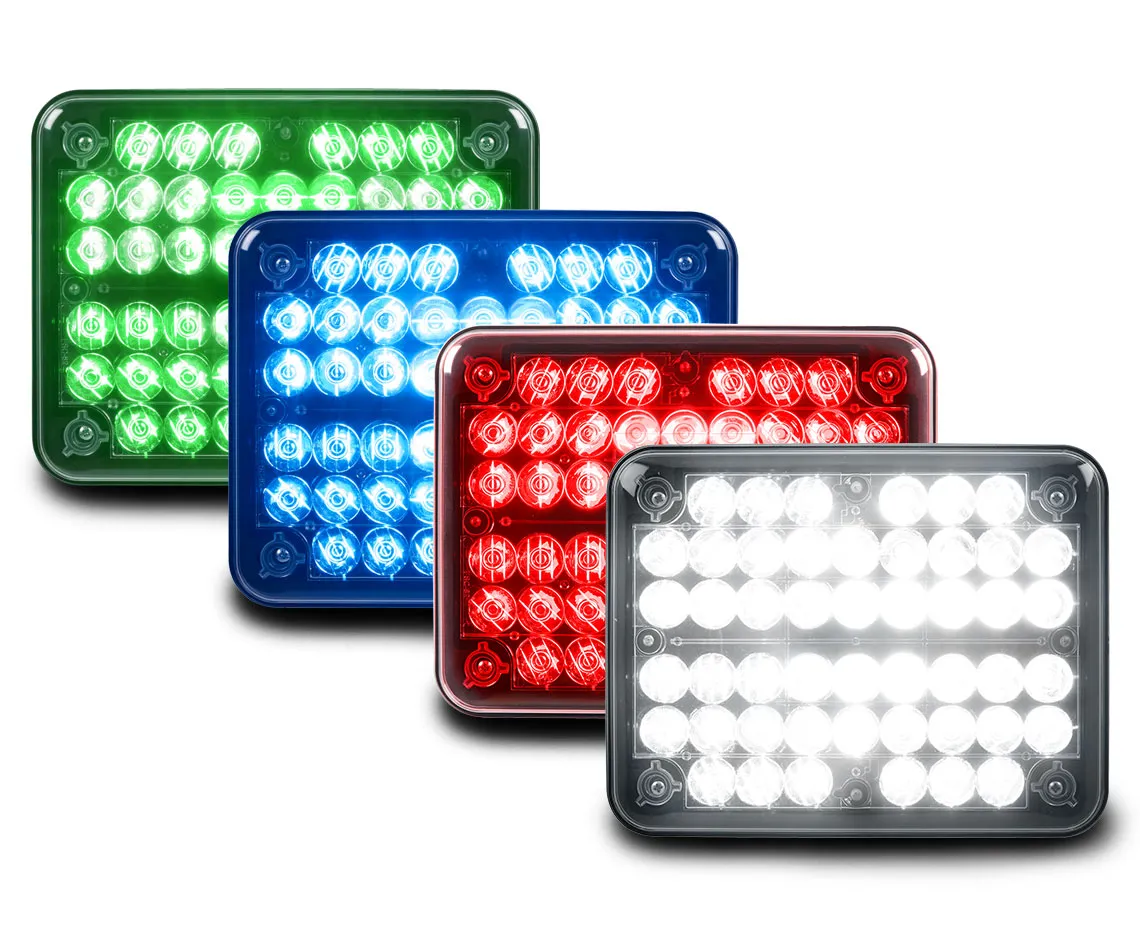

Available with Amber, Blue, Green, Red, and White LEDs
Available with Amber, Clear, and Red lens

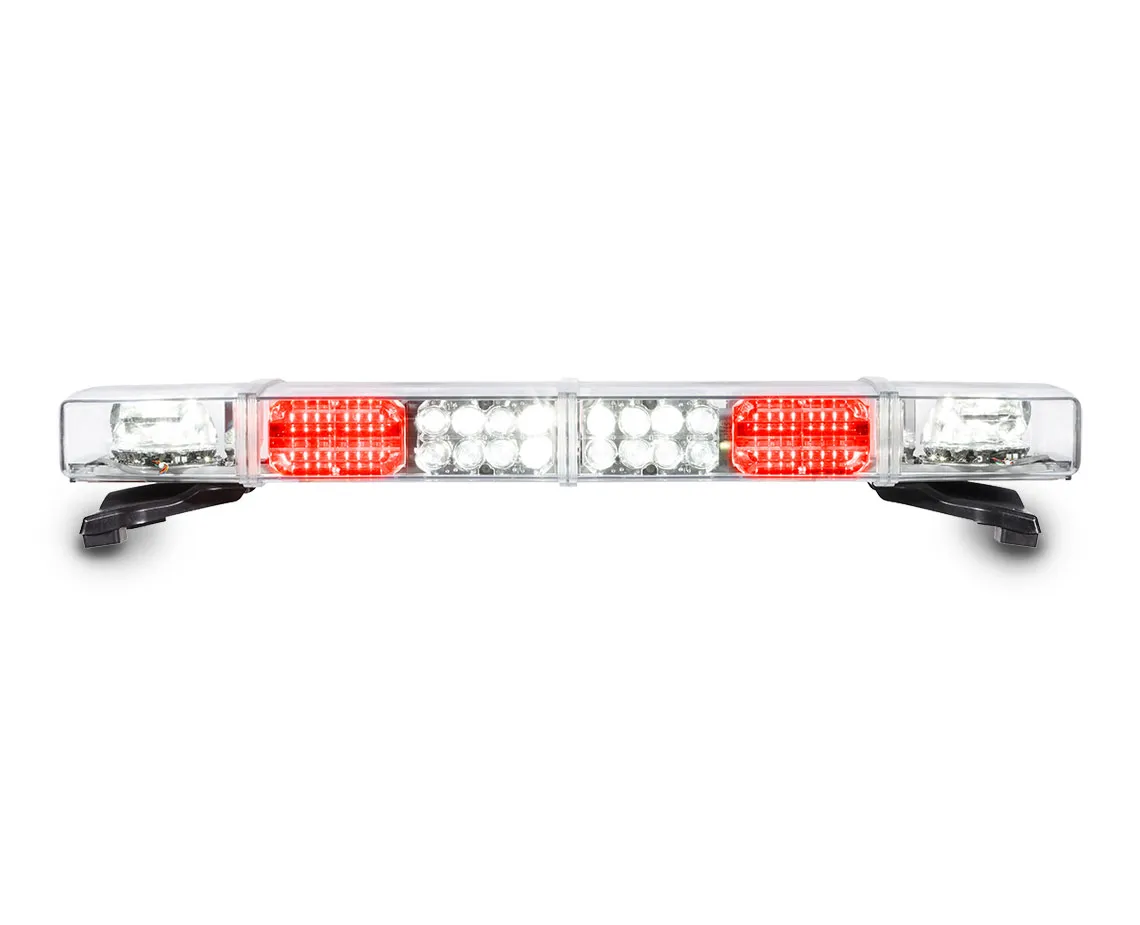

6x4 models can be configured as a pair in the Navigator or light bar
Patented Technology
Five-year warranty

Current Draw	3.0 A/1.5 A (6x4) – 7.0 A (9x7)
Input Voltage	12/24 VDC (6x4) - 12 VDC (9x7)
Operating Temperature Range	-40˚C to 80˚C
Physical Specs. (HxWxD)	6x4 – 4.15 in (10.5 cm) x 6.56 (16.7 cm) x 1.67 in (4.2 cm)
	9x7 – 7.15 in (18.1 cm) x 9.16 (23.3 cm) x 1.66 in (4.2 cm)
Ship Weight	6x4 – 3.6 lbs (1.6 kg)
	9x7 – 2.0 lbs (0.9 kg)

Approvals

Triple K Spec (LEDTCL97C-W flash pattern 7)

Alert Drivers Faster
Federal Signal’s LED Traffic Clearing Light (TCL) is designed to bring attention to drivers as a fire apparatus or ambulance is approaching from the rear of their vehicle. The LED TCL’s optics and unique sequence of flash patterns direct light to the driver’s rear-view mirror warning them of the emergency vehicle.

LED TCL and perimeter warning lights work together to help warn roadway traffic. While perimeter lights provide 360-degree of warning light around the emergency vehicle, the LED TCL produces 250+ feet of directional light to the front of the emergency vehicle.

LED TCL Models
LED TCL is available in 6x4 and 9x7 standard models. Models are available in Amber, Blue, Green, Red, and White LEDs. The LED TCL 6x4 is sold in pairs and is available as an option for Federal Signal’s Navigator® lightbar.

PRODUCT LITERATURE
TCL Traffic Clearing Light Data Sheet | M4051

MARKETING UPDATES
LED Traffic Clearing Lights now available in Red, Blue, Amber, White and Green | MU787
Introducing the new LED Traffic Clearing Light | MU726

PRODUCT MANUALS
LED TCL 6x4 Manual l 25500609
LEDTCL97 LED TCL 9x7 Manual | 25500469

ORDERING INFORMATION

Model Types

MODEL	DESCRIPTION
LEDTCL64A-A	LED Traffic Clearing Light, 6x4 (pair), Amber lens, Amber LED
LEDTCL64C-A	LED Traffic Clearing Light, 6x4 (pair), Clear lens, Amber LED
LEDTCL64C-B	LED Traffic Clearing Light, 6x4 (pair), Clear lens, Blue LED
LEDTCL64C-G	LED Traffic Clearing Light, 6x4 (pair), Clear lens, Green LED
LEDTCL64C-R	LED Traffic Clearing Light, 6x4 (pair), Clear lens, Red LED
LEDTCL64C-W	LED Traffic Clearing Light, 6x4 (pair), Clear lens, White LED
LEDTCL64R-R	LED Traffic Clearing Light, 6x4 (pair), Red lens, Red LED
LEDTCL97A-A	LED Traffic Clearing Light, 9x7, Amber lens, Amber LED
LEDTCL97C-A	LED Traffic Clearing Light, 9x7, Clear lens, Amber LED
LEDTCL97C-B	LED Traffic Clearing Light, 9x7, Clear lens, Blue LED
LEDTCL97C-G	LED Traffic Clearing Light, 9x7, Clear lens, Green LED
LEDTCL97C-R	LED Traffic Clearing Light, 9x7, Clear lens, Red LED
LEDTCL97C-W	LED Traffic Clearing Light, 9x7, Clear lens, White LED
LEDTCL97R-R	LED Traffic Clearing Light, 9x7, Red lens, Red LED
