GAS/PETROL PUMP SR 10 PC 1

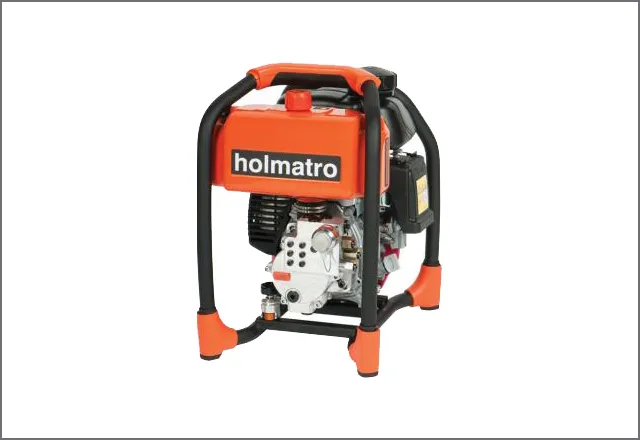

Petrol driven Spider pump, CORE version, with 1 tool connection (STO).

Standard supplied with:

  • CORE Technology

- Quicker (saves time)

- Safer (more user-friendly)

- Easier (allows more efficient use of manpower)


Details
Articlenumber150.152.690
Basic specifications
modelSR 10 PC 1
equipped with (connector type)CORE
max. working pressure720 / 72 (bar/Mpa)10443 psi
Performance
number of stages3
capacity oil tank (effective)2500 cc84.5 oz
General specifications
pump type3-stage axial pump
operator typepetrol engine
number of tool connections1
number of tools simultaneously usable1
engine4-stroke - 2.1 HP - 1.6 kW
Dimensions, weight and temperature
weight, ready for use14.5 kg32 lb
dimensions (AxBxC)360 x 290 x 423 mm14.2 x 11.4 x 16.7 in
Norms
EN 13204 classificationSTO
NFPA 1936 compliantyes
