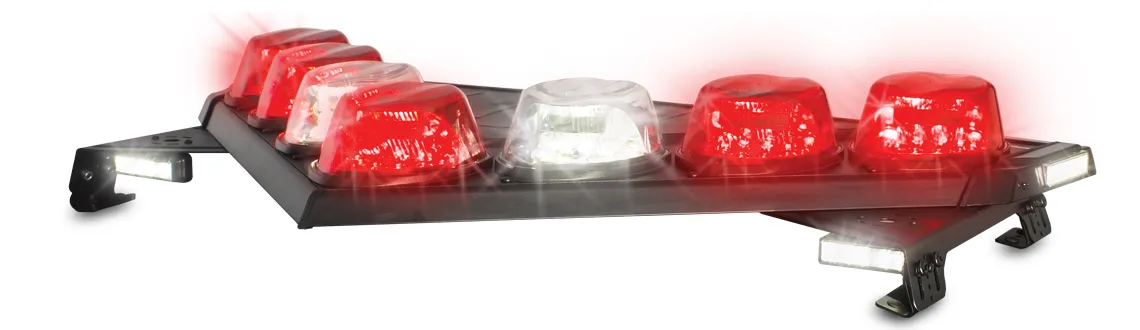

Fire/EMS Vision® SLR

        vis


  • Distinctive “V-Shape” and SLR technology provides superior optical warning at critical intersection angles

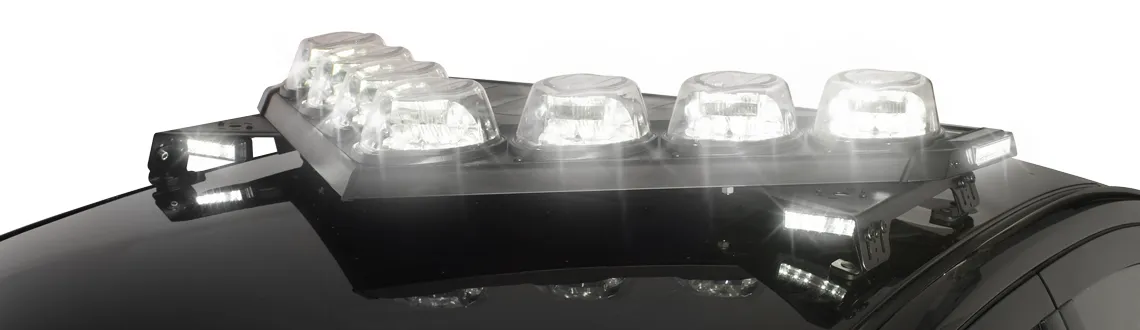

  • Powerful Flood lighting feature provides significant tactical benefits
  • “Jogging” capability
  • “Aerial view” feature improves ability to see vehicle from a helicopter

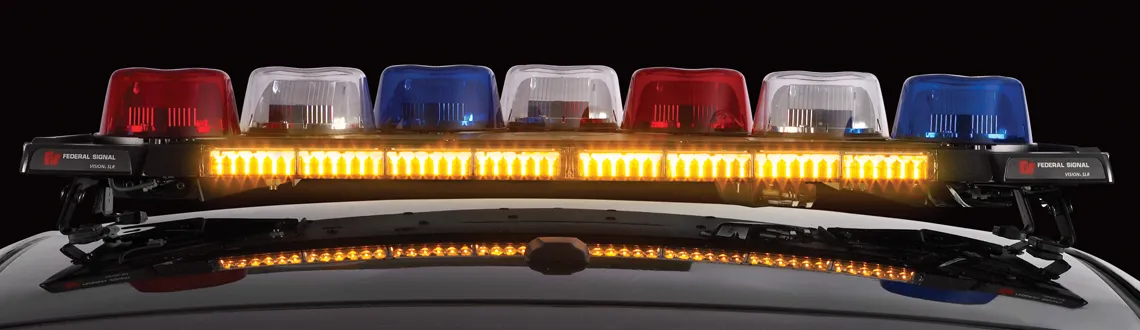

  • Optional SignalMaster™ directional light
  • LEDs offered in Amber, Blue, Green, Red and White
  • Top-dome colors are offered in Amber, Blue, Clear, Green and Red
  • Available in 46-, 53-, and 60-inch lengths
  • Five-year LED warranty

โหลด2

ApprovalsSAE J845
SAE 1113/41 RFI
NFPA1901
Max Current Draw* - 15.4 A - SignalMaster, HotFoot and Alley not included
*Max Amperage in steady burn mode for all light heads
Voltage12VDC Operating
Operating Temperature Range-30°C to +65°C
Dim. (H x L x D):*VSLR46 - 5.8 in (115.3 cm) x 45.4 in (14.7 cm) x 27.9 in (70.9 cm)
*VSLR53 - 5.8 in (132.8 cm) x 52.3 in (14.7 cm) x 30.2 in (76.7 cm)
*VSLR60 - 5.8 in (150.6 cm) x 59.3 in (14.7 cm) x 33.2 in (84.3 cm)
*VSLR46 - 5.8 in (115.3 cm) x 45.4 in (14.7 cm) x 27.9 in (70.9 cm)
*VSLR53 - 5.8 in (132.8 cm) x 52.3 in (14.7 cm) x 30.2 in (76.7 cm)
*VSLR60 - 5.8 in x 59.3 in x 33.2 in (150.6 cm x 14.7 cm x 84.3 cm)
VSLR8 - 4.6 in X 26.8 in X 26.5 in (11.7 cm x 37.3 cm x 67.3 cm) (per half, less mount)
Blank SpecificationVSLR6 - 4.6 in X 21.1 in X 21.7 in (11.7 cm x 53.6 cm x 55.1 cm) (per half, less mount)
VSLR3 - 4.6 in X 22.4 in X 17.8 in (11.7 cm x 56.9 cm x 45.2 cm) (less mount)
*Note- Alley Caps add 1.0 in (2.5 cm) to Length
Shipping Weight*VSLR46 - 59.3 lbs (26.9 kg)
*VSLR53 - 64.4 lbs (29.2 kg)
*VSLR60 - 67.5 lbs (30.6 kg)
VSLR8 - Consists of 2 cartons, each weighing 30.0 lbs (13.5 kg) for a total weight of 60 lbs (27.0 kg) VSLR6 - Consists of 2 cartons, each weighing 23.0 lbs (10.35 kg) for a total weight of 46.0 lbs (20.7 kg)
Blank SpecificationVSLR3 - 25.0 lbs (11.34 kg) *Note- With SignalMaster and standard mounting feet.
