Cellular and Satellite Communication

Cellular Features

Persistent network connectivity for uninterrupted, bi-directional communications
Advanced processor for optimized performance on 5G wireless networks
Rugged design for use in extreme conditions
Compact form factor for easy installation

Satellite Key Features

Two-way communications enables messaging for monitoring and control operations
Easy to install with no satellite dishes to point
Low message latency allows for applications that require immediate communication to and from the asset. No long delays
Rugged design for use in extreme conditions -NEMA 4x Fiberglass housing
Compact form factor for easy installation

Cellular
Size	3.0" x 1.1" x 3.9"
	76 mm x 27 mm x100 mm
Weight	Approx. 0.35 lbs. / 160 grams
Operating temperature	-22°F to 149°F / -30°C to 65°C
Quad-Band	850, 900, 1800, 1900Mhz
Dual-Band	EV-DO Rev A. 800, 1900Mhz
Audio Output	0-2V peak to peak, maximum load 8 ohms
Approvals	FCC, Industry Canada, RoHS, PTCRB, Class I Div 2, Carrier Specific
Warranty	One year manufacturer’s warranty
Satellite
Size	6.3" x 1.9"
	160 mm (Diameter) x 47 mm (Height)
Weight	Approx. 1.1 lbs. / 500 grams
Operating Temperature	-40°F to 185°F / -40°C to 85°C
Humidity	95% Relative Humidity @ +30°C, non-condensing
Dust & Water Ingress	IP67/NEMA-4X
Frequency	Rx: 1525.0 to 1559.0Mhz; 32-FSK
	Tx: 1626.5 to 1660.5Mhz; 2-FSK
EIRP	9 dBW max
Elevation Angle	0° to 90°
Approvals	Inmarsat D+/IsatM2M Type, Approved, FCC,
	CE Mark (R&TTE), RoHS, Anate, IEC/EN 60945
Warranty	Fifteen months from shipment
	manufacturer’s warranty

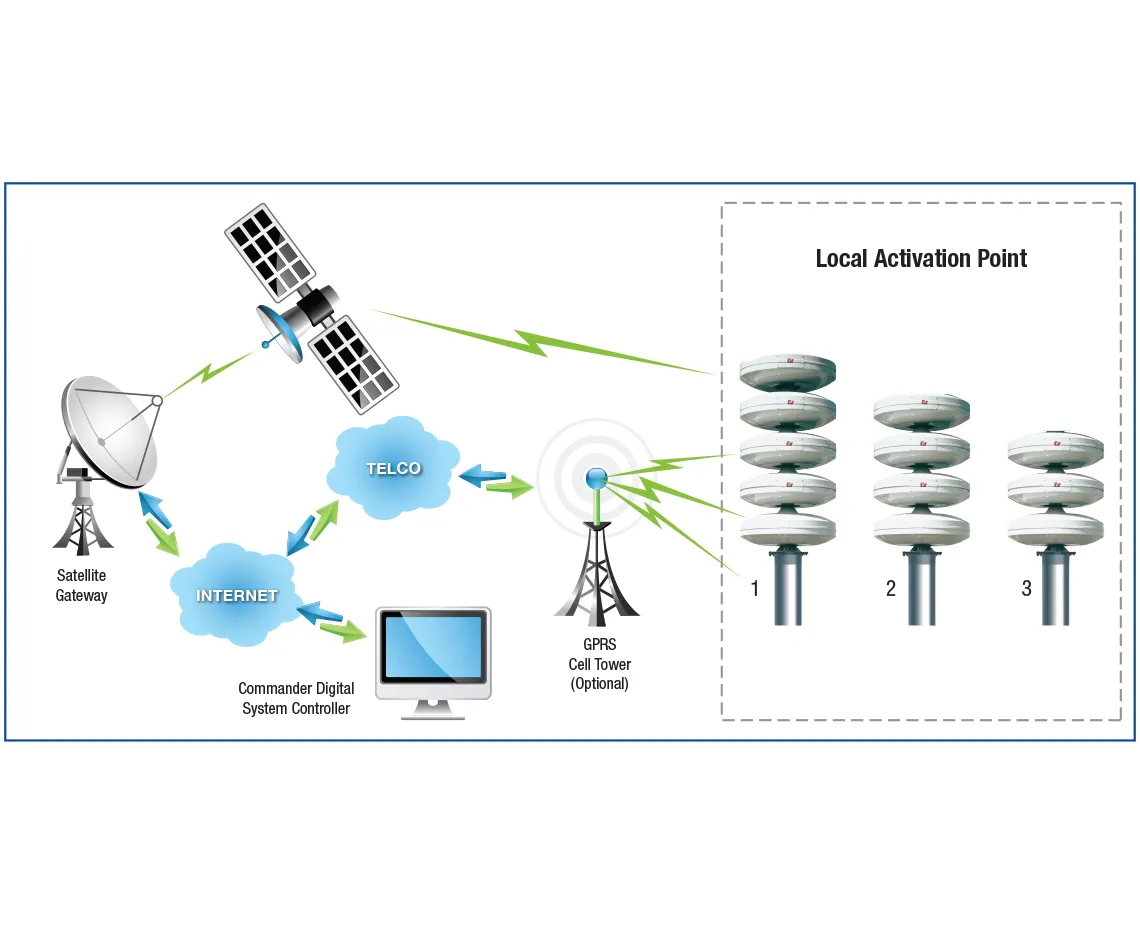

Federal Signal has expanded our communications infra-structure options by adding cellular and/or satellite capabilities for both mechanical and electronic siren controllers. The integrated cellular modem and satellite terminal is an ideal option for activating and monitoring sirens when distance and/or geographical barriers are present. The cellular modem can be ordered based on your specific carrier, the satellite terminal is offered using the Isat Data Pro network based on its proven reliability and coverage. Cellular and Satellite upgrade kits are available for the UltraVoice Electronic and DC Siren Controllers. Cellular and Satellite service can be added independently or together to form a robust network architecture.

Sirens have traditionally been networked using analog radio systems. Analog radio systems are transitioning to digital communications which include P25 and Tetra radio systems, Cellular and Satellite. Each of these solutions is supported with the Federal Signal siren controllers. Our controllers are flexible to allow a transition from analog radio to these digital solutions by supporting both technologies simultaneously. Cellular and/or satellite use for mechanical and electronic sirens can improve the throughput, activation and reporting of siren functions. While satellite and cellular services require monthly service agreements the costs have been declining as the service becomes ubiquitous across many regions. An integrated cellular modem and/or satellite terminal is an ideal option for activating and monitoring sirens when distance and/or geographical barriers are present. The cellular modem can be ordered based on your specific carrier, the satellite terminal is offered using the Isat Data Pro network based on its proven reliability and coverage. Cellular and Satellite upgrade kits are available for the UltraVoice Electronic and DC Siren Controllers. Cellular and Satellite service can be added independently or together to form a robust network architecture.

When combined with solar power the ability to provide sirens in remote areas where power is questionable or potentially not available is achieved. The use of Satellite service is also beneficial to allow communications with no reliance on remote communication devices like cellular towers or radio repeaters.

CELLULAR* – The Federal Signal cellular modem provides uninterrupted real-time, two-way data exchange in support of mission critical applications. The cellular modem features a sleek, compact form factor, increasing its versatility and ability to be integrated within existing enclosures. With a rugged design, Class I Div 2 certification, the cellular modem is an ideal solution for a wide range of industrial and municipal applications. Federal Signal cellular modems are available for CDMA networks through North and South America and GSM networks through North and South America and throughout Europe.

SATELLITE – Using Inmarsat’s network of geosynchronous satellites, the Isat Data Pro network provides the ability to monitor and control remote Federal Signal mechanical and electronic sirens. The remote satellite terminal is a rugged external, small form factor design, which requires outdoor mounting. Federal Signal offers flexible billing plans with low monthly costs. The network availability is 99.995% and 24/7 Network Operations Center (NOC) provides continuous and reliable service, which is required with these types of mission critical services.

*Requires third party subscription service.

PRODUCT LITERATURE

Cellular and Satellite Communication I SYS6045

ORDERING INFORMATION

Model Types

MODEL	DESCRIPTION

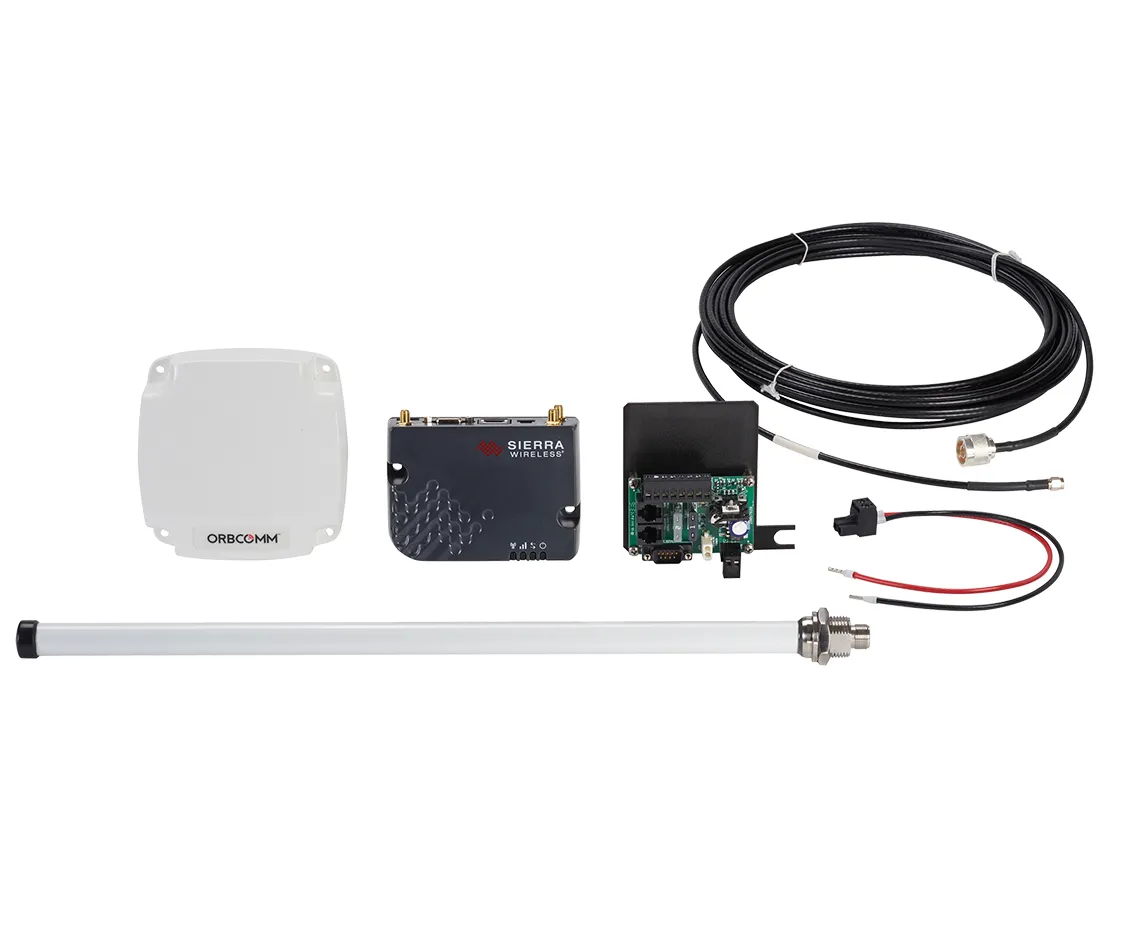

Q-UV-SATCELL3	Includes satellite terminal, cellular modem or DC, antenna, conversion kit to interface to UltraVoice®, cables and mounting hardware
Q-UV-ISAT2	Includes satellite terminal, conversion kit to interface to UltraVoice, cables and mounting hardware
Q-UV-CELL3	Includes cellular modem or DC, antenna, conversion kit to interface to UltraVoice, Cables and mounting hardware
