CUTTER CU 5060

New Car Technology Cutter - 5000 series. Lighter than ever, improved performance.

Standard supplied with:

Details
Articlenumber	150.012.288
Basic specifications
model	CU 5060
equipped with (connector type)	CORE
max. working pressure	720 / 72 (bar/Mpa)	10443 psi
Performance
max. cutting opening	205 mm	8.1 in
directives	2006/42/EC
theoretical cutting force	1793 / 182.8 (kN/t)	403082 lbf
General specifications
NCT	yes
cutter jaw	straight
Dimensions, weight and temperature
weight, ready for use	19.6 kg	43.2 lb
dimensions (AxBxC)	807 x 321 x 200 mm	31.8 x 12.6 x 7.9 in
Norms
EN 13204 classification	CC205K-19.6
NFPA 1936, cutting capacity	A9 B9 C9 D9 E9
NFPA 1936 compliant	yes
EN 13204, cutting capacity	1K 2K 3K 4K 5K
EN 13204 compliant	yes
Cutting performance
round bar (S235 acc. to EN 13204)	47 mm	1.9 in

Download

Limited weight

Lighter than ever thanks to new materials, component integration and intelligent design.
Easy to carry and handle, reducing physical burden.

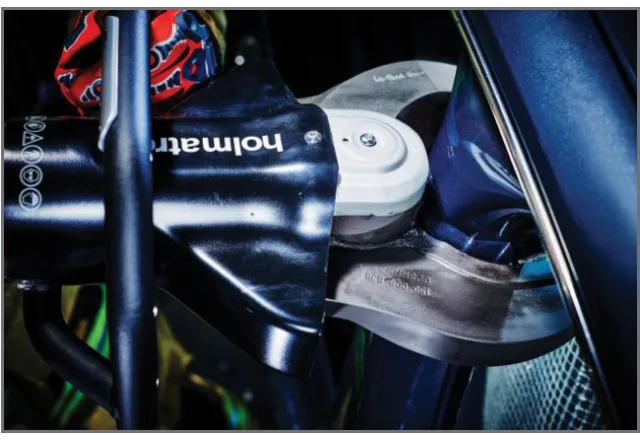

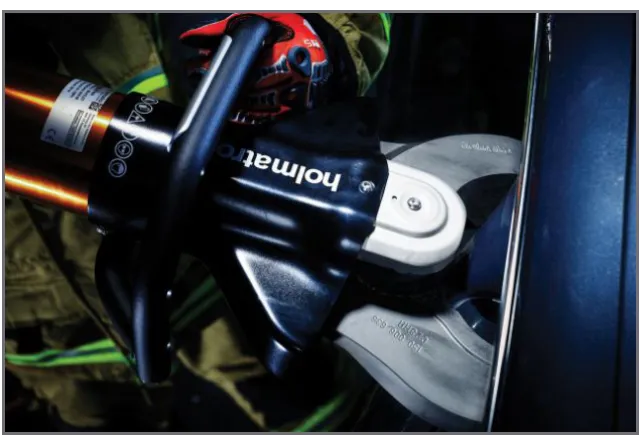

NCT cutter blades

Our New Car Technology blades are specially designed to cut new car construction.
Their U-shape surrounds the material and pulls it in into the cutting recess, where it is cut at the strongest point of the cutter.
With optimized cutting edge for a long blade life and superior cutting performance.

i-Bolt

Flat central bolt construction squeezing the blades together directly (no blade holder in between!) and more tightly. This minimizes blade separation and maximizes cutting performance.
It also allows for better access in narrow spaces.

nct-cutter-blades-en-20339

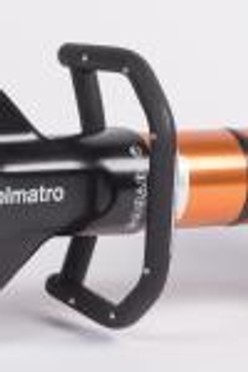

Ergonomic carrying handle

New ergonomic carrying handle design increases operator comfort in various working positions.

Integrated LED lighting

New LED lighting in the carrying handle: no less than six lights with a higher light output. Rescuers can start right away, both during the day and at night, without working in their own shadow.
