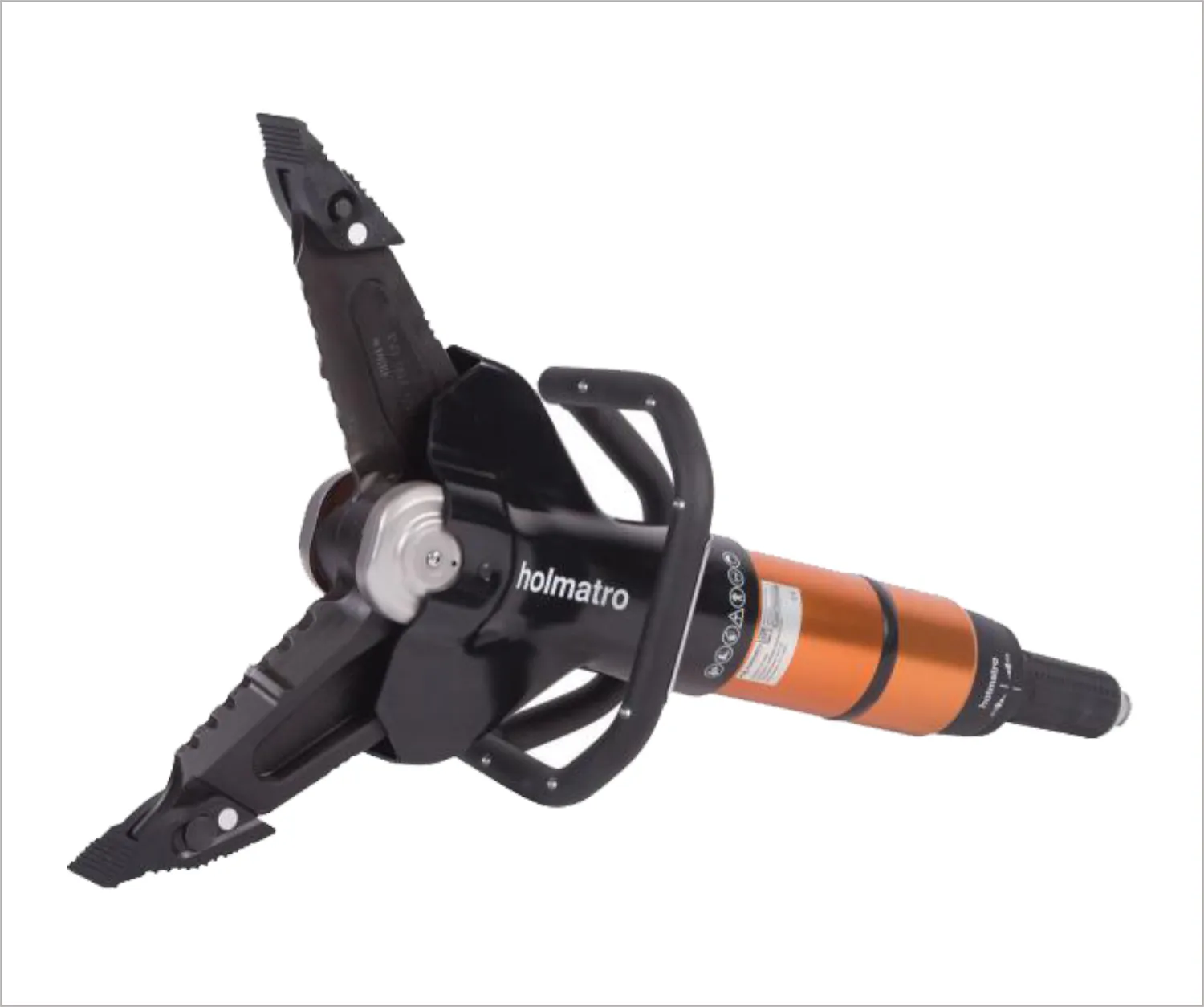

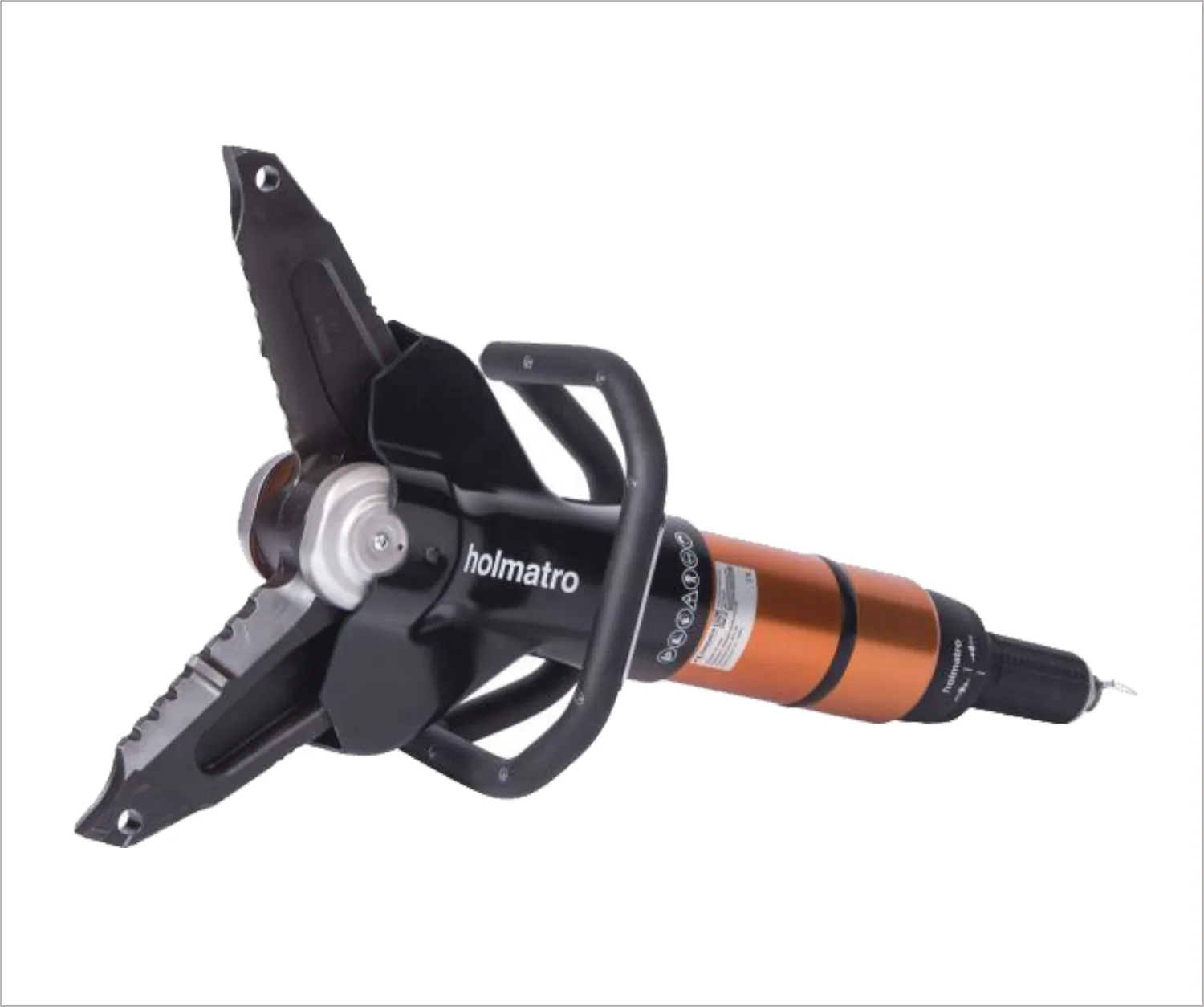

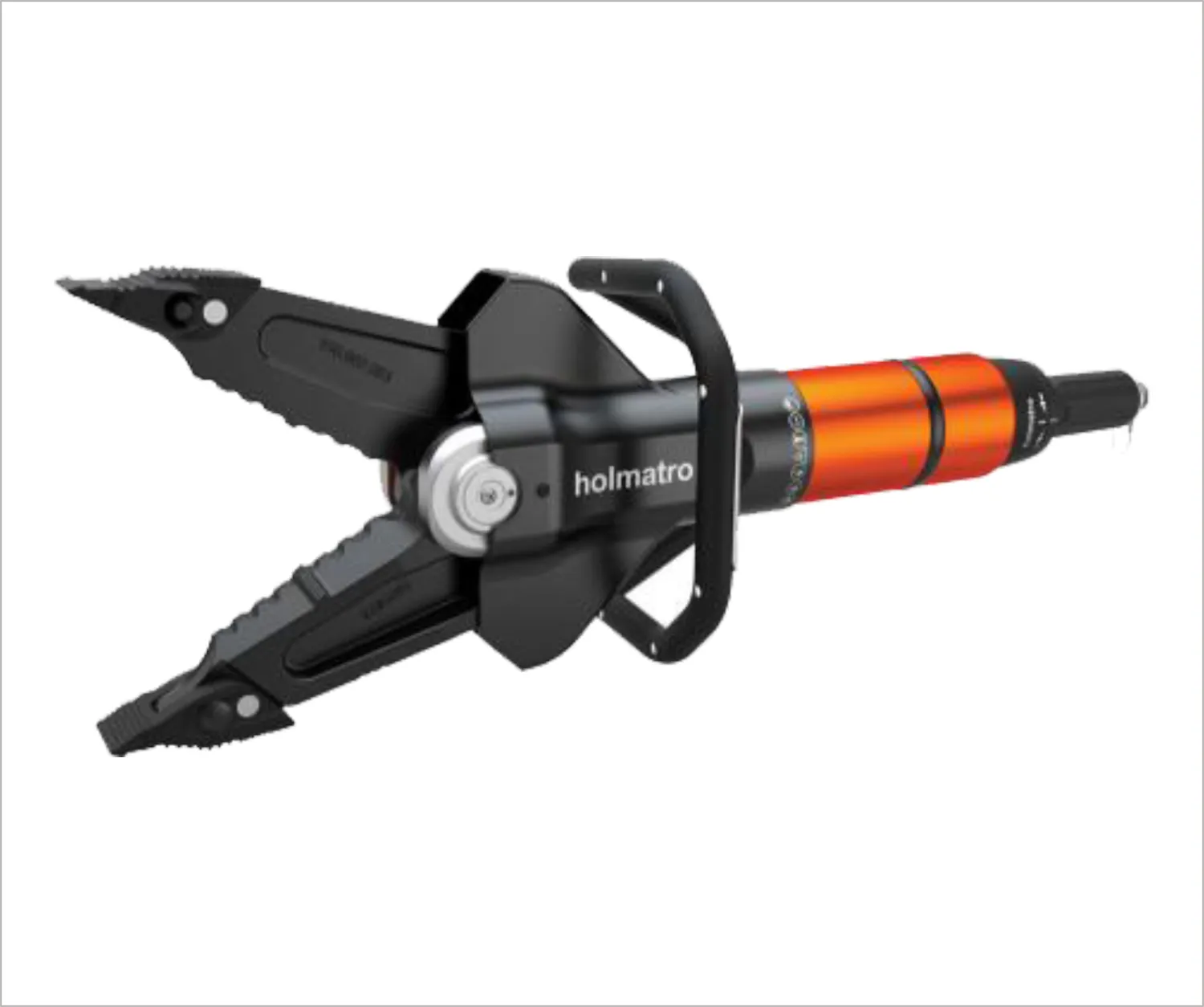

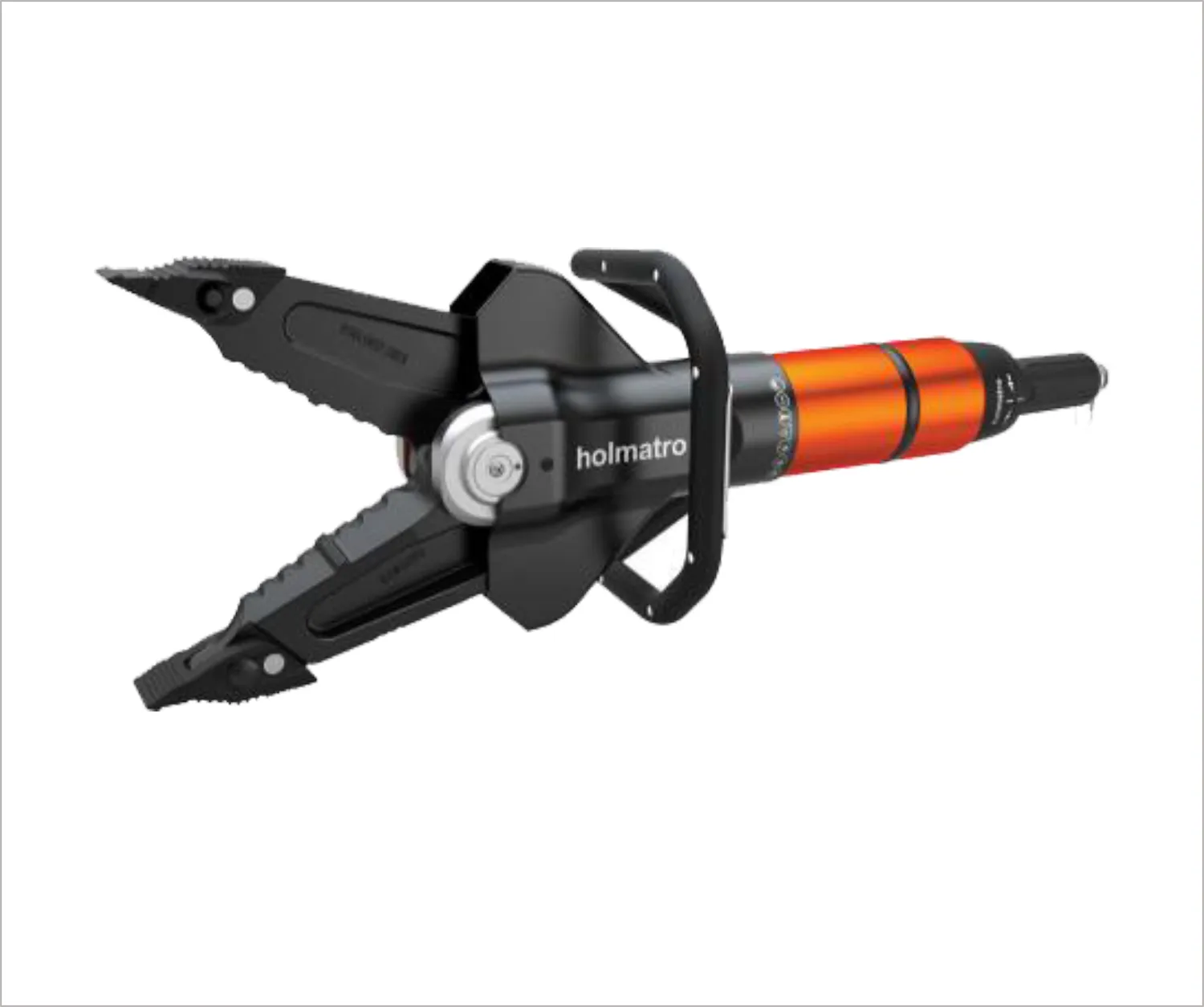

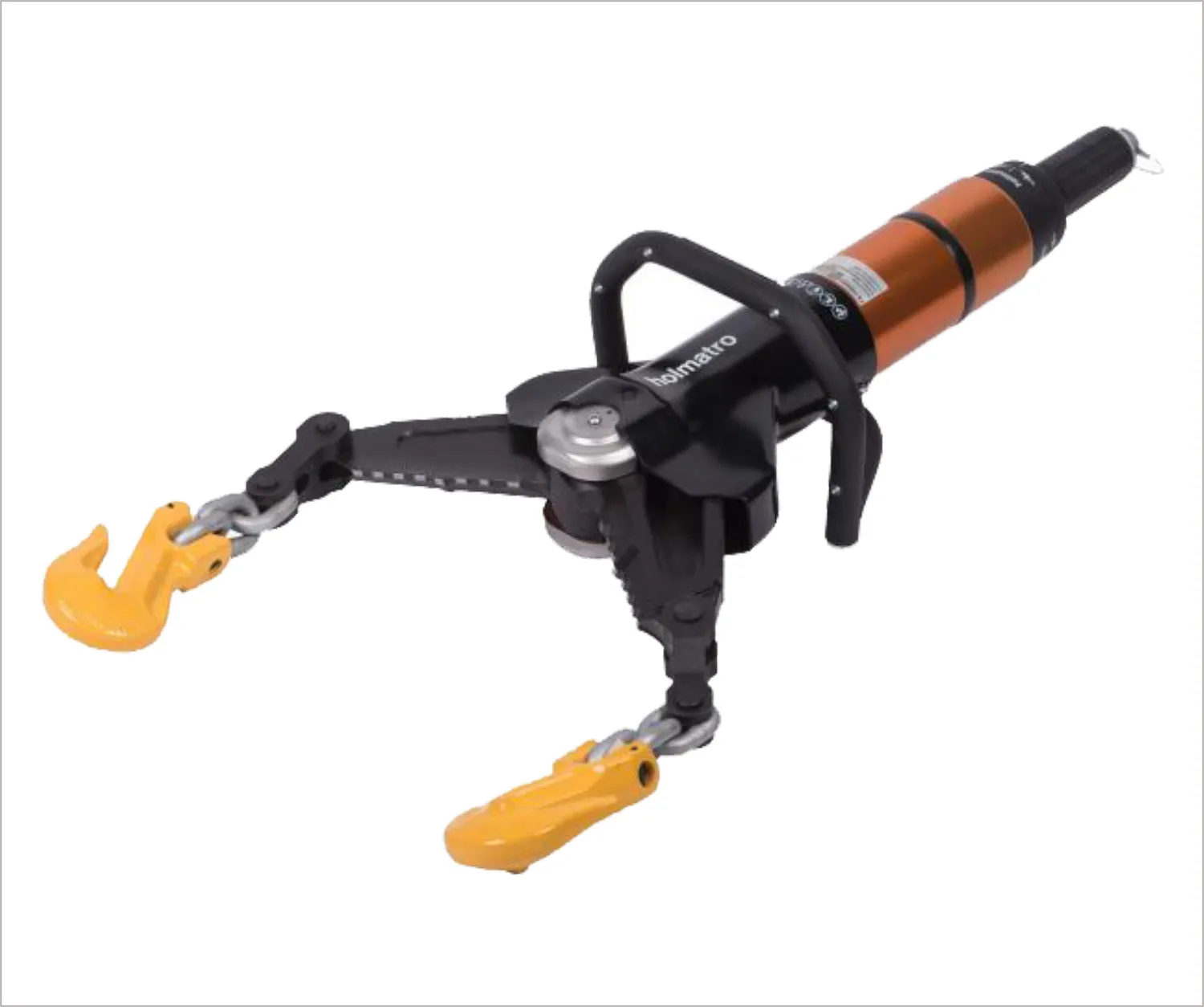

COMBI TOOL CT 5160

Heavy duty combi tool for spreading, cutting, squeezing and pulling - CORE version. Part of the 5000 series: no compromise on performance, lowest weight in its class.

Standard supplied with:

Removable spreading tips
Carrying handle with integrated LED lighting
i-Bolt Technology

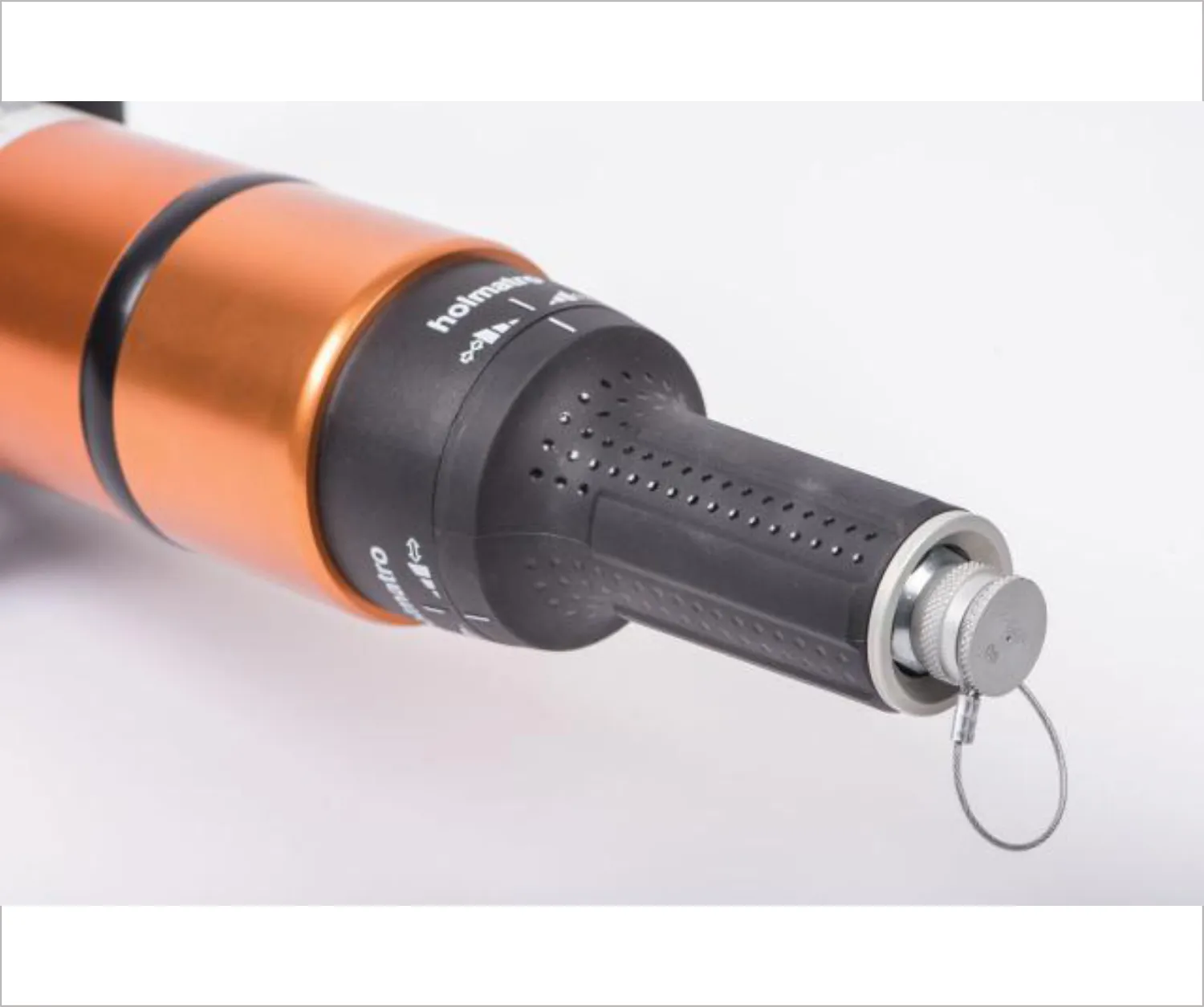

Redesigned ergonomic control handle with improved grip
CORE Technology: quicker, safer, easier

Details
Articlenumber	150.012.330
Basic specifications
model	CT 5160

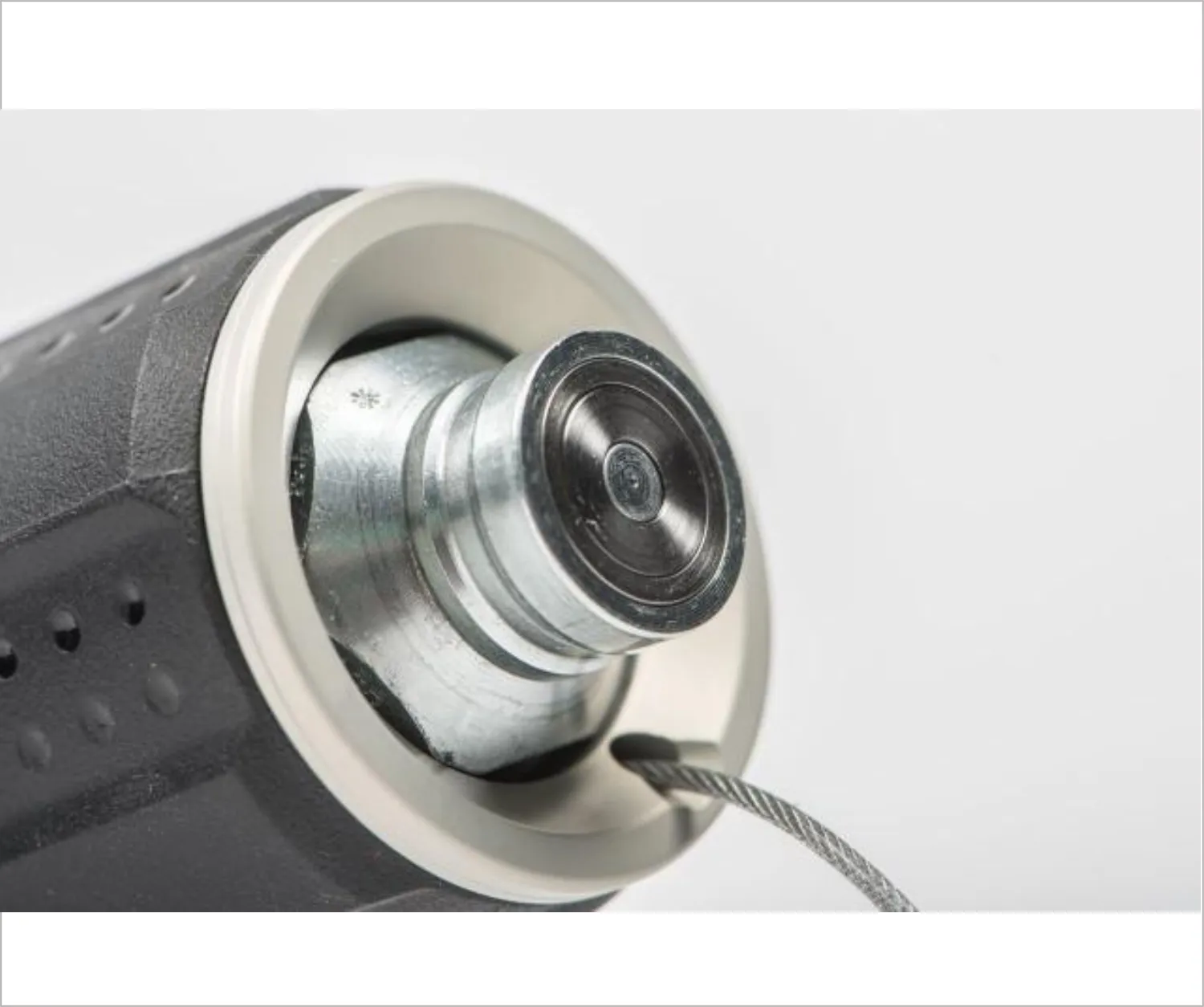

equipped with (connector type)	CORE
max. working pressure	720 / 72 (bar/Mpa)	10443 psi
Performance
max. spreading force	1367 / 139.4 (kN/t)	307314 lbf
min. spreading force (EN 13204)	44.5 / 4.5 (kN/t)	10004 lbf
spreading distance	468 mm	18.4 in
max. cutting opening	394 mm	15.5 in
max. squeezing force	87.9 / 9 (kN/t)	19761 lbf
max. pulling force	105 / 10.7 (kN/t)
directives	2006/42/EC
theoretical cutting force	929 / 94.7 (kN/t)	208848 lbf
Dimensions, weight and temperature
weight, ready for use	17.6 kg	38.8 lb
dimensions (AxBxC)	885 x 279 x 201 mm	34.8 x 11 x 7.9 in
Norms
EN 13204 classification	CK45/468J-17.6
NFPA 1936, cutting capacity	A8 B9 C8 D9 E9
NFPA 1936 compliant	yes
EN 13204, cutting capacity	1J 2K 3K 4K 5K
EN 13204 compliant	yes
NFPA 1936, HPF	105 / 10.7 (kN/t)	23605 lbf
NFPA 1936, HSF	47.1 / 4.8 (kN/t)	10589 lbf
NFPA 1936, LPF	86.4 / 8.8 (kN/t)	19423 lbf
NFPA 1936, LSF	39.2 / 4 (kN/t)	8813 lbf
Cutting performance
round bar (S235 acc. to EN 13204)	40 mm	1.6 in

Download

Large spreading distance

Suitable for a variety of operations
To create all the space you need

Big cutting opening

Offers great operational flexibility
Allows you to cut wider materials

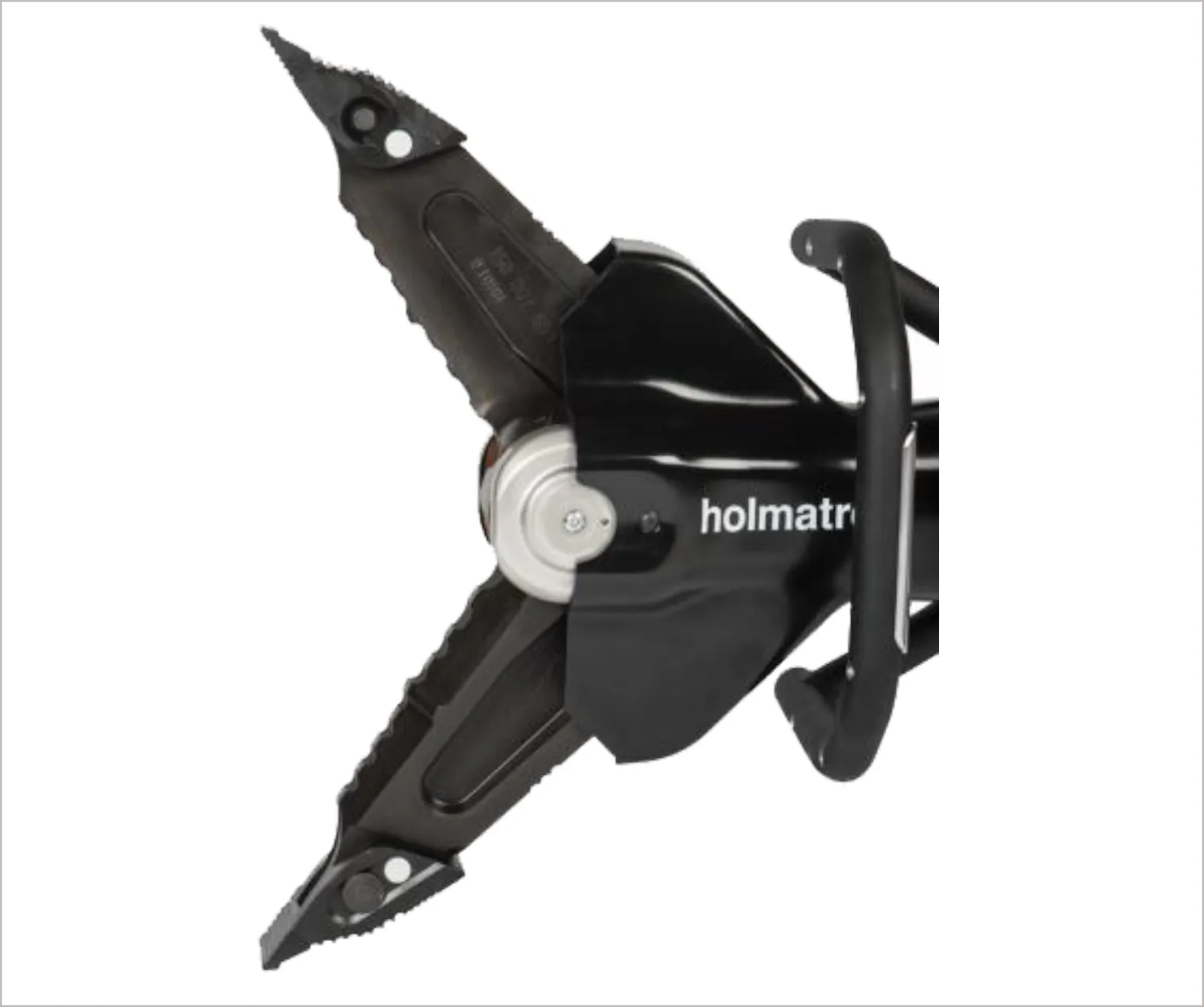

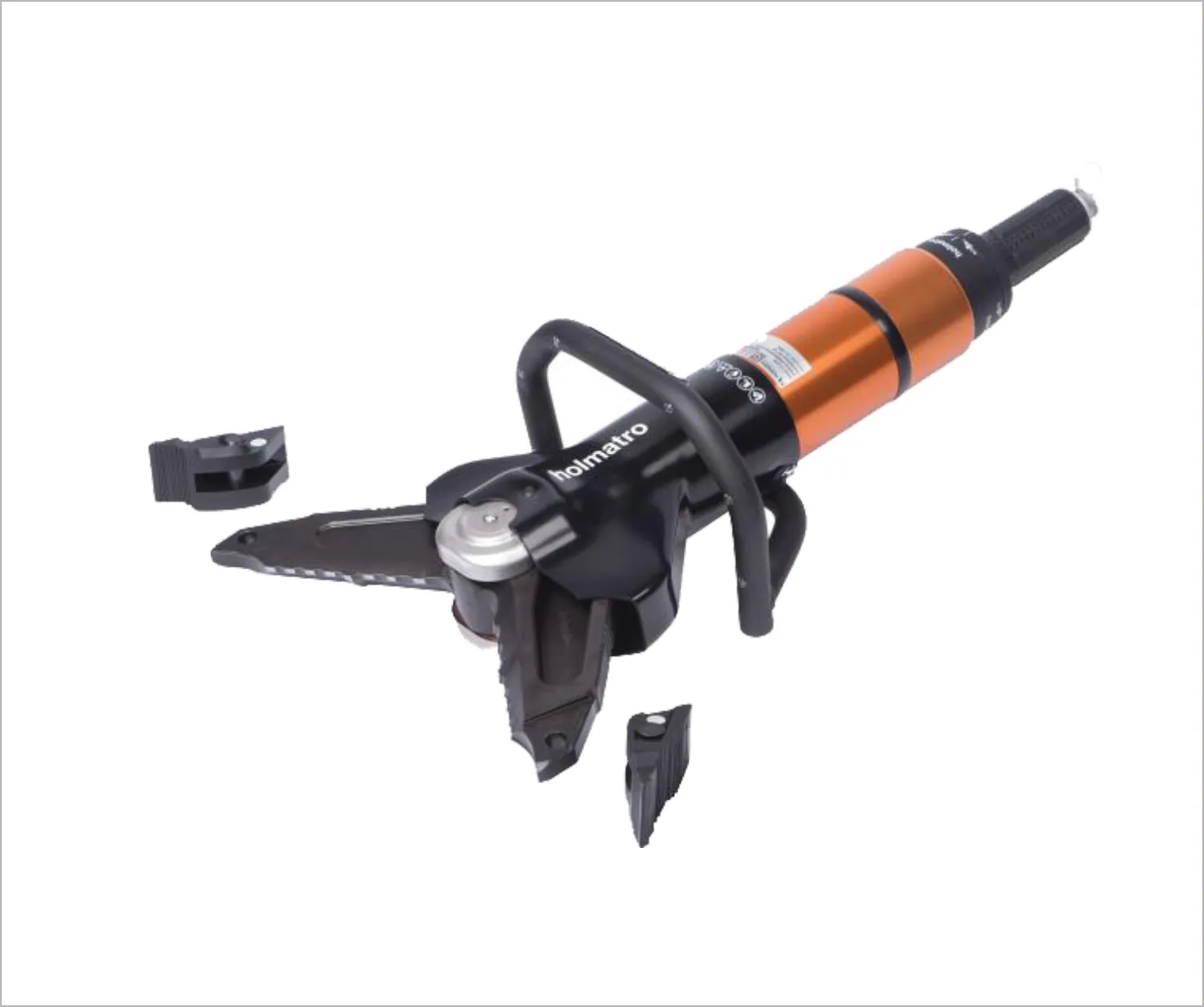

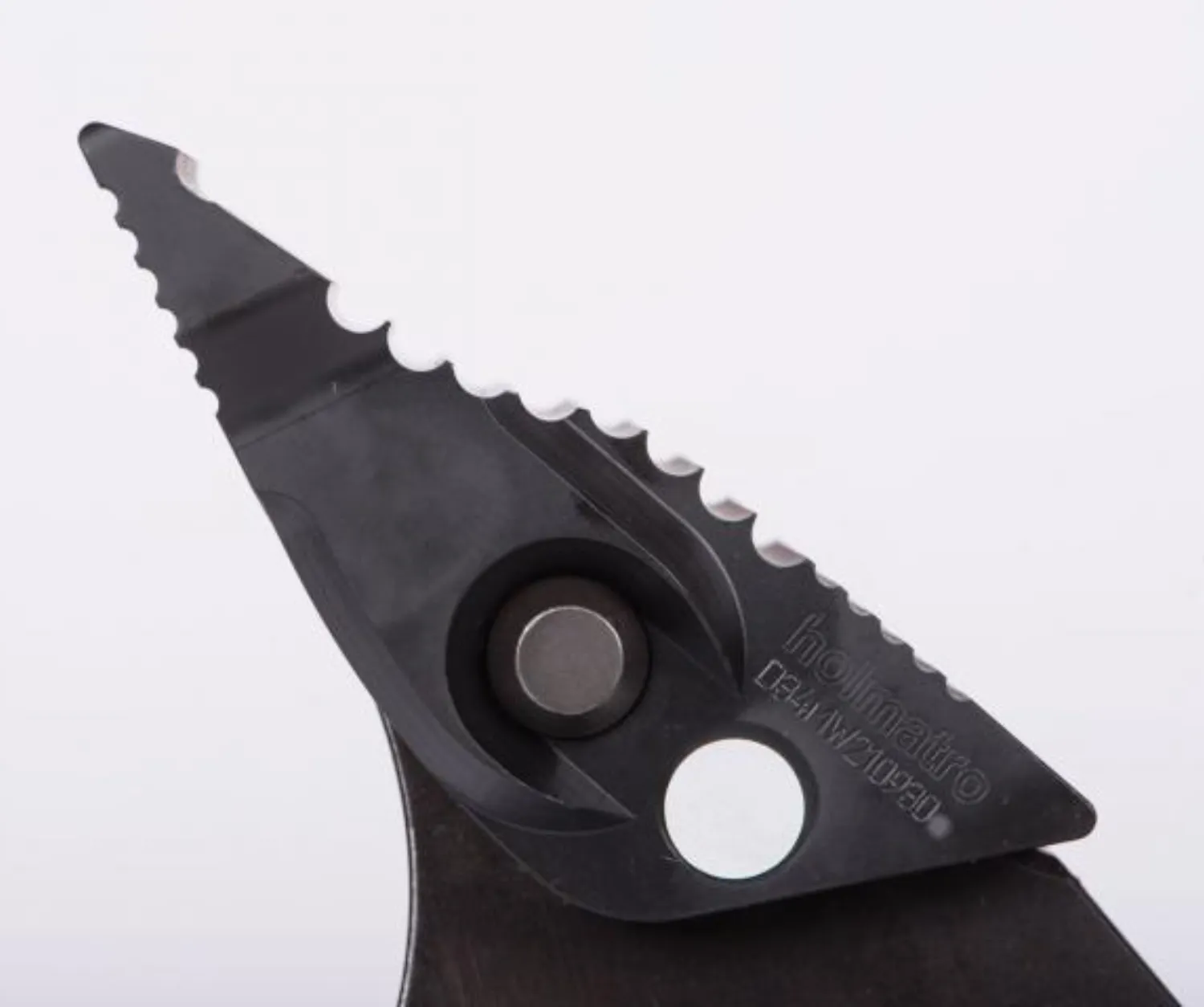

Removable spreading tips

To finish a cut without crushing materials between the tips
Designed in one piece to prevent losing parts
Quick single-handed removal, even with gloves
With reflective markings for optimal visibility in the dark

(3)

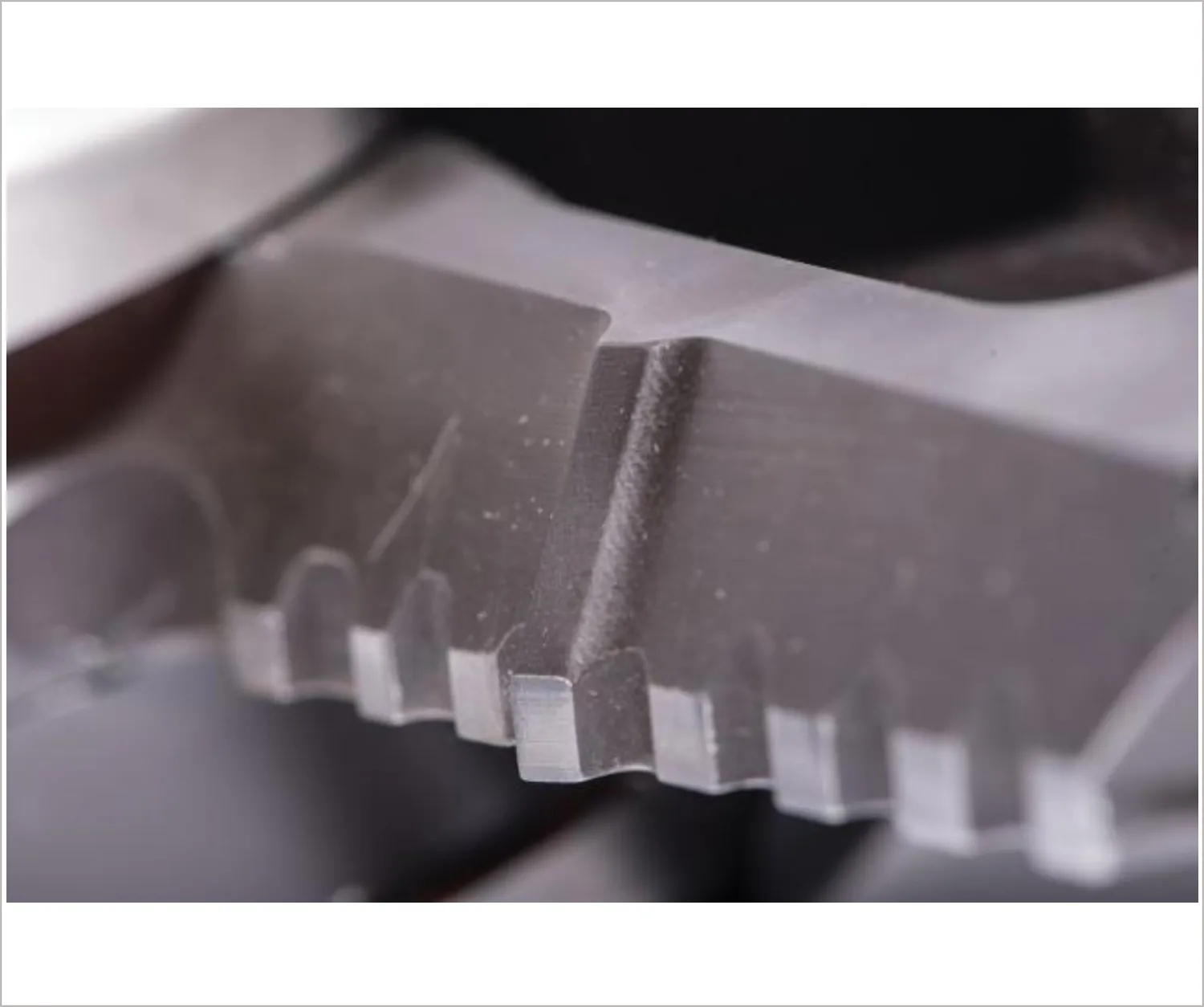

Unique grip tooth on both blades

For extra bite when cutting
To prevent wider materials from being pushed out of the blades

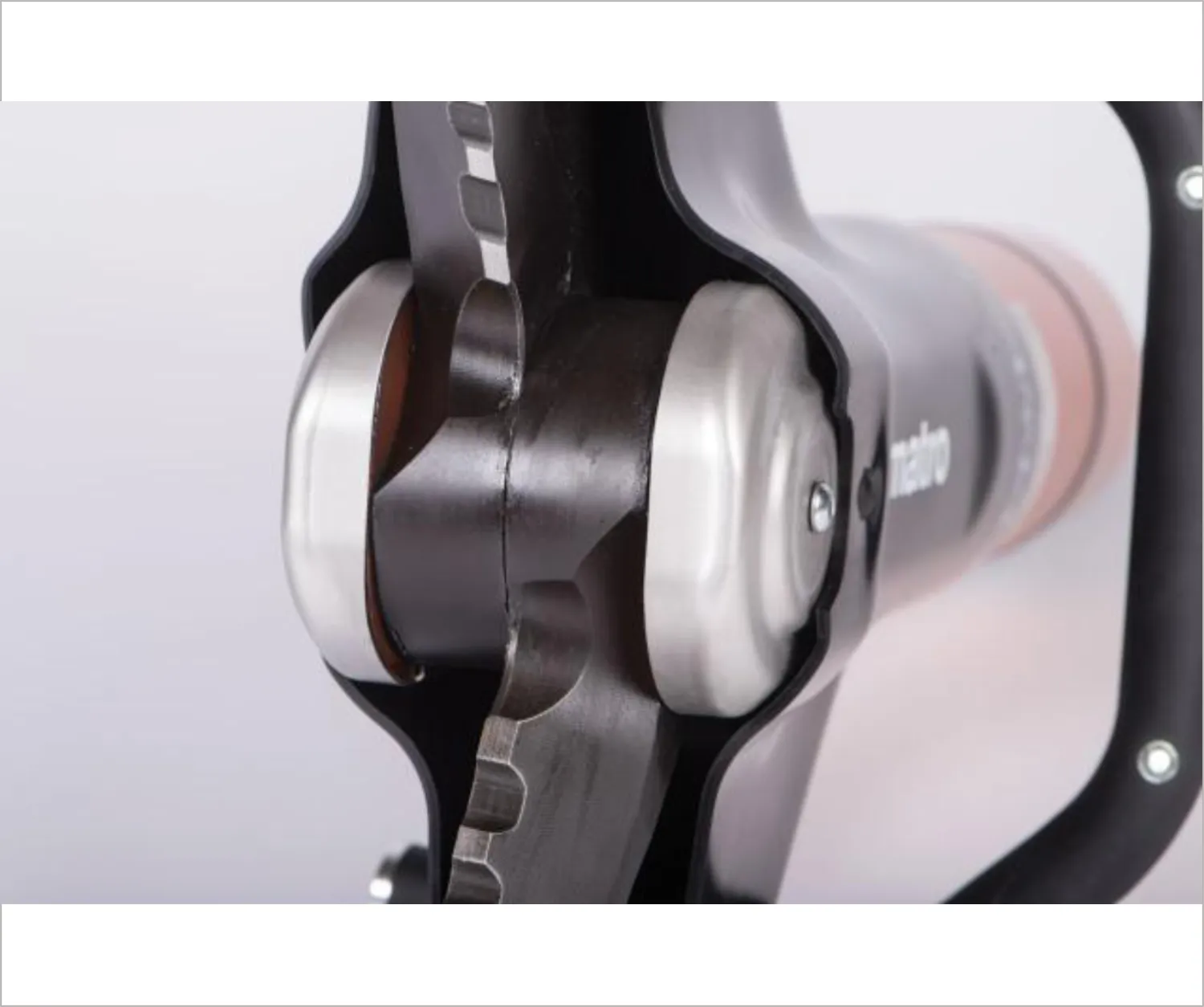

i-Bolt

Flat central bolt construction squeezing the blades together directly and more tightly
To minimize blade separation and maximize cutting performance

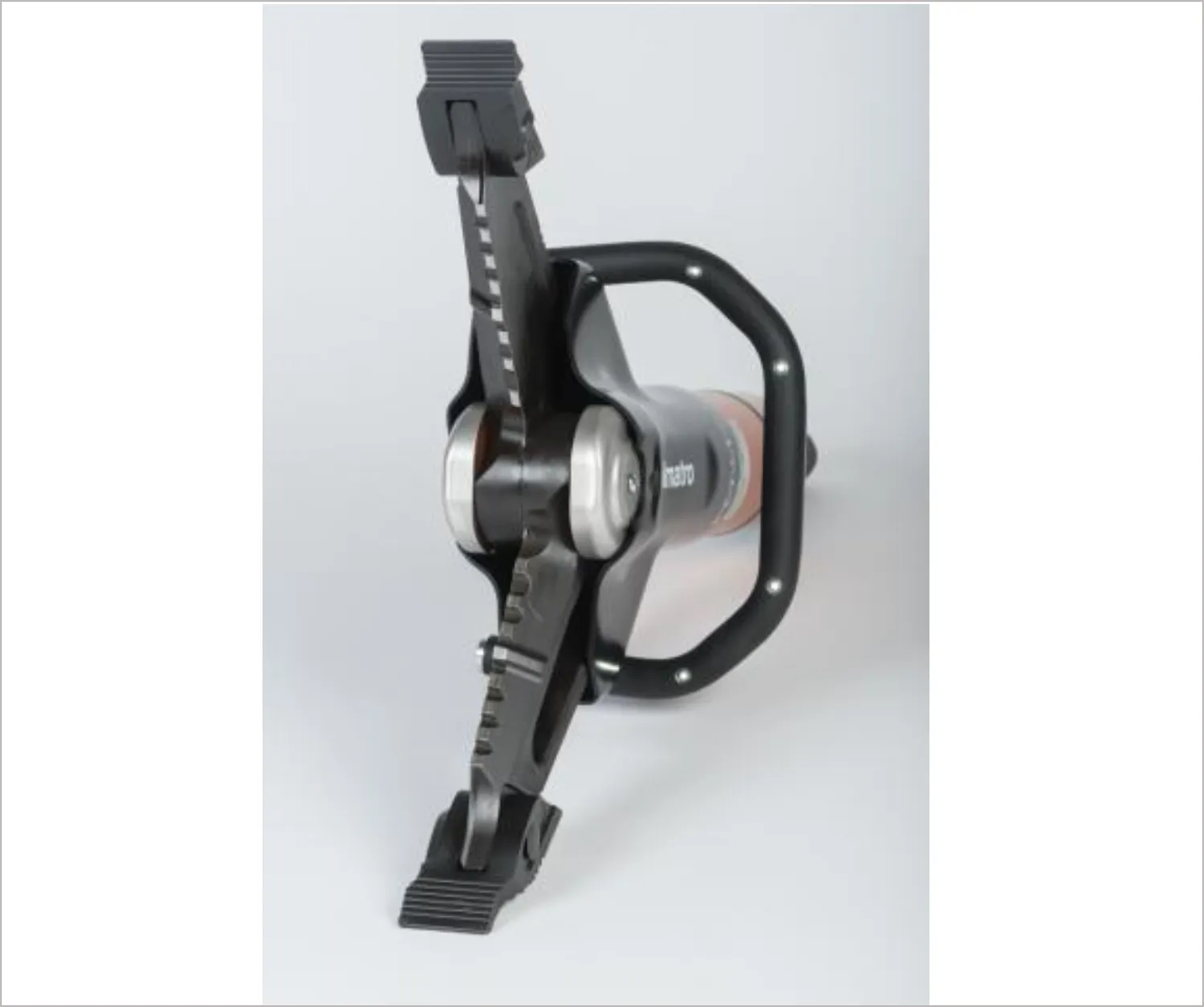

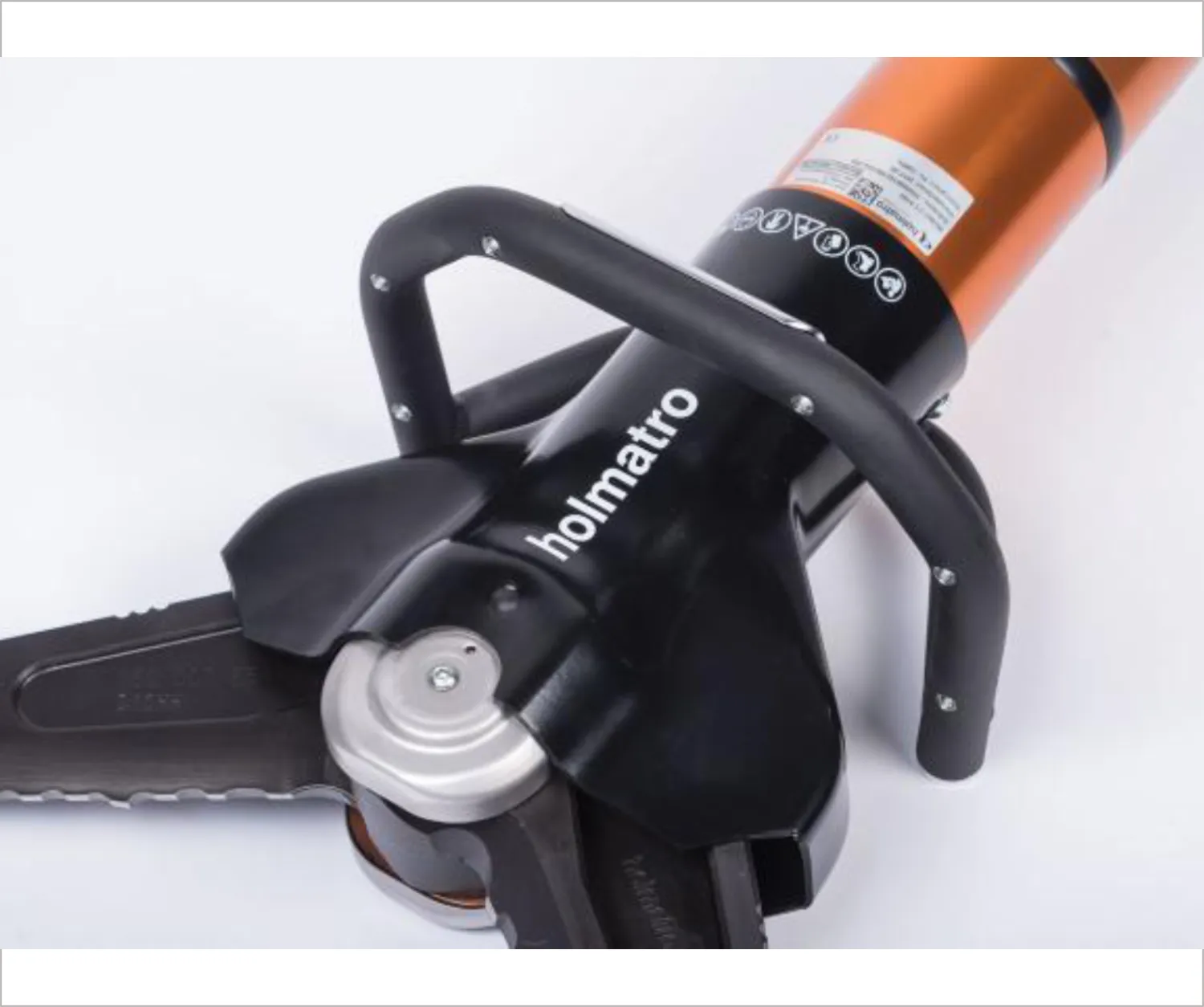

Ergonomic carrying handle

Optimized ergonomic carrying handle design for increased operator comfort in various working positions

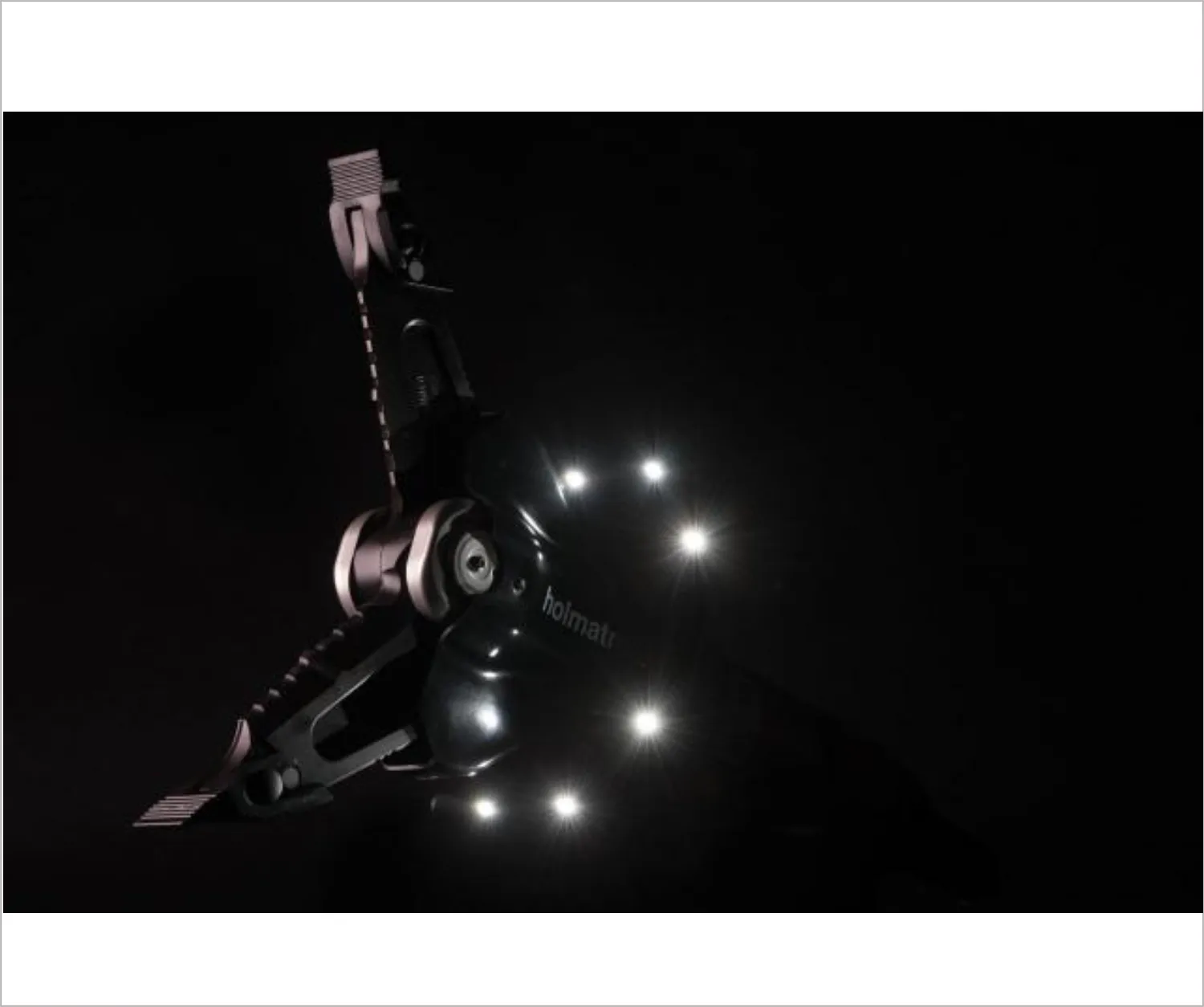

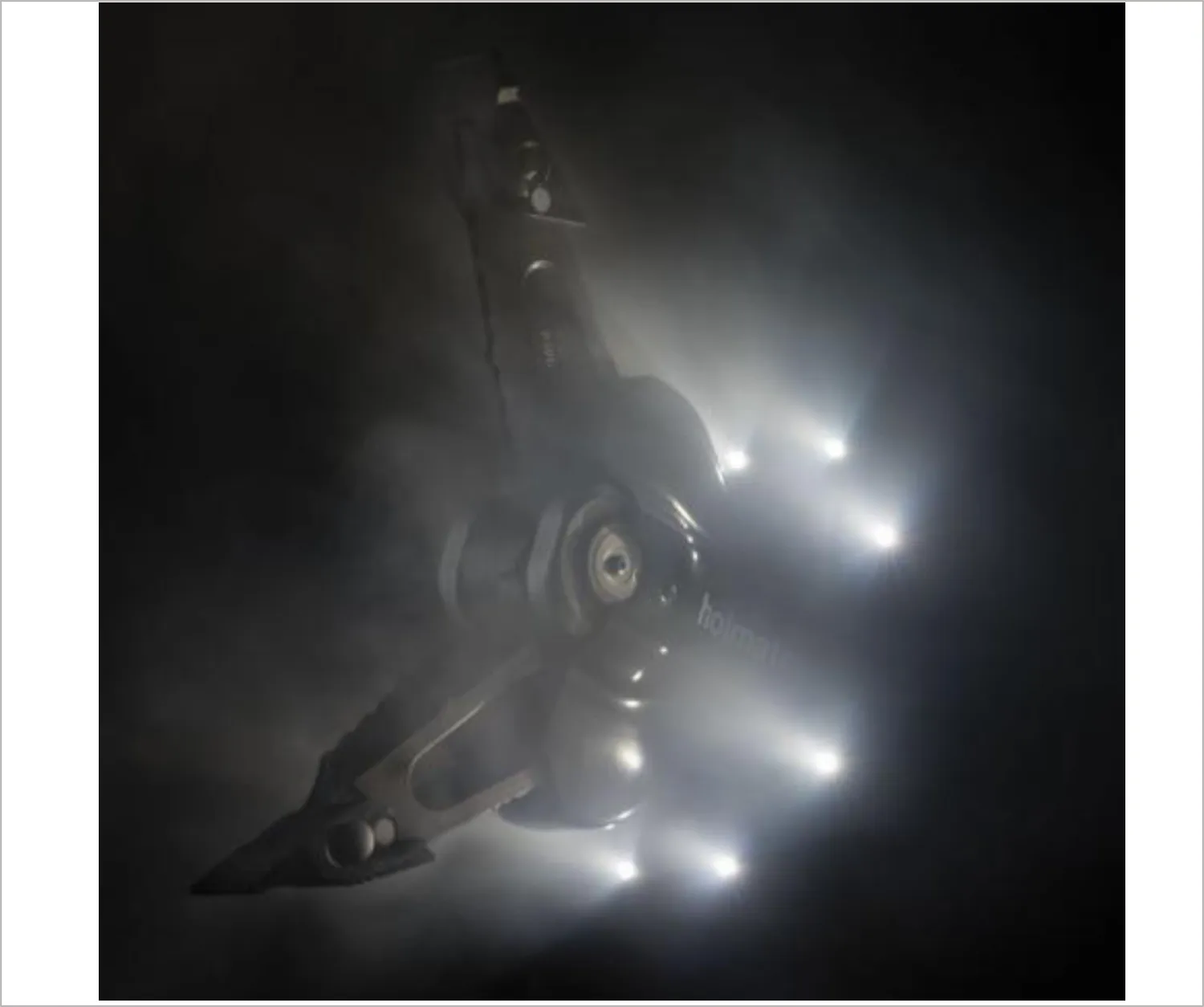

Integrated LED lighting

Six high-output LED lights in the carrying handle always ensure a well-lit working area
Start right away, night and day, without being hindered by your own shadow
