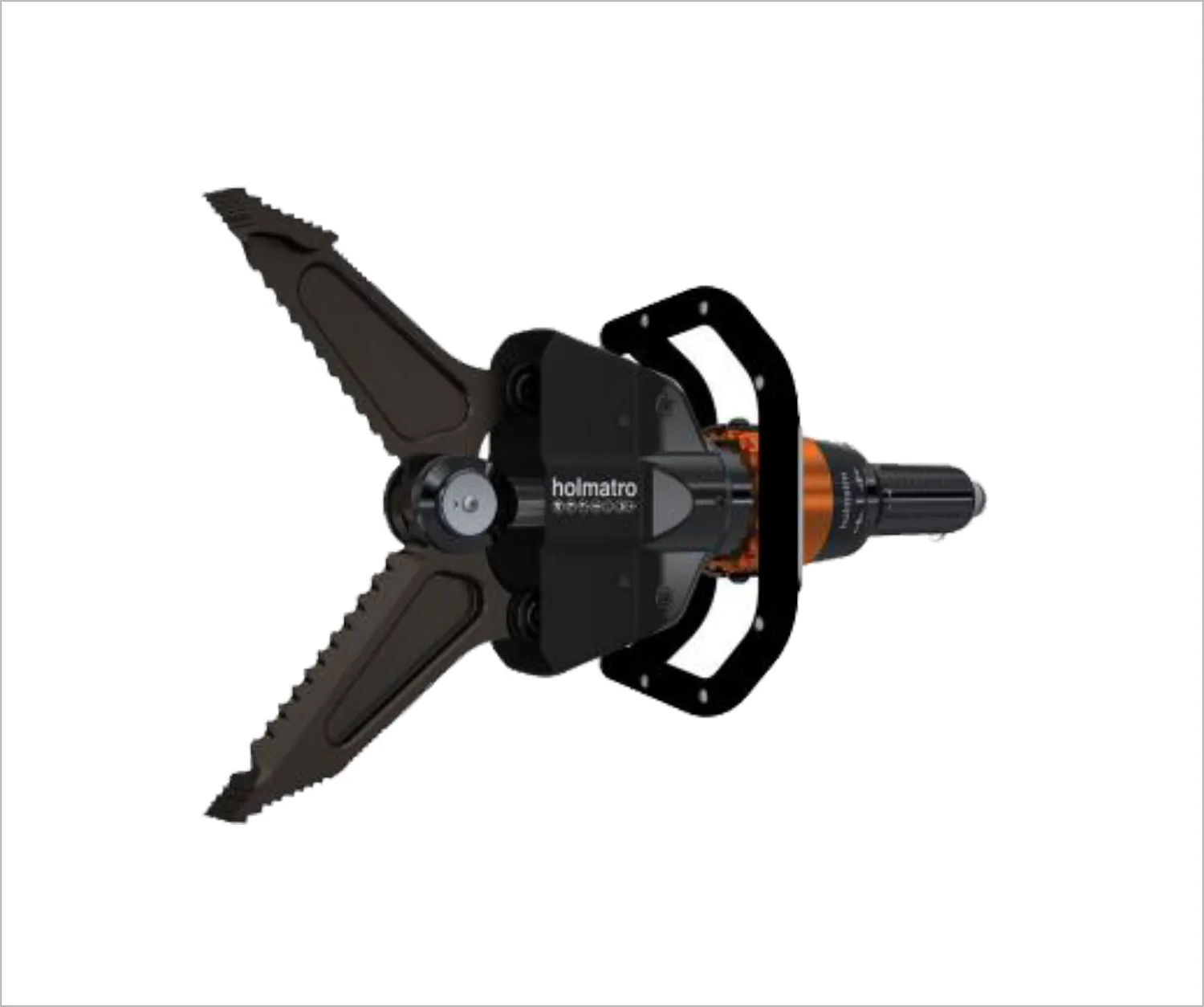

COMBI TOOL CT 5114

For spreading, cutting and squeezing with one tool - CORE version.

Standard supplied with:

Details
Articlenumber	151.000.404
Basic specifications
model	CT 5114
equipped with (connector type)	CORE
max. working pressure	720 / 72 (bar/Mpa)	10443 psi
Performance
max. spreading force	131 / 13.4 (kN/t)	29450 lbf
min. spreading force (EN 13204)	33 / 3.4 (kN/t)	7419 lbf
spreading distance	362 mm	14.3 in
max. cutting opening	277 mm	10.9 in
max. squeezing force	34 / 3.5 (kN/t)	7644 lbf
directives	2006/42/EC
theoretical cutting force	268 / 27.3 (kN/t)	60249 lbf
Dimensions, weight and temperature
weight, ready for use	8.5 kg	18.7 lb
dimensions (AxBxC)	596 x 276 x 193 mm	23.5 x 10.9 x 7.6 in
Norms
EN 13204 classification	BK33/362-E-8.5
NFPA 1936, cutting capacity	A5/B5/C5/D6/E4
NFPA 1936 compliant	yes
EN 13204, cutting capacity	1E 2E 3E 4E 5E
EN 13204 compliant	yes
NFPA 1936, HSF	40 / 4.1 (kN/t)	8992 lbf
NFPA 1936, LSF	30 / 3.1 (kN/t)	6744 lbf
Cutting performance
round bar (S235 acc. to EN 13204)	24 mm	0.9 in

Download

Extremely compact & ultra-lightweight

Optimal performance to weight ratio

Very high spreading force and large spreading distance compared to size and weight
High cutting force and large cutting opening compared to size and weight

Multifunctional

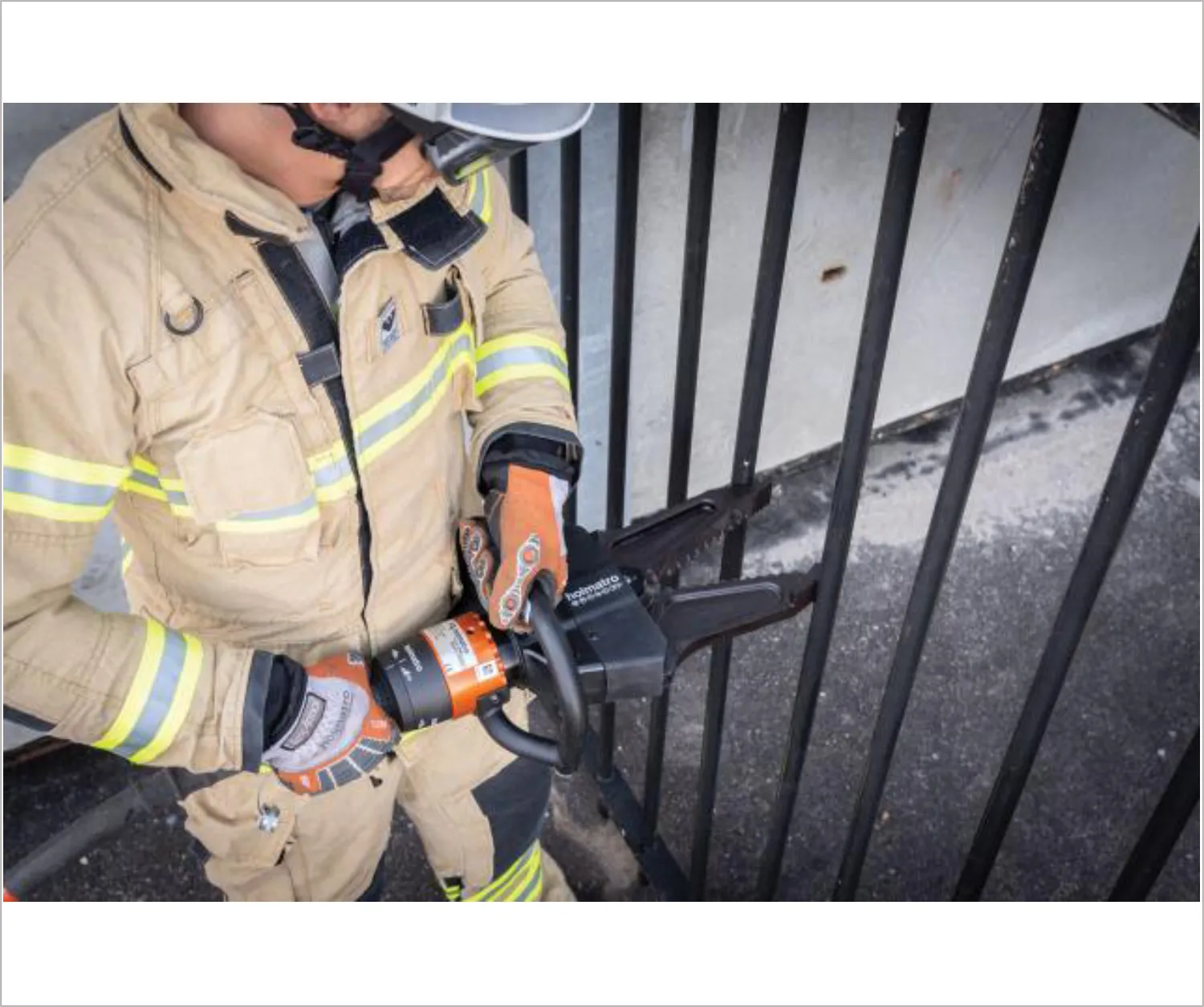

One tool for cutting, spreading and squeezing

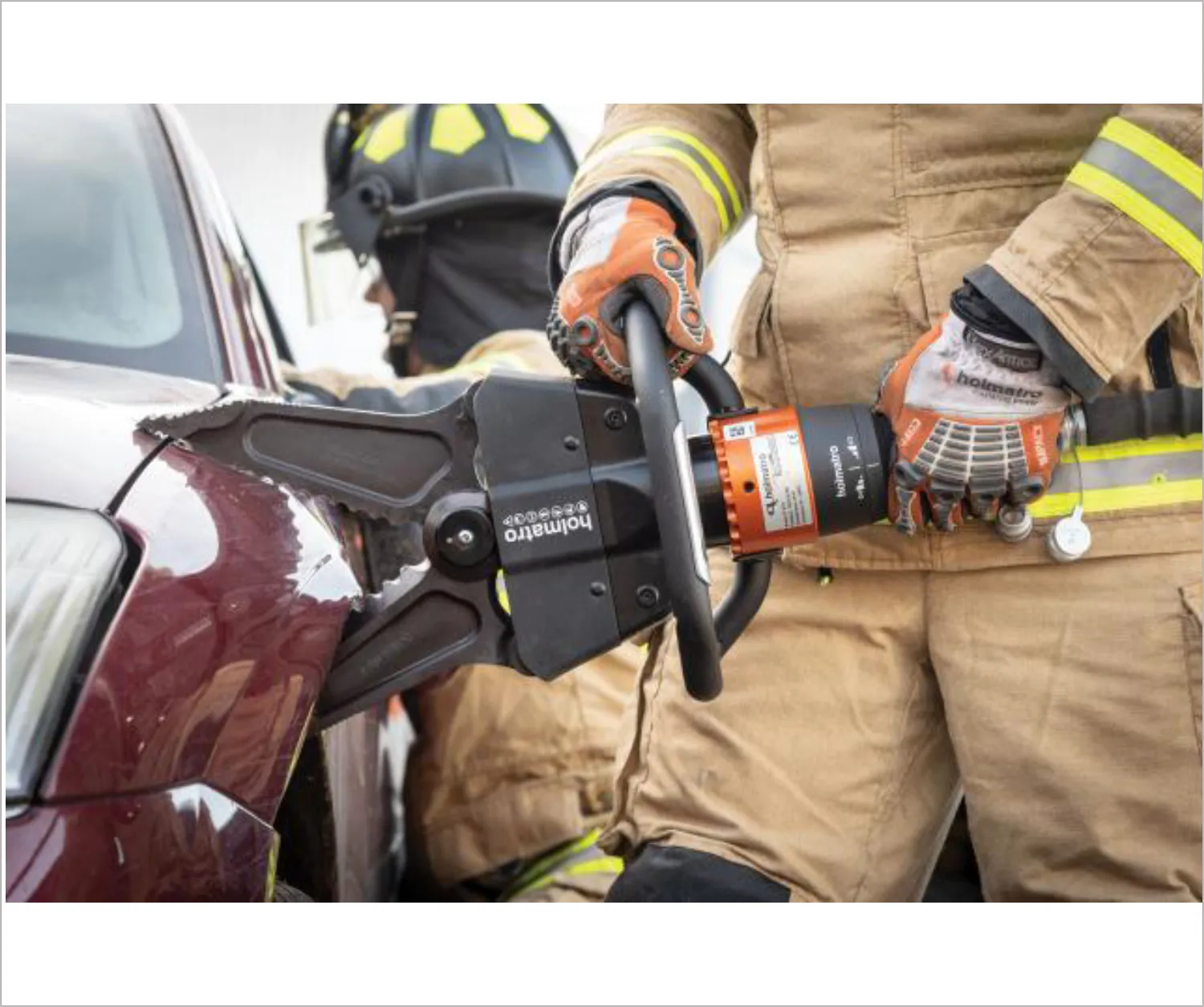

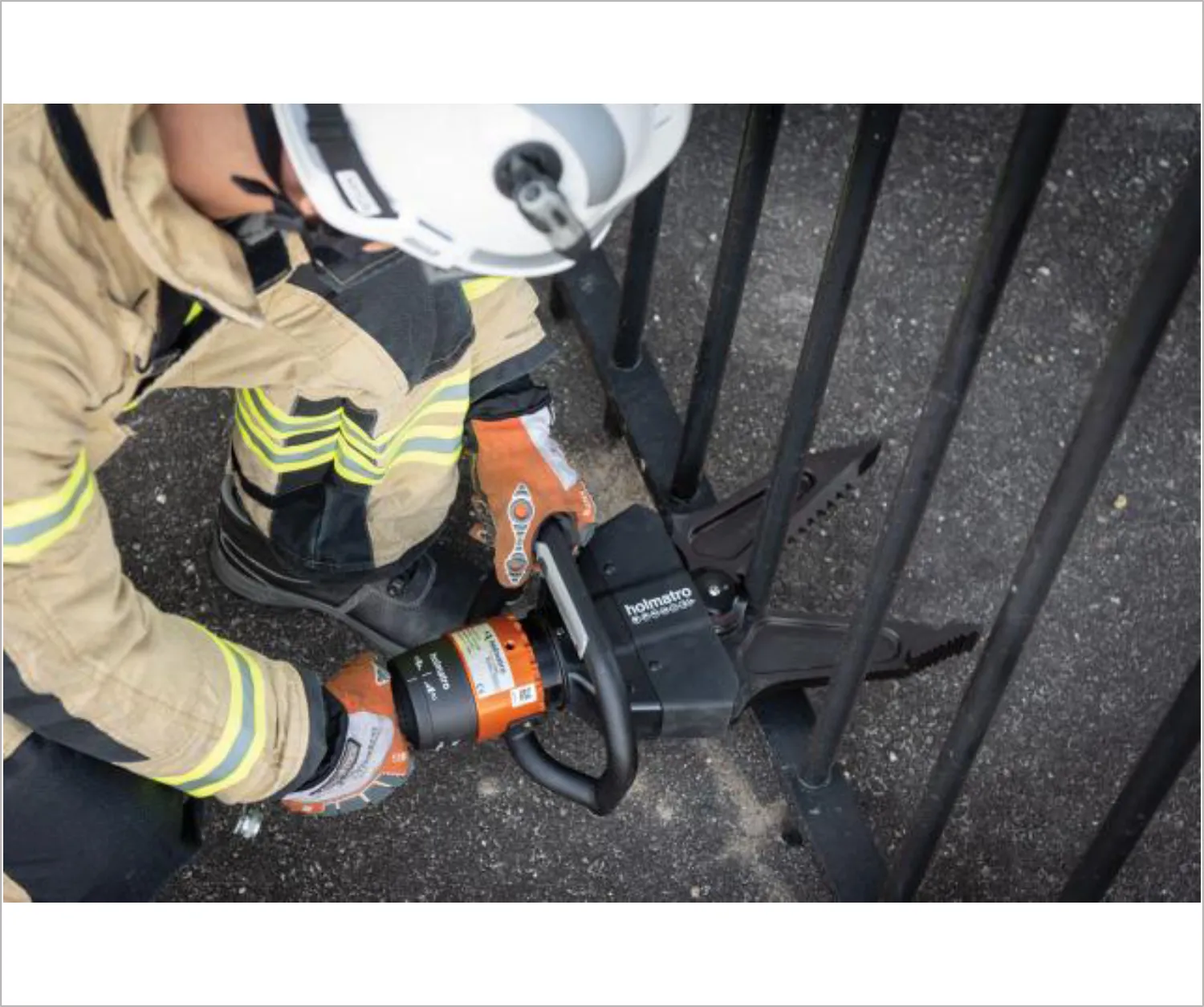

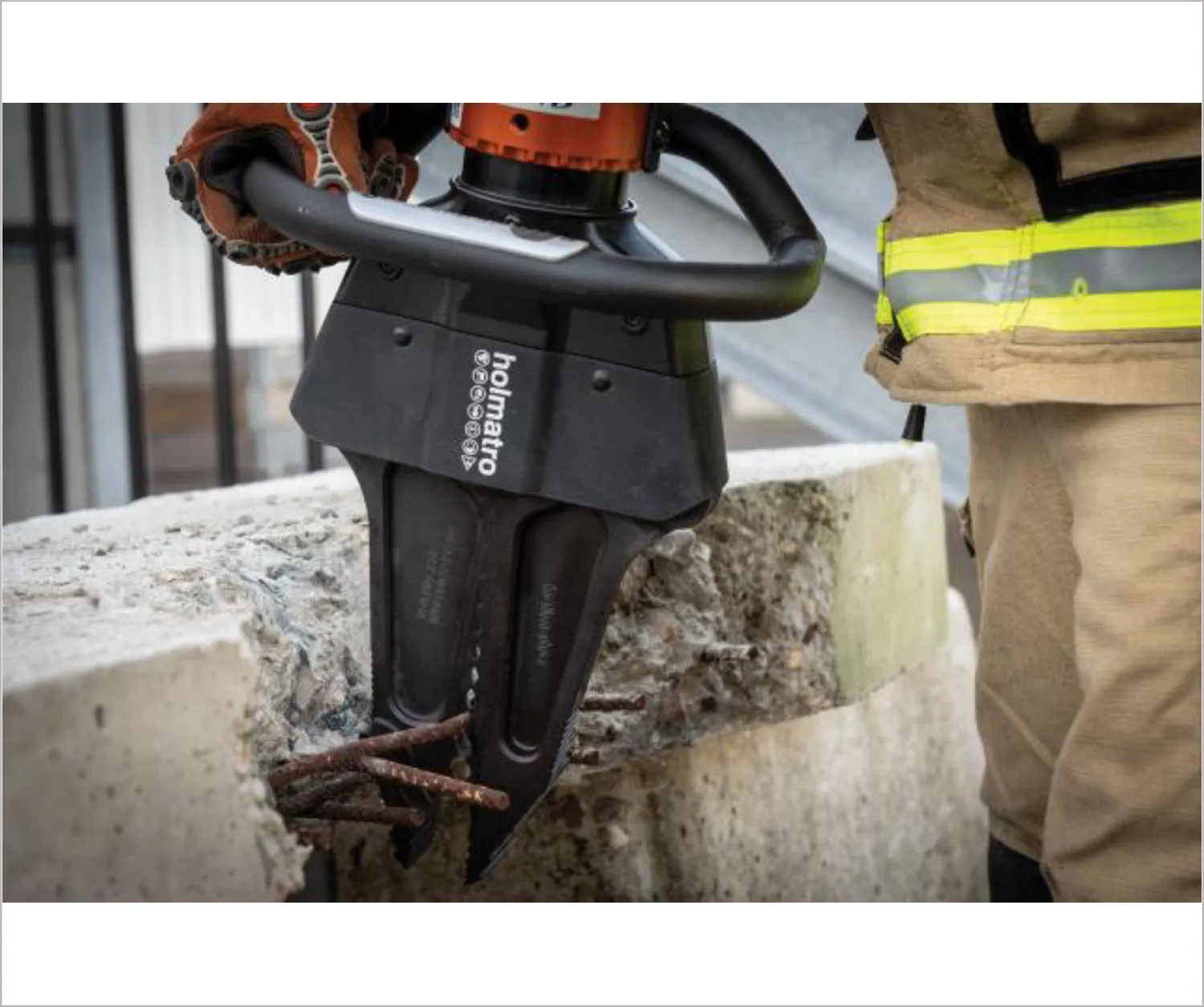

Suitable for a variety of operations, from rapid intervention in vehicle rescue to USAR

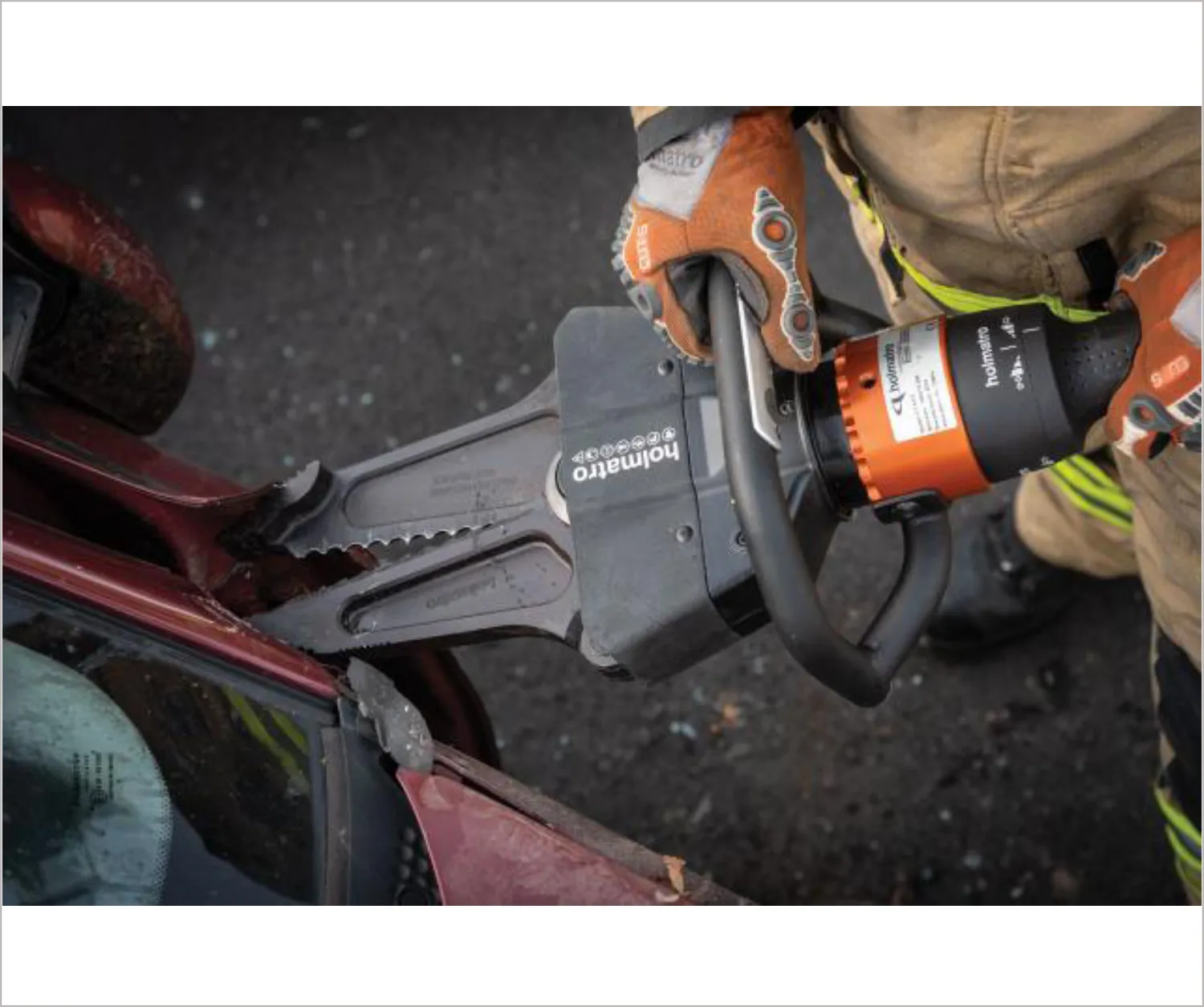

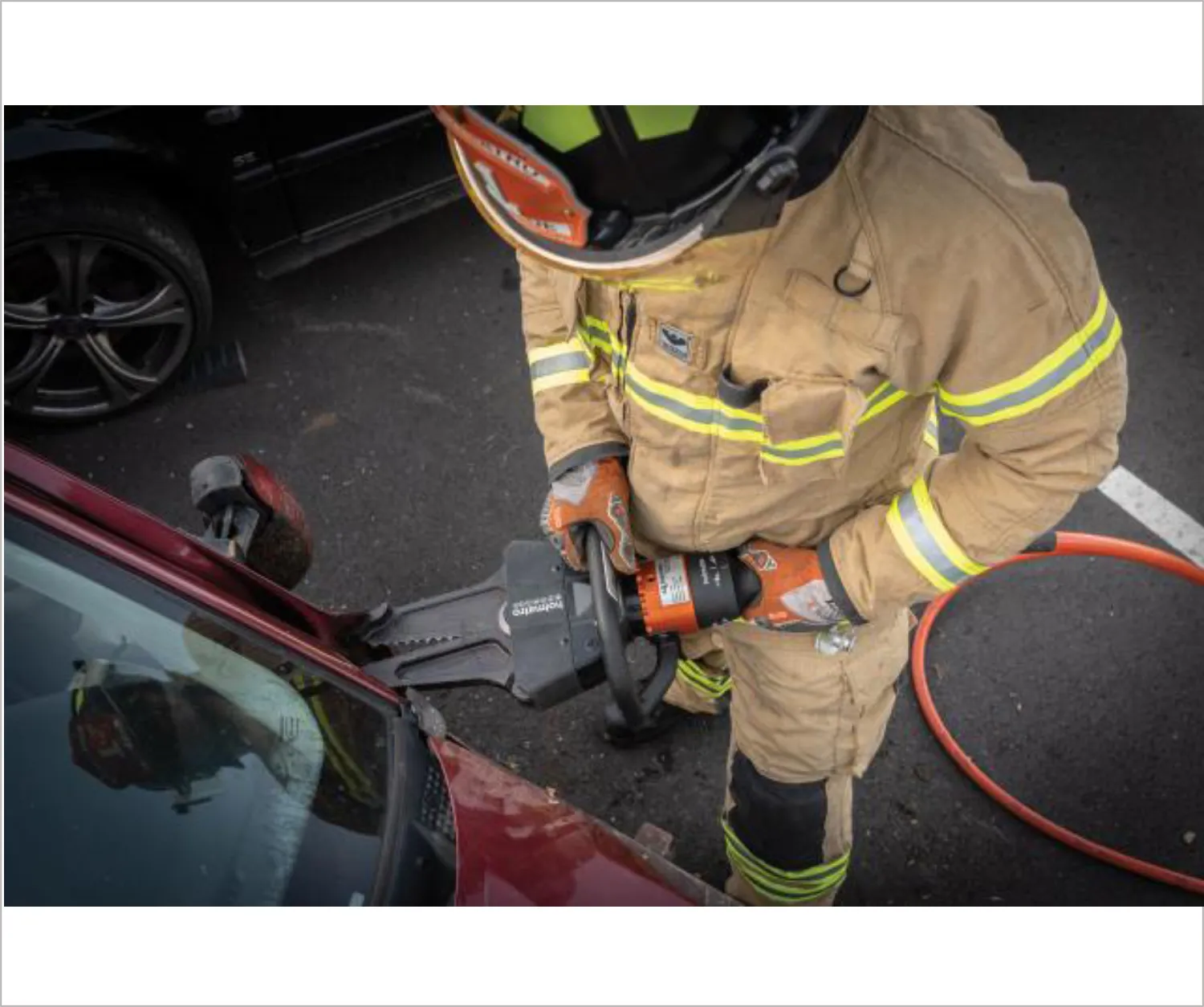

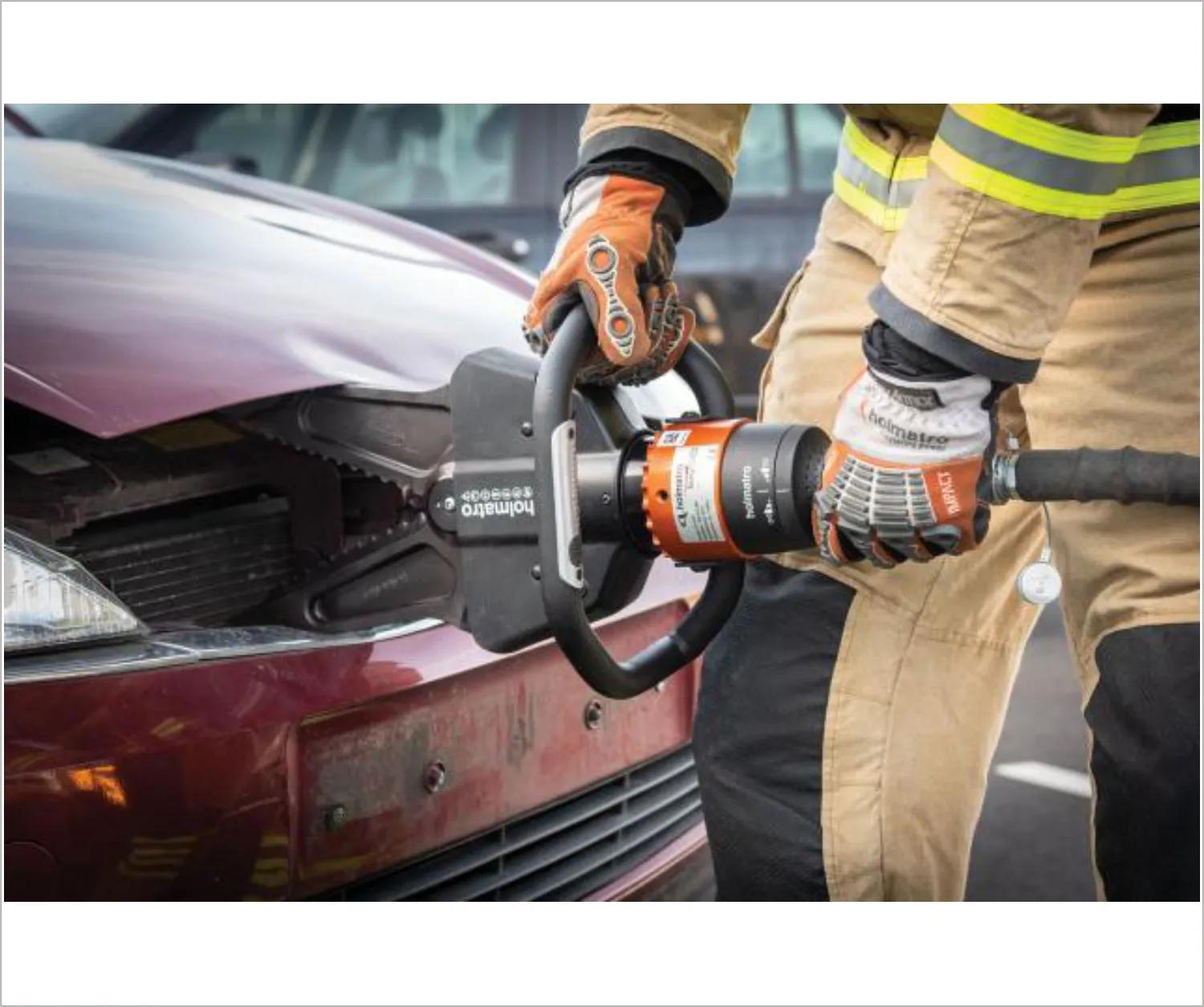

You can gain access to a modern vehicle with just one tool (tested on an Opel Insignia, avoiding the pillars)
Suitable for under water use

Connectable to all Holmatro CORE pumps

The separate pump decreases the weight of the tool and increases manoeuvrability

(4)core-coupler-tool-en-20608

Equipped with i-Bolt

Flat central bolt construction for better access to narrow spaces
Squeezes the blades together directly, which results in less blade separation and a better cutting performance

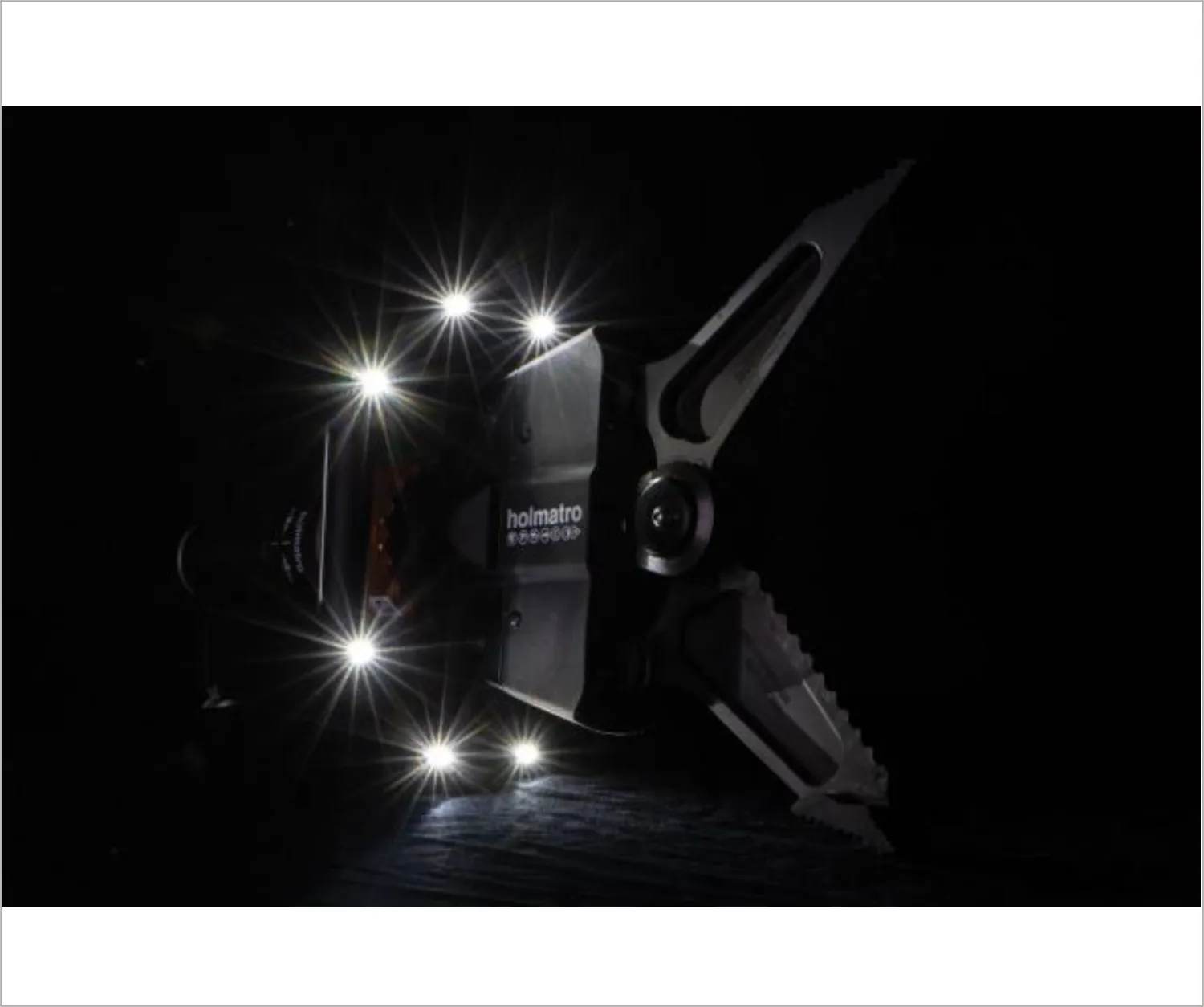

Ergonomic carrying handle with integrated LED lighting

Improved LED lighting in the carrying handle: no less than six lights with a higher light output.
Rescuers can start right away, night and day, without being hindered by their own shadow.
Optimized ergonomic carrying handle design increases operator comfort in various working positions.
