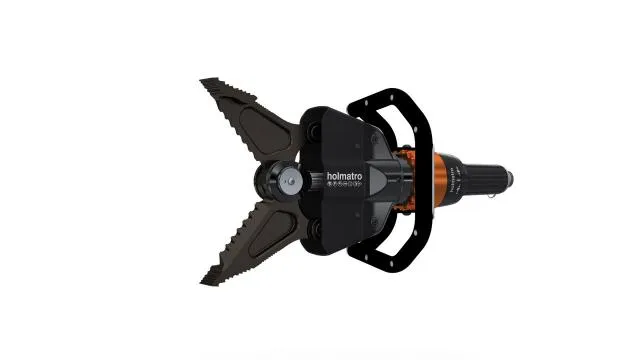

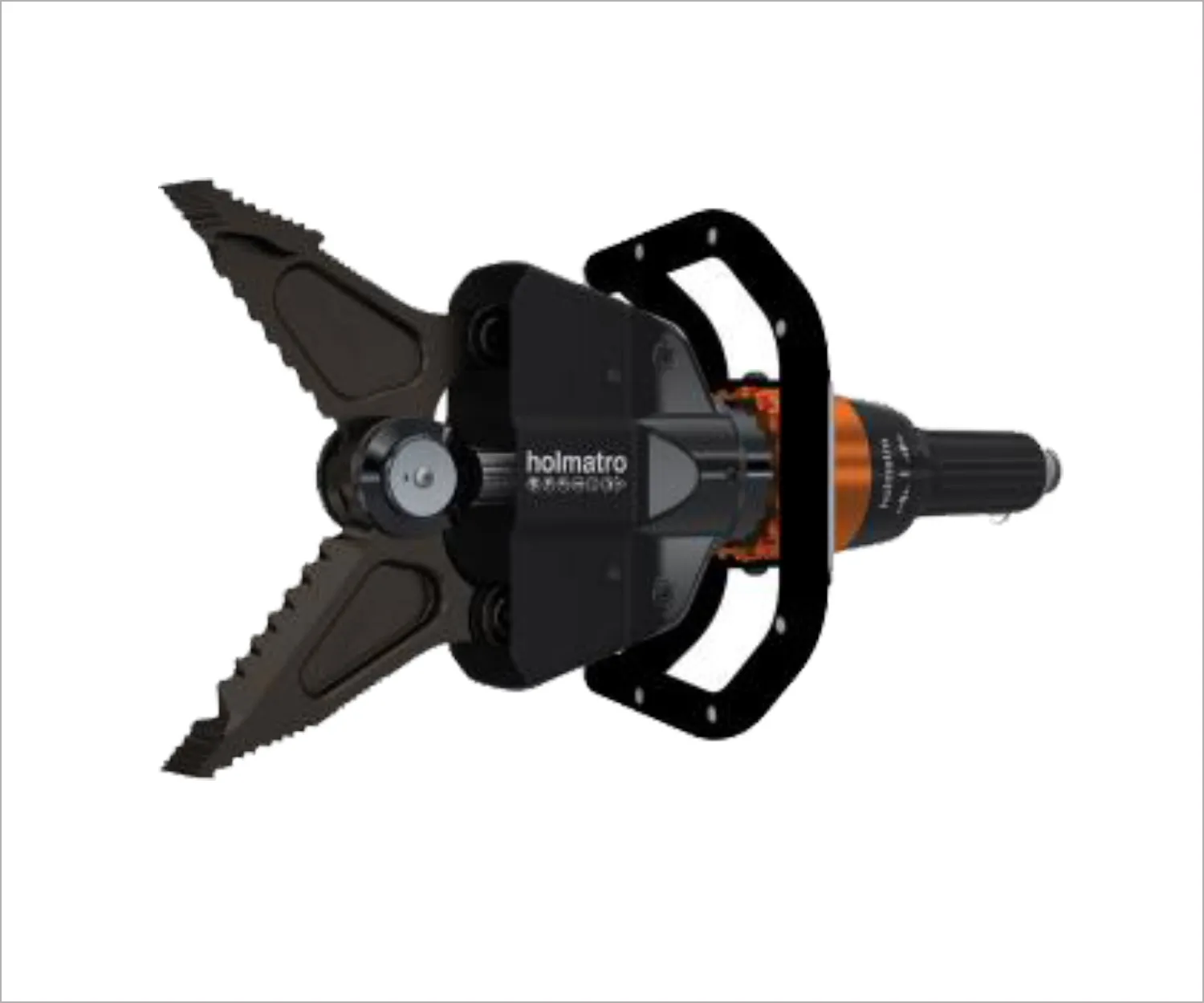

COMBI TOOL CT 5111

For spreading, cutting and squeezing with one tool - CORE version.

Standard supplied with:

Details
Articlenumber	150.012.307
Basic specifications
model	CT 5111
equipped with (connector type)	CORE
max. working pressure	720 / 72 (bar/Mpa)	10443 psi
Performance
max. spreading force	457 / 46.6 (kN/t)	102738 lbf
min. spreading force (EN 13204)	48 / 4.9 (kN/t)	10791 lbf
spreading distance	281 mm	11.1 in
max. cutting opening	196 mm	7.7 in
max. squeezing force	44 / 4.5 (kN/t)	9892 lbf
directives	2006/42/EC
theoretical cutting force	268 / 27.3 (kN/t)	60249 lbf
Dimensions, weight and temperature
weight, ready for use	8 kg	17.6 lb
dimensions (AxBxC)	545 x 275 x 192 mm	21.5 x 10.8 x 7.6 in
Norms
EN 13204 classification	BK48/281-E-8.0
NFPA 1936, cutting capacity	A5/B5/C5/D6/E4
EN 13204, cutting capacity	1E 2E 3E 4E 5E
NFPA 1936, HSF	52 / 5.3 (kN/t)	11690 lbf
NFPA 1936, LSF	40 / 4.1 (kN/t)	8992 lbf
Cutting performance
round bar (S235 acc. to EN 13204)	24 mm	0.9 in

Download

Extremely compact & ultra-lightweight

Optimal performance to weight ratio

Multifunctional

One tool for cutting, spreading and squeezing

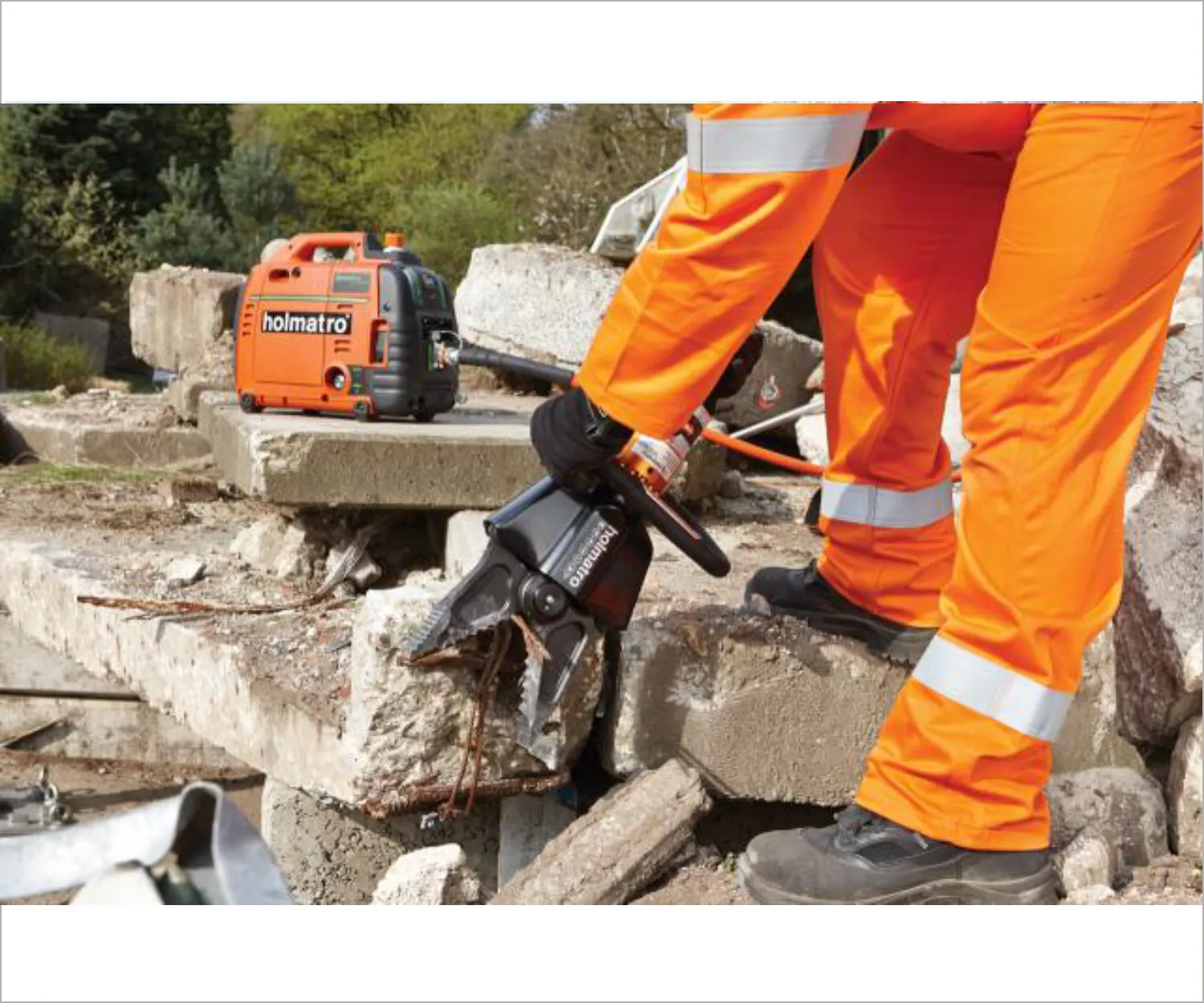

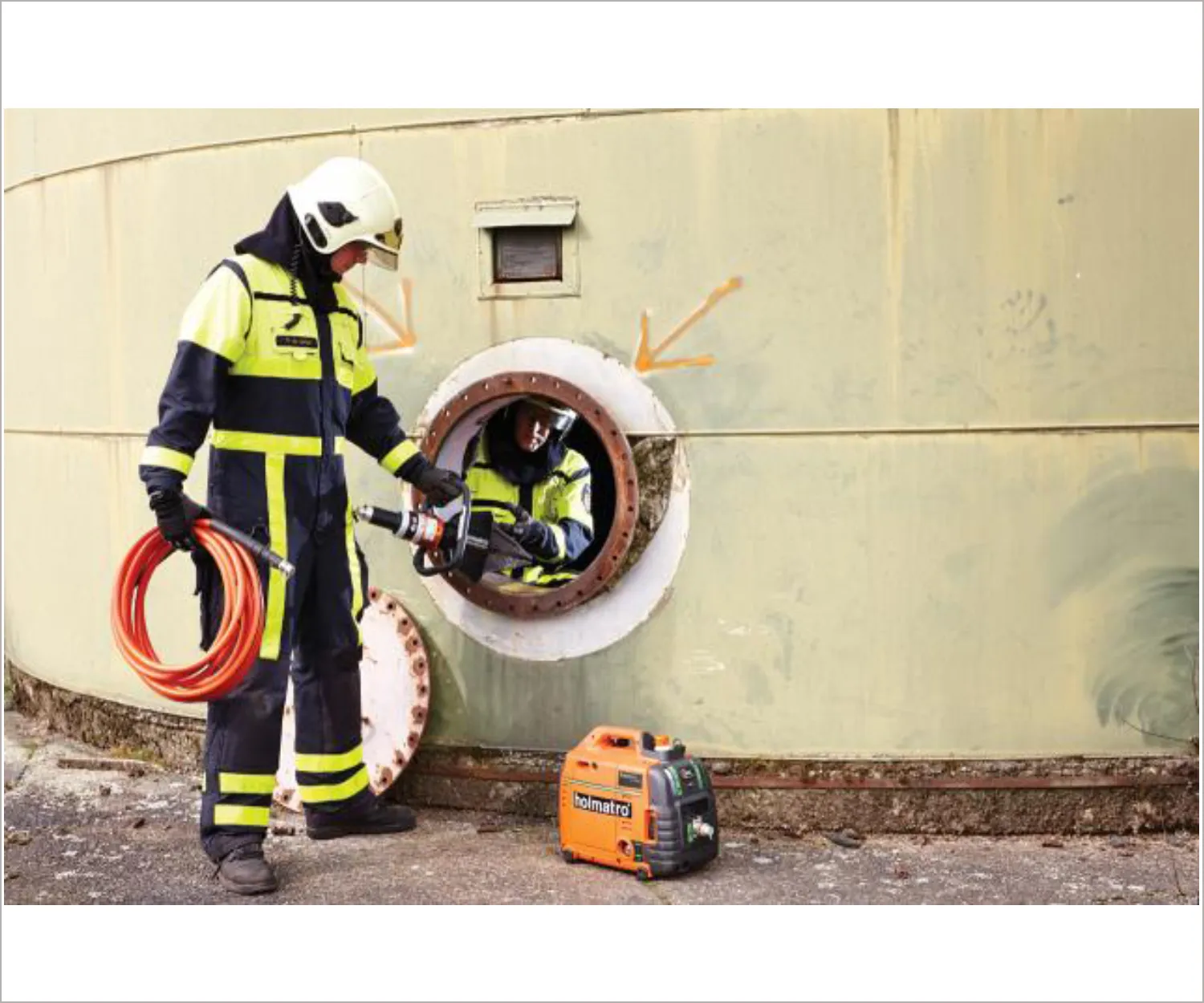

Suitable for a variety of operations, from rapid intervention in vehicle rescue to USAR

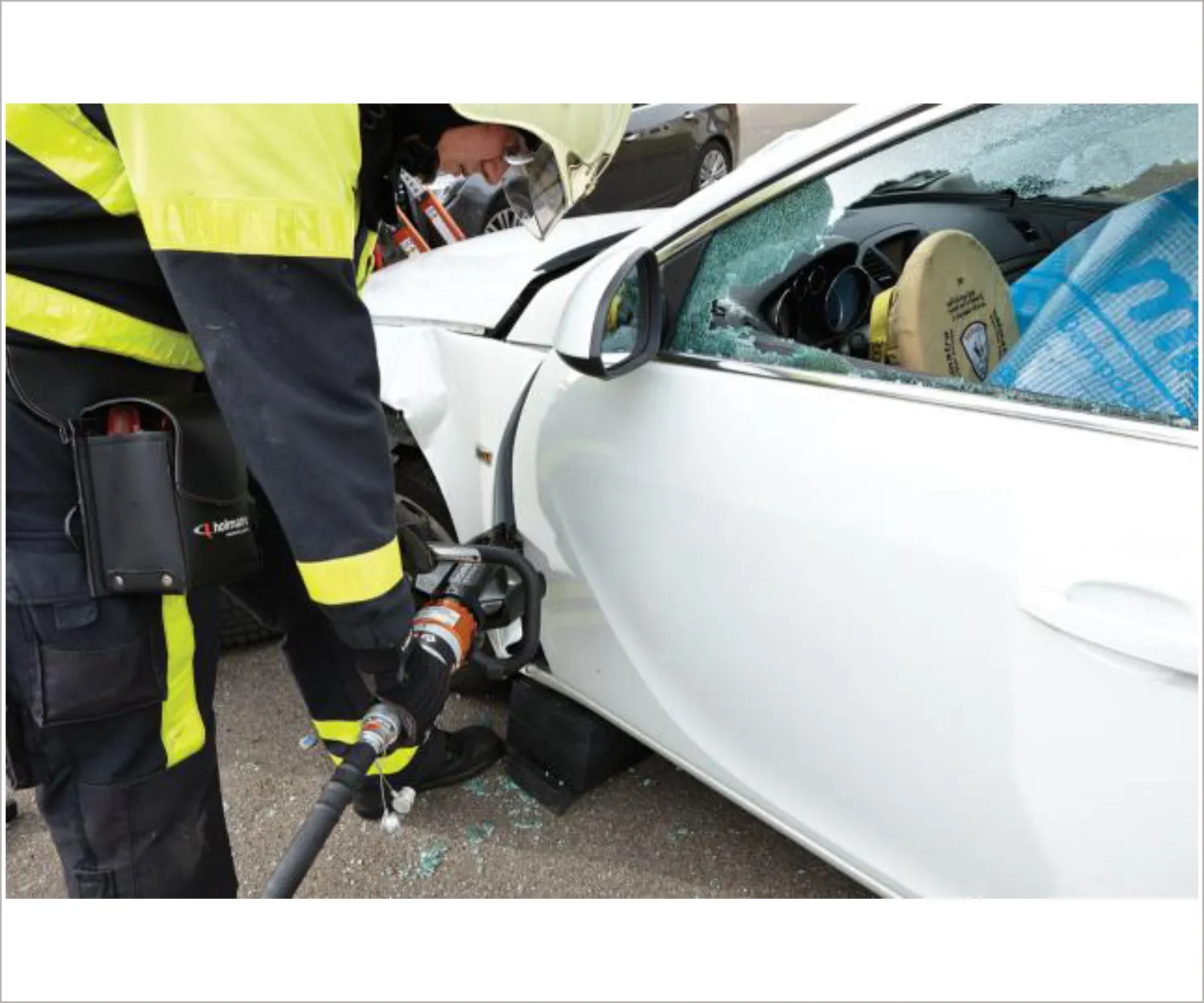

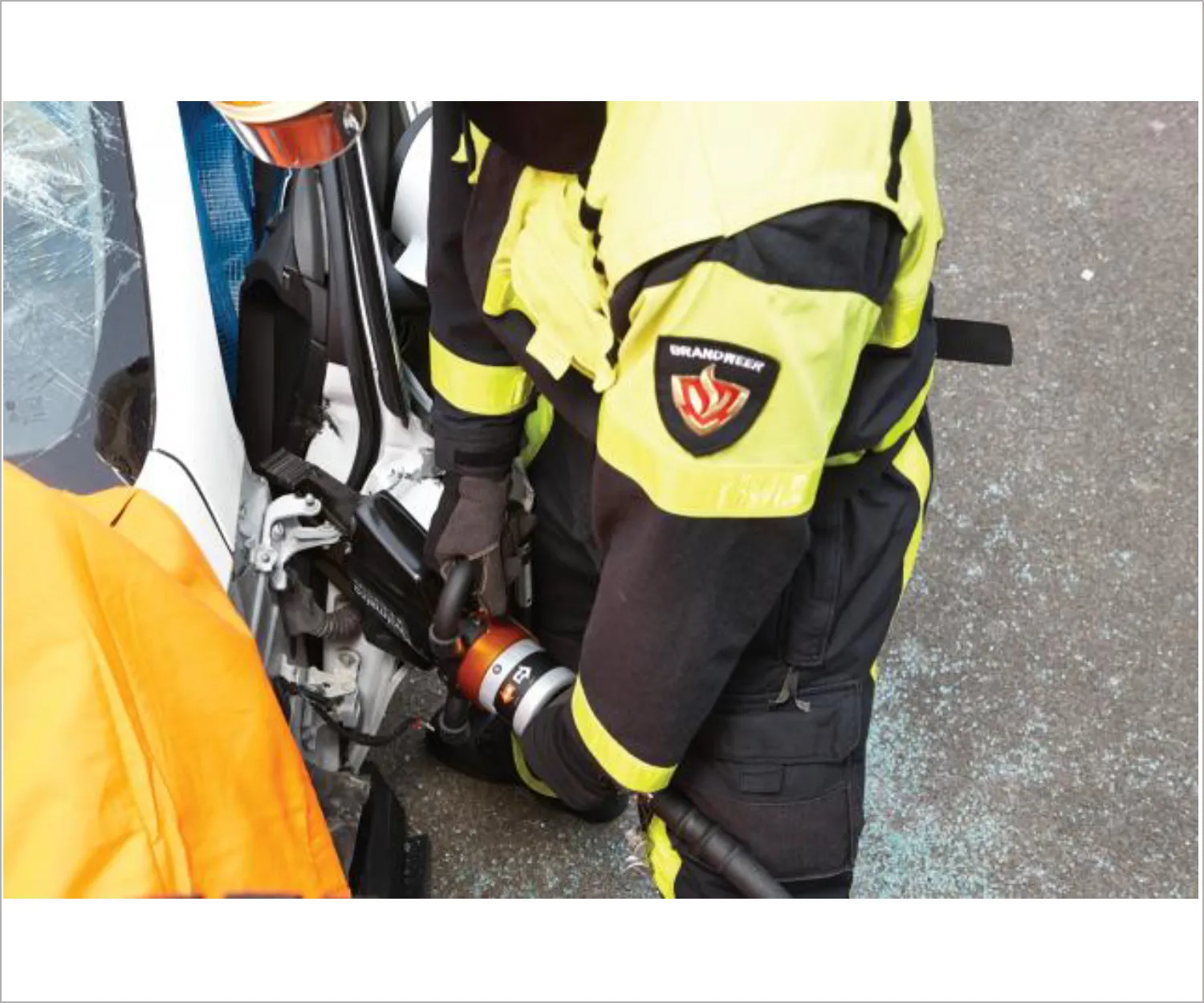

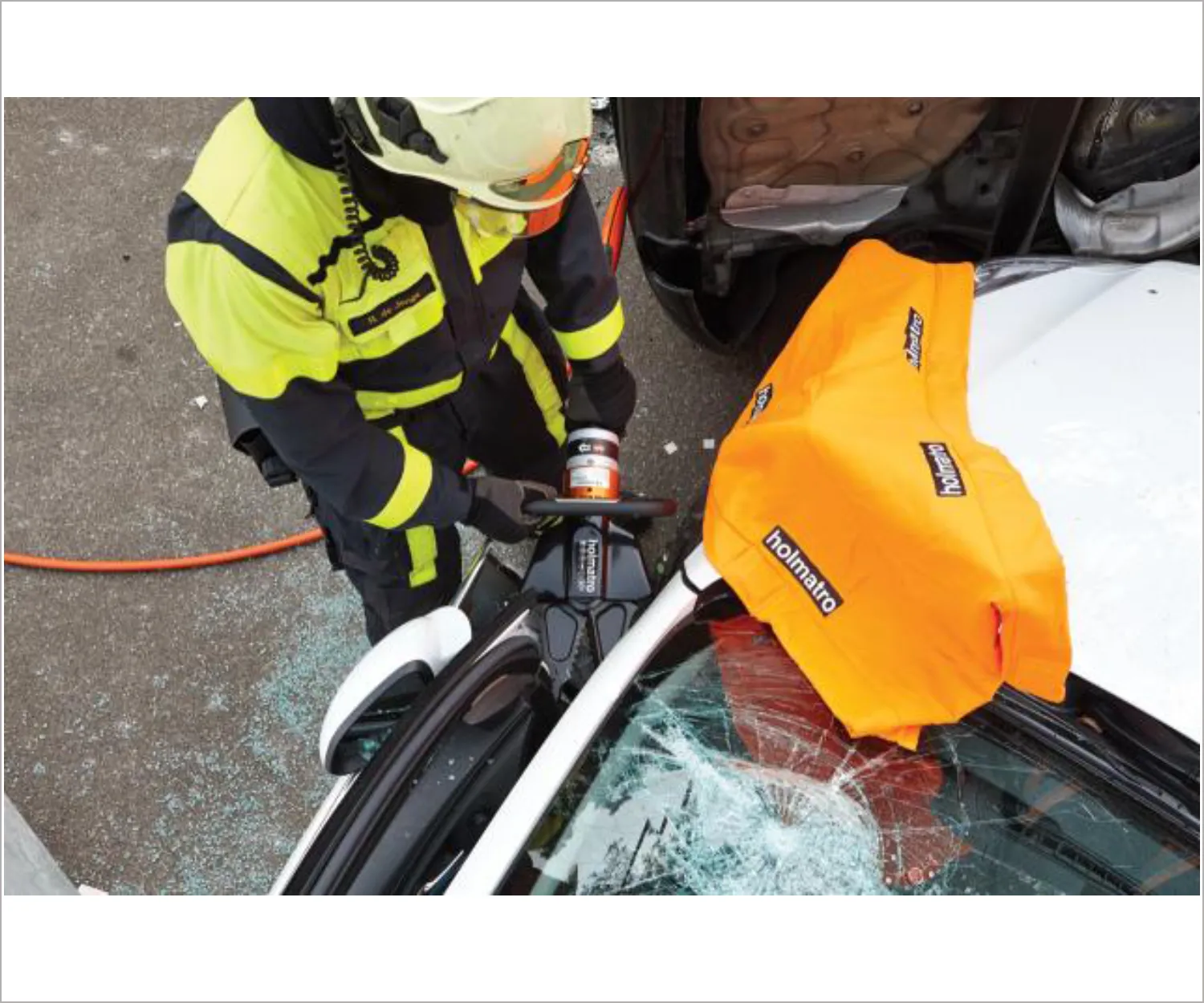

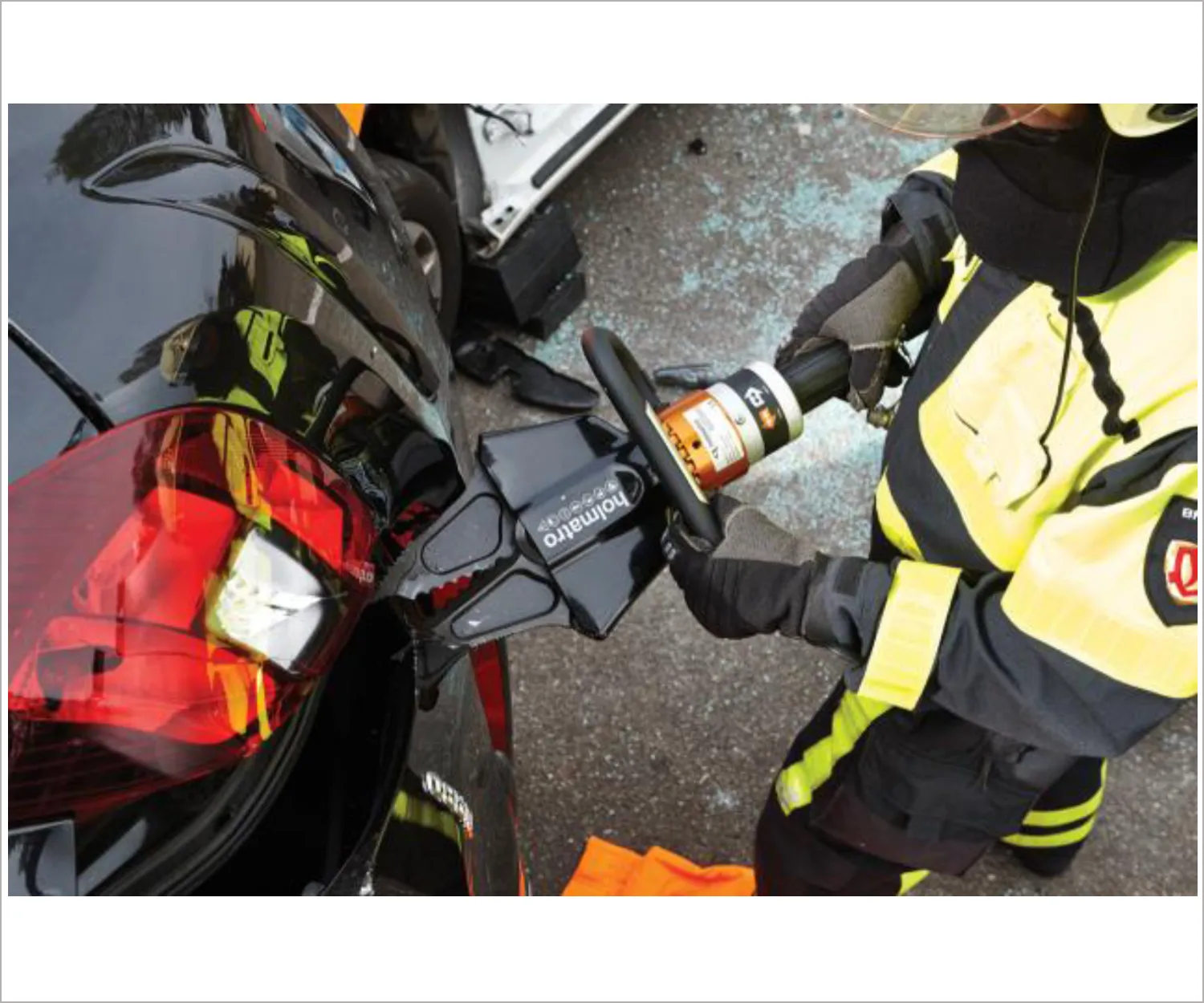

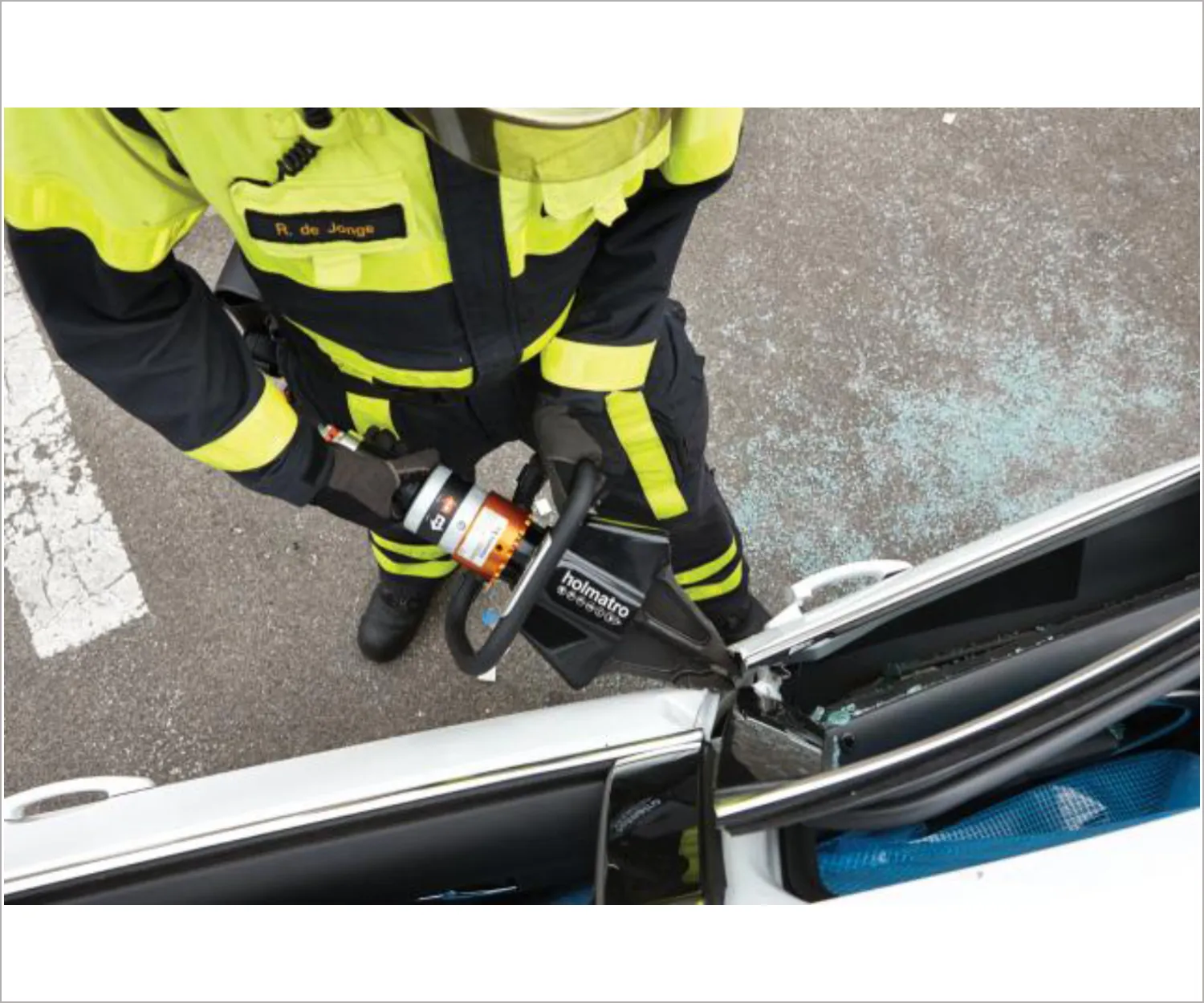

You can gain access to a modern vehicle with just one tool (tested on an Opel Insignia, avoiding the pillars)
Suitable for under water use

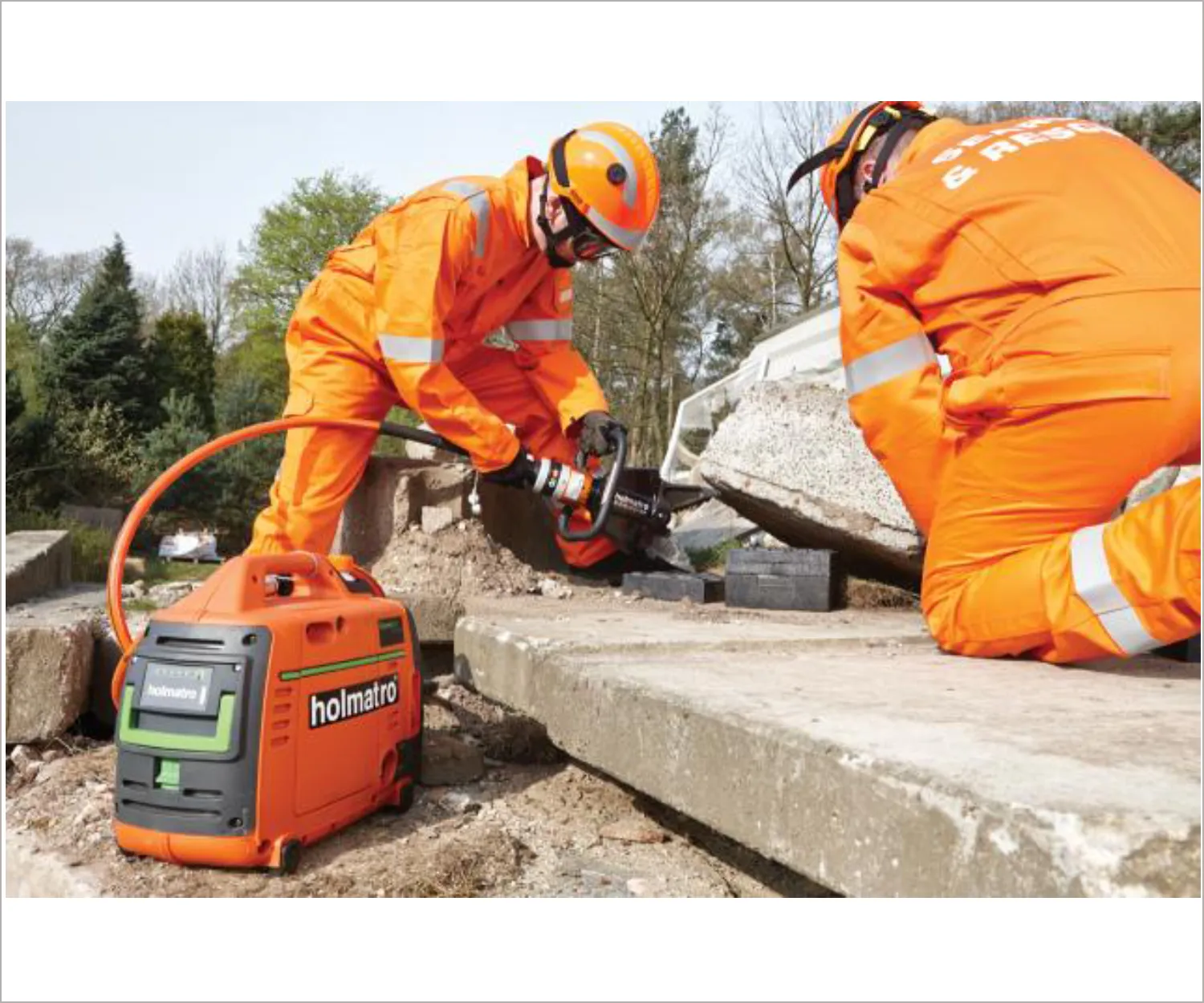

Connectable to all Holmatro pumps

The separate pump decreases the weight of the tool and increases manoeuvrability

Equipped with i-Bolt

Flat central bolt construction for better access to narrow spaces
Squeezes the blades together directly, which results in less blade separation and a better cutting performance

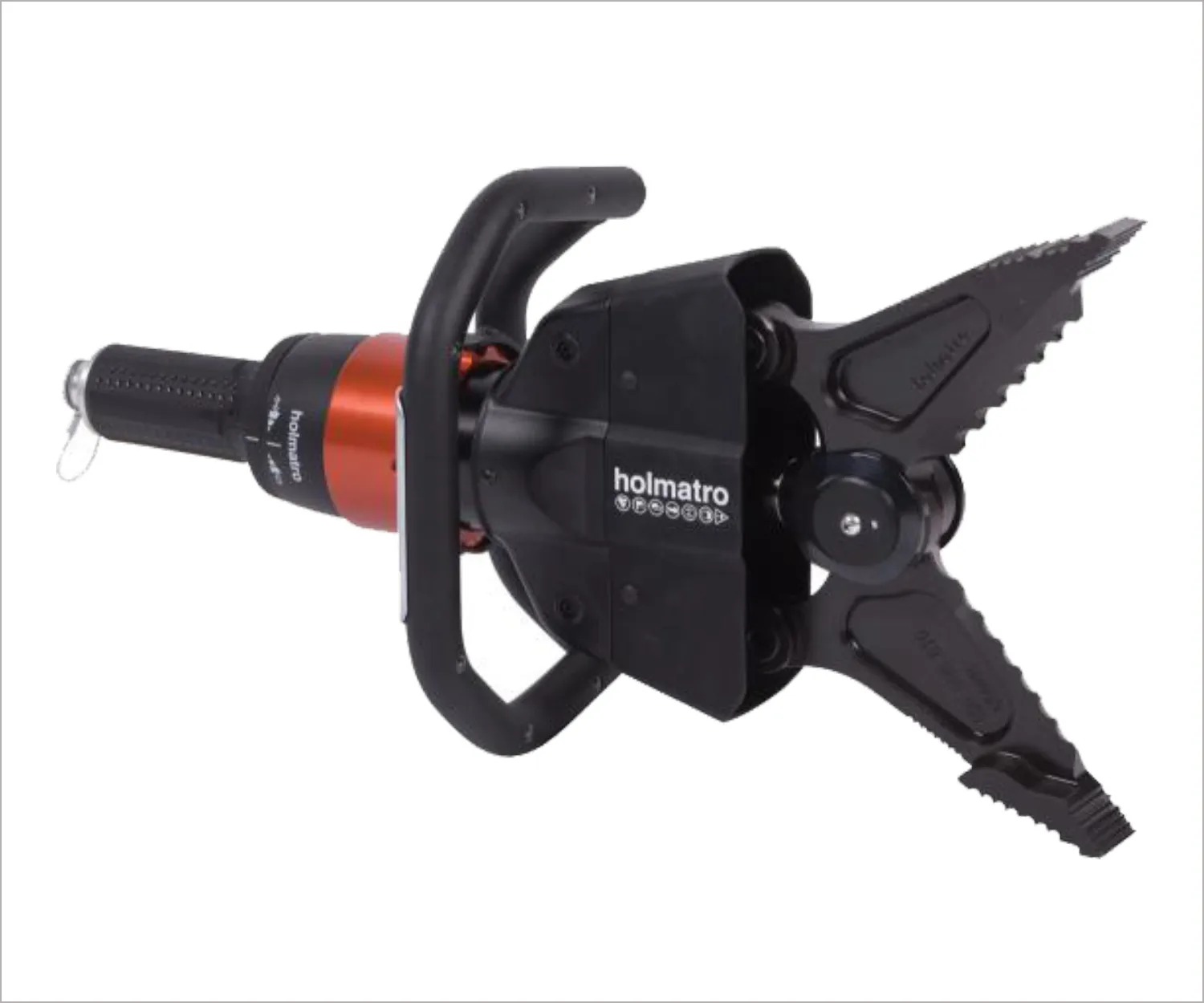

Ergonomic carrying handle with integrated LED lighting

Improved LED lighting in the carrying handle: no less than six lights with a higher light output. Rescuers can start right away, night and day, without being hindered by their own shadow.
Optimized ergonomic carrying handle design increases operator comfort in various working positions.
