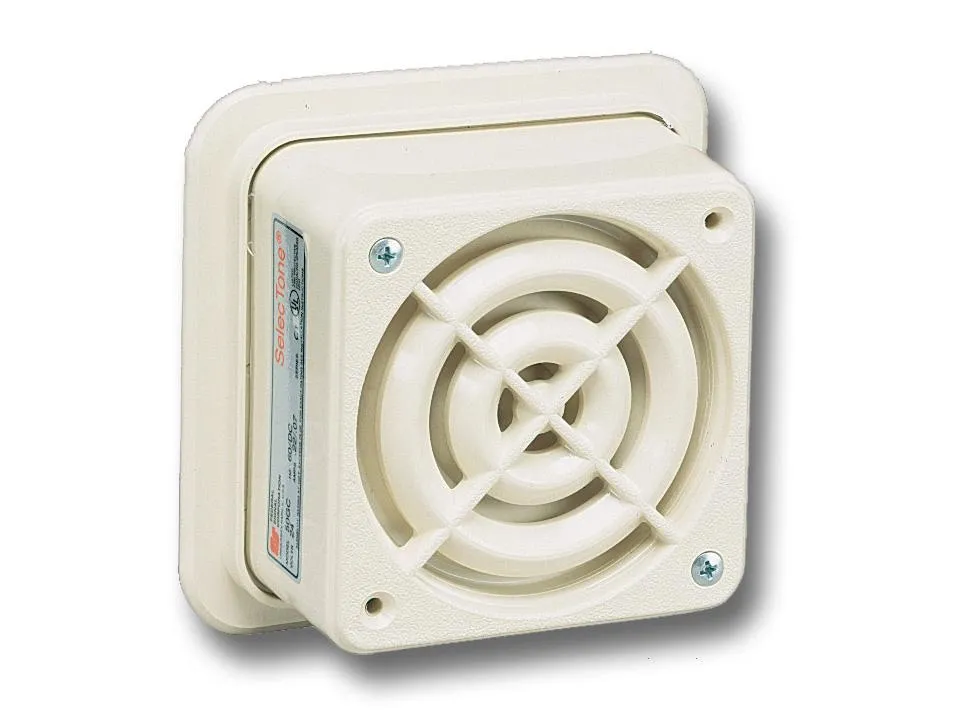

50GC SelecTone® Amplified Speaker Device

Available in 24VAC/DC and 120VAC
Solid-state circuitry
Built-in gain control, adjustable between 64 dBa to 88 dBa @ 10' (74 dBa to 98 dBa @ 1m)
Flush or surface mount
Type 3R enclosure when used with the WB back box
CSFM Approved
UL and cUL Listed

Operating Temperature Minimum	-31 °F
Operating Temperature Maximum	151 °F
Shipping Weight	2.20 lb
Net Weight	1.70 lb
Height	5.500 in
Width	5.500 in
Depth	3.180 in

Model 50GC SelecTone® Amplified Speaker is designed to produce crisp, clear tones, digital voice messages and live public address.
In Model 50GC a short, folded re-entrant horn is interposed between the diaphragm and surrounding air space. This design provides optimal dBa output and frequency response.
When installed with the WB Weatherproof Back Box, model 50GC is suitable for use outdoors.
SelecTone Amplified Speakers are used individually or as part of a plant-wide emergency notification system. Model UTM Universal Tone Module with 32 tones, or model TM33-SD Custom Tone Module is plugged into a single SelecTone Amplified Speaker for stand-alone use or into a SelecTone Command Unit for plant-wide signaling.
For plant-wide signaling, a Connector Kit is installed into each SelecTone Amplified Speaker and wired to a central controller. SelecTone Command Units and CommCenter® Digital Message Centers broadcast tones, voice messages, melodies and live public address to an unlimited number of SelecTone Amplified Speakers.
The compact size and attractive appearance of Model 50GC makes it ideal for use in offices, hallways, reception, and plant areas where ambient noise levels are not exceedingly high, and even sound dispersal is desired. Emergency signaling and paging are common applications.

PRODUCT LITERATURE

CS_50GC.pdf

PRODUCT MANUALS

IS_50GC.pdf

AGENCY CERTIFICATES

AGENCY CERTIFICATES
UL and cUL Certificate of Compliance - 50GC
CSFM Listed - 50GC

ORDERING INFORMATION
Model Types
MODEL DESCRIPTION UPC
50GC-024BG SelecTone speaker/amplifier, 24VAC/DC, 4" square, beige 782979228950
50GC-120BG SelecTone speaker/amplifier, 120VAC, 4" square, beige 782979291855

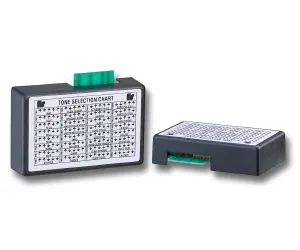

UTM Universal tone module 782979202172

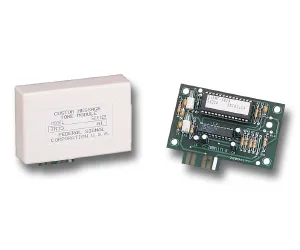

TM33-SD Tone module, custom, Series D 782979227335
AM25CK Connector card, 25vrms 782979600855
AM70CK Connector card, 70vrms 782979600862
300CK Connector kit 782979391203
T-300CK 2.7 Vrms, 1 Vrms
E-300CK 1 Vrms, 1 Vrms
Accessories
PRODUCT # DESCRIPTION UPC
WB Weatherproof back box, gray 782979224709
FG Grille, flush mount 782979223603
FBL Deep wall box for flush mount, 50GC 782979223504

MODEL	DESCRIPTION	UPC
50GC-024BG	SelecTone speaker/amplifier, 24VAC/DC, 4" square, beige	782979228950
50GC-120BG	SelecTone speaker/amplifier, 120VAC, 4" square, beige	782979291855
UTM	Universal tone module	782979202172
TM33-SD	Tone module, custom, Series D	782979227335
AM25CK	Connector card, 25vrms	782979600855
AM70CK	Connector card, 70vrms	782979600862
300CK	Connector kit	782979391203
T-300CK	2.7 Vrms, 1 Vrms
E-300CK	1 Vrms, 1 Vrms
