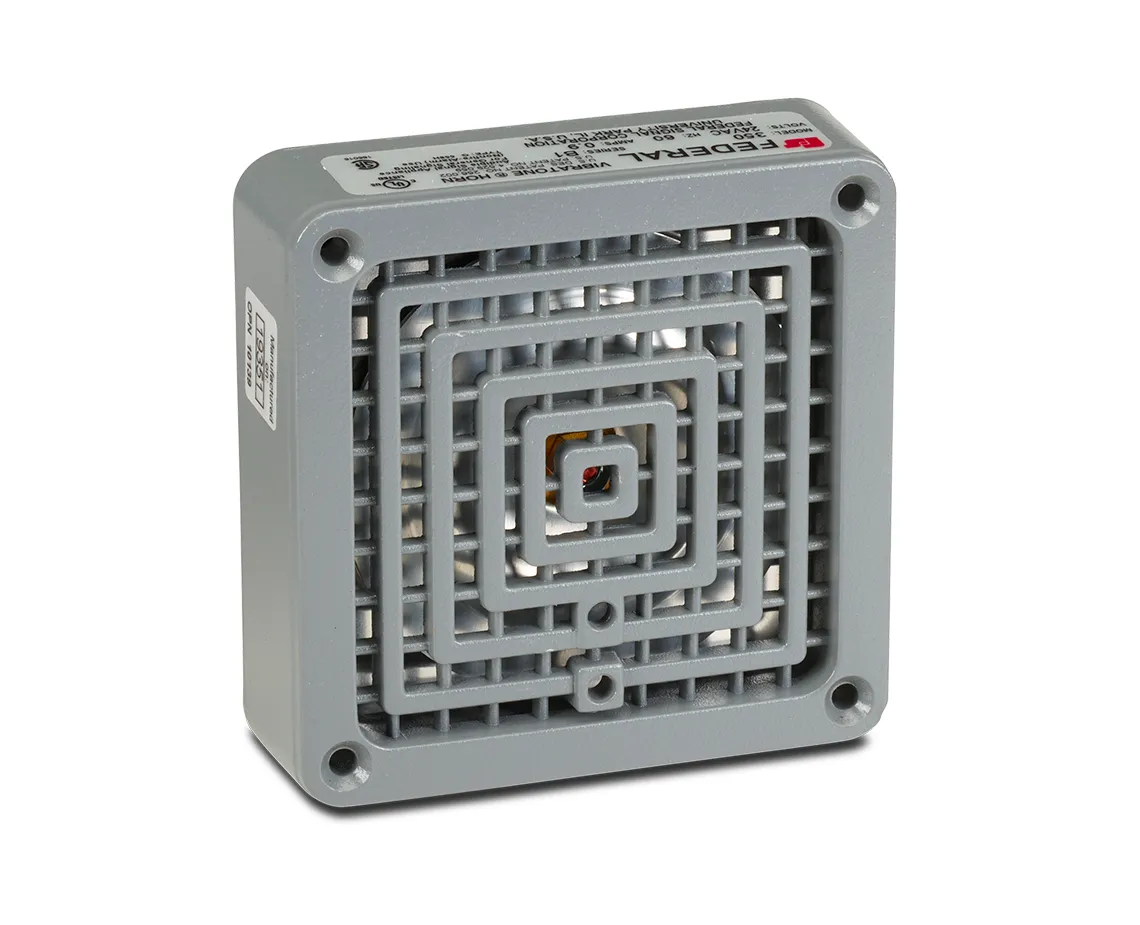

350 Vibratone® Horn

  • Available in 12VAC, 24VAC, 120VAC and 240VAC
  • Coded or sustained tones
  • Produces 100 dBa @ 10' (110 dBa @ 1m)
  • Surface or flush mounting options
  • Type 4X when installed with Panel Mount Gasket Kit; Type 4X enclosure, IP69K compliant when installed with optional Weatherproof Back Box (Model WB); Type 4X and Type 12 when installed with Surface Mount Trim Ring (Model TR)
  • CSA Certified
  • UL and cUL Listed

เส้นขอบ
โหลด2



Voltage12VAC 50/60Hz
24VAC 50/60Hz
120VAC 50/60Hz
240VAC 50/60Hz
MountPanel
Surface
4" Square Electrical Box
Operating Current0.90 Amps at 12VAC
0.90 Amps at 24VAC
0.18 Amps at 120VAC
0.09 Amps at 240VAC
Decibel Output94 Using 12VAC at 10 Feet
100 Using 24, 120 and 240VAC at 10 Feet
104 Using 12VAC at 1 Meter
110 Using 24, 120 and 240VAC at 1 Meter
Operating Temperature-65°F to 150°F (-54°C to 66°C)150 °F
Duty CycleNot rated for continuous duty.
Enclosure RatingType 4X when installed with Panel Mount Gasket Kit or Weatherproof Backbox
Enclosure RatingType 4X and Type 12 when installed with Surface Mount Trim Ring
Net Weight1.40 lb
Shipping Weight1.50 lb
