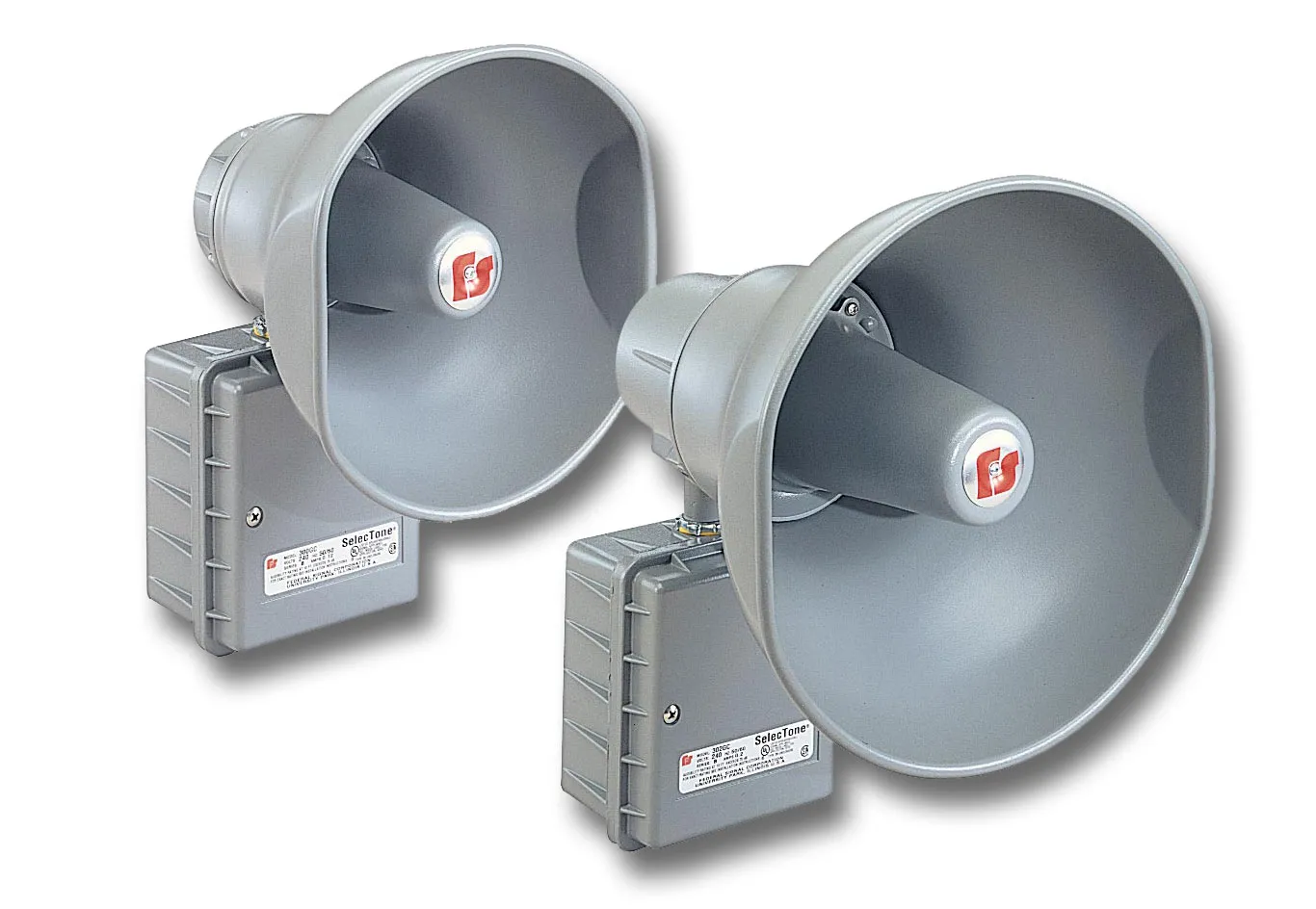

304GCX and 314GCX SelecTone® Hazardous Location Amplified Speaker

[[POS2]]

Available in 24VDC
Four wire supervisable power circuit
Capable of producing tones or voice messages
Built in gain control
Digital signal amplification
Fused input and output
Cast aluminum housing, spun aluminum projector
External mounting tabs
Indoor/outdoor use
Type 4X, IP66 enclosure
IP69K compliant
CSFM Approved
UL and cUL Listed for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; Class III
304GCX/314GCX are UL Fire Listed
304GCX-CN/314GCX-CN are ULC Fire Listed

Voltage	24VDC
Operating Temperature	-40°F to 150°F	-40 °C to 66°C
Enclosure Rating	Type 4X

	304GCX	314GCX
Operating Current	0.7 amps	1.3 amps
Standby Current	0.15 amps	0.15 amps
Decibels per UL1480	95 @ 10' (105 @ 1M)	108 @ 10' (118 @ 1M)
Decibels on Axis	108 @ 10' (118 @ 1M)	112 @ 10' (122 @ 1M)
Net Weight	4.5 lbs (2.0 kg)	6.1 lbs (2.8 ks)
Heights	12.4" (315mm)	13.9" (353mm)
Width	7.9" (201mm)	10.2" (259mm)
Depth	8.5" (216mm)	10.0" (254mm)

Models 304GCX, 314GCX, 304GCX-CN, and 314GCX-CN SelecTone® Hazardous Location Amplified Speakers are designed to produce crisp, clear tones in supervised alarm notification systems. These amplified speakers are compatible with fire alarm, voice evacuation, suppression supervised control panels and power boosters.
These amplified speakers can broadcast tones generated by a Tone Card installed into the speaker (the plug-in 32-tone UTM*) or by a central tone source in a voice evacuation or paging system. When live public address or voice messages are required, plug-in Connector Cards (AM25CK or AM70CK) interface with the audio output of the EVAC panel.
The speaker cone and projector are constructed of rugged spun aluminum. The solid-state amplifier circuit is protected in a die-cast aluminum housing. Dust and moisture-proof gaskets provide protection from the elements. All external surfaces are sealed with gray powder coat paint. These speakers are easily installed with external mounting tabs.
The rugged construction and high output of the Models 304GCX and 314GCX make it ideal for use in harsh environments with high ambient noise levels.

_{*ULC Fire Listed Models (-CN models) can only be used with a UTM tone card}

PRODUCT LITERATURE

CS_300GCX-CN_REV0220

PRODUCT MANUALS

AGENCY CERTIFICATES

PRODUCT BROCHURE

IP69K Compliant Products Video (1:33)

ORDERING INFORMATION

Model Types

MODEL	DESCRIPTION	UPC
304GCX-024	SelecTone, 24VDC, hazardous location, UL, gray	782979208389
304GCX-024-CN	SelecTone, 24VDC, hazardous location, ULC, gray	782979221418
304GCX-024-CN-R	SelecTone, 24VDC, hazardous location, ULC, red	782979233428
314GCX-024	SelecTone, 24VDC, high-power, hazardous location, UL, gray	782979208358
314GCX-024-CN	SelecTone, 24VDC, high-power, hazardous location, ULC, gray	782979221432
314GCX-024R	SelecTone, 24VDC, high-power, hazardous location, UL, red	782979226123

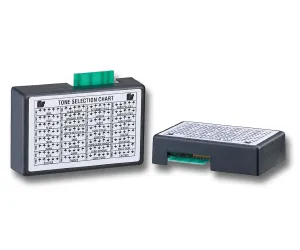

UTM	Universal tone module	782979202172

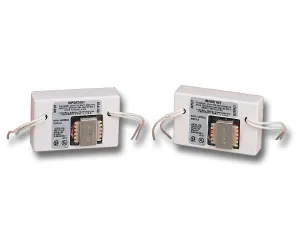

AM25CK	Connector card, 25vrms	782979600855
AM70CK	Connector card, 70vrms	782979600862

Replacement Parts

DESCRIPTION	PART NUMBER	UPC
4-Position Power Plant Board Assembly	K140340B	782979112969
15W Diaphragm, Voice Coil, Butterfly Assembly	K8593035A	782979121138
15W Speaker Assembly, Gray	K8593082A	782979122531
