HighLighter® LED

Low profile; only 2.7-inches tall and 15-inches long
Uniform 360-degree light distribution; no dark spots or shadows
Solaris® LED reflector technology for better optical efficiency and superior off-axis warning
Patented ROC (Reliable Onboard Circuitry™) technology.
Pattern selection using MagnetSelect™ (keychain not included).
Five-year warranty.

Approvals	SAE J845, Class 1
Voltage	12 VDC
Amp Draw	Max: 4 Amps (12VDC) Note: Total amp draw depends on flash pattern used
Dim. (L x W x H):	Permanent Mount - 15.3 in (38.8 cm) x 8.4 in (21.3 cm) x 2.7 in (6.6 cm)
	Magnetic Mount - 15.3 in (38.8 cm) x 8.4 in (21.3 cm) x 3.0 in (7.6 cm)
	Suction-cup Mount - 15.3 in (38.8 cm) x 8.4 in (21.3 cm) x 3.0 in (7.6 cm)
Ship Weight	Permanent Mount - 3.4 lbs (1.5 kg)
	Magnetic Mount - 4.5 lbs (2.0 kg)
	Suction-cup Mount - 6.0 lbs (2.7 kg)

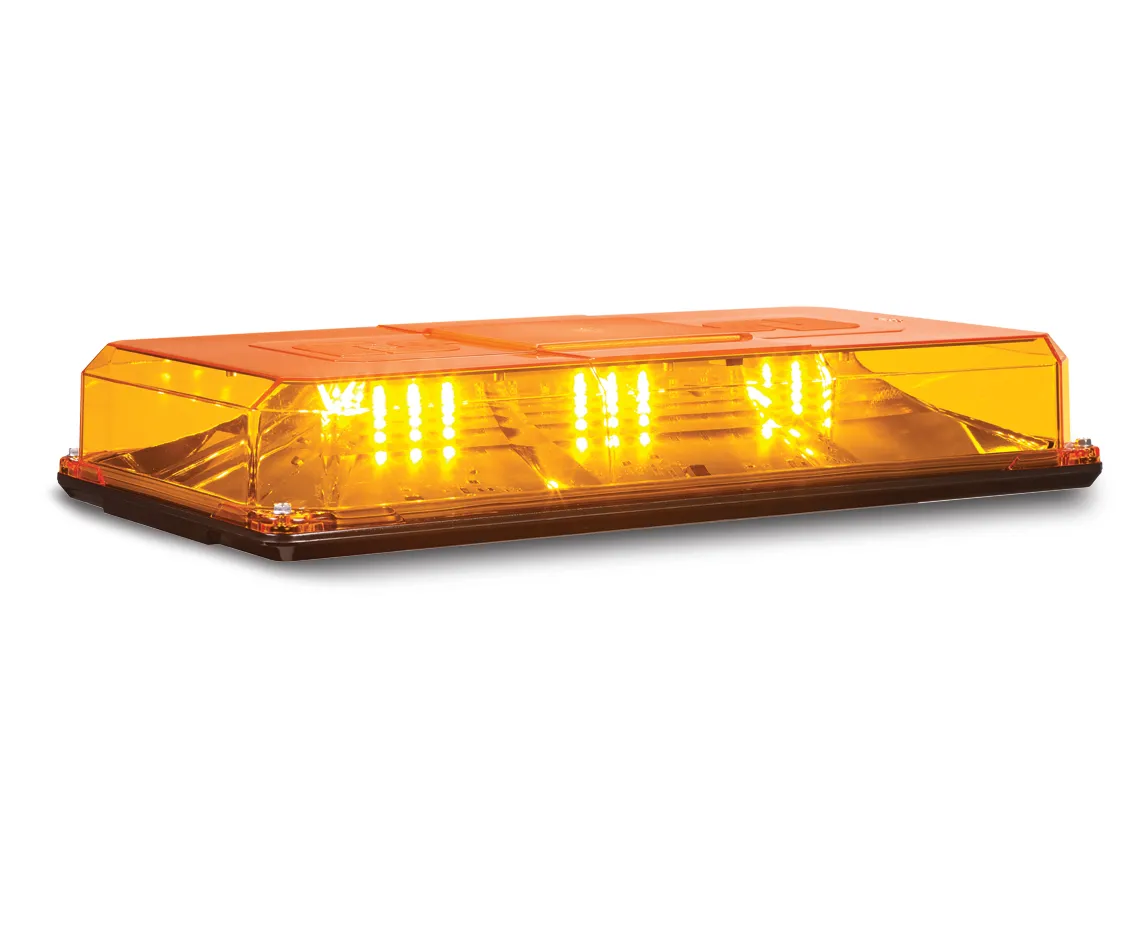

Low-profile LED mini lightbar provides 360-degree of light output

Only 2.7-inch tall (permanent mount), the HighLighter® LED mini-lightbar features Federal Signal’s patented Solaris® LED reflector technology to re-direct light for substantially improved off-axis warning. Solaris reflectors provide 360-degree of light output for work zone warning.

Advanced circuitry keeps this lightbar on the road
HighLighter LED units incorporate Federal Signal’s ROC (Reliable Onboard Circuitry™) technology, which eliminates 85% of potential failure points. The end result: Dependable and continuous visual warning with fewer repairs and a lot more time on the job.

As easy to install as they are to switch from one flash pattern to the next

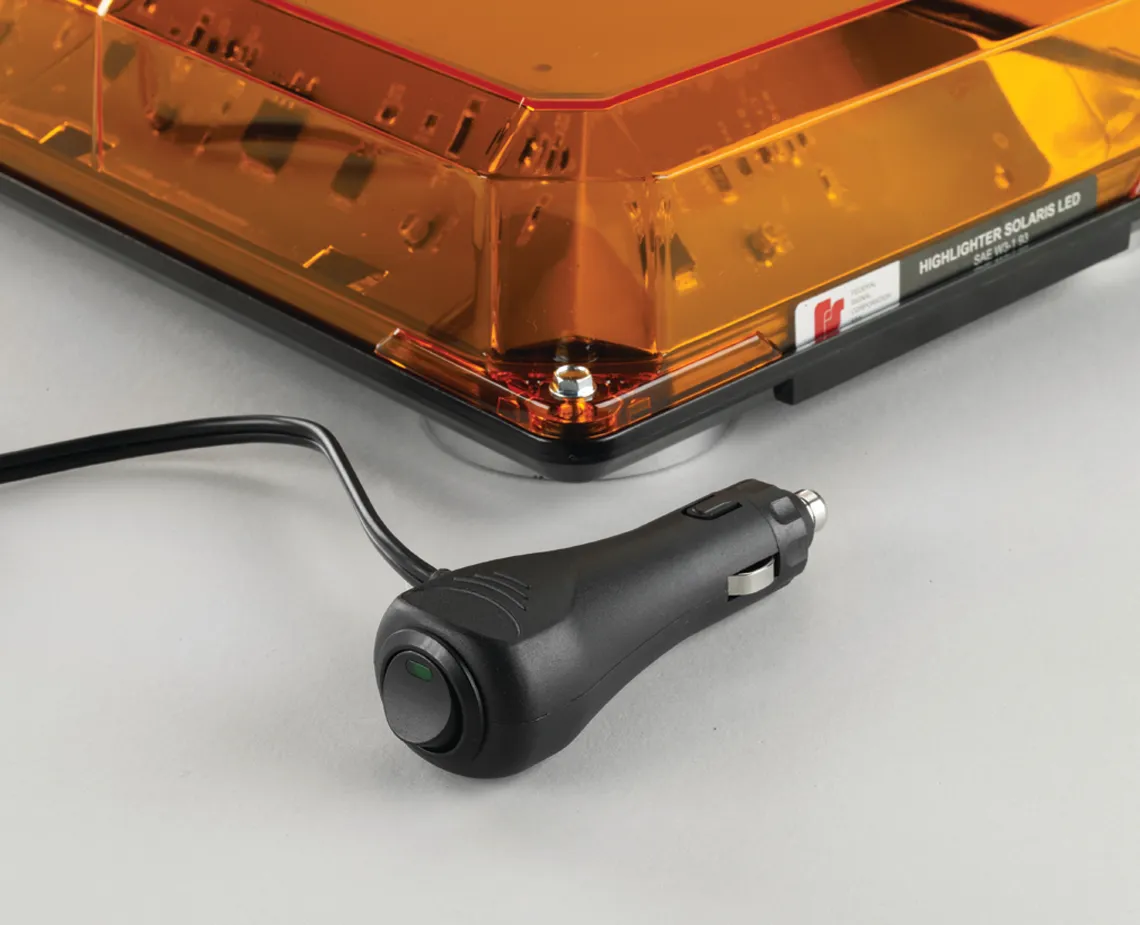

The HighLighter LED suction-cup and magnet mount models include a cigarette lighter plug and built-in ON-OFF switch that makes them simple to install and just as simple to operate. Incorporated into the top of the LED dome is Federal Signal’s innovative MagnetSelect™ feature (patent pending) that enables users to quickly, easily select from more than 19 user selectable flash patterns using a simple magnet (user provided).

Built for a variety of applications
The HighLighter LED mini-lightbar is available with Amber LEDs with a clear or amber dome. Suitable for a variety of applications—snowplows, landscaping, construction, repair and service vehicles, as well as law enforcement and fire apparatus.

PRODUCT LITERATURE
HighLighter LED Data Sheet | M1501

MARKETING UPDATES
TurboBeam product line to be discontinued I MU801
HighLighter® Halogen product line to be discontinued I MU803
Introducing the new HighLighter LED HL Series | MU552

PRODUCT MANUALS
HighLighter LED Mini-Lightbars | 25500143A

Federal Signal HighLighter LED Flash Patterns

ORDERING INFORMATION

Model Types

MODEL	DESCRIPTION
454100HL-02	Amber dome, Amber LEDs, Suction-cup magnet mount, cigarette plug, on/off switch
454100HL-25	Clear dome, Amber LEDs, Suction-cup magnet mount, cigarette plug, on/off switch
454100HL-AWA	Clear dome, Amber/White/Amber LEDs, Suction-cup magnet mount, cigarette plug, on/off switch
454101HL-02	Amber dome, Amber LEDs, Permanent mount
454101HL-03	Blue dome, Blue LEDs, Permanent mount
454101HL-04	Red dome, Red LEDs, Permanent mount
454101HL-25	Clear dome, Amber LEDs, Permanent mount
454101HL-AWA	Clear dome, Amber/White/Amber LEDs, Permanent mount
454101HL-AGA	Clear dome, Amber/Green/Amber LEDs, Permanent mount
454102HL-02	Amber dome, Amber LEDs, Magnet mount, cigarette plug, on/off switch
454102HL-25	Clear dome, Amber LEDs, Magnet mount, cigarette plug, on/off switch

Accessories

PRODUCT #	DESCRIPTION
SW2	Switch control

Replacement Parts

DESCRIPTION	PART NUMBER
LED HL MAGNET SELECT WAND	Z8560109A
KIT, BASE, LED HL	Z124161A
DOME,LED HIGHLIGHTER-A	Z8560095B-02
DOME,LED HIGHLIGHTER-B	Z8560095B-03
DOME,LED HIGHLIGHTER-R	Z8560095B-04
DOME,LED HIGHLIGHTER-C	Z8560095B-05
